Product code: 4P-698-960F-15G-65H14V

4-Port, Panel Sector Antenna, 65° HBW, 698-960/698-960 MHz, 15/15 dBi, 2-14°T, 1.497 m

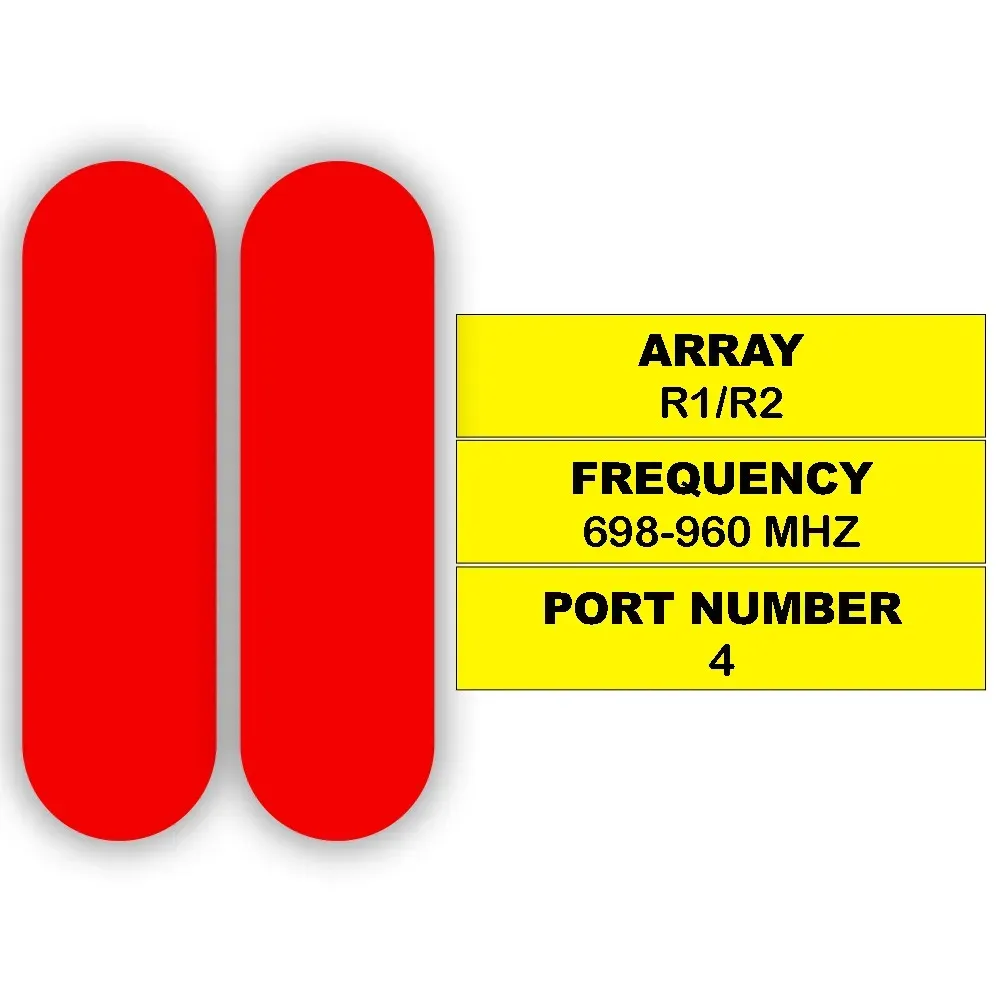

4-Port Antenna R1 R2
Frequency Range 698-960 MHz 698-960 MHz
HBW 65° 65°
Gain 15 dBi 15 dBi
Tilt 2-14° 2-14°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-698-960F-15G-65H14V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
MHz698-960
Frequency RangeMHz698-806790-894880-960
Polarization—±45°
at Mid TiltdBi13.814.414.8
GainOver All TiltsdBi13.7 ± 0.614.3 ± 0.614.6 ± 0.6
Horizontal Beamwidthdegree66 ± 6.063 ± 6.059 ± 6.0
Vertical Beamwidthdegree14.5 ± 1.513.2 ± 1.312.0 ± 1.2
Electrical Downtilt, Continuously AdjustabledegreeFeb-14
First Upper Side Lobe SuppressiondB> 15> 15> 15
Front-To-Back Ratio ±30°dB> 23> 24> 24
Cross Polarat BoresightdB> 17> 17> 17
DiscriminationOver SectordB> 8> 8> 8
Cross-PolardB> 25
Port-to-PortdB> 25
IsolationIntrabanddB> 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

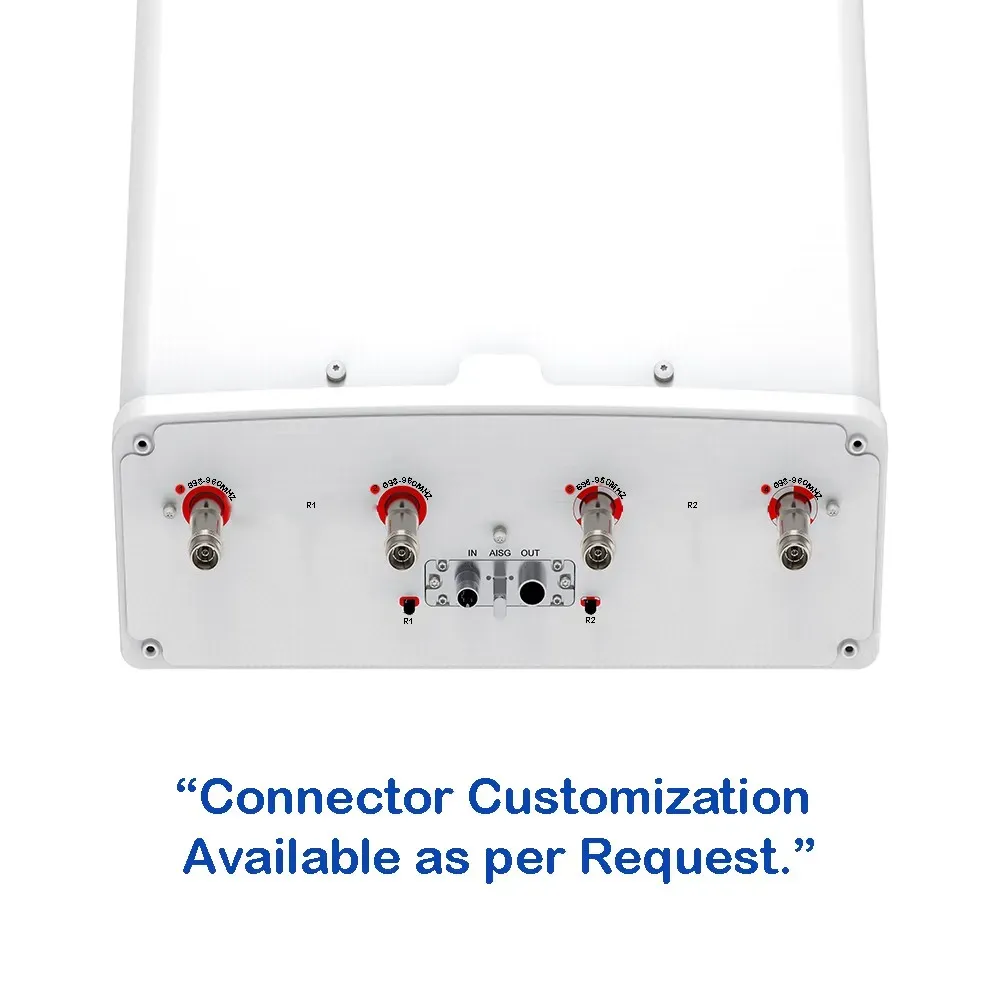

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1497 x 467 x 167 (58.9 x 18.4 x 6.6)
Antenna WeightAntenna Onlykg (lbs)20 (44.1)
Antenna with Clampskg (lbs)25.5 (56.2)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)645 (145.0)
at 150 km/hRearN (lbf)720 (161.9)
LateralN (lbf)285 (64.1)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
