Product code: 4P-617-806F-13G-90H15V

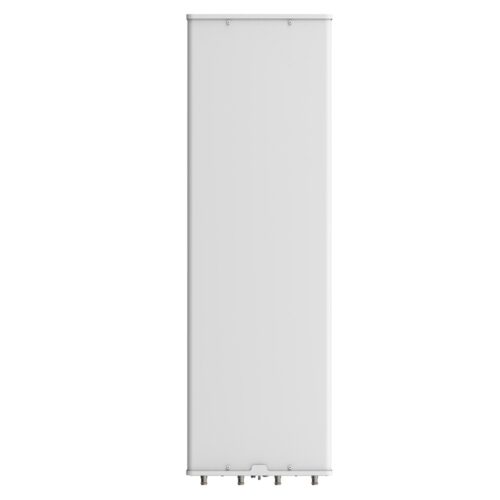

4-Port, Panel Sector Antenna, 90° HBW, 617-806/617-806 MHz, 13/13 dBi, 2-14°T, 1.827 m

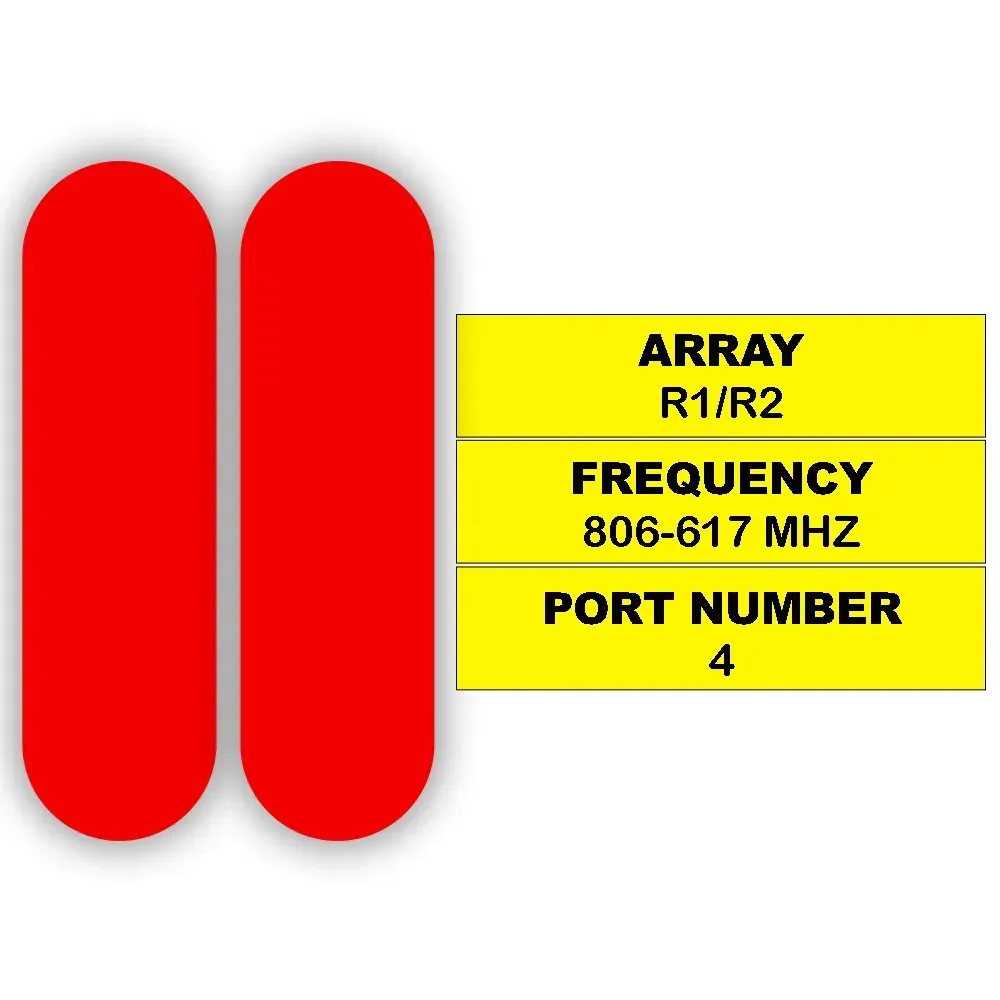

| 4-Port Antenna | R1 | R2 |
| Frequency Range | 617-806 MHz | 617-806 MHz |
| HBW | 90° | 90° |
| Gain | 13 dBi | 13 dBi |
| Tilt | 2-14° | 2-14° |
| Connectors (other connectors by request) | (2x) 4.3/10 Female | (2x) 4.3/10 Female |
Product Part Number
4P-617-806F-13G-90H15V
Electrical & Mechanical Specification
| Electrical Specifications | |||||
|---|---|---|---|---|---|
| R1 / R2 | |||||
| Frequency Range | MHz | 617-806 | |||
| MHz | 617-698 | 698-806 | |||
| Polarization | — | ±45° | |||
| Gain | at Mid Tilt | dBi | 12.5 | 13 | |
| Over All Tilts | dBi | 12.3 ± 0.5 | 12.8 ± 0.5 | ||
| Horizontal Beamwidth | degree | 86 ± 4.4 | 80 ± 4.4 | ||
| Vertical Beamwidth | degree | 14 ± 1.1 | 12.1 ± 0.9 | ||
| Electrical Downtilt, Continuously Adjustable | degree | Feb-14 | |||
| Tilt Accuracy | degree | < 1 | < 1 | ||
| Upper Side Lobe | First Upper Lobe | dB | > 15 | > 15 | |
| Suppression | Peak to 20° | dB | > 15 | > 15 | |
| Front-To-Back Ratio ±30° | dB | > 19 | > 20 | ||
| Cross Polar | at Boresight | dB | > 16 | > 18 | |
| Discrimination | Over Sector | dB | > 8.0 | > 8.0 | |
| Isolation | Cross-Polar | dB | > 26 | ||
| Port-To-Port | dB | > 28 | |||
| Impedance | Ohm | 50 | |||
| VSWR | — | < 1.5 | |||
| Return Loss | dB | > 14 | |||
| PIM3 (2×43 dBm Carrier) | dBc | < -153 | |||
| Lightning Protection | — | DC Ground | |||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | |||
| Integrated RET Specifications | |||||
| Protocols | Compliant to AISG v2.0 and 3GPP | ||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||
| Power | Standby | < 2 W | |||
| Consumption | In Motion | < 10 W | |||
| Connectors | 2 x 8 Pin Circle Connector | ||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | |||||
| Hardware Interfaces | RS485 and Power | ||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||
| Adjustment Cycles | > 20,000 | ||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | |||||
| Remote Control | Can manage from OMC, BTS/Node B | ||||
| Daisy Chaining Method | Ready for daisy-chaining | ||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||
| Housing Material / Color | Aluminum / Grey | ||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||
| Humidity | Up to 95% | ||||
| IP Rating | IP65 | ||||
| Weight | ≤ 500 g | ||||
| Mechanical Specifications | |||||

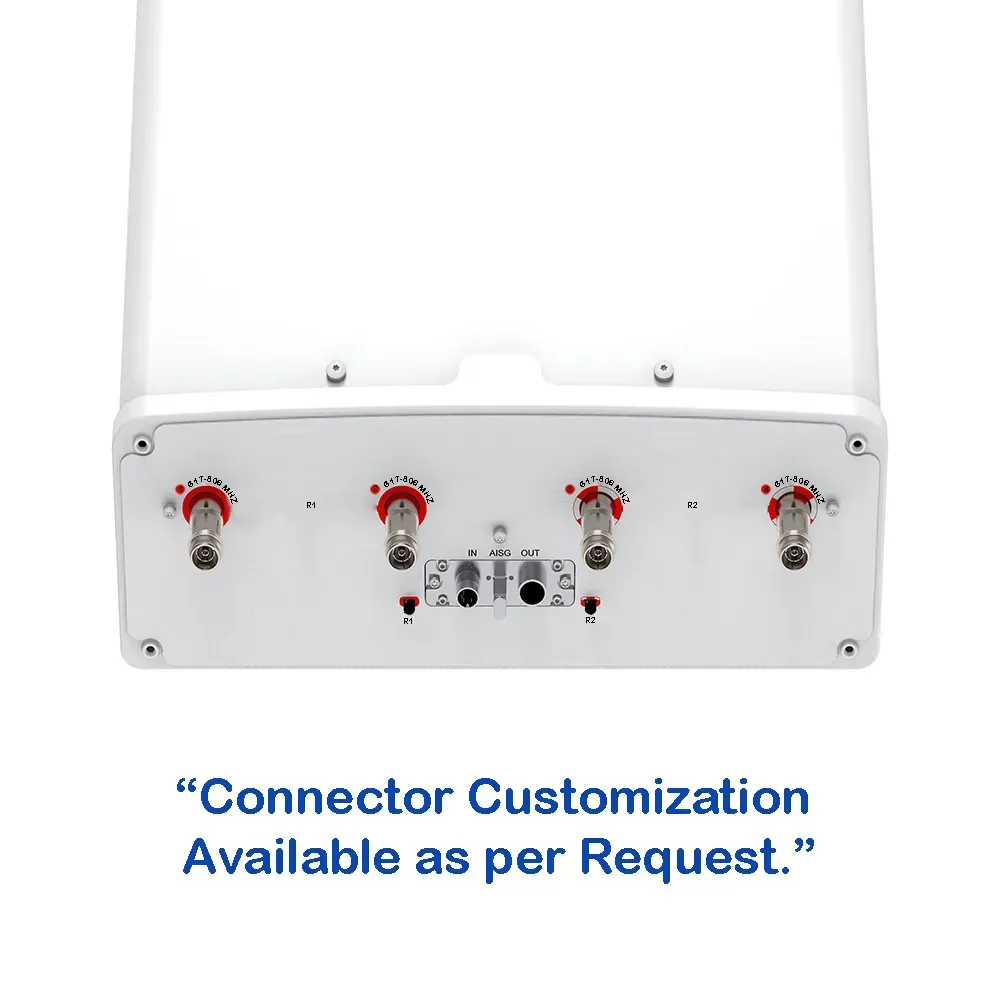

| Connector Type | — | (4x) 4.3/10 Female | |||
| Connector Position | — | Bottom | |||
| Electrical Tilt Control | — | Integrated RET | |||
| Radome Material | — | Fiberglass | |||

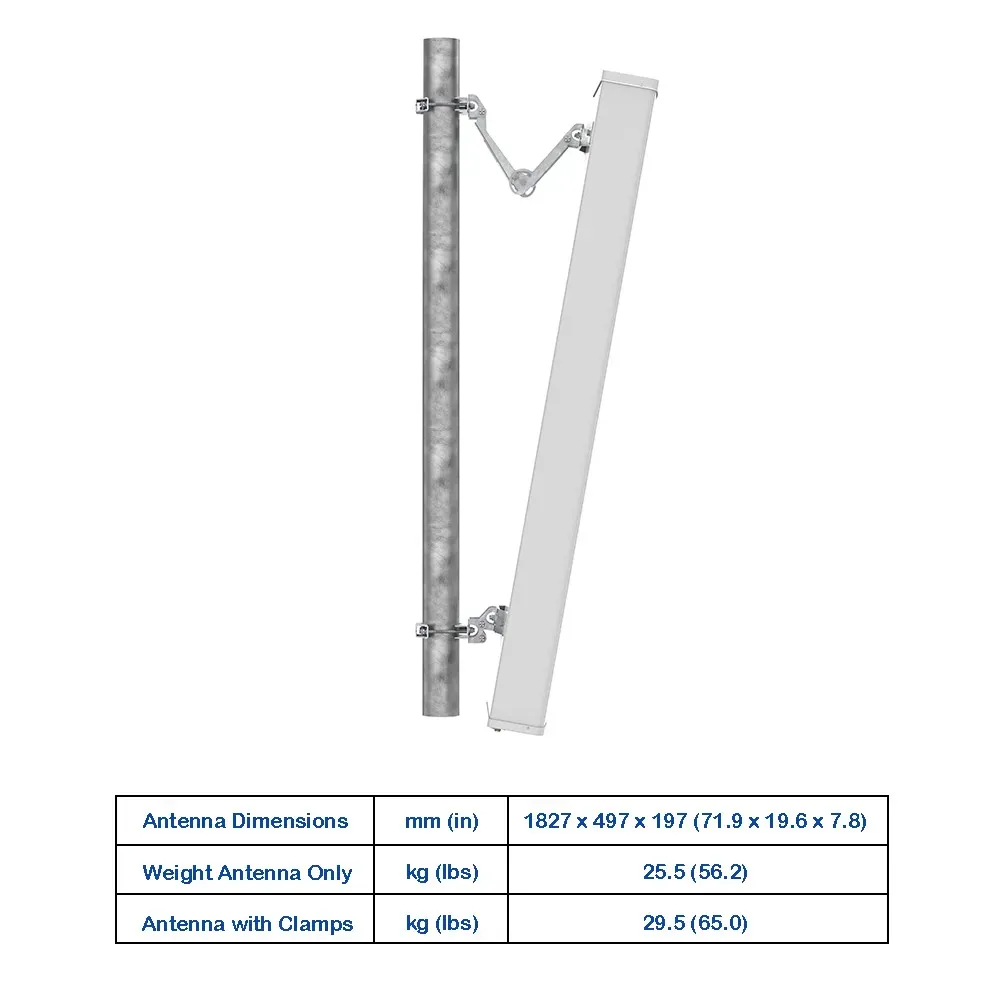

| Antenna Dimensions (H x W x D) | mm (in) | 1827 x 497 x 197 (71.9 x 19.6 x 7.8) | |||
| Antenna Weight | Antenna Only | kg (lbs) | 25.5 (56.2) | ||
| with Clamps | kg (lbs) | 29.5 (65.0) | |||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||
| Wind Load | Frontal | N (lbf) | 840 (188.8) | ||
| at 150 km/h | Rear | N (lbf) | 940 (211.3) | ||
| Lateral | N (lbf) | 410 (92.2) | |||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | |||
