Product code: 4P-1710-2690F-19G-35H9V

4-Port, Panel Split Beam Antenna, 35° HBW, 1710-2690/1710-2690 MHz, 19/19 dBi, 2-12°T, 0.997 m

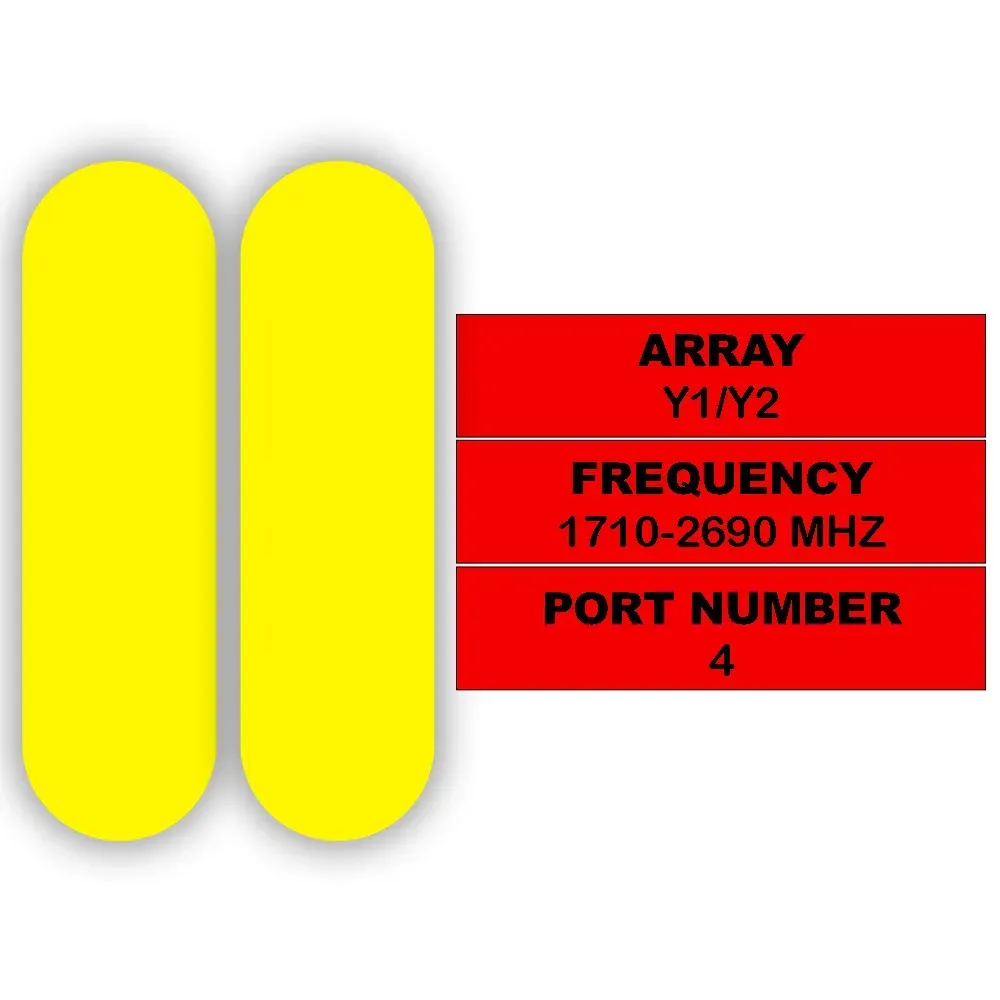

4-Port Antenna Y1 Y2
Frequency Range 1710-2690 MHz 1710-2690 MHz
HBW 35° 35°
Gain 19 dBi 19 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-1710-2690F-19G-35H9V
Electrical & Mechanical Specification
Electrical Specifications
Y1 / Y2
MHz1710-2690
Frequency RangeMHz1710-18801850-19901920-21702300-24002490-2690
Polarization—±45°
at Mid TiltdBi17.517.918.218.818.6
GainOver All TiltsdBi17.4 ± 0.617.8 ± 0.618.1 ± 0.618.7 ± 0.618.5 ± 0.6
Horizontal Beamwidthdegree40 ± 338 ± 336 ± 333 ± 330 ± 3
Azimuth Beam PointingdegreeY1: +30 ± 3; Y2: -30 ± 3
Vertical Beamwidthdegree10.0 ± 1.09.3 ± 0.98.8 ± 0.97.2 ± 0.76.9 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 16> 16> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 24> 24> 25> 25> 25
Cross Polar Discrimination at BoresightdB> 15> 15> 15> 15> 15
Cross-Polar (Same Beam)dB≥ 25
Beam-to-BeamdB≥ 25
IsolationInterbanddB≥ 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

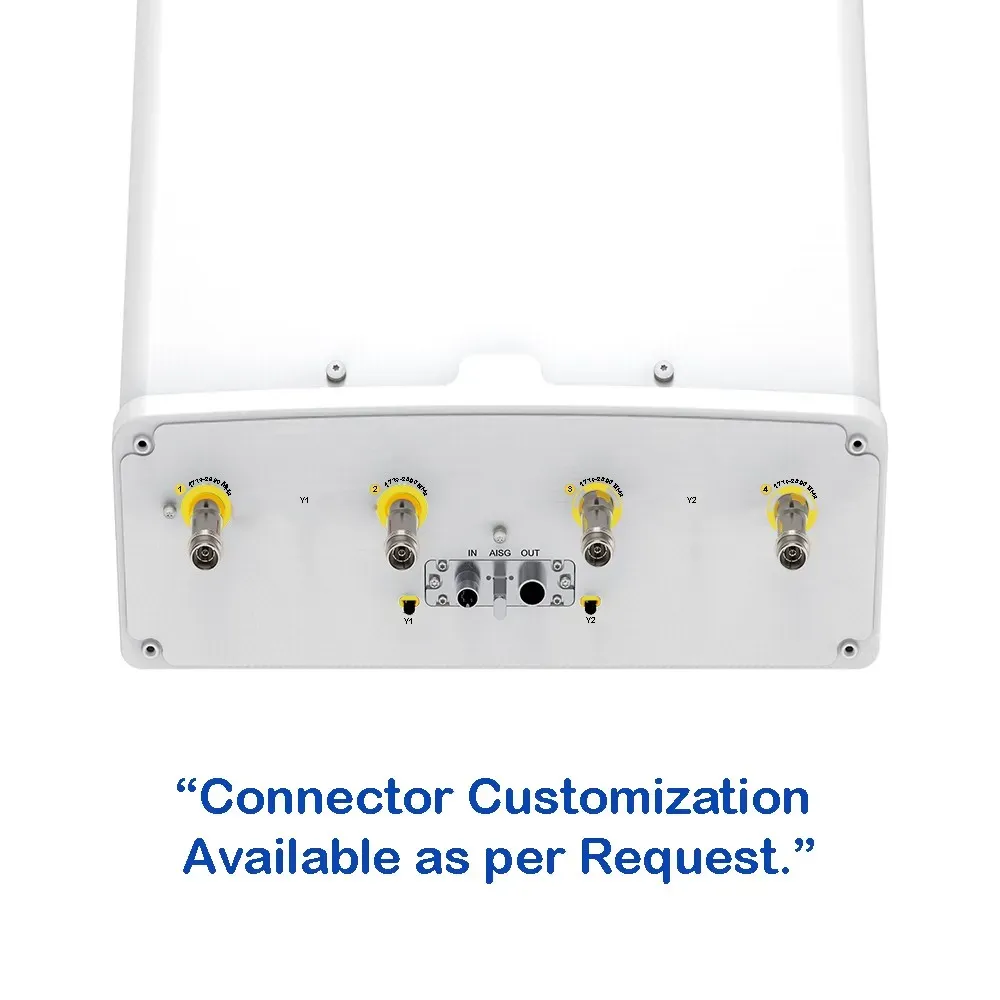

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

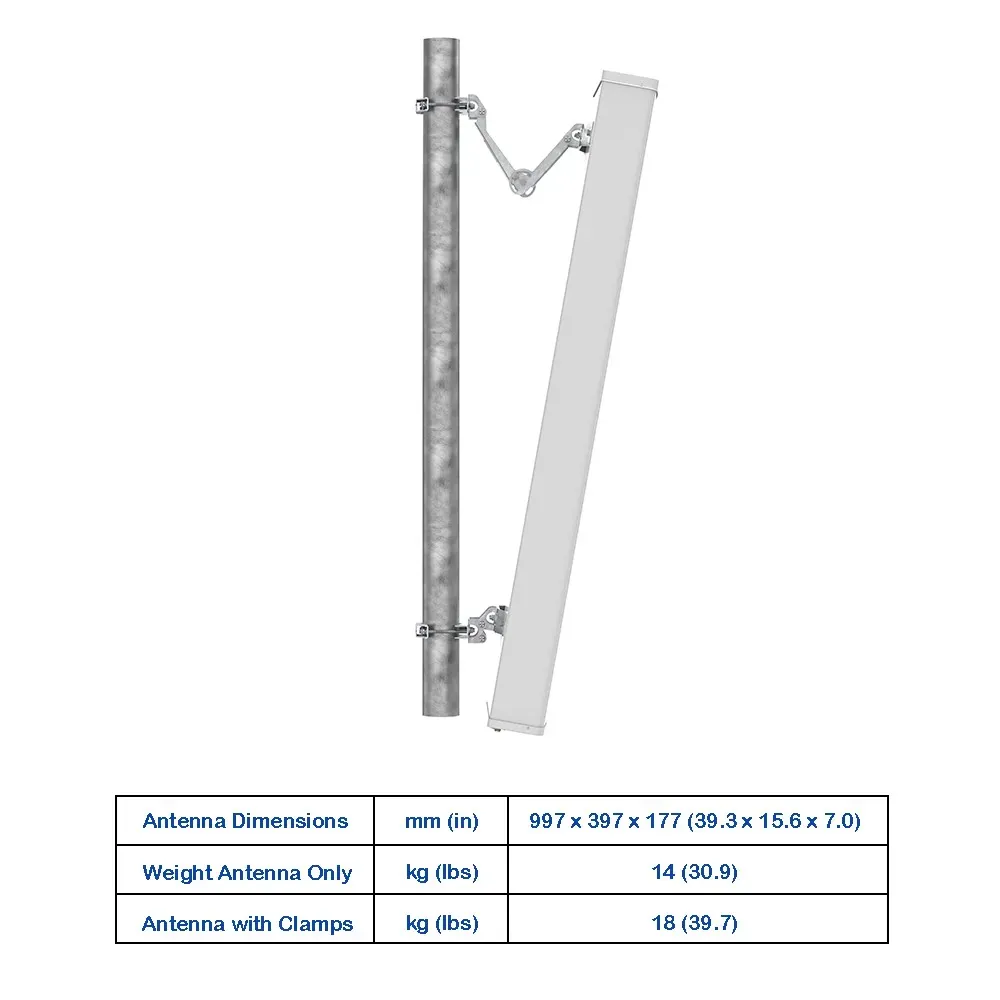

Antenna Dimensions (H x W x D)mm (in)997 x 397 x 177 (39.3 x 15.6 x 7.0)
Antenna WeightAntenna Onlykg (lbs)14 (30.9)
with Clampskg (lbs)18 (39.7)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)365 (82.1)
at 150 km/hRearN (lbf)410 (92.2)
LateralN (lbf)205 (46.1)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
