Product code: MT-DTA175

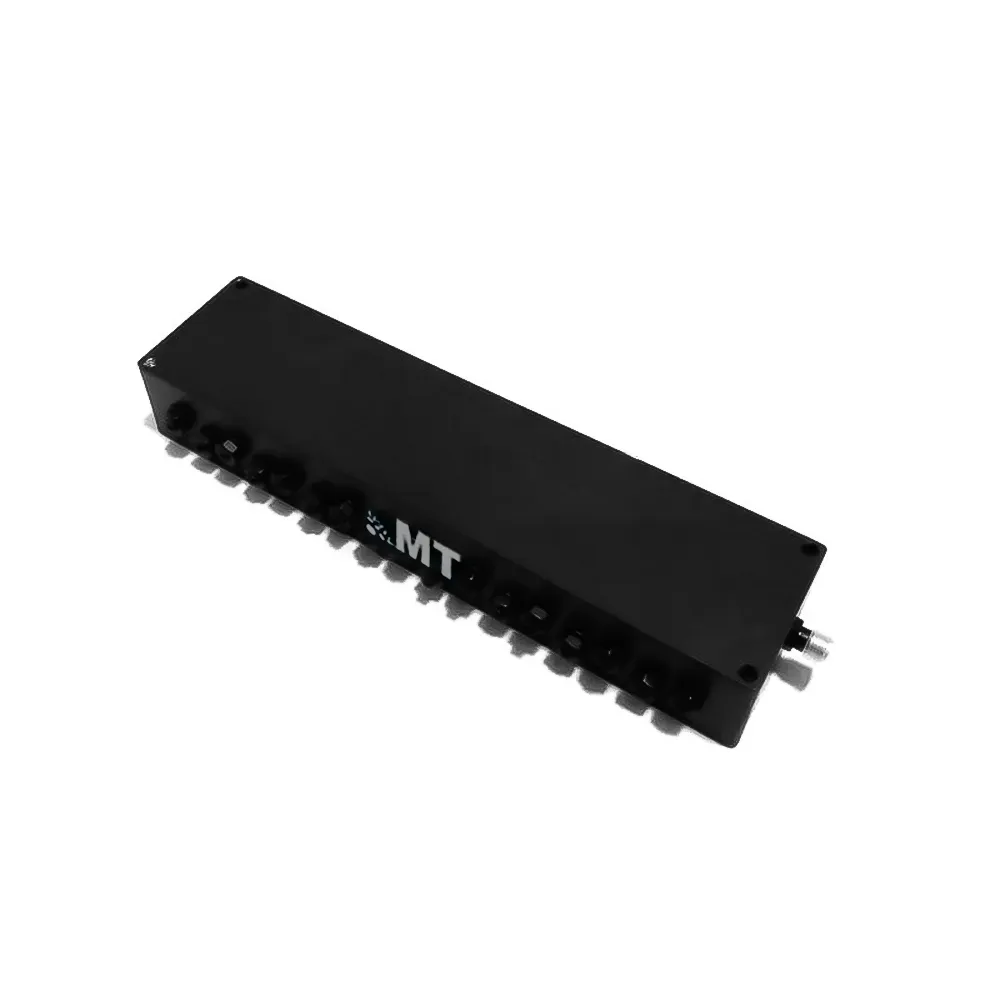

405-425MHz Cavity Band Pass Filter
- P/N：MT-DTA175
- Frequency:405-425MHz
- Stop Band Rejection：≥50dB
- Connectors：SMA-Female
Product Part Number
MT-DTA175
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 415MHz |
| 2 | Pass Band Frequency | 405 ~ 425MHz |
| 3 | Pass Band Insertion Loss | ≤1.0dB |
| 4 | Pass Band VSWR | ≤1.3:1 |
| 5 | Stop Band Rejection | ≥50dB @ Fc±20MHz (DC ~ 385MHz , 445 ~ 800MHz) |
| 6 | Impedance | 50 Ohms |
| 7 | Power | 20W Max. |
| 8 | Connectors | SMA-Female |
| 9 | Surface Finish | Painted Black |
| 10 | Temperature Range | -30℃ ~ +70℃ |
| 11 | Material | Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |

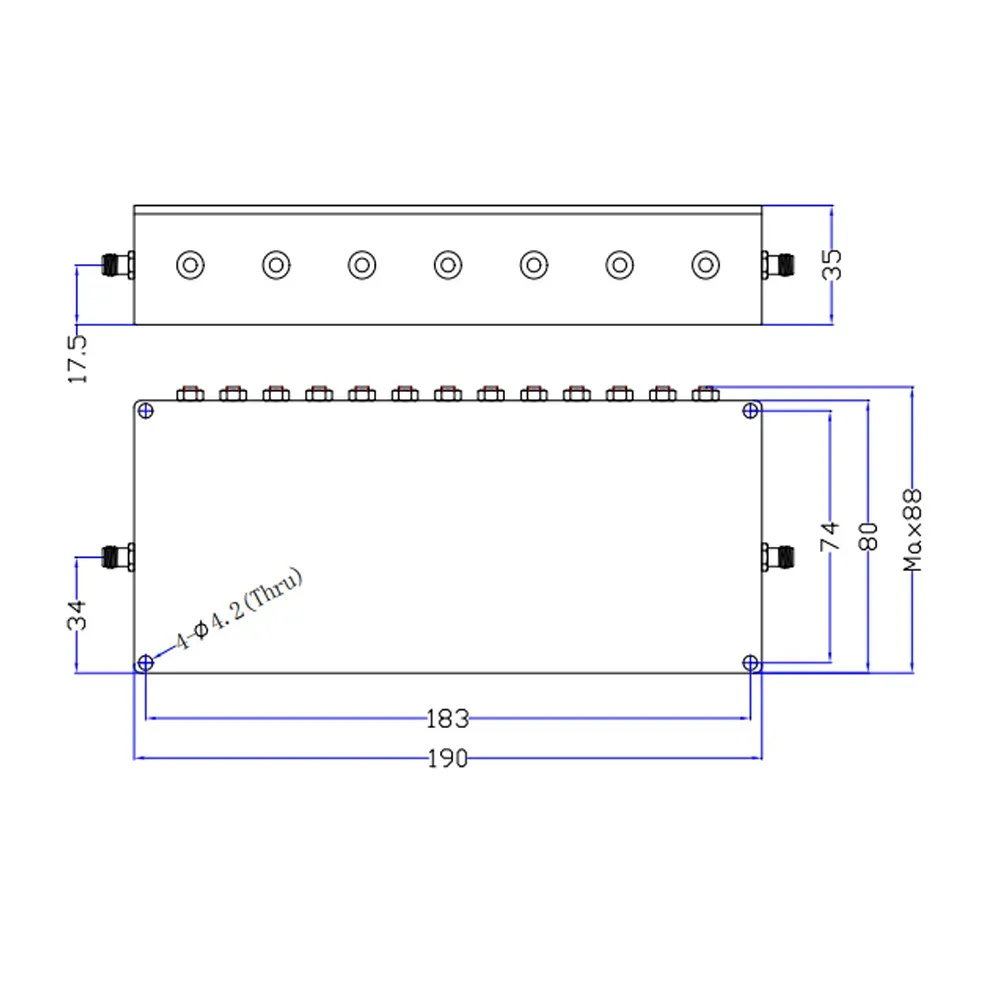

| 12 | Dimensions | 190*80*35mm |
| 13 | Net weight | TBD |
