Product code: MT-4143M03-NF

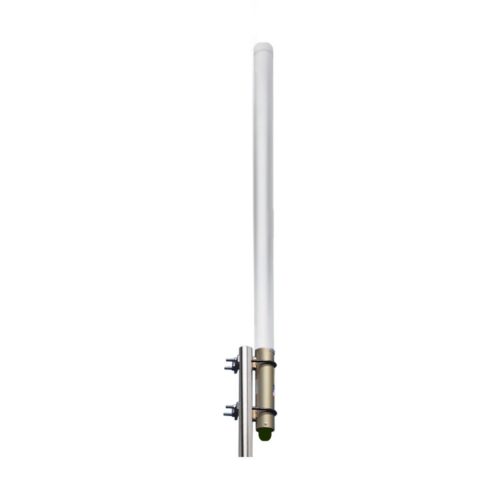

410 MHz to 423 MHz 3dBi Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-4143M03-NF
Dimension 524x70x50mm
Weight 375g
Connector N-Female
Beam-width Horz.360 deg Vert.66 deg



WhatsApp Chat
Skype
Product Part Number
MT-4143M03-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range410 to 423MHz
V.S.W. R405-435MHz (≤ 2.0:1)
410-423 MHZ (≤ 1.7:1)
Antenna TypeDipole
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power100 Watts
Vertical Beam-width67 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female

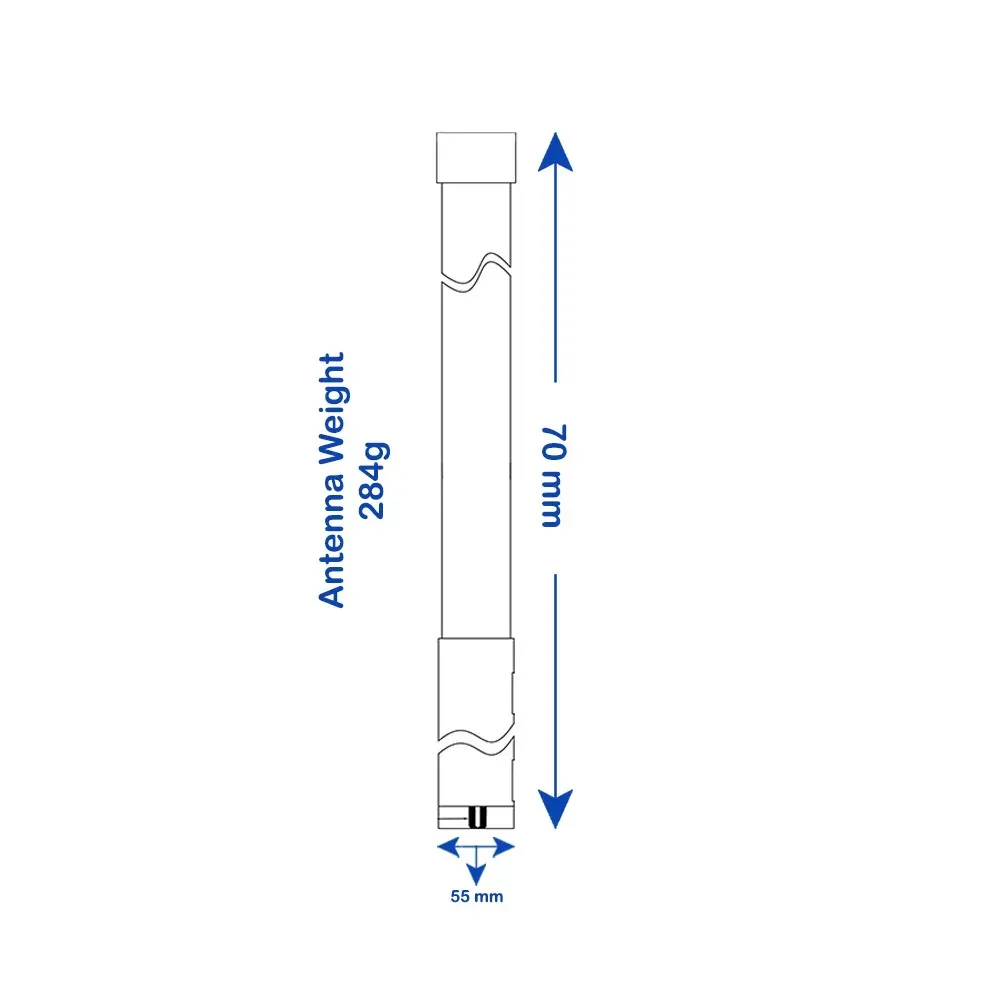

Mechanical
Length 524mm+/-5mm
Diameter70 x 50 mm
Antenna Weight284 g
Accessories 70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum
Mount StylePole Mount / Wall Mount
MountingU type Stainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherWEEE. CE, FCC, RoHS
