Product code: MT-430433M06-NF

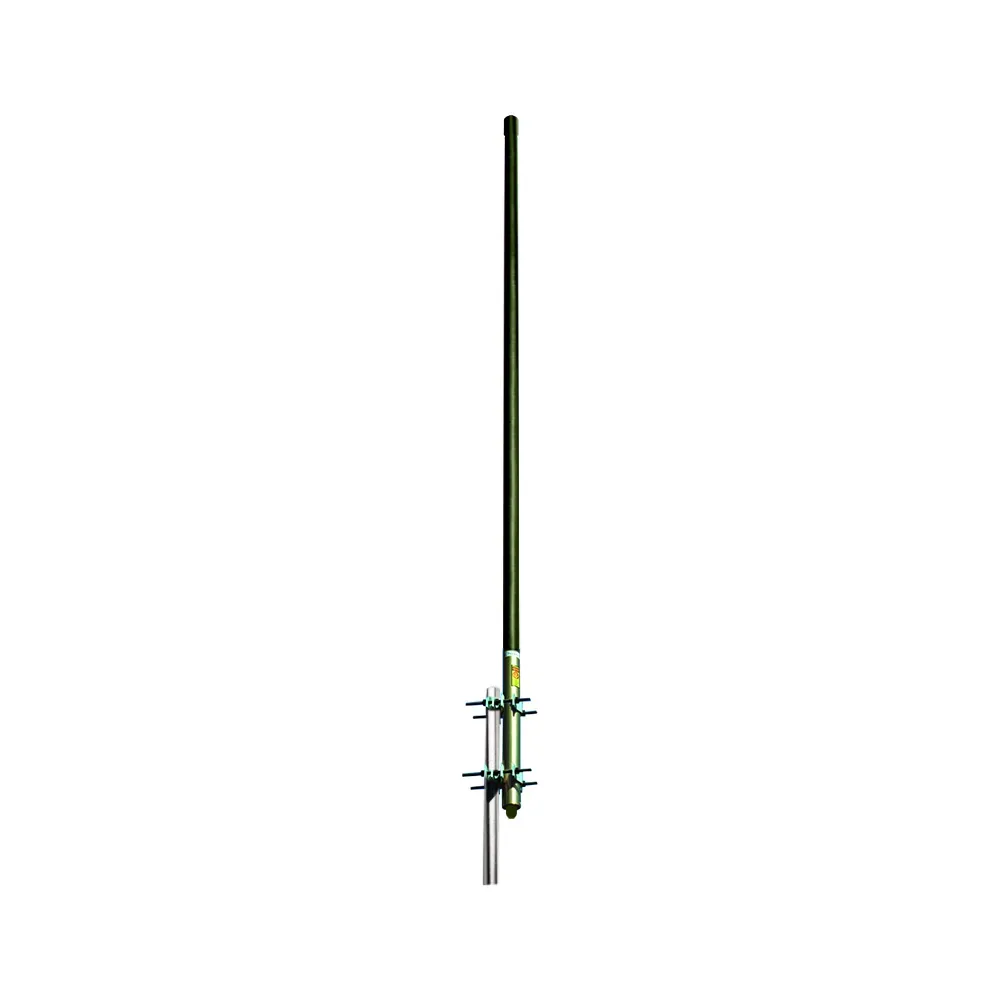

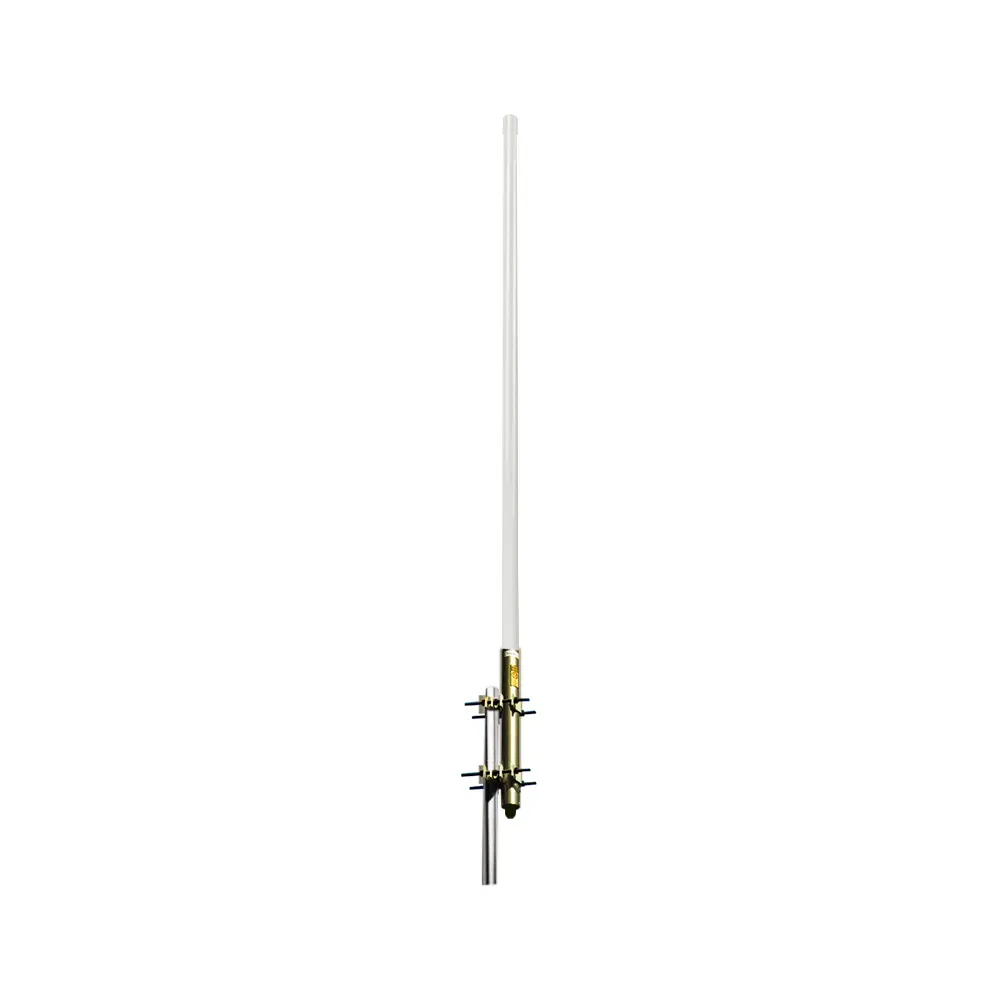

430MHz to 436MHz 6dBi Outdoor Omni-Directional Antenna

Product Overview
Part Number MT-430433M06-NF
Dimension 1094x70x55mm
Weight  350g
Connector N-Female
Beam-width Horz.360 deg Vert.65 deg



WhatsApp Chat
Skype
Product Part Number
MT-430433M06-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range430 to 436MHz
V.S.W.R (MAX)1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)6 dBi
PolarizationVertical
Maximum Power100 Watts
Vertical Beam-width36 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)1094mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)350 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
