Product code: MT-2458-02-NF

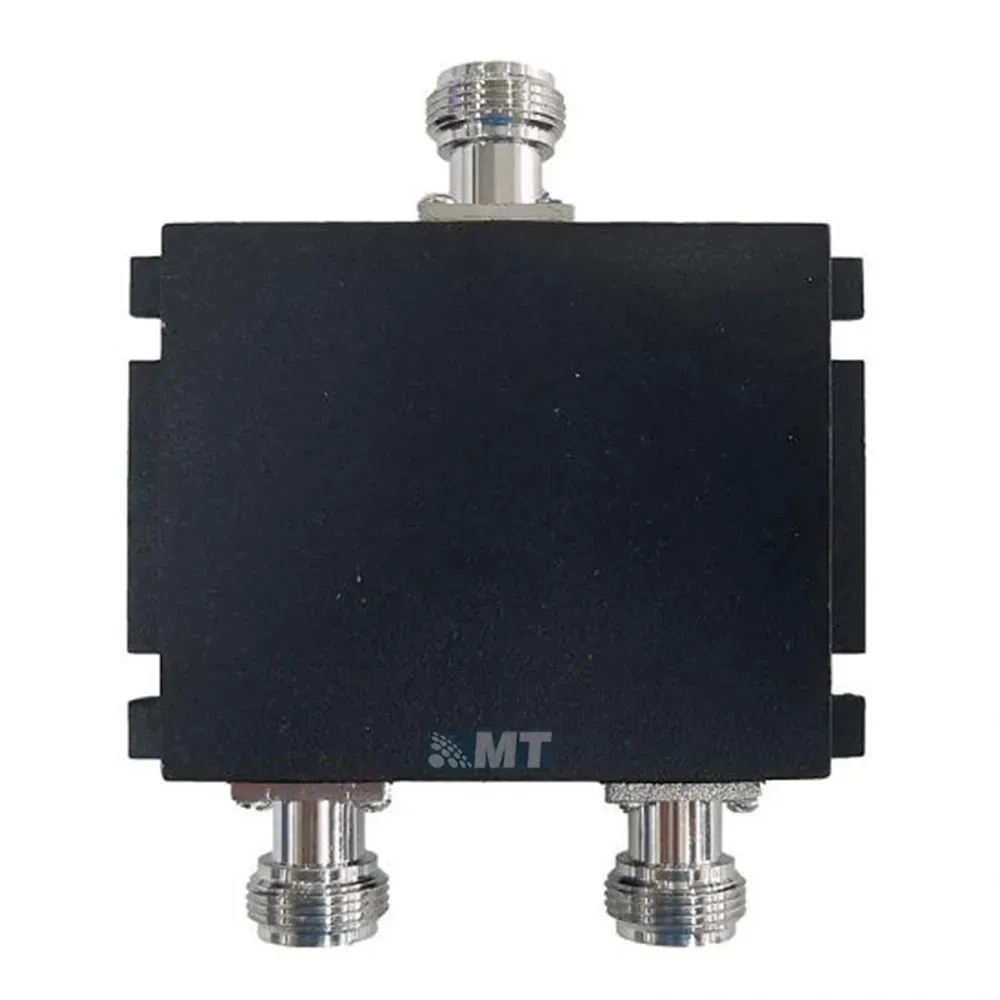

50W 2400-2500/5150-5850MHz Low VSWR RF Wilkinson Power Splitter Divider

Part No: MT-2458-02-NF
Wide Frequency Band 2400-2500/5150-5850MHz
Low Nsertion Loss
Low VSWR
Indoor Application IP67
WhatsApp Chat
Skype
Product Part Number
MT-2458-02-NF
Electrical & Mechanical Specification
Mechanical Specifications
Freq(MHz)        2400-2500/5150-5850
Input Port Number1
Output Port Number2
Insertion Loss(dB)≤4.5
Isolation(dB)≥18
VSWR≤1.45
Average Power(W)50
Impedance50Ohm
ConnectorN-Female
ApplicationIP67
Temp(deg)-30~+70
