Product code: MT-100-6000MHz

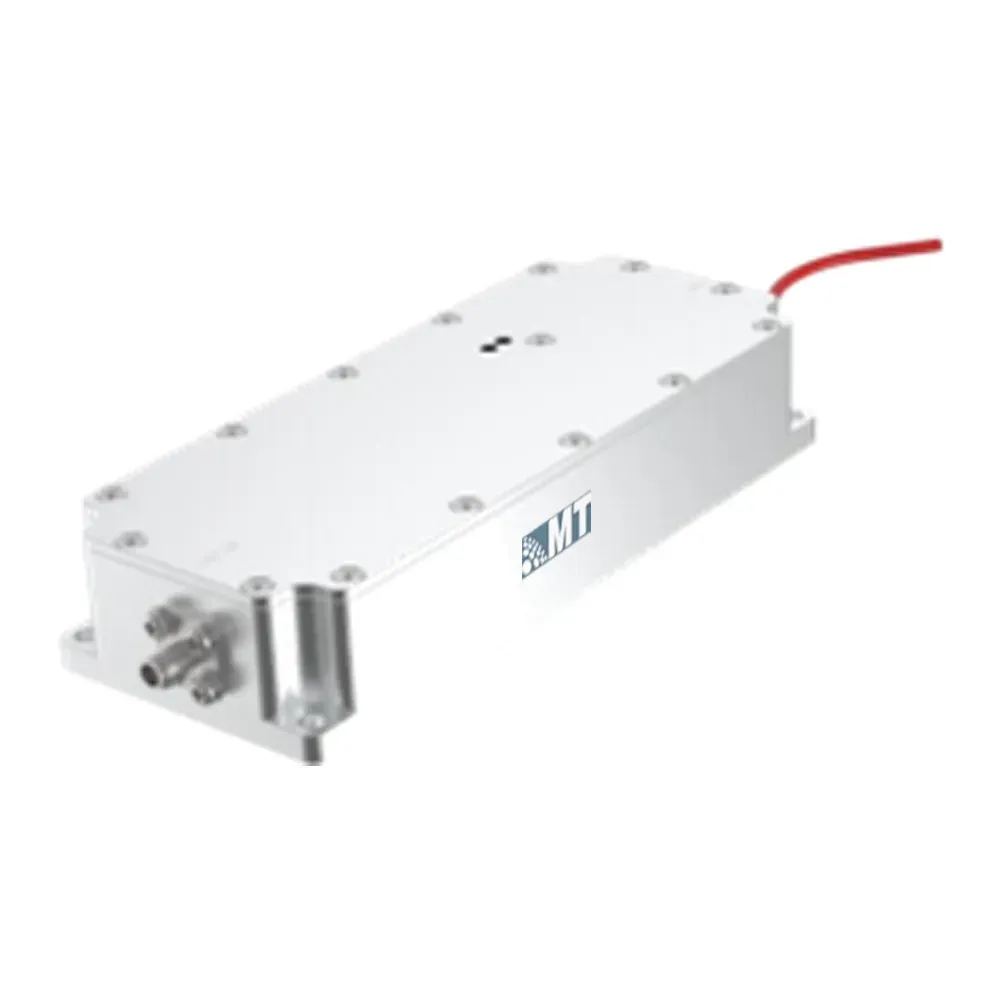

50W Series Interference Power Amplifier

Model:MT-100-6000MHz
Built-in frequency sweep source, isolated output, compact size
Ga N technology, high efficiency, high stability
Operating temperature:-40℃~+60℃
Storage temperature:-50℃~+85℃
WhatsApp Chat
Skype
Product Part Number
MT-100-6000MHz
Electrical & Mechanical Specification
Performance Specifications
ParameterSpecifications
Frequency100~6000MHz（Band 100MHz）
Output power47dBm（Typical Value,50W）
Output VSWR≤1.8
Power supply+30V（Typical Value）
Total power consumption≤120W
Size138mm*55mm*26mm
Interface Definition
ParameterSpecifications
RF OutputSMA-Female
Power Supply PortHigh-temperature wire
CoolingRequires external auxiliary cooling
