Product code: MT-DTA68

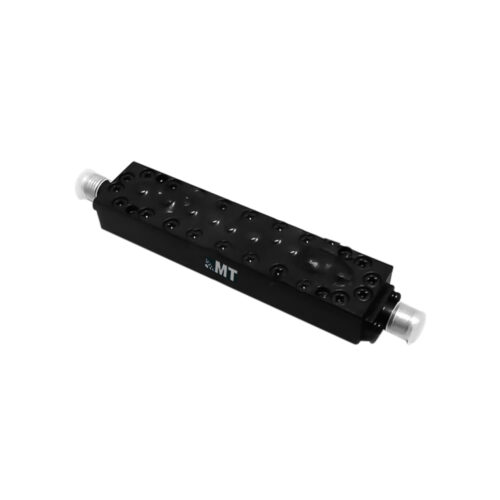

5150-5400MHz Cavity Band Pass Filter

  • P/N：MT-DTA68
  • Pass Band Frequency:5150～5400MHz
  • inhibition：≥40dB
  • Insertion loss：≤2.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA68
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)5275MHz
2Pass Band Frequency5150～5400MHz
3Pass Band Insertion Loss≤2.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥40dB @ DC～5000MHz @ 5550～12000MHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Surface FinishBlack Paint
10Operating Temperature-30℃～+70℃
11Net WeightTBD
12ConfigurationAs Below (Size Unit: mm)
