Product code: MT-DTA117

5785-5805MHz Cavity Band Pass Filter

  • P/N：MT-DTA117
  • Pass Band Frequency:5785～5805MHz
  • inhibition：≥35dB
  • Insertion loss：≤3.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA117
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)5795MHz
2Pass Band Frequency5785～5805MHz
3Pass Band Insertion Loss≤3.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥35dB @ DC～5765MHz 5825～8000MHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Surface FinishBlack Paint
10Net WeightTBD

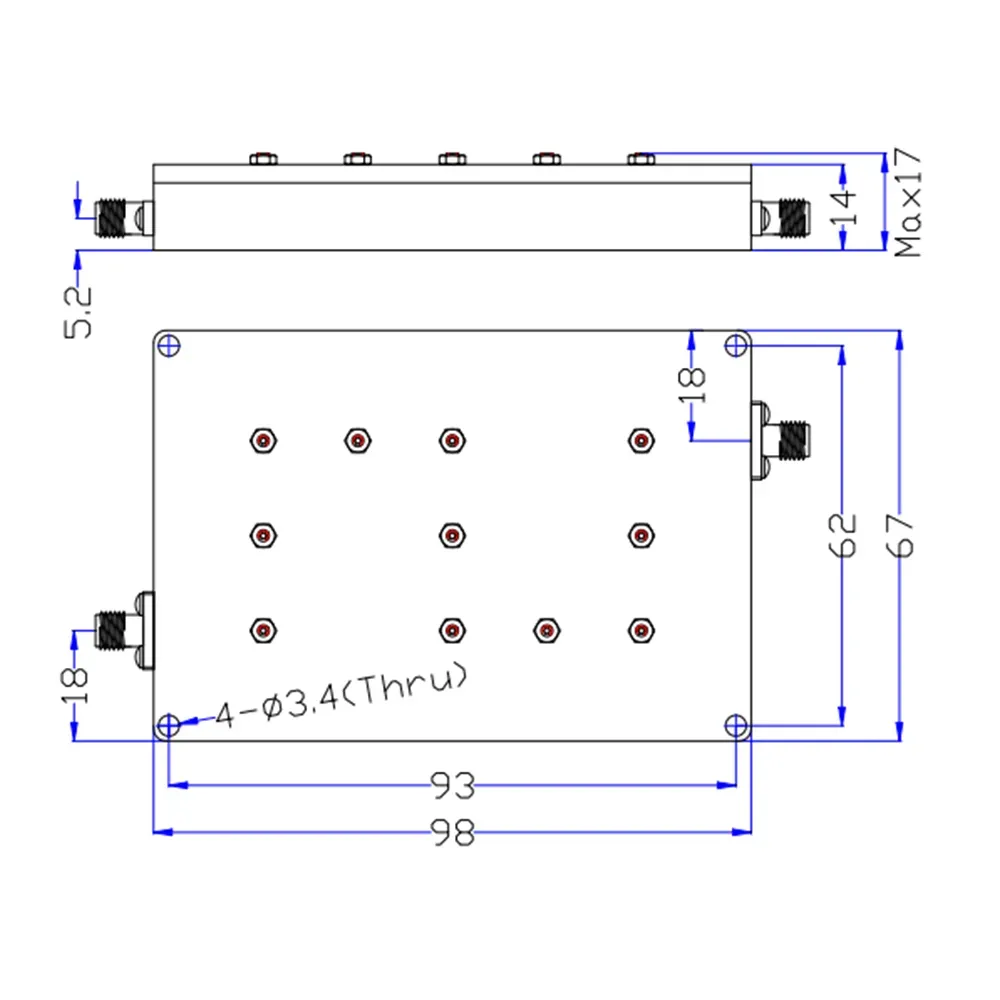

11ConfigurationAs Below (Size Unit: mm)
