Product code: MT-DTA142-8P

5917 – 5658MHz Cavity bandpass filter

  • P/N：MT-DTA142-8P
  • Optional_Center Frequency (F0)：5917MHz 5880MHz 5843MHz 5806MHz 5769MHz 5732MHz 5695MHz 5658MHz
  • Stop Band Attenuation：≥15dB @ Fc±10MHz
  • Pass Band Insertion Loss：≤2.7dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA142-8P

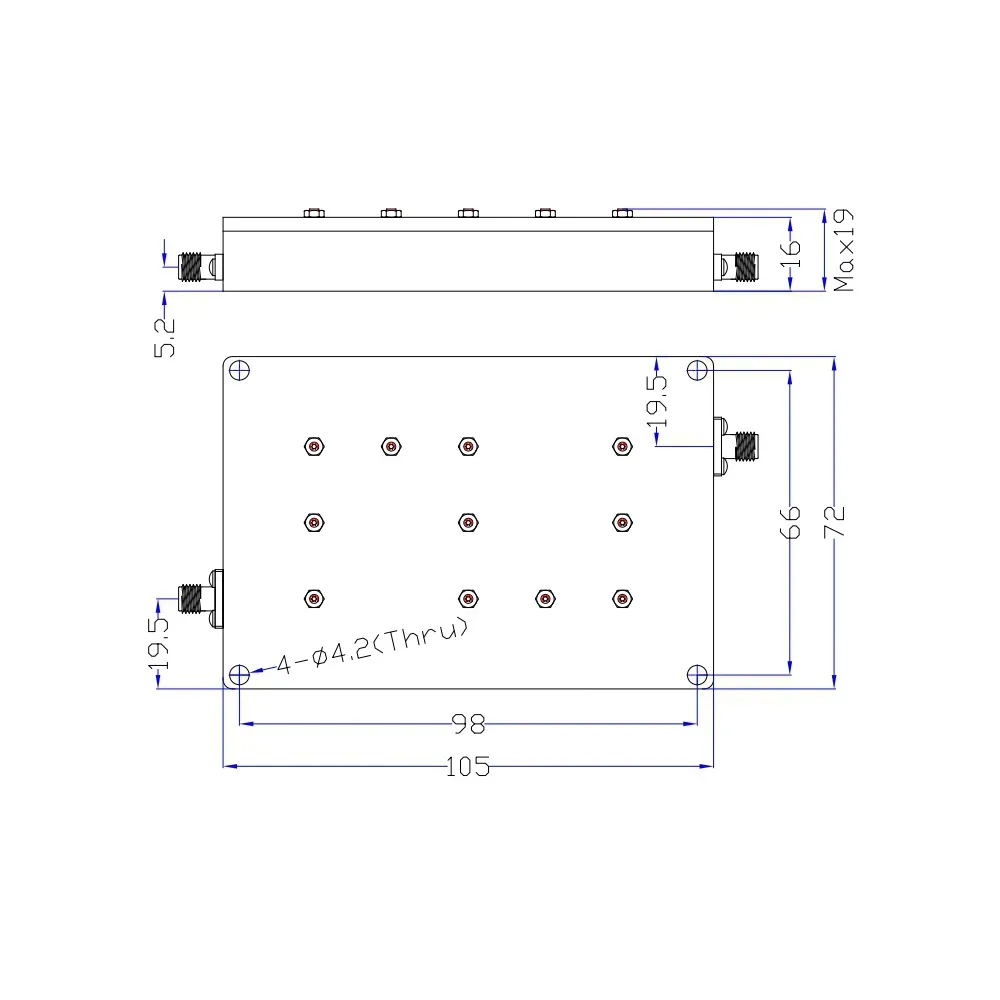

Electrical & Mechanical Specification
S/NItemParameters(Optional center frequency)
1Center Frequency(F0)5917MHz5880MHz5843MHz5806MHz
5769MHz5732MHz5695MHz5658MHz
2Pass Band Bandwidth15MHz
3Pass Band Insertion Loss≤2.4dB @ Center Frequency(F0)  ,  ≤2.7dB @ Pass Band Bandwidth
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥15dB @ Fc±10MHz (Fc is edge Frequency of pass band)
6Impedance50 Ohms
7Power5W Max.
8ConnectorsSMA-Female
9Surface FinishPainted Black
10Temperature Range+10℃ ~ +40℃
