Product code: MT-DTA131
597-603MHz Cavity Band Pass Filter
- P/N：MT-DTA131
- Pass Band Frequency:597～603MHz
- inhibition：≥40dB
- Insertion loss：≤2.0dB
Product Part Number
MT-DTA131
Electrical & Mechanical Specification
| Serial | Parameters | |
|---|---|---|
| 1 | Center Frequency (F0) | 600MHz |
| 2 | Pass Band Frequency | 597～603MHz |
| 3 | Pass Band Insertion Loss | ≤2.0dB |
| 4 | Pass Band VSWR | ≤1.3:1 |
| 5 | Stop Band Rejection | ≥40dB @ DC～587MHz ≥40dB @ 613～1500MHz |
| 6 | Impedance | 50 ohms |
| 7 | Power Handling | ≤20W |
| 8 | Connectors | SMA-Female |
| 9 | Surface Finish | Black Paint |
| 10 | Temperature Range | -30℃～+60℃ |
| 11 | Net Weight | TBD |

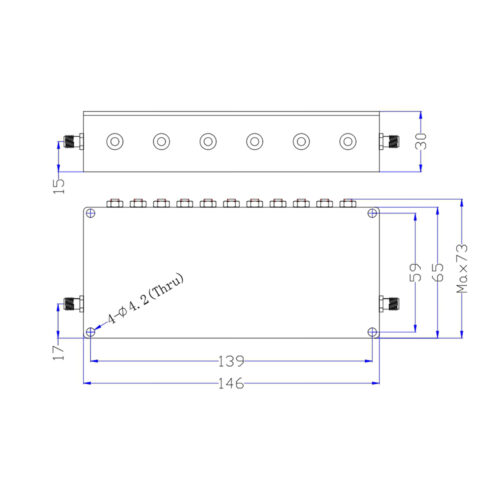

| 12 | Configuration | As Below (Size Unit: mm) |
