Product code: MT-DTA101

6-10GHz Interdigital Band Pass Filter HXLBQ-DTA101

  • P/N：MT-DTA101
  • Pass Band Frequency:6.0-10GHz
  • inhibition：≥60dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA101

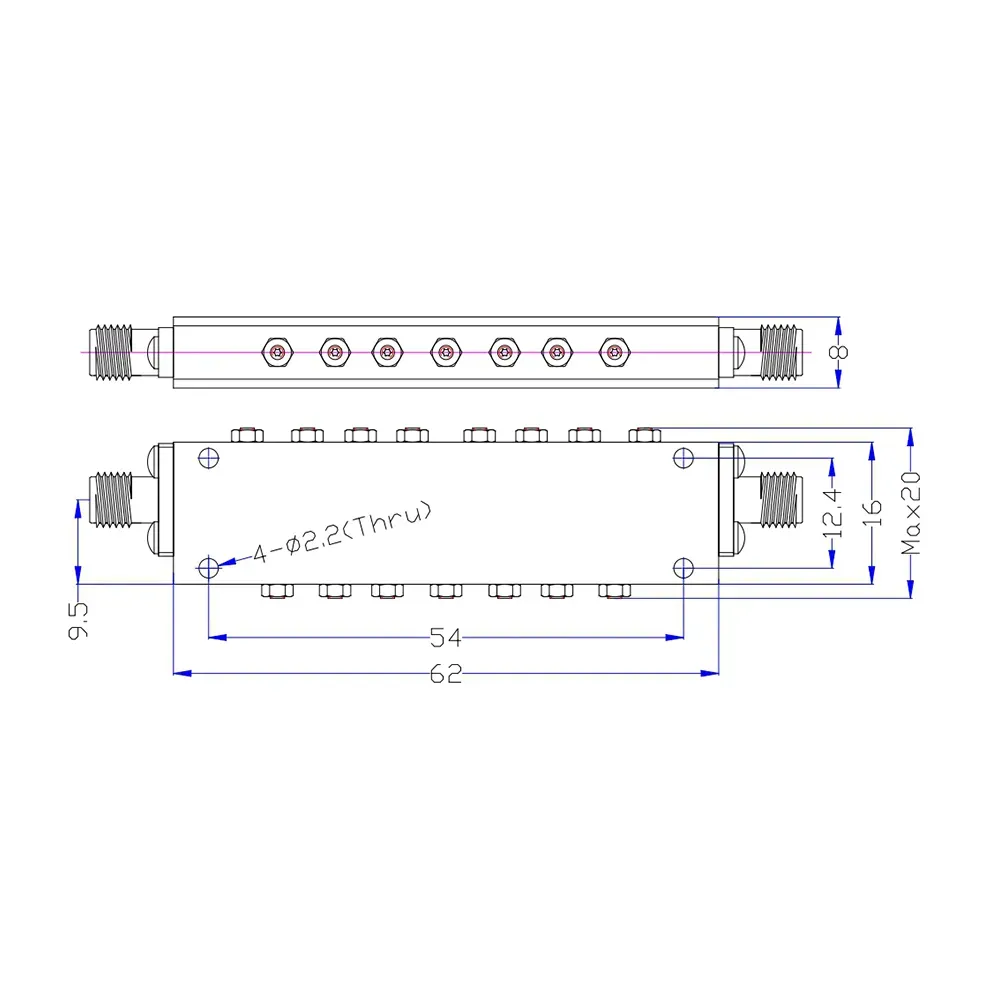

Electrical & Mechanical Specification
S/NParameters
1Center Frequency(F0)8.0GHz
2Pass Band Frequency6.0～10GHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.6:1
5Stop Band Rejection≥60dB @ DC～5.2GHz
≥60dB @ 10.8～13GHz
6Impedance50 ohms
7Power≤2W
8Surface FinishThe Original Silver Color or Black Paint
9ConnectorsSMA-Female
10Temperature Range-40℃～+70℃
