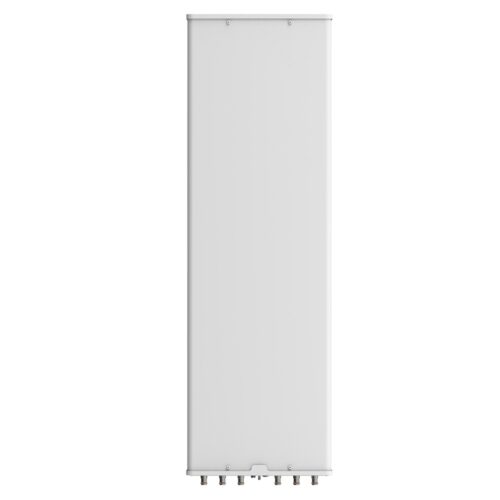

6-Port, Panel Sector Antenna, 33° HBW, 698-960/(2x) 1710-2690 MHz, 19/20/20 dBi, 2-12°T, 2.497 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 6P-698-2690F-20G-33H7V

6-Port, Panel Sector Antenna, 33° HBW, 698-960/(2x) 1710-2690 MHz, 19/20/20 dBi, 2-12°T, 2.497 m

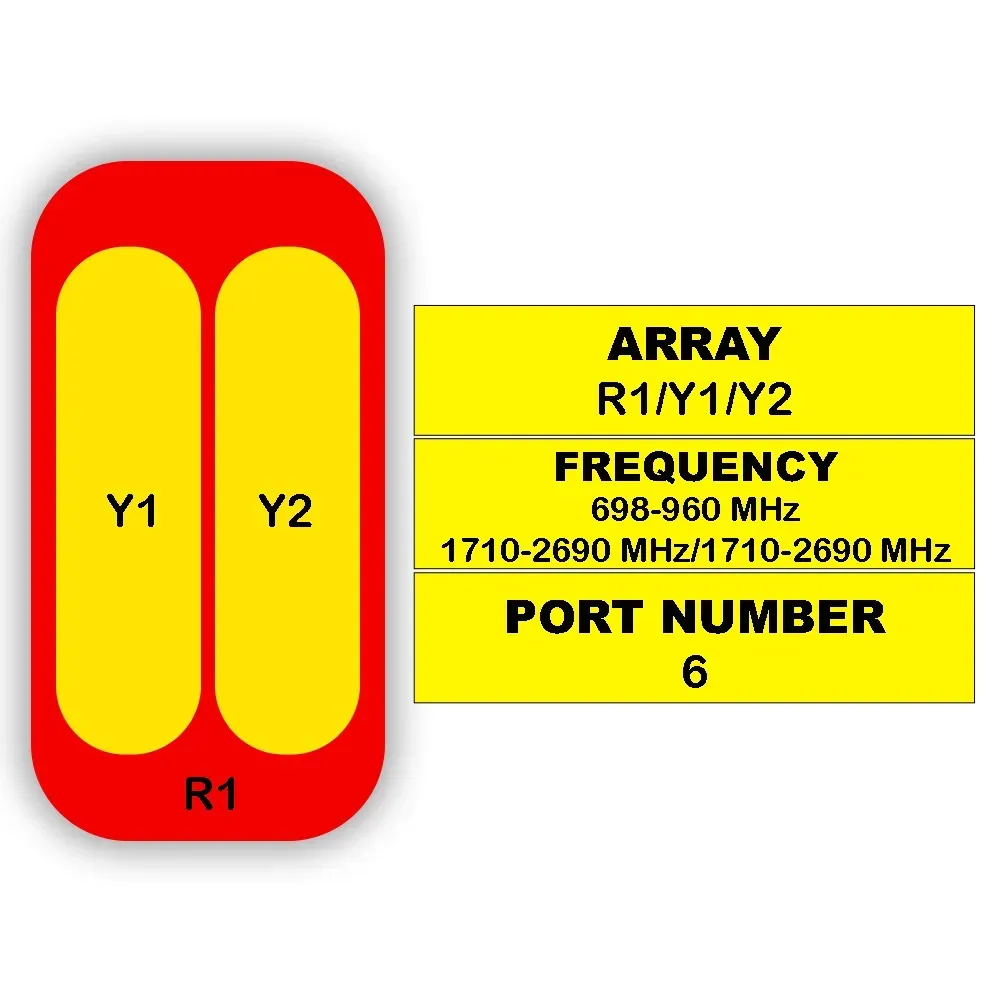

6-Port Antenna	R1	Y1	Y2
Frequency Range	698-960 MHz	1710-2690 MHz	1710-2690 MHz
HBW	33°	33°	33°
Gain	19 dBi	20 dBi	20 dBi
Tilt	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

6P-698-2690F-20G-33H7V

Electrical & Mechanical Specification

Electrical Specifications
			R1			Y1 / Y2
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	18.3	18.8	19.2	19	19.3	19.7	20.1	20.3
Gain	Over All Tilts	dBi	18.2 ± 0.5	18.7 ± 0.5	19.1 ± 0.5	18.9 ± 0.6	19.2 ± 0.6	19.6 ± 0.6	20.0 ± 0.6	20.2 ± 0.6
Horizontal Beamwidth		degree	38 ± 3	35 ± 3	30 ± 3	36 ± 3	34 ± 3	32 ± 3	29 ± 3	26 ± 3
Vertical Beamwidth		degree	8.8 ± 0.9	7.6 ± 0.8	7.1 ± 0.7	7.7 ± 0.8	7.1 ± 0.7	6.7 ± 0.7	6.0 ± 0.6	5.5 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio, Co-Polar ±30°		dB	> 27	> 27	> 27	> 28	> 28	> 28	> 28	> 28
Cross Polar Discrimination at Boresight		dB	> 18	> 18	> 18	> 18	> 18	> 18	> 18	> 18
Isolation	Cross-Polar	dB	≥ 25			≥ 25
Isolation	Intraband	dB	≥ 25			≥ 25
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

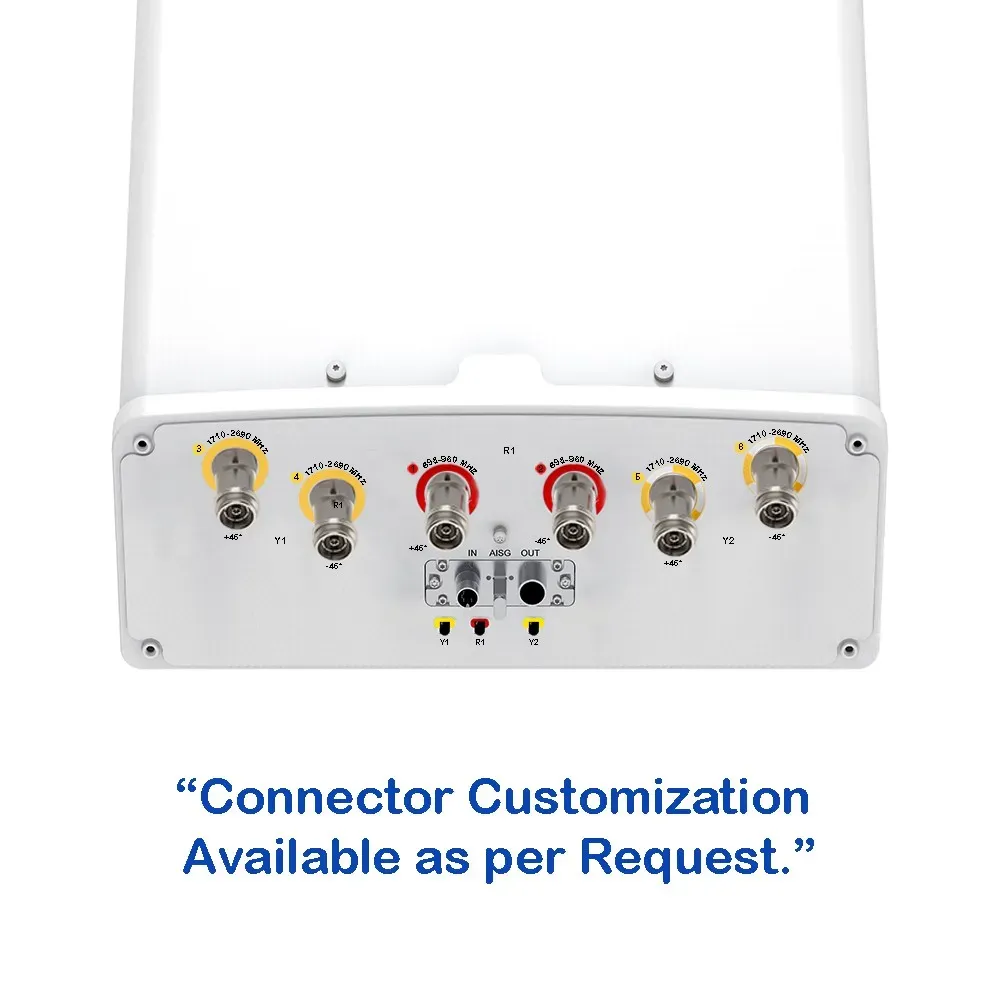

Connector Type		—	(6x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

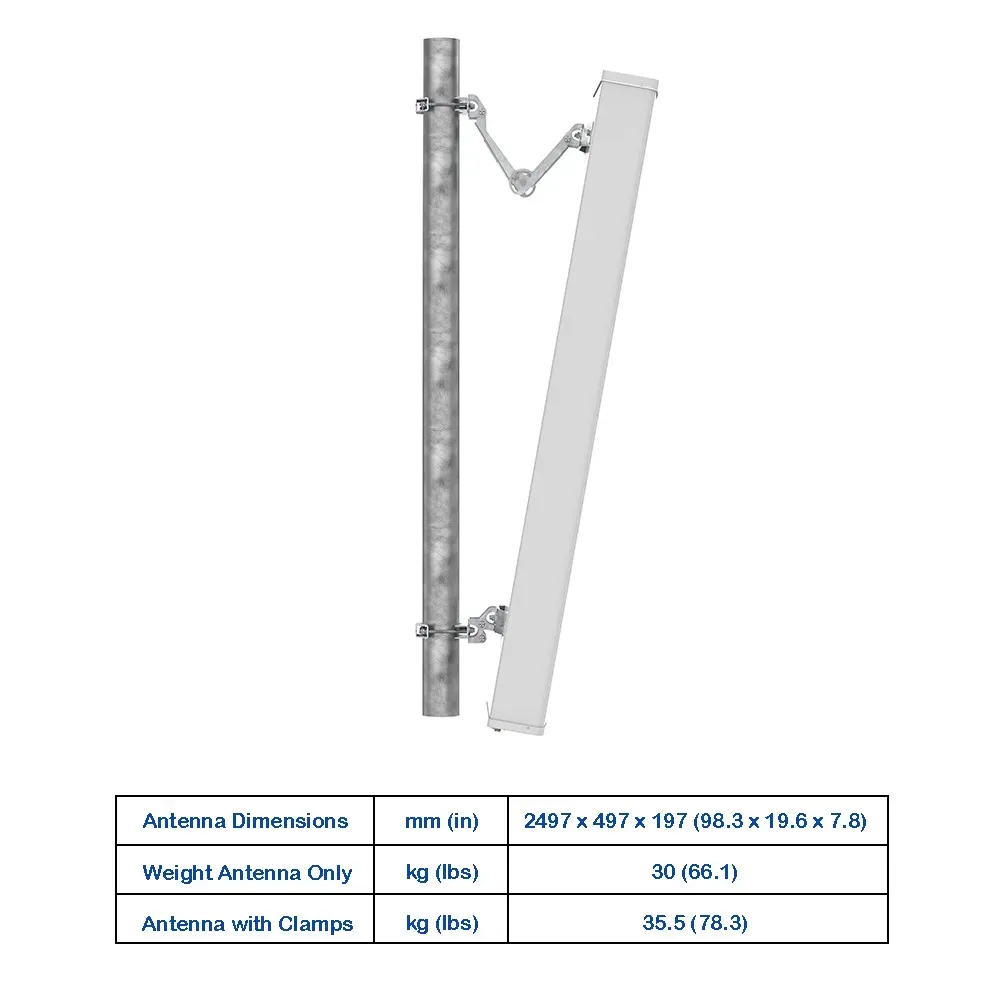

Antenna Dimensions (H x W x D)		mm (in)	2497 x 497 x 197 (98.3 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	30 (66.1)
Antenna Weight	with Clamps	kg (lbs)	35.5 (78.3)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	1150 (258.5)
	Rear	N (lbf)	1280 (287.8)
	Lateral	N (lbf)	560 (125.9)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
