Product code: 6P-1710-2690F-16G-75H11V

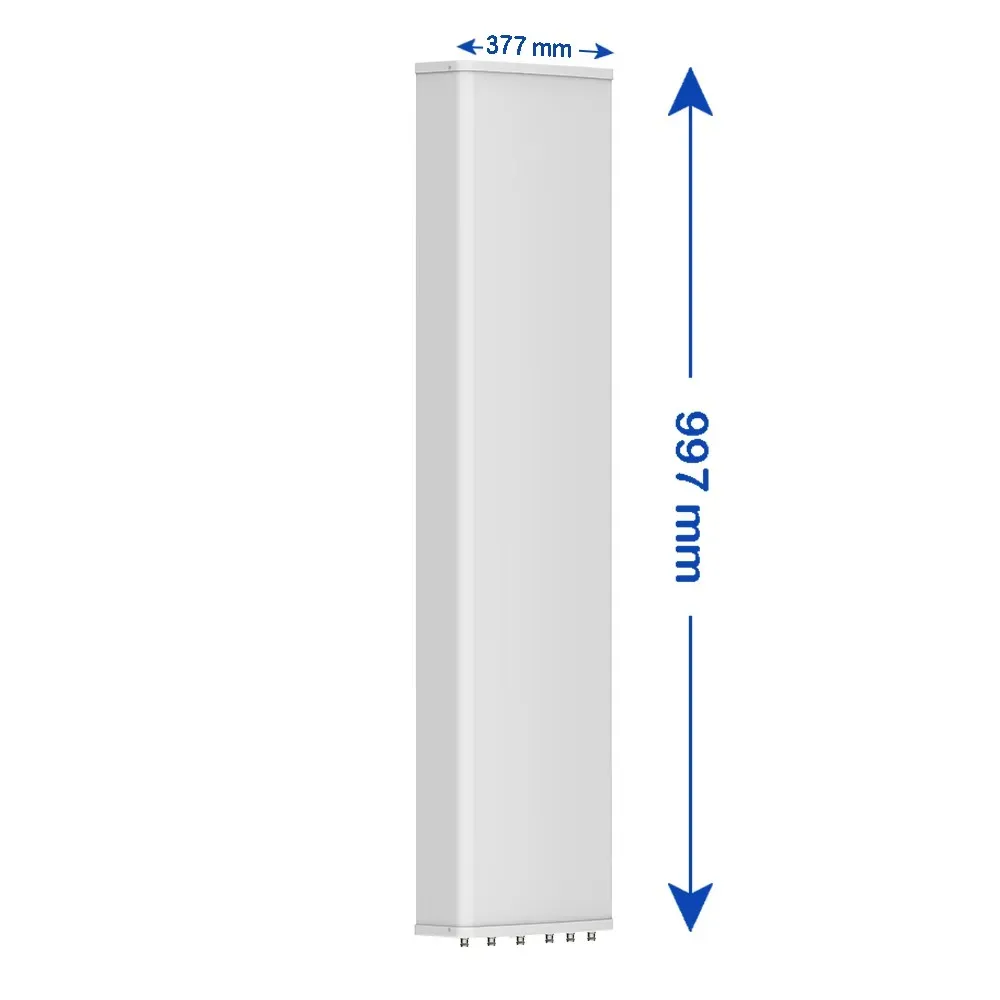

6-Port, Panel Sector Antenna, 65° HBW, (3x) 1710-2690 MHz, 16/16/16 dBi, 2-12°T, 0.997 m

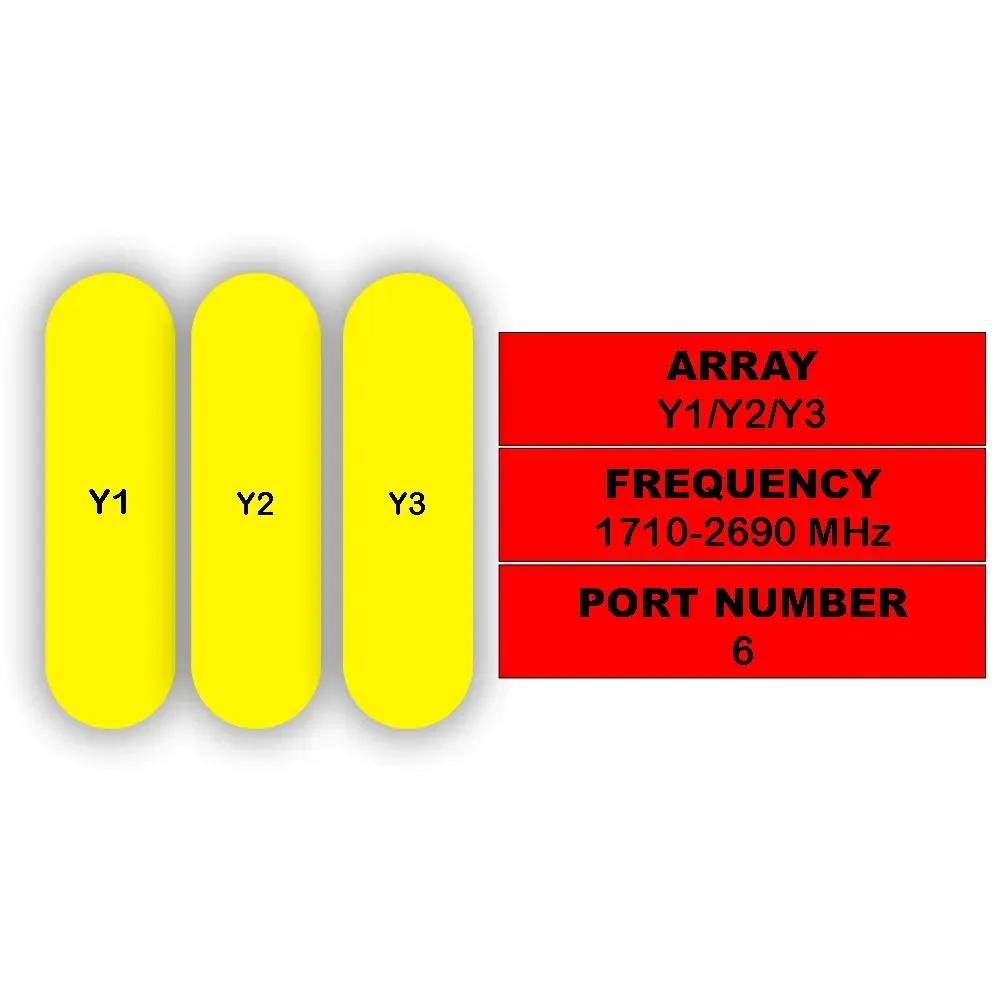

| 6-Port Antenna | Y1 | Y2 | Y3 |
| Frequency Range | 1710-2690 MHz | 1710-2690 MHz | 1710-2690 MHz |
| HBW | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° |

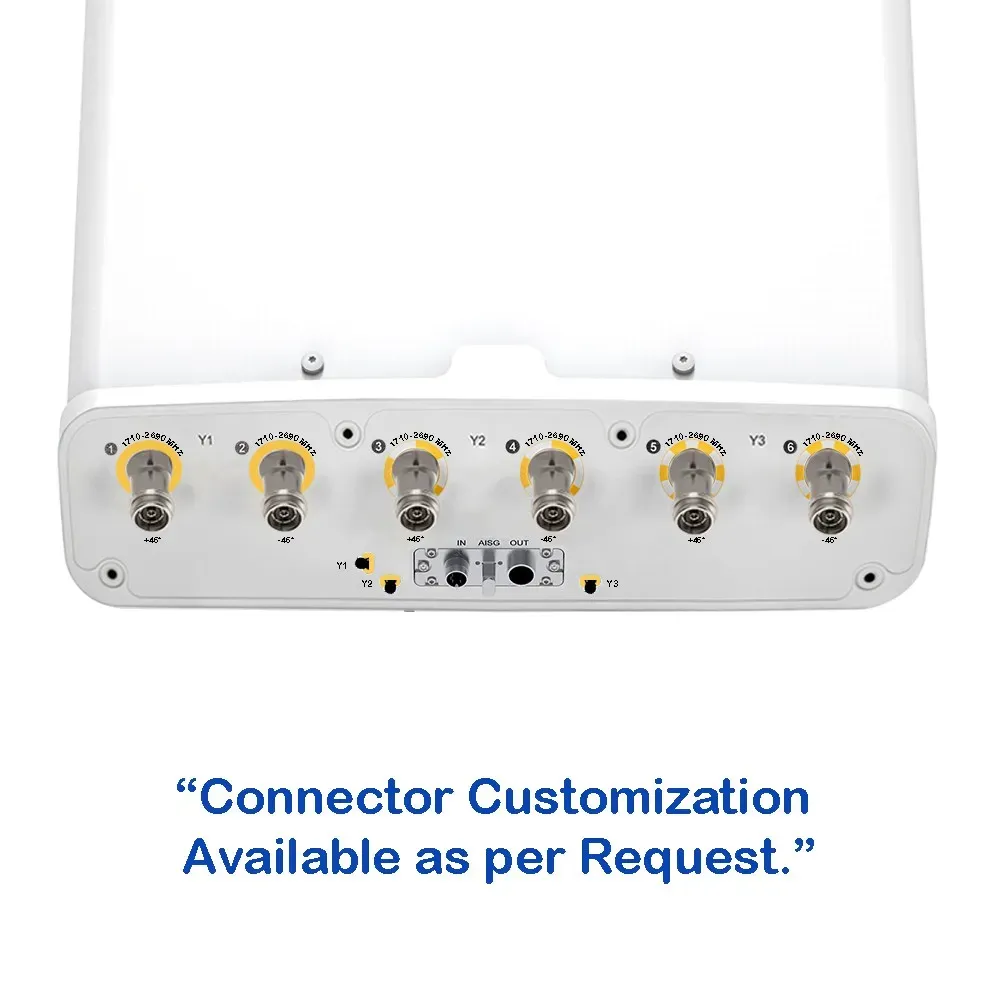

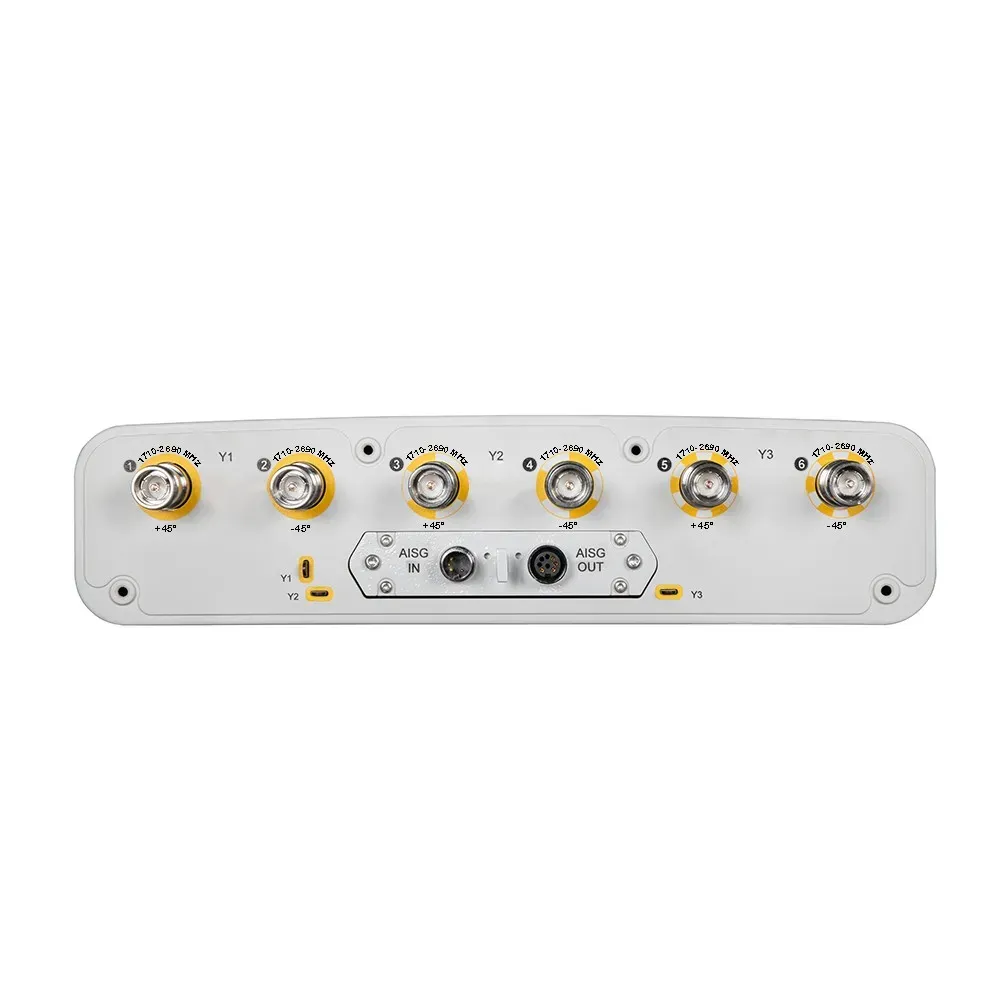

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
