6-Port, Panel Sector Antenna, 65° HBW, (3x) 1710-2690 MHz, 18/18/18 dBi, 0-10°T, 1.397 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 6P-1710-2690F-18G-65H7V

6-Port, Panel Sector Antenna, 65° HBW, (3x) 1710-2690 MHz, 18/18/18 dBi, 0-10°T, 1.397 m

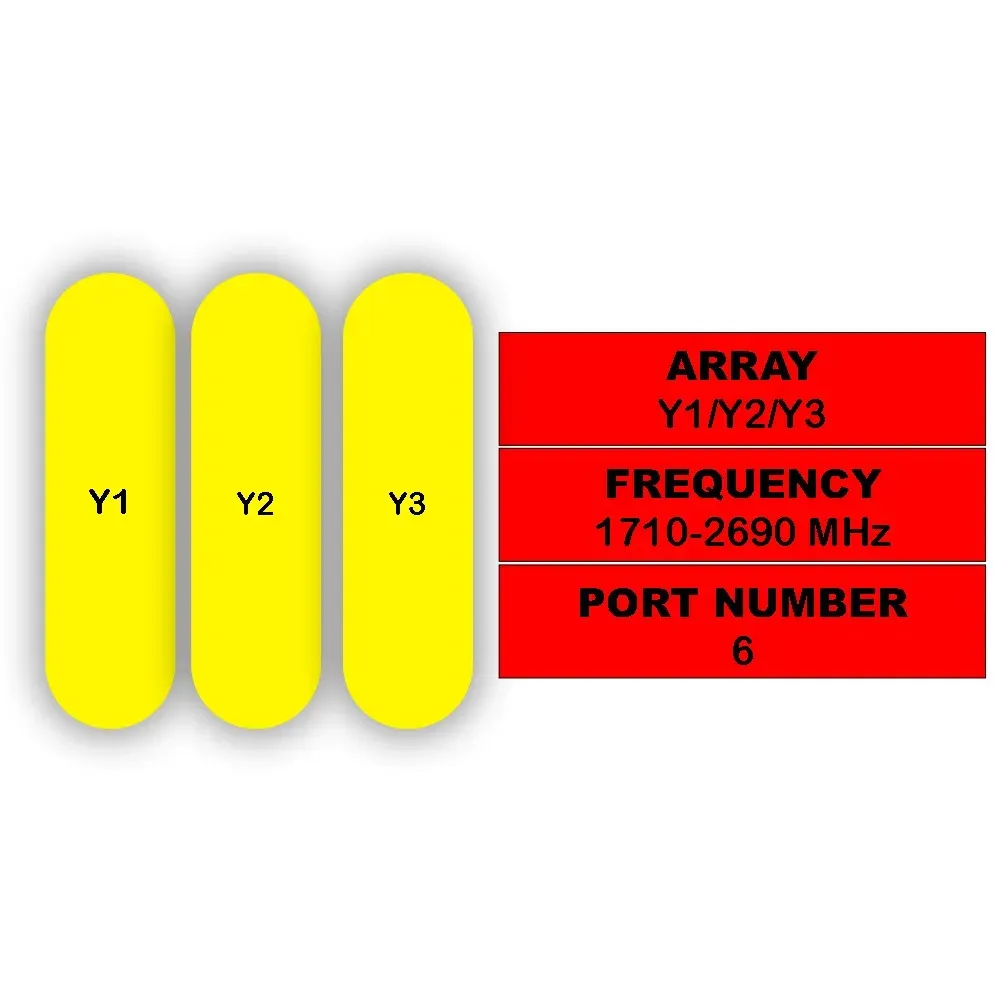

6-Port Antenna	Y1	Y2	Y3
Frequency Range	1710-2690 MHz	1710-2690 MHz	1710-2690 MHz
HBW	65°	65°	65°
Gain	18 dBi	18 dBi	18 dBi
Tilt	0-10°	0-10°	0-10°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

6P-1710-2690F-18G-65H7V

Electrical & Mechanical Specification

Electrical Specifications
			Y1 / Y2 / Y3
Frequency Range		MHz	1710-2690
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2500	2500-2690
Polarization		—	±45°
Gain	at Mid Tilt	dBi	17.1	17.3	17.6	18	17.9
Gain	Over All Tilts	dBi	17.0 ± 0.5	17.2 ± 0.5	17.5 ± 0.5	17.9 ± 0.5	17.8 ± 0.6
Horizontal Beamwidth		degree	67 ± 5	65 ± 5	63 ± 5	61 ± 5	58 ± 5
Vertical Beamwidth		degree	7.0 ± 0.7	6.7 ± 0.7	6.3 ± 0.6	5.4 ± 0.5	5.0 ± 0.5
Electrical Downtilt, Continuously Adjustable		degree	0-10
First Upper Side Lobe Suppression		dB	> 16	> 16	> 16	> 16	> 16
Front-To-Back Ratio Co-Pol, ±30°		dB	> 26	> 27	> 27	> 28	> 28
Cross Polar	at Boresight	dB	> 20	> 20	> 20	> 20	> 20
Discrimination	Over Sector	dB	> 10	> 10	> 10	> 6	> 5
Isolation	Cross-Polar	dB	> 28
Isolation	Port-To-Port	dB	> 28
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 4 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

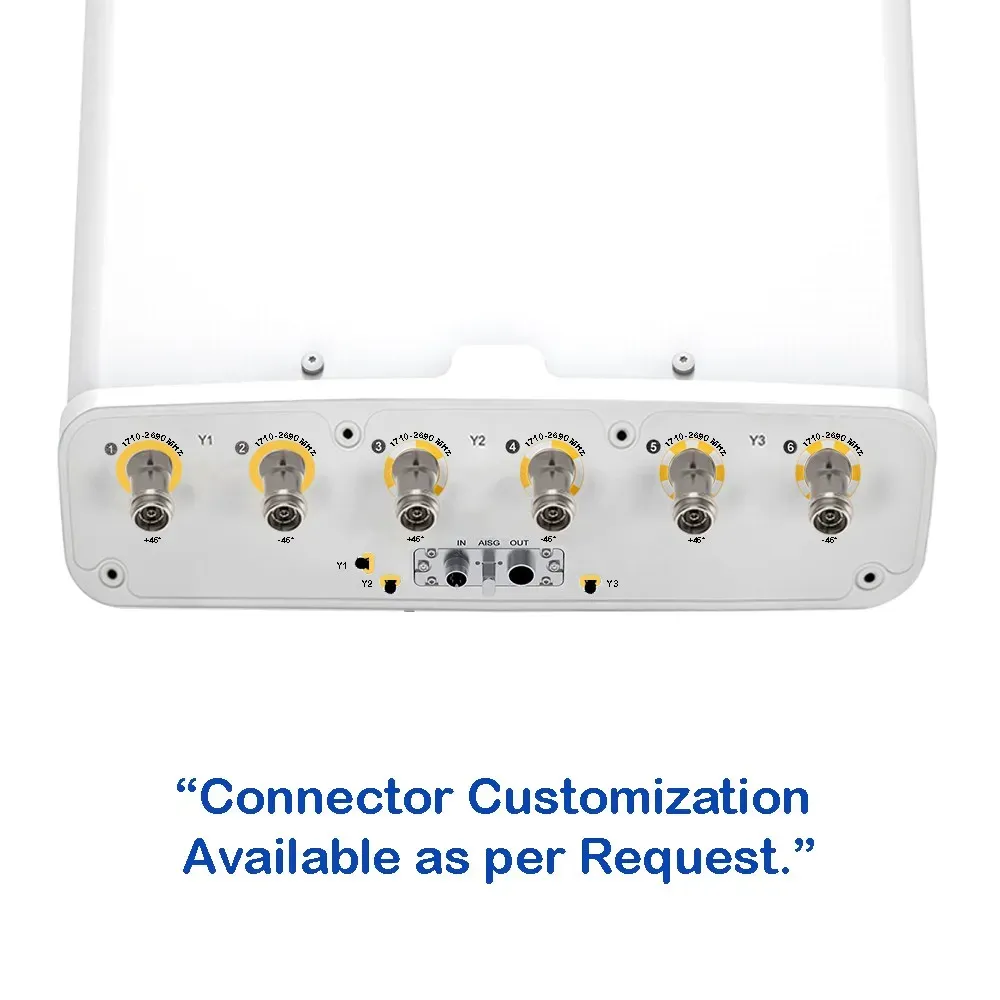

Connector Type		—	(6x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

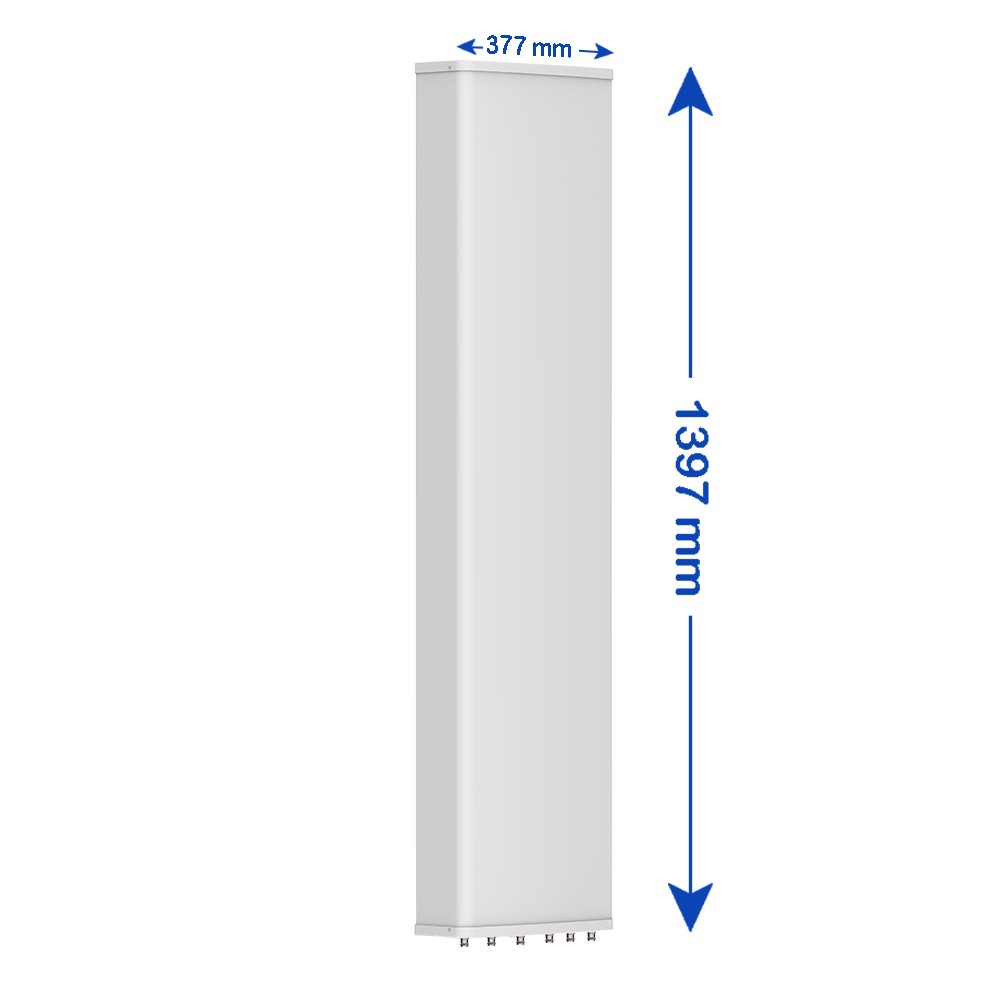

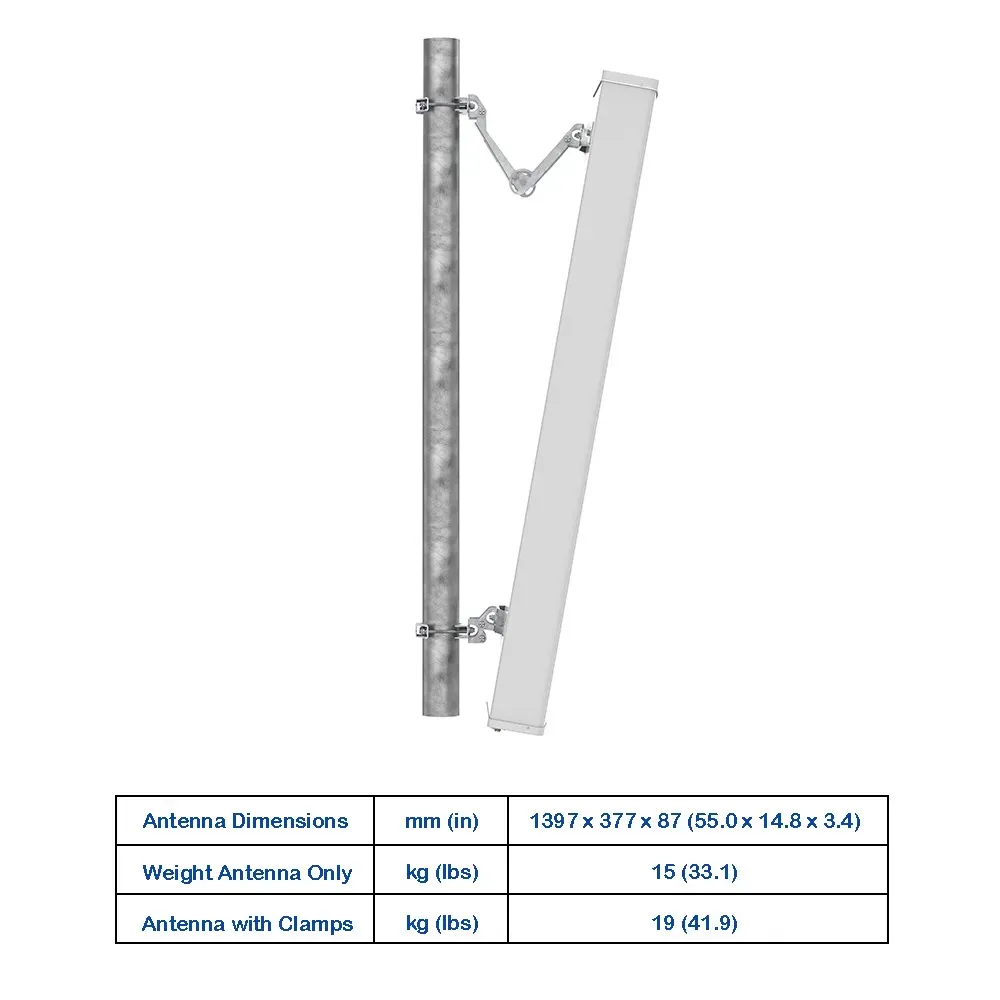

Antenna Dimensions (H x W x D)		mm (in)	1397 x 377 x 87 (55.0 x 14.8 x 3.4)
Antenna Weight	Antenna Only	kg (lbs)	15 (33.1)
Antenna Weight	with Clamps	kg (lbs)	19 (41.9)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	490 (110.2)
at 150 km/h	Rear	N (lbf)	545 (122.5)
	Lateral	N (lbf)	170 (38.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
