Product code: 6P-1710-2690F-19G-65H6V
6-Port, Panel Sector Antenna, 65° HBW, (3x) 1710-2690 MHz, 19/19/19 dBi, 0-10°T, 1.757 m

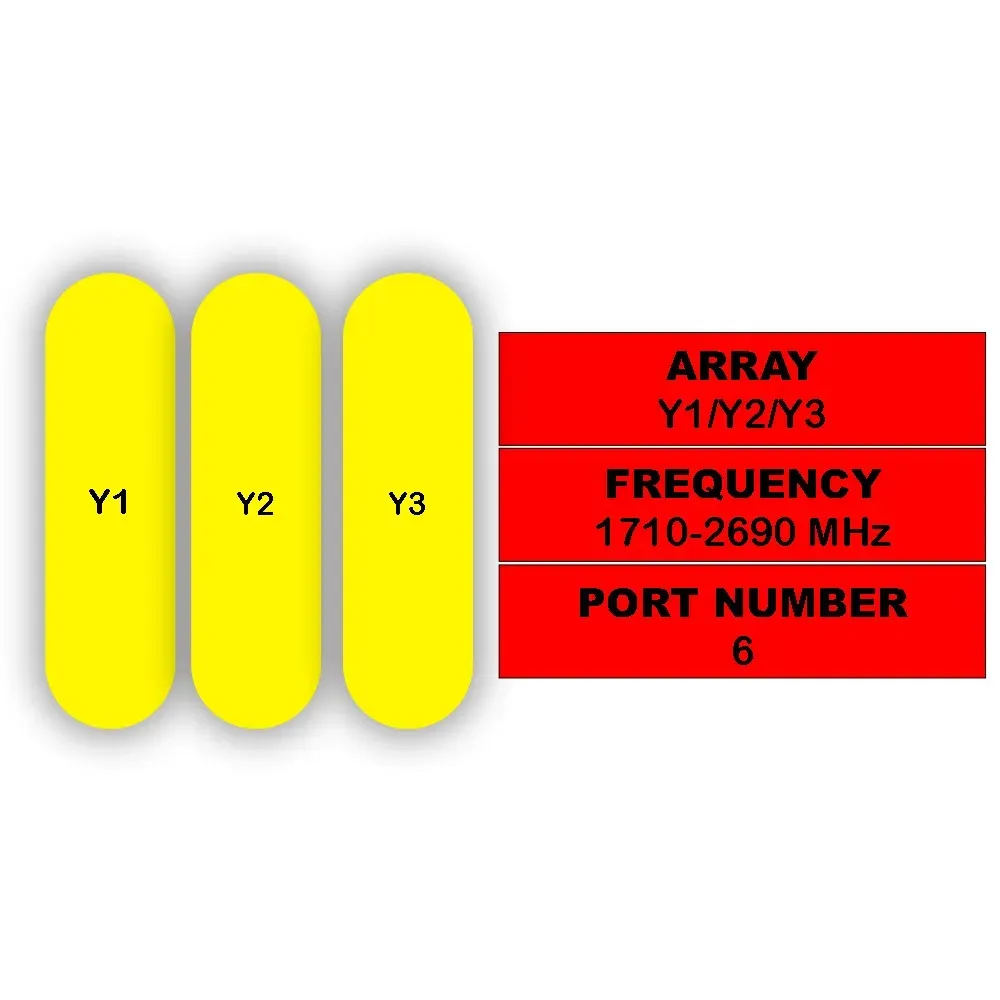

| 6-Port Antenna | Y1 | Y2 | Y3 |
| Frequency Range | 1710-2690 MHz | 1710-2690 MHz | 1710-2690 MHz |
| HBW | 65° | 65° | 65° |
| Gain | 19 dBi | 19 dBi | 19 dBi |
| Tilt | 0-10° | 0-10° | 0-10° |

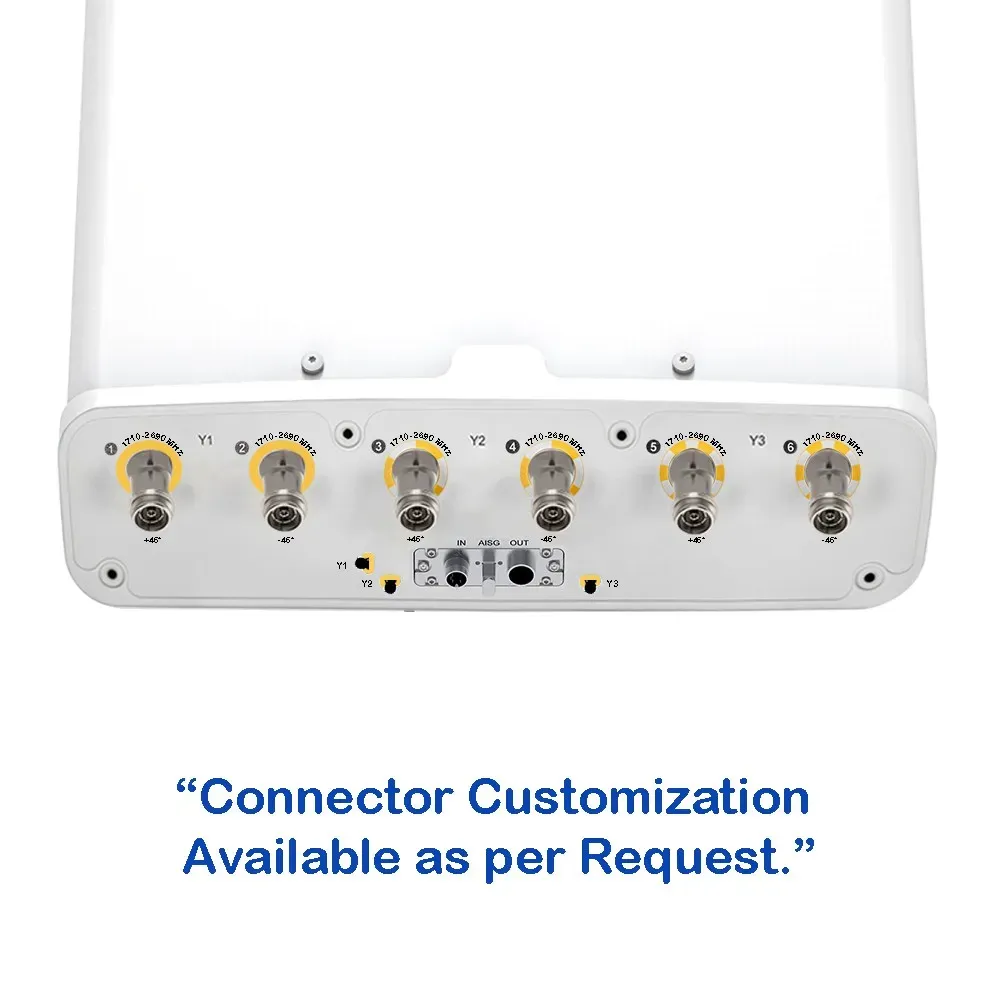

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
6P-1710-2690F-19G-65H6V
Electrical & Mechanical Specification
| Electrical Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Y1 / Y2 / Y3 | |||||||
| MHz | 1710-2690 | ||||||
| Frequency Range | MHz | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | |
| Polarization | — | ±45° | |||||
| at Mid Tilt | dBi | 17.9 | 18.3 | 18.5 | 19 | 18.7 | |
| Gain | Over All Tilts | dBi | 17.8 ± 0.6 | 18.2 ± 0.6 | 18.4 ± 0.6 | 18.9 ± 0.6 | 18.6 ± 0.7 |
| Horizontal Beamwidth | degree | 67 ± 5 | 64 ± 5 | 63 ± 5 | 61 ± 5 | 58 ± 5 | |
| Vertical Beamwidth | degree | 5.8 ± 0.6 | 5.4 ± 0.5 | 5.0 ± 0.5 | 4.4 ± 0.4 | 4.0 ± 0.4 | |
| Electrical Downtilt, Continuously Adjustable | degree | 0-10 | |||||
| First Upper Side Lobe Suppression | dB | > 16 | > 16 | > 16 | > 16 | > 16 | |
| Front-To-Back Ratio CO-Pol, ±30° | dB | > 28 | > 28 | > 28 | > 28 | > 28 | |
| Cross Polar | at Boresight | dB | > 20 | > 20 | > 20 | > 20 | > 20 |
| Discrimination | Over Sector | dB | > 10 | > 10 | > 10 | > 6 | > 5 |
| Cross-Polar | dB | > 28 | |||||
| Port-To-Port | dB | > 28 | |||||
| Isolation | Interband | dB | > 28 | ||||
| Impedance | Ohm | 50 | |||||
| VSWR | — | < 1.5 | |||||
| Return Loss | dB | > 14 | |||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | |||||
| Lightning Protection | — | DC Ground | |||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 200 | |||||
| Integrated RET Specifications | |||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | ||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||
| Power | Standby | < 2 W | |||||
| Consumption | In Motion | < 10 W | |||||
| Connectors | 2 x 8 Pin Circle Connector | ||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||
| Hardware Interfaces | RS485 and Power | ||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||
| Adjustment Cycles | > 20,000 | ||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | |||||||
| Remote Control | Can manage from OMC, BTS/Node B | ||||||
| Daisy Chaining Method | Ready for daisy-chaining | ||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||
| Housing Material / Color | Aluminum / Grey | ||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||
| Humidity | Up to 95% | ||||||
| IP Rating | IP65 | ||||||
| Weight | ≤ 500 g | ||||||
| Mechanical Specifications | |||||||
| Connector Type | — | (6x) 4.3/10 Female | |||||
| Connector Position | — | Bottom | |||||
| Electrical Tilt Control | — | Integrated RET | |||||
| Radome Material | — | UPVC | |||||

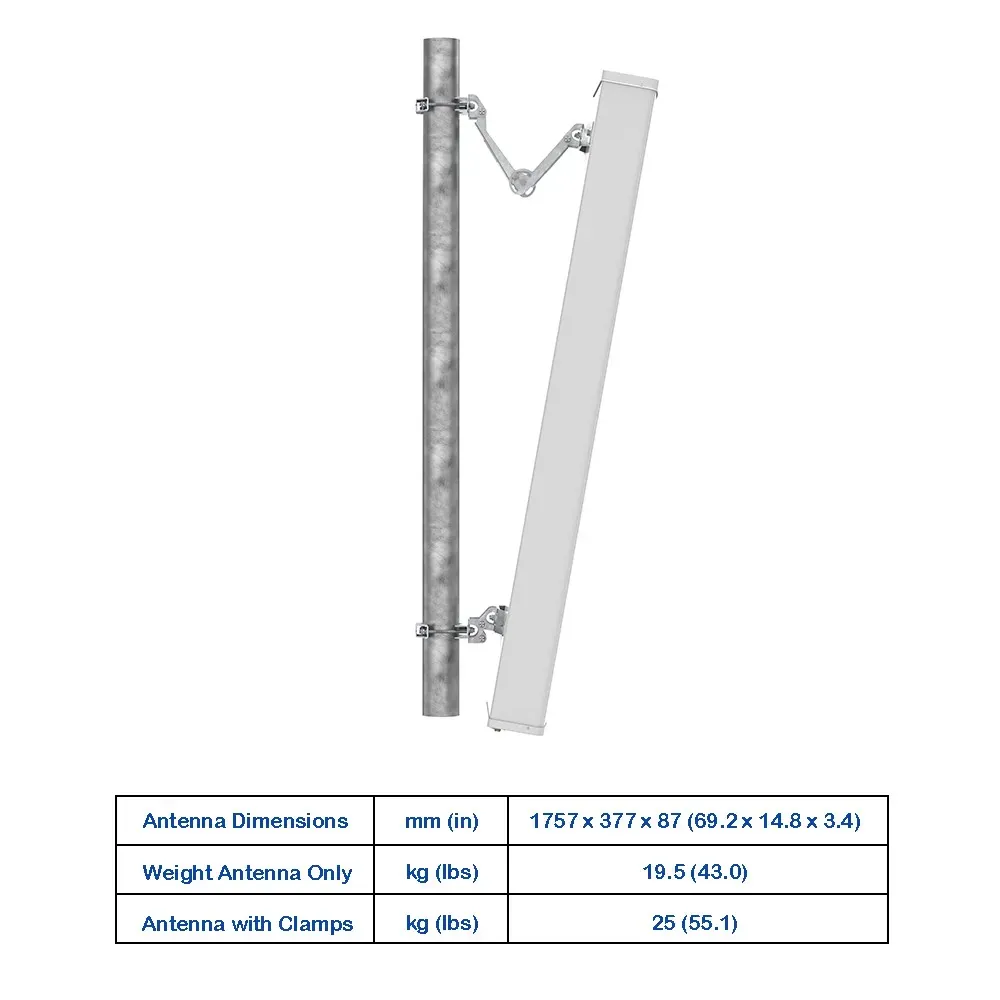

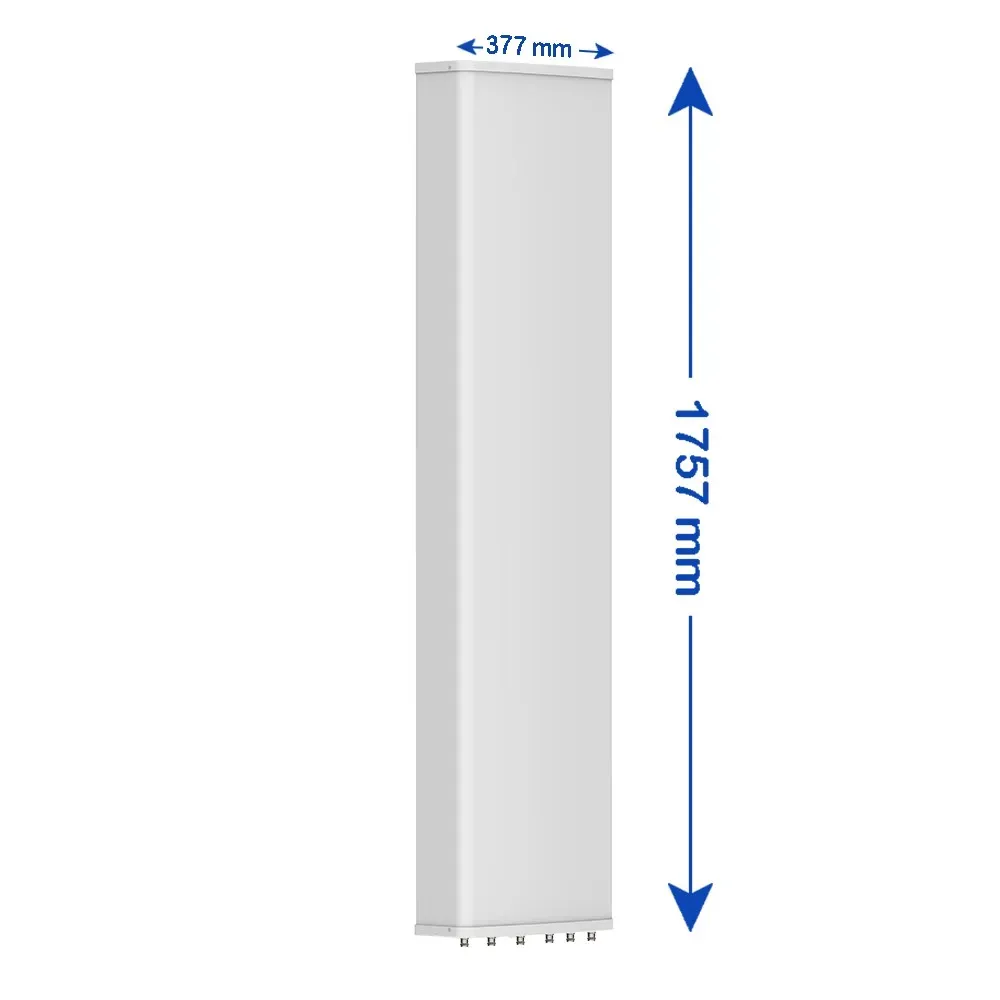

| Antenna Dimensions (H x W x D) | mm (in) | 1757 x 377 x 87 (69.2 x 14.8 x 3.4) | |||||
| Antenna Weight | Antenna Only | kg (lbs) | 19.5 (43.0) | ||||
| with Clamps | kg (lbs) | 25 (55.1) | |||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||
| Wind Load | Frontal | N (lbf) | 610 (137.1) | ||||
| at 150 km/h | Rear | N (lbf) | 685 (154.0) | ||||
| Lateral | N (lbf) | 175 (39.3) | |||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | |||||
