Product code: 6P-1710-2690F-20G-65H5V

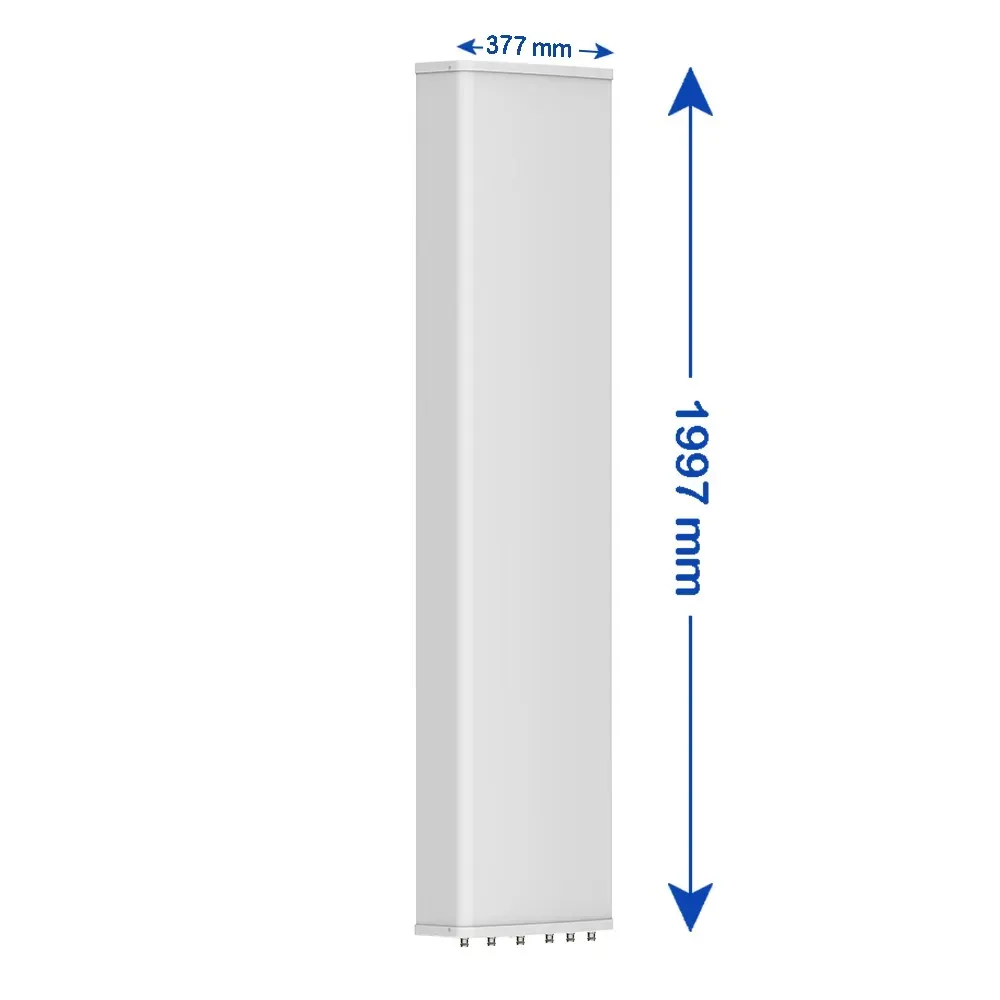

6-Port, Panel Sector Antenna, 65° HBW, (3x) 1710-2690 MHz, 20/20/20 dBi, 0-6°T, 1.997 m

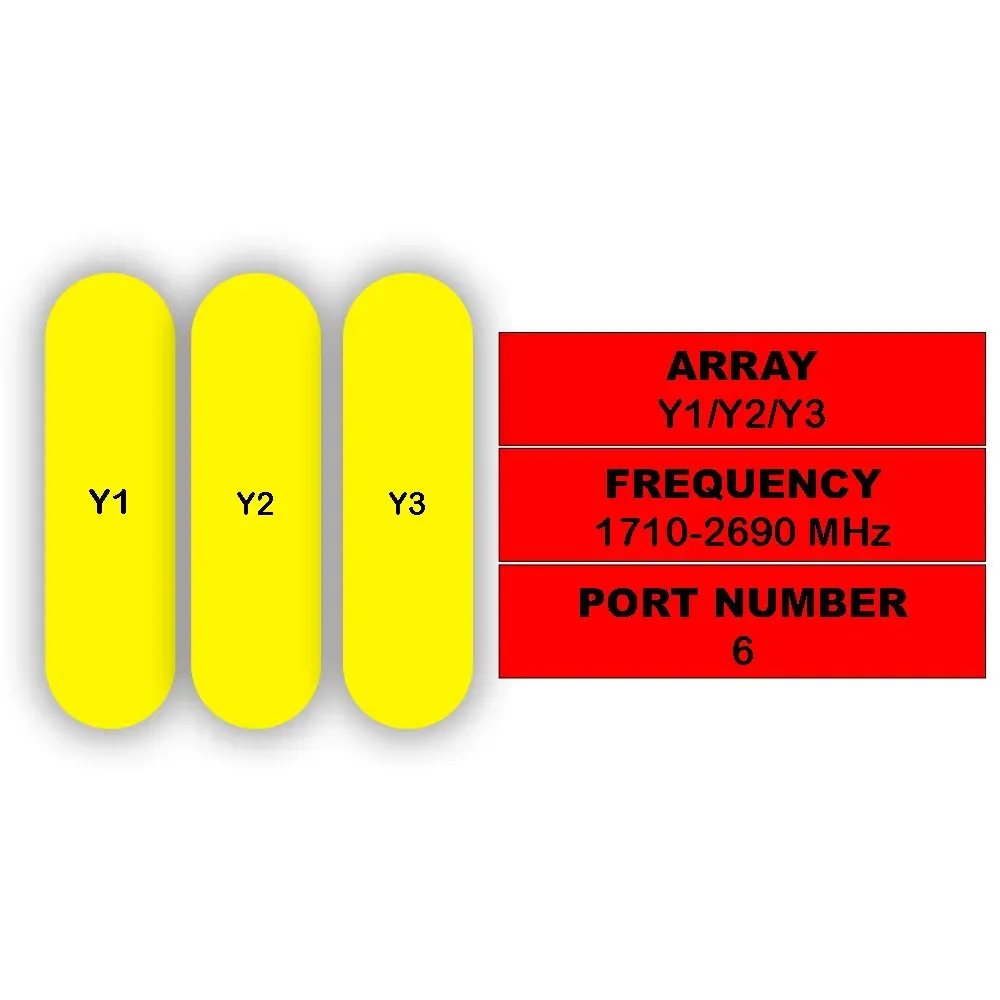

| 6-Port Antenna | Y1 | Y2 | Y3 |
| Frequency Range | 1710-2690 MHz | 1710-2690 MHz | 1710-2690 MHz |
| HBW | 65° | 65° | 65° |
| Gain | 20 dBi | 20 dBi | 20 dBi |
| Tilt | 0-6° | 0-6° | 0-6° |

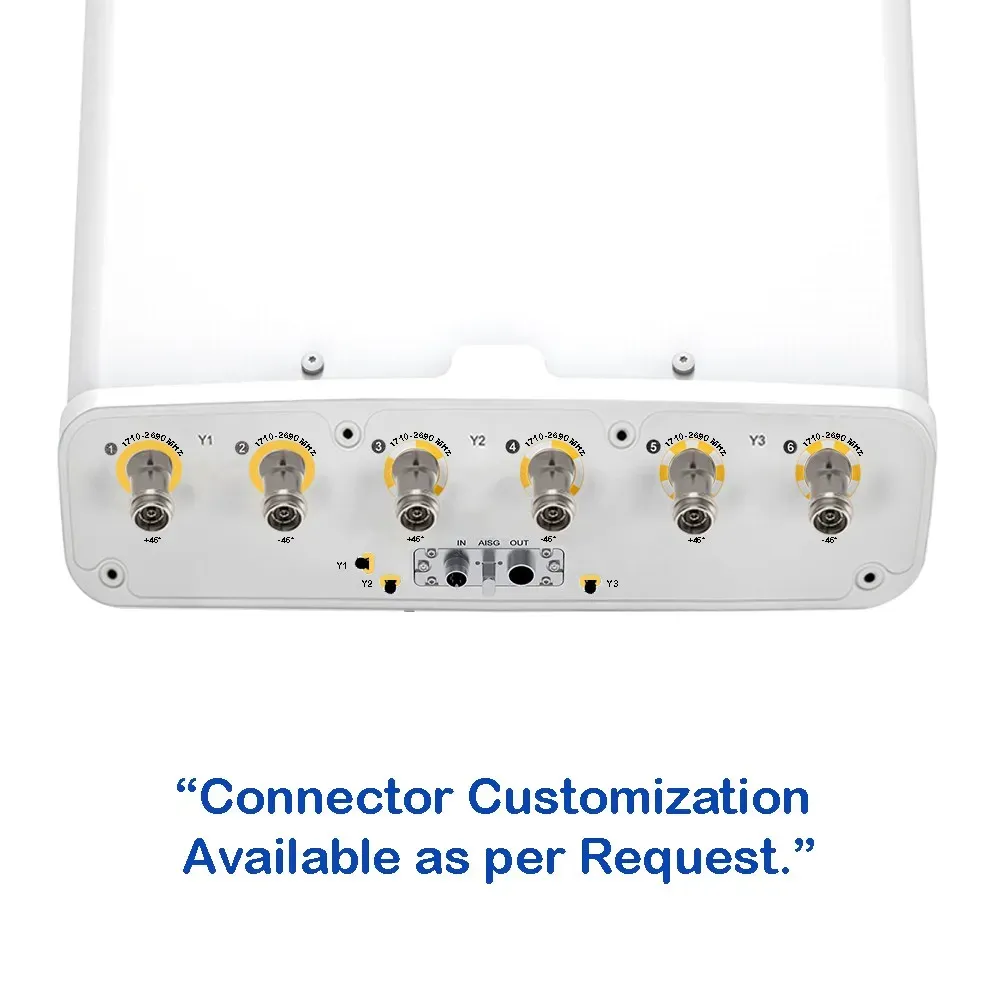

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
