Product code: 6P-617-2180F-15G-72H14V

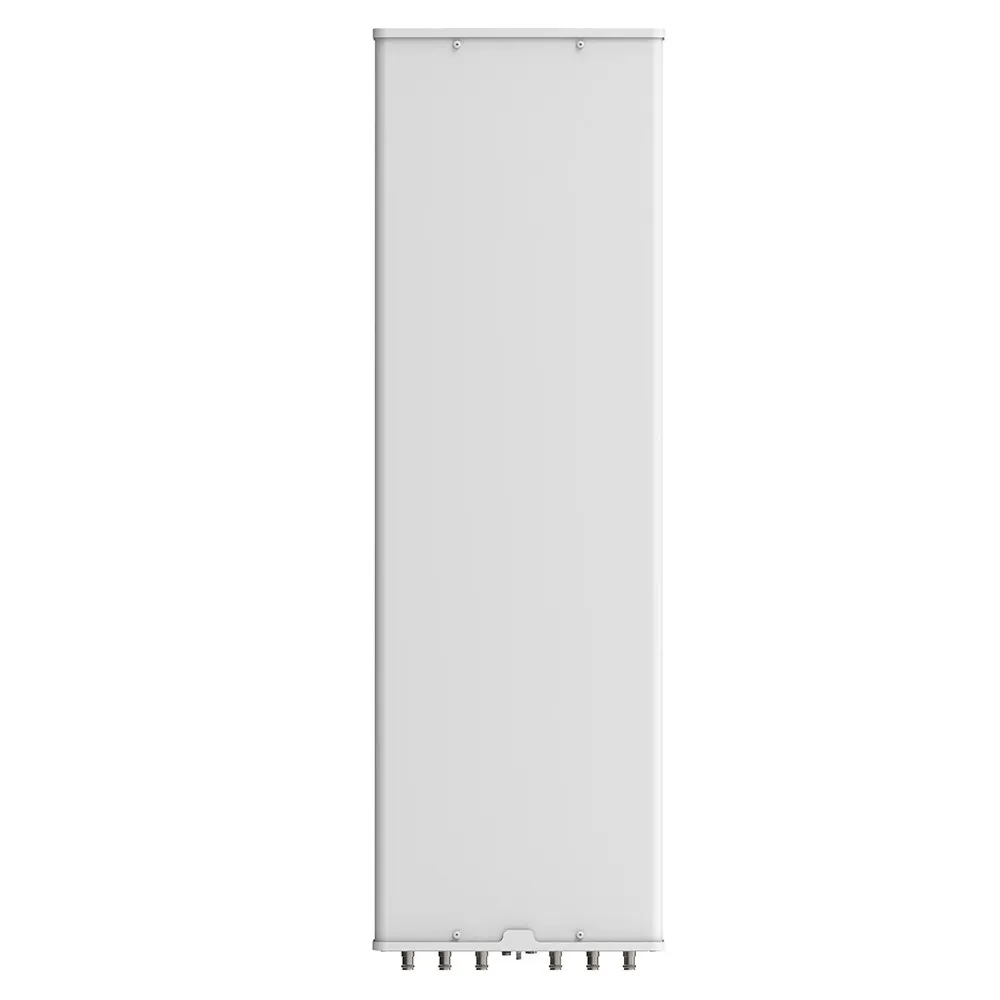

6-Port, Panel Sector Antenna, 65° HBW, 617-894 / 1710-2180 / 1710-2180 MHz, 15/17/17 dBi, 2-12°T, 1.827 m

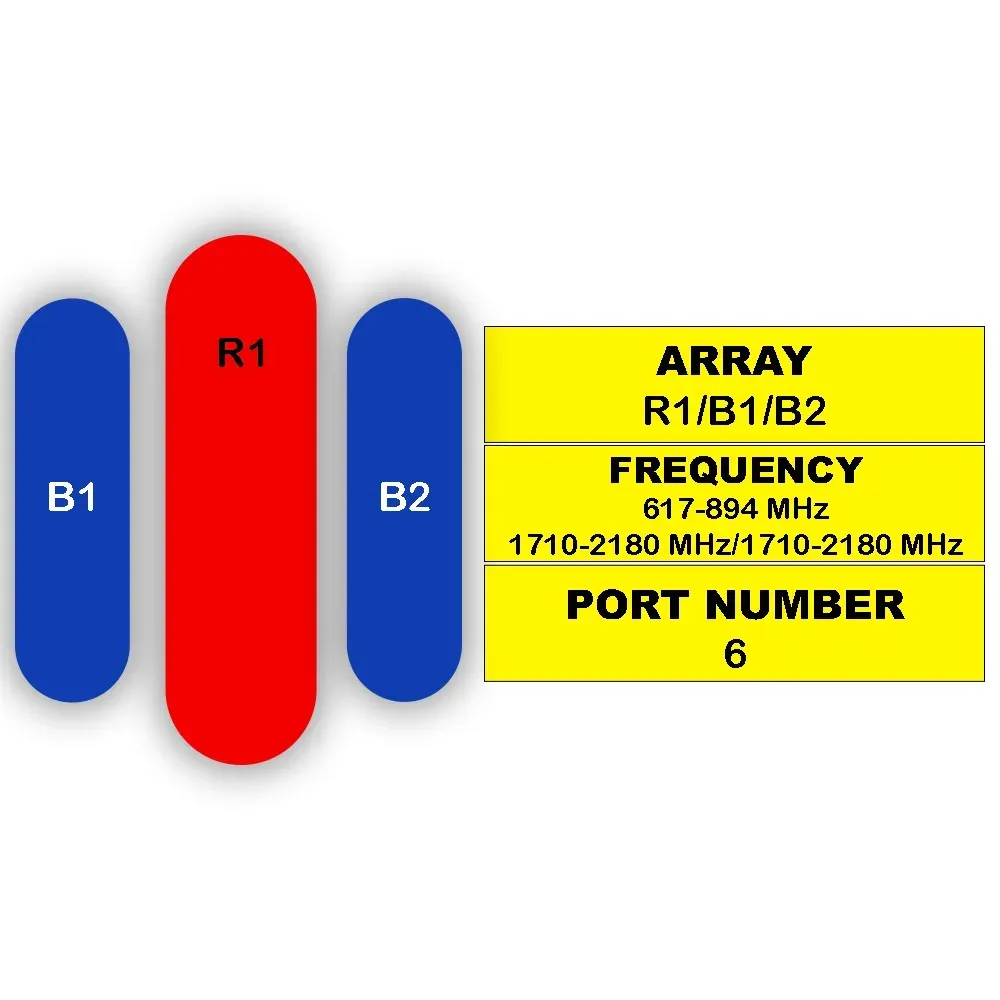

| 6-Port Antenna | R1 | B1 | B2 |
| Frequency Range | 617-894 MHz | 1710-2180 MHz | 1710-2180 MHz |
| HBW | 65° | 65° | 65° |
| Gain | 15 dBi | 17 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° |
| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
6P-617-2180F-15G-72H14V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| R1 | B1 / B2 | |||||||
| Frequency Range | MHz | 617-894 | 1710-2180 | |||||
| MHz | 617-698 | 690-806 | 790-894 | 1710-1880 | 1850-1990 | 1920-2180 | ||
| Polarization | — | ±45° | ±45° | |||||
| Gain | at Mid Tilt | dBi | 14.2 | 14.6 | 15 | 16.6 | 17 | 17.4 |
| Over All Tilts | dBi | 14.0 ± 0.5 | 14.4 ± 0.5 | 14.8 ± 0.5 | 16.4 ± 0.6 | 16.8 ± 0.5 | 17.2 ± 0.5 | |
| Horizontal Beamwidth | degree | 72 ± 4.4 | 68 ± 4.4 | 66 ± 3.6 | 69 ± 6.5 | 68 ± 6.1 | 66 ± 6.1 | |
| Vertical Beamwidth | degree | 14.1 ± 1.1 | 12.7 ± 0.9 | 11.1 ± 0.8 | 6.2 ± 0.6 | 5.8 ± 0.6 | 5.4 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | |||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | > 15 | > 16 | > 16 | > 16 | > 16 | > 16 |
| Suppression | Peak to 20° | dB | > 14 | > 15 | > 15 | > 14 | > 14 | > 14 |
| Front-To-Back Ratio ±30° | dB | > 21 | > 22 | > 23 | > 23 | > 23 | > 24 | |
| Cross Polar | at Boresight | dB | > 16 | > 18 | > 18 | > 16 | > 16 | > 16 |
| Discrimination | Over Sector | dB | > 8.0 | > 8.0 | > 7.5 | > 7 | > 8 | > 8 |
| Isolation | Cross-Polar | dB | > 25 | > 26 | ||||
| Port-To-Port | dB | > 28 | > 28 | |||||
| Impedance | Ohm | 50 | 50 | |||||
| VSWR | — | < 1.5 | < 1.5 | |||||
| Return Loss | dB | > 14 | > 14 | |||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | |||||
| Lightning Protection | — | DC Ground | DC Ground | |||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | |||||
| Integrated RET Specifications | ||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||
| Power | Standby | < 2 W | ||||||
| Consumption | In Motion | < 10 W | ||||||
| Connectors | 2 x 8 Pin Circle Connector | |||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||
| Hardware Interfaces | RS485 and Power | |||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||
| Adjustment Cycles | > 20,000 | |||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | ||||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||
| Housing Material / Color | Aluminum / Grey | |||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||
| Humidity | Up to 95% | |||||||
| IP Rating | IP65 | |||||||
| Weight | ≤ 500 g | |||||||
| Mechanical Specifications | ||||||||

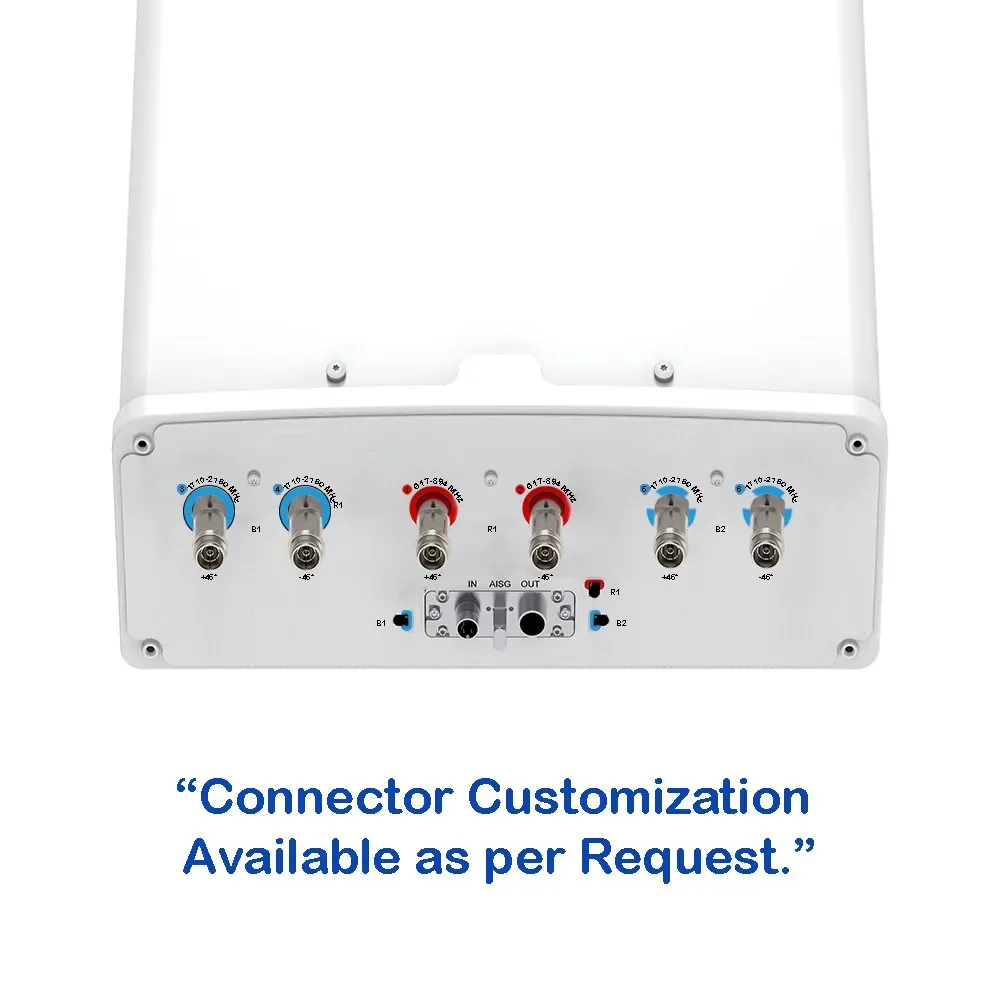

| Connector Type | — | (6x) 4.3/10 Female | ||||||
| Connector Position | — | Bottom | ||||||
| Electrical Tilt Control | — | Integrated RET | ||||||
| Radome Material | — | Fiberglass | ||||||

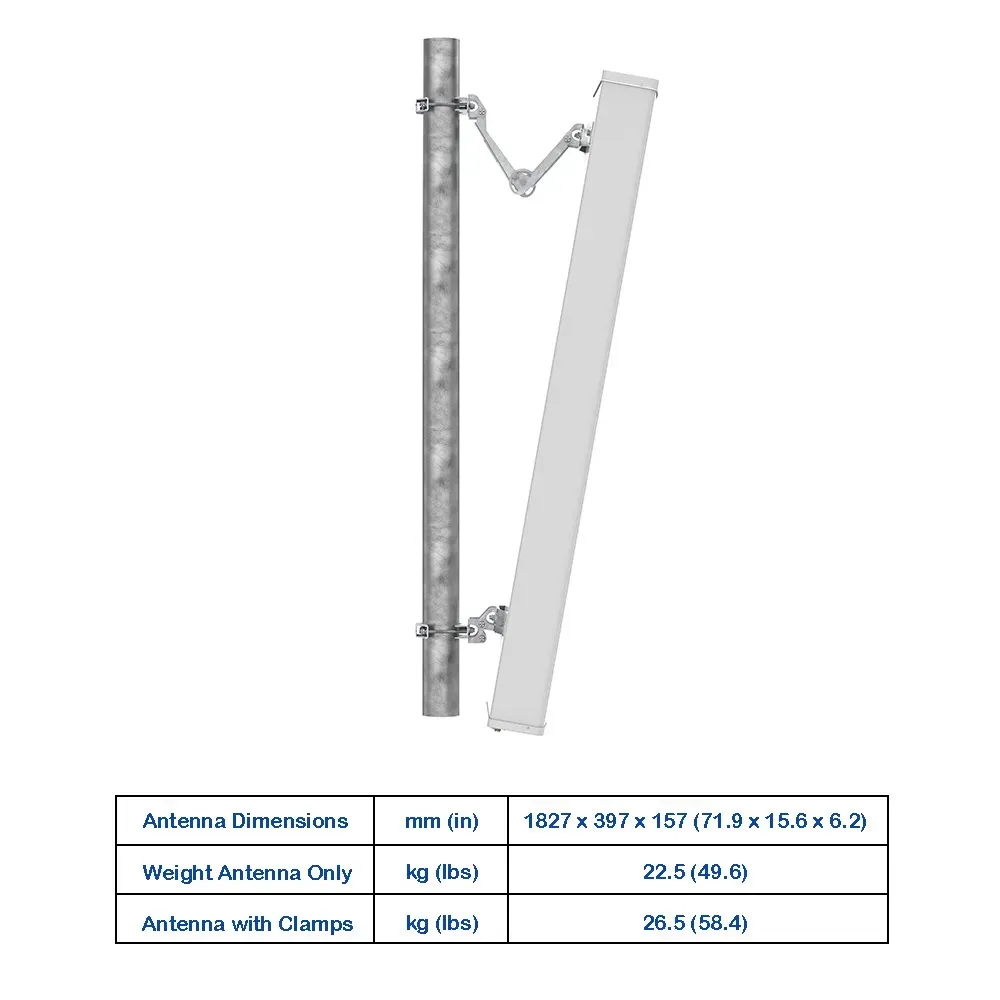

| Antenna Dimensions (H x W x D) | mm (in) | 1827 x 397 x 157 (71.9 x 15.6 x 6.2) | ||||||
| Antenna Weight | Antenna Only | kg (lbs) | 22.5 (49.6) | |||||
| with Clamps | kg (lbs) | 26.5 (58.4) | ||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||
| Wind Load | Frontal | N (lbf) | 670 (150.6) | |||||
| at 150 km/h | Rear | N (lbf) | 750 (168.6) | |||||
| Lateral | N (lbf) | 330 (74.2) | ||||||
