6-Port, Panel Sector Antenna, 65° HBW, 617-894 / 617-894 / 1710-2180 MHz, 15/15/17 dBi, 2-12°T, 1.827 m

Product code: 6P-617-2180F-15G-65H14V

6-Port, Panel Sector Antenna, 65° HBW, 617-894 / 617-894 / 1710-2180 MHz, 15/15/17 dBi, 2-12°T, 1.827 m

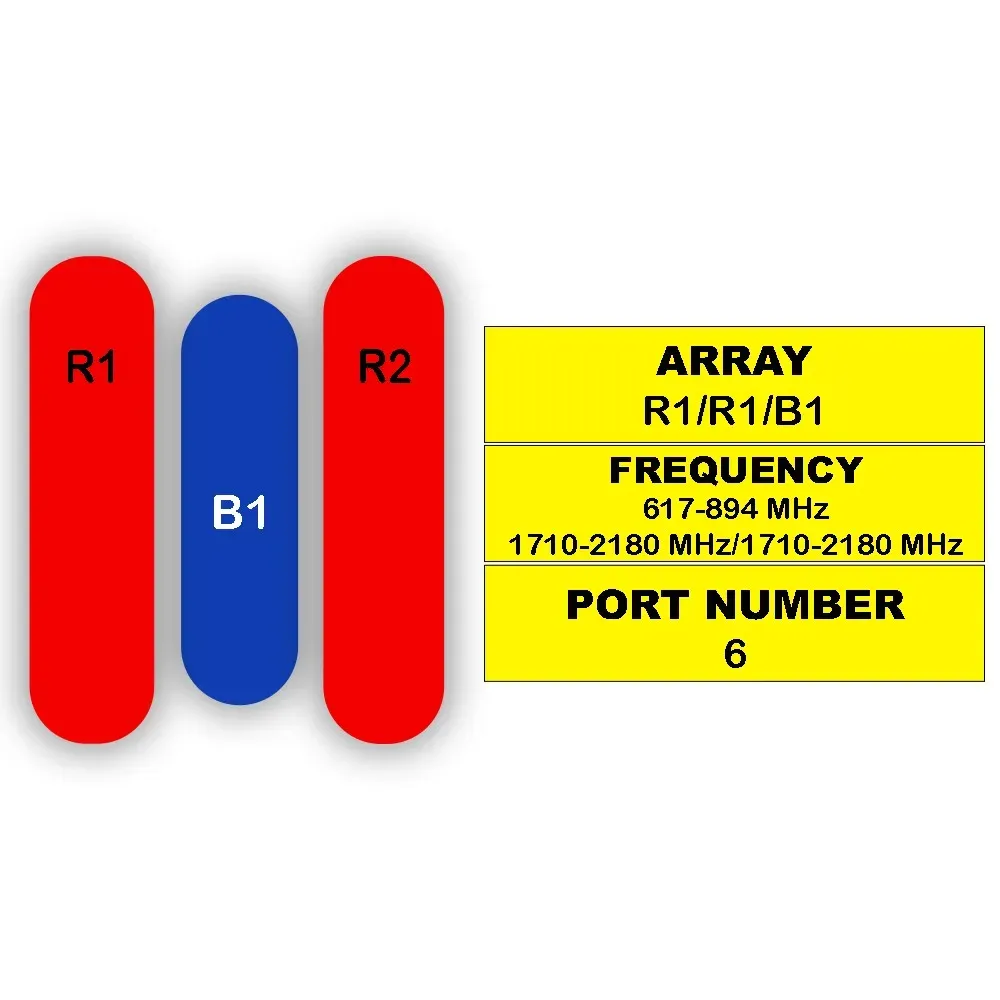

6-Port Antenna	R1	R2	B1
Frequency Range	617-894 MHz	617-894 MHz	1710-2180 MHz
HBW	65°	65°	65°
Gain	15 dBi	15 dBi	17 dBi
Tilt	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

6P-617-2180F-15G-65H14V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			B1
Frequency Range		MHz	617-894			1710-2180
		MHz	617-698	690-806	790-894	1710-1880	1850-1990	1920-2180
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	14	14.5	14.9	16.6	17	17.4
	Over All Tilts	dBi	13.8 ± 0.5	14.2 ± 0.5	14.7 ± 0.5	16.4 ± 0.6	16.8 ± 0.5	17.2 ± 0.5
Horizontal Beamwidth		degree	75 ± 4.4	72 ± 4.4	69 ± 3.6	66 ± 6.5	65 ± 6.1	63 ± 6.1
Vertical Beamwidth		degree	14.1 ± 1.1	12.7 ± 0.9	11.1 ± 0.8	6.2 ± 0.6	5.8 ± 0.6	5.4 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-12			2-12
Tilt Accuracy		degree	< 1	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe	First Upper Lobe	dB	> 15	> 16	> 16	> 16	> 16	> 16
Suppression	Peak to 20°	dB	> 14	> 15	> 15	> 14	> 14	> 14
Front-To-Back Ratio ±30°		dB	> 21	> 22	> 23	> 23	> 23	> 24
Cross Polar	at Boresight	dB	> 16	> 18	> 18	> 16	> 16	> 16
Discrimination	Over Sector	dB	> 8.0	> 8.0	> 7.5	> 7	> 8	> 8
Isolation	Cross-Polar	dB	> 25			> 26
	Port-To-Port	dB	> 25			> 28
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200
Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
		Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g
Mechanical Specifications

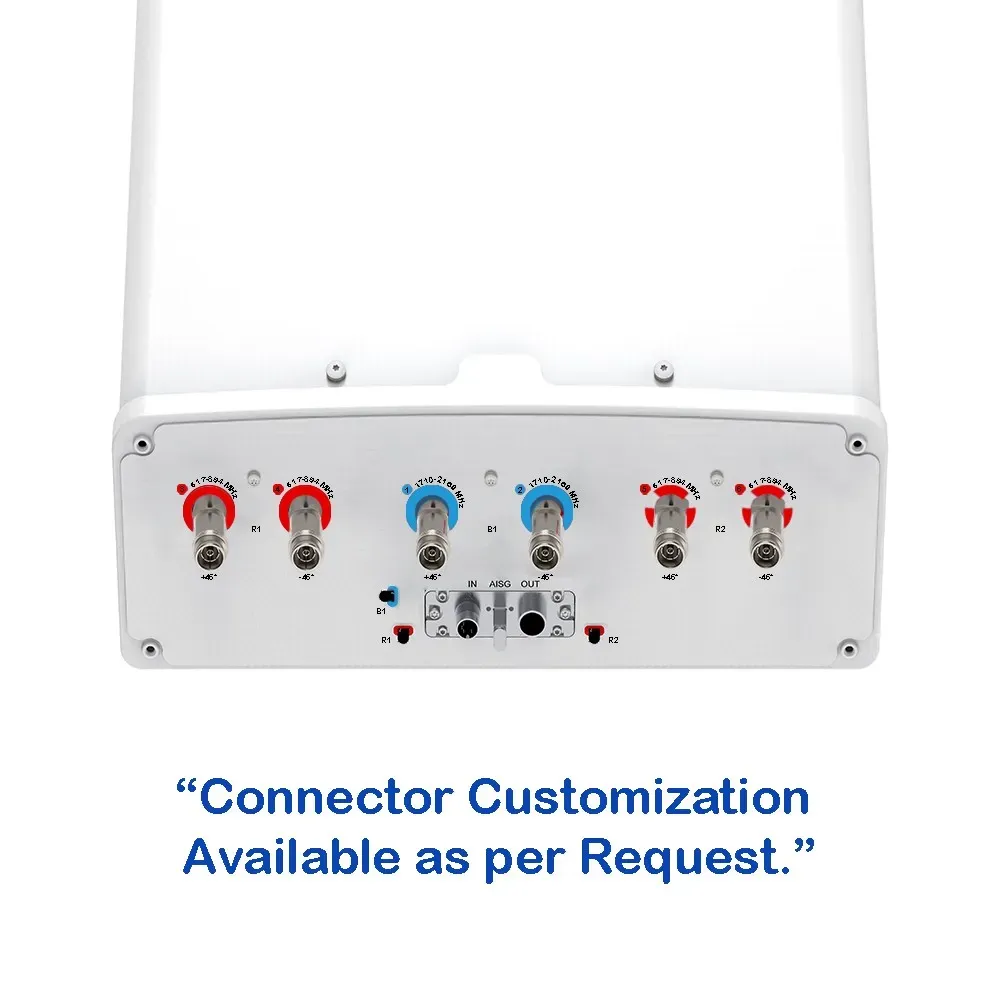

Connector Type		—	(6x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

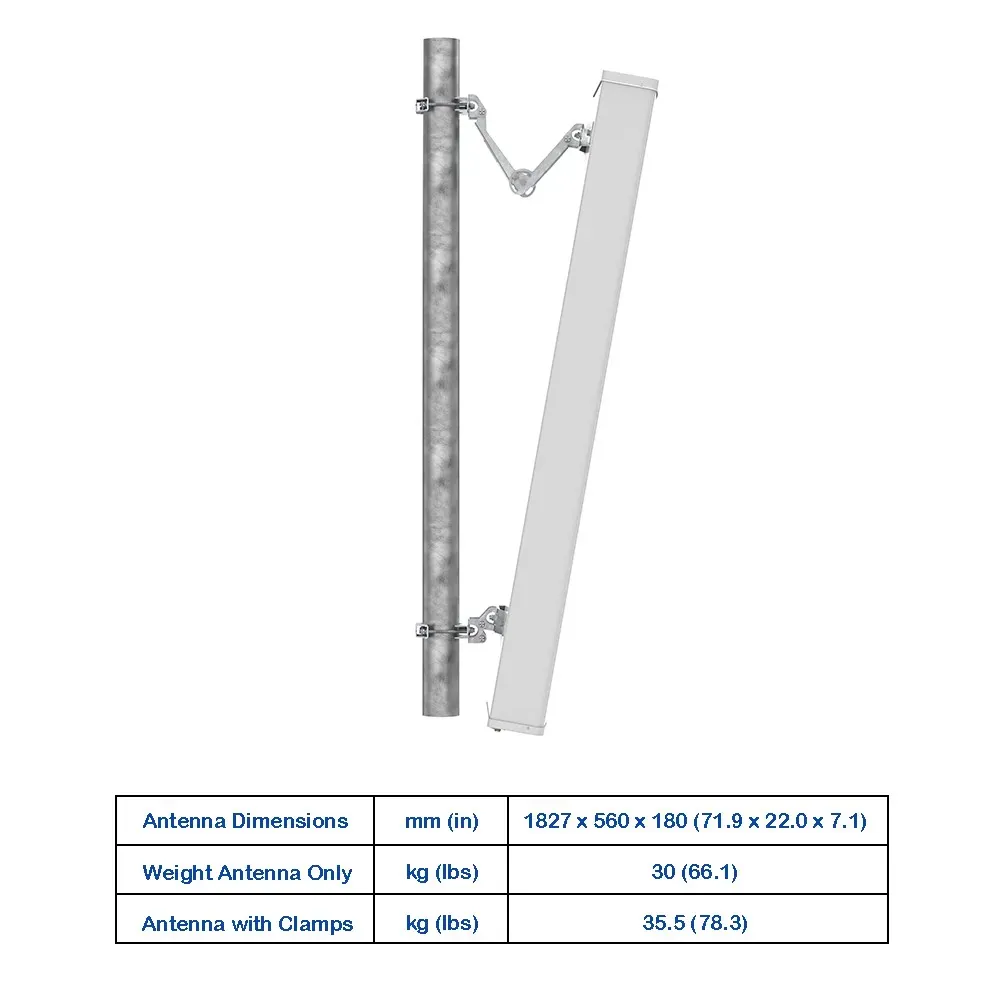

Antenna Dimensions (H x W x D)		mm (in)	1827 x 560 x 180 (71.9 x 22.0 x 7.1)
Antenna Weight	Antenna Only	kg (lbs)	30 (66.1)
	with Clamps	kg (lbs)	35.5 (78.3)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	945 (212.4)
at 150 km/h	Rear	N (lbf)	1055 (237.2)
	Lateral	N (lbf)	375 (84.3)
