6-Port, Panel Sector Antenna, 65° HBW, 617-960/1695-2690/1695-2690 MHz, 15.5/18/18 dBi, 2-12°T, 1.997 m

Please send purchase request at sales@mtsrl.in

Product code: 6P-617-2690F-15G-70H13V

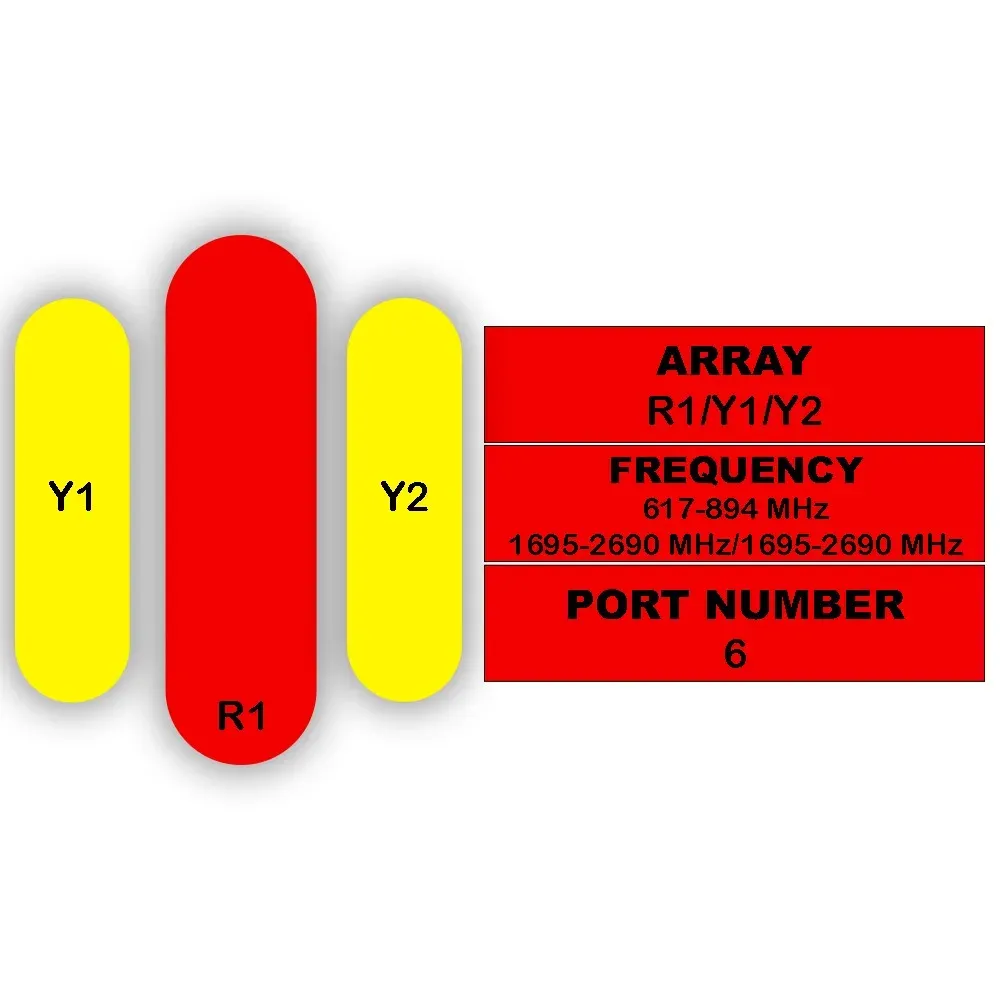

6-Port Antenna	R1	Y1	Y2
Frequency Range	617-960 MHz	1695-2690 MHz	1695-2690 MHz
HBW	65°	65°	65°
Gain	15.5 dBi	18 dBi	18 dBi
Tilt	2-12°	2-12°	2-12°

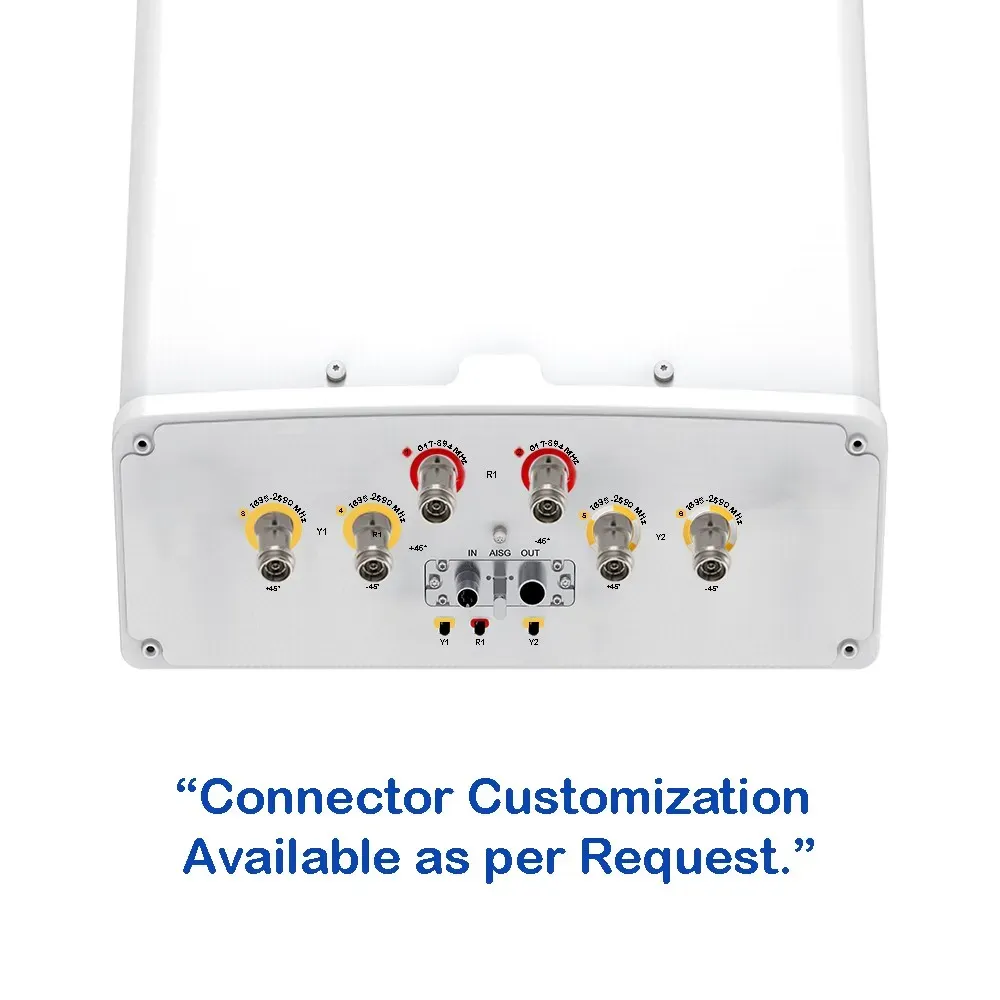

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

Product Part Number

6P-617-2690F-15G-70H13V

Electrical & Mechanical Specification

Electrical Specifications























Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
Connectors		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications
Connector Type		—	(6x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

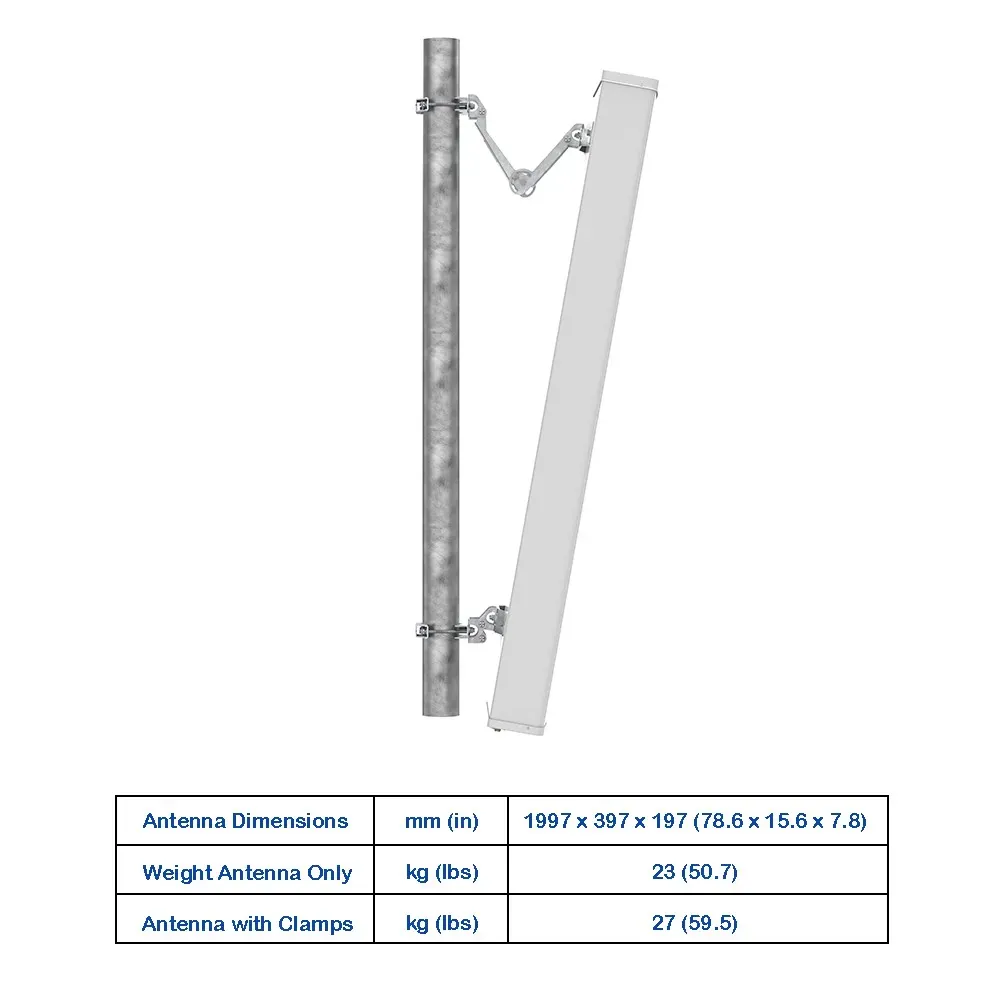

Antenna Dimensions (H x W x D)		mm (in)	1997 x 397 x 197 (78.6 x 15.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	23 (50.7)
Antenna Weight	with Clamps	kg (lbs)	27 (59.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	735 (165.2)
	Rear	N (lbf)	820 (184.3)
	Lateral	N (lbf)	450 (101.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
