Product code: 6P-690-2690F-16G-70H11V

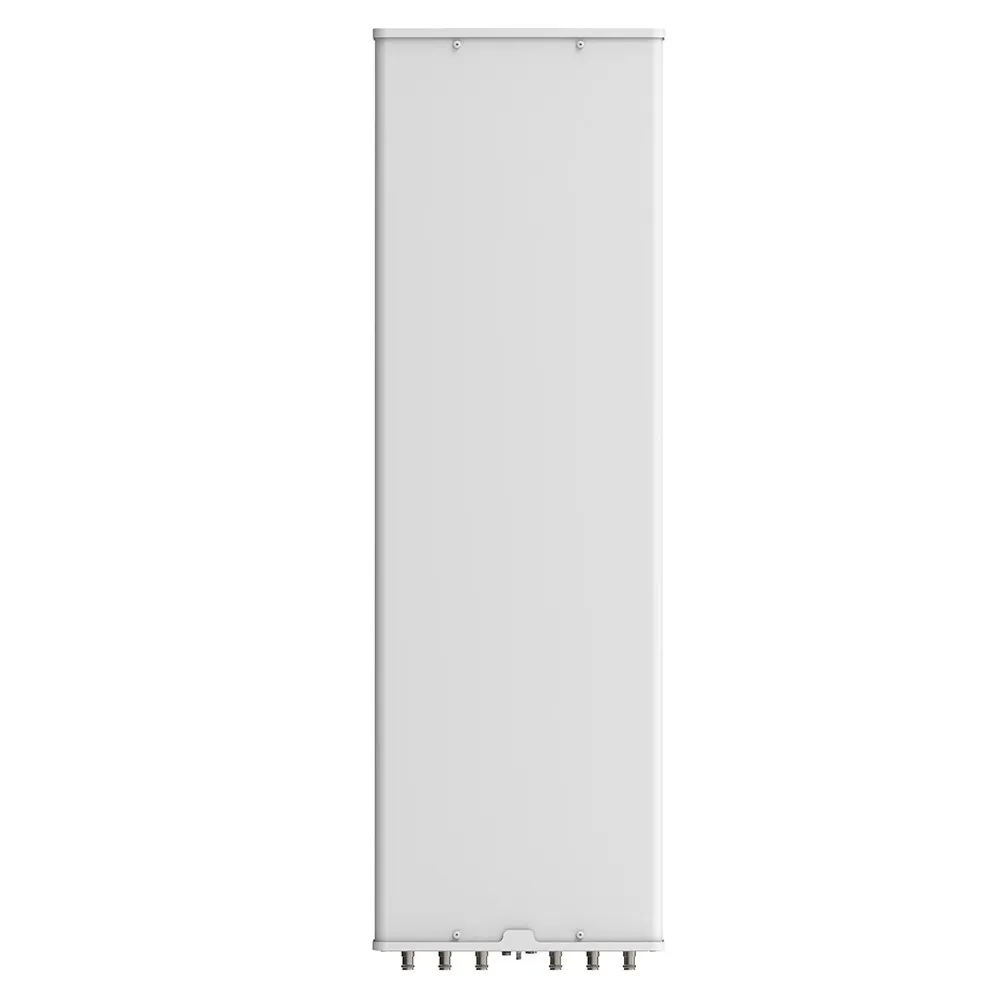

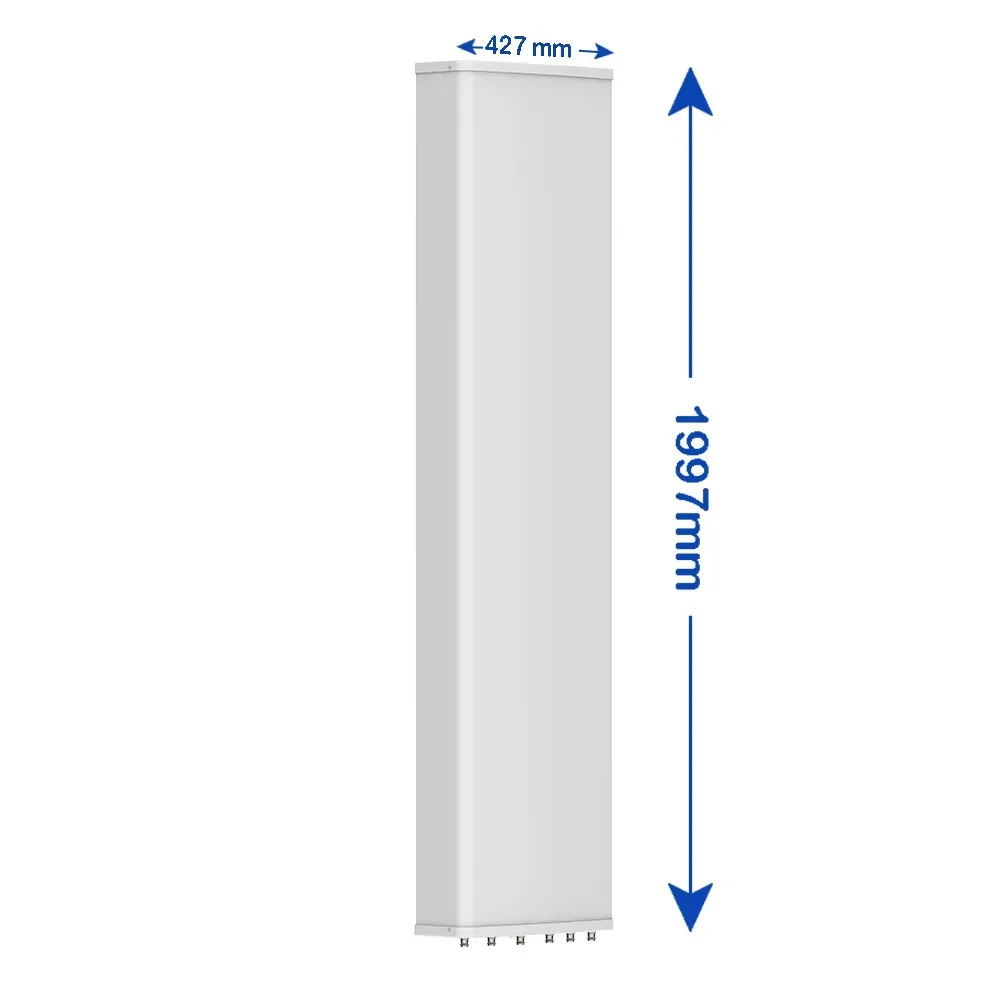

6-Port, Panel Sector Antenna, 65° HBW, 690-960/1427-2690/1427-2690 MHz, 16/18/18 dBi, 2-12°T, 1.997 m
| Type | RW-6-L1H0H0-1997-427-65-171818-ET-IN-43R | ||

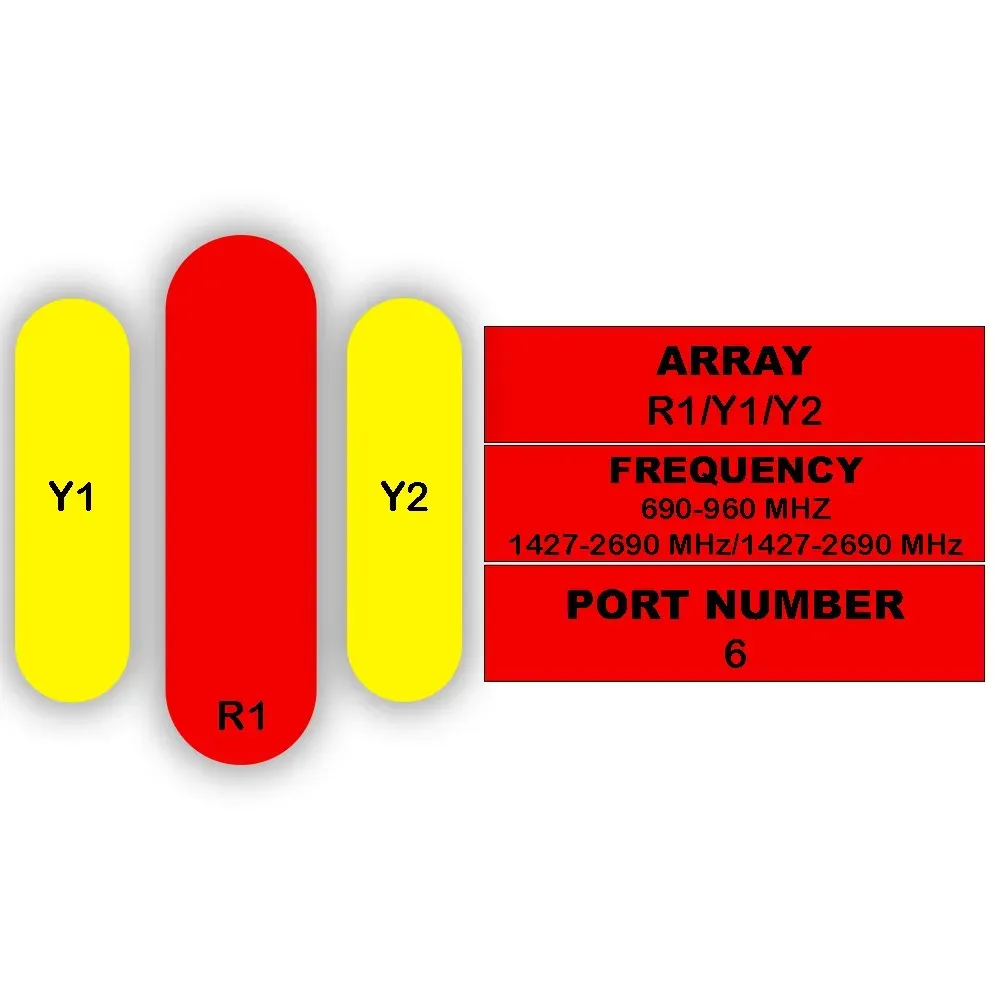

| 6-Port Antenna | R1 | Y1 | Y2 |
| Frequency Range | 690-960 MHz | 1427-2690
MHz |
1427-2690
MHz |
| HBW | 65° | 65° | 65° |
| Gain | 16 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° |

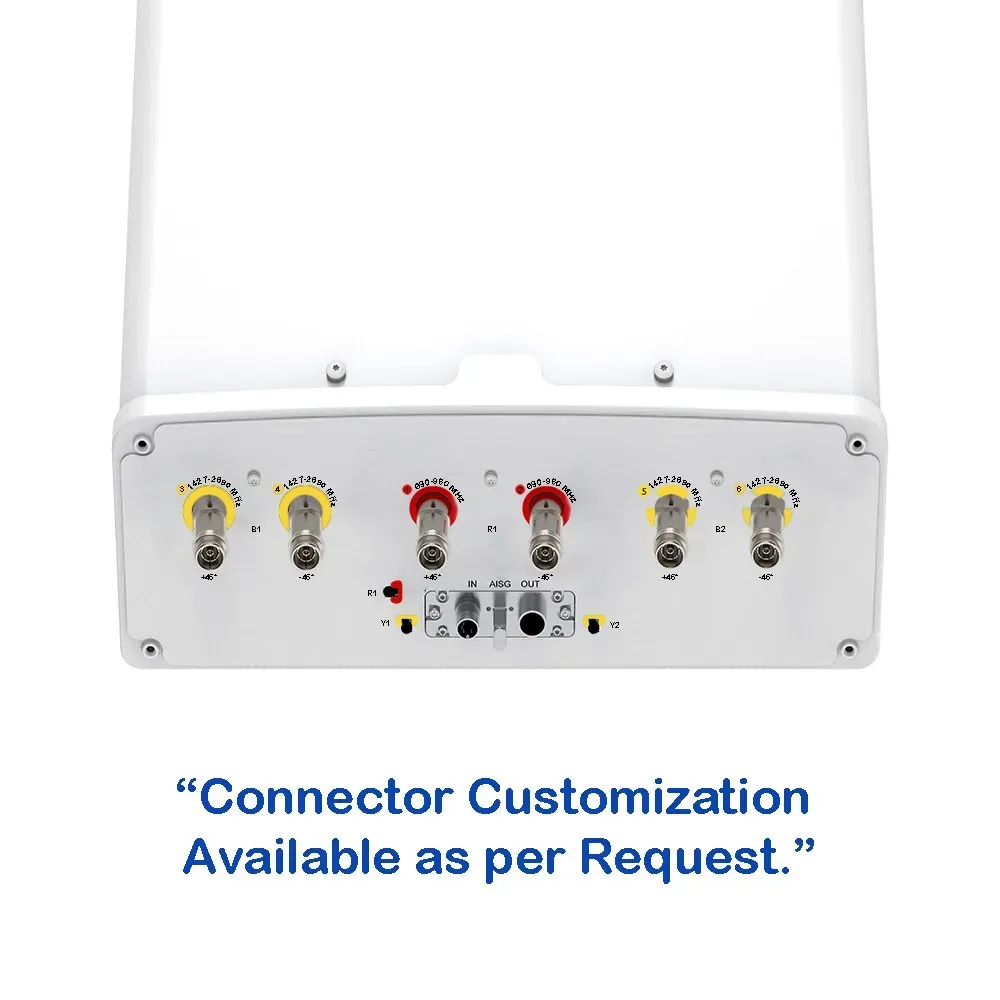

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
