Product code: 6P-690-2690F-18G-70H5V

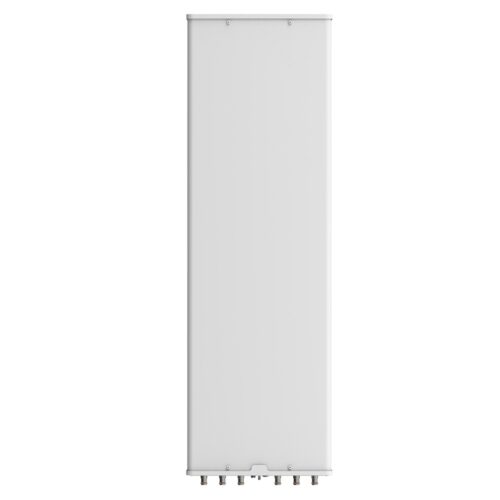

6-Port, Panel Sector Antenna, 65° HBW, 690-960/(2x)1695-2690 MHz, 16/18/18 dBi, 2-12°T, 1.997 m

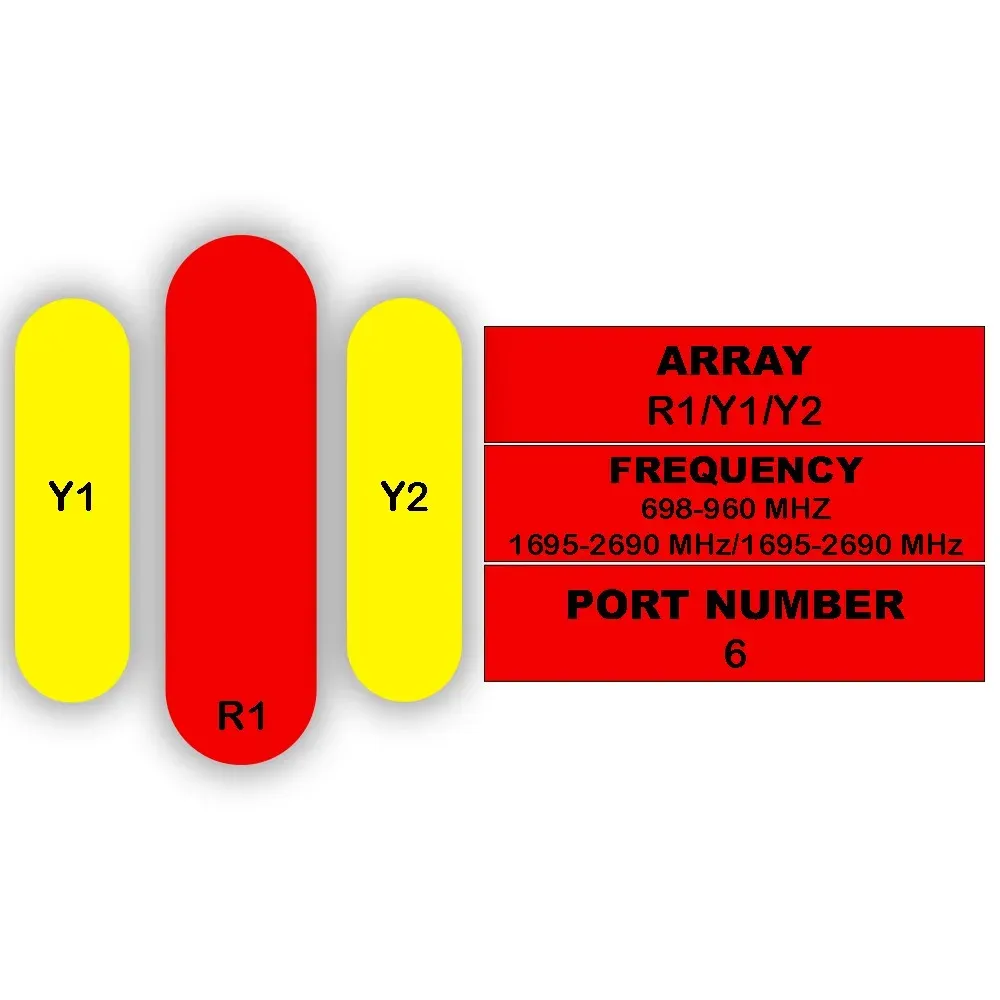

| 6-Port Antenna | R1 | Y1 | Y2 |
| Frequency Range | 690-960 MHz | 1695-2690 MHz | 1695-2690 MHz |
| HBW | 65° | 65° | 65° |
| Gain | 16 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° |

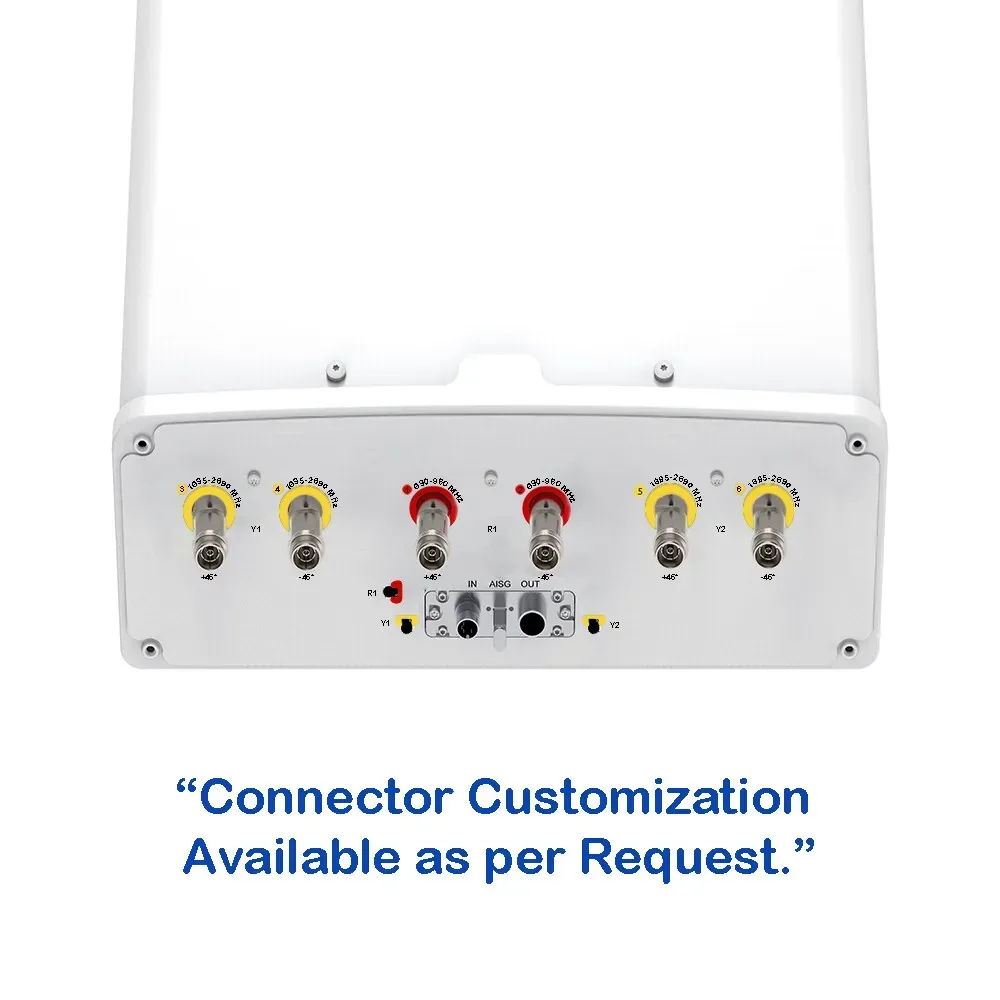

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
6P-690-2690F-18G-70H5V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 / Y2 | |||||||||
| Frequency Range | MHz | 690-960 | 1695-2690 | |||||||
| MHz | 690-806 | 790-894 | 880-960 | 1695-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | ||
| Polarization | — | ±45° | ±45° | |||||||
| Gain | at Mid Tilt | dBi | 15 | 15.5 | 15.8 | 16.8 | 17.2 | 17.6 | 17.8 | 17.8 |
| Over All Tilts | dBi | 14.8 ± 0.6 | 15.3 ± 0.6 | 15.6 ± 0.6 | 16.6 ± 0.6 | 17.0 ± 0.5 | 17.4 ± 0.6 | 17.6 ± 0.6 | 17.6 ± 0.6 | |
| Horizontal Beamwidth | degree | 69 ± 4.5 | 67 ± 4.5 | 65 ± 4.1 | 69 ± 6.1 | 67 ± 6.1 | 65 ± 6.5 | 65 ± 6.0 | 62 ± 6.5 | |
| Vertical Beamwidth | degree | 11.9 ± 1.1 | 10.6 ± 0.9 | 9.4 ± 0.8 | 6.8 ± 0.6 | 6.4 ± 0.5 | 6.0 ± 0.5 | 5.4 ± 0.4 | 4.8 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | |||||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | ≥ 16 | ≥ 16 | ≥ 16 | > 17 | > 17 | > 17 | > 17 | > 17 |
| Suppression | Peak to 20° | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Front-To-Back Ratio ±30° | dB | ≥ 25 | ≥ 26 | ≥ 26 | > 24 | > 24 | > 25 | > 25 | > 25 | |
| Cross Polar | at Boresight | dB | ≥ 17 | ≥ 18 | ≥ 17 | > 17 | > 16 | > 17 | > 17 | > 17 |
| Discrimination | Over Sector | dB | ≥ 8 | ≥ 7 | ≥ 6 | > 6 | > 7 | > 7 | > 5 | > 4 |
| Isolation | Cross-Polar | dB | > 28 | > 28 | ||||||
| Intraband | dB | > 28 | > 28 | |||||||
| Impedance | Ohm | 50 | 50 | |||||||
| VSWR | — | < 1.5 | < 1.5 | |||||||
| Return Loss | dB | > 14 | > 14 | |||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | |||||||
| Lightning Protection | — | DC Ground | DC Ground | |||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | |||||||
| Integrated RET Specifications | ||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||
| Power | Standby | < 2 W | ||||||||
| Consumption | In Motion | < 10 W | ||||||||
| Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | |||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||
| Hardware Interfaces | RS485 and Power | |||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||||
| Adjustment Cycles | > 20,000 | |||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | ||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||
| Housing Material / Color | Aluminum / Grey | |||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||||
| Humidity | Up to 95% | |||||||||
| IP Rating | IP65 | |||||||||
| Weight | ≤ 500 g | |||||||||
| Mechanical Specifications | ||||||||||
| Connector Type | — | (6x) 4.3/10 Female | ||||||||
| Connector Position | — | Bottom | ||||||||
| Electrical Tilt Control | — | Integrated RET | ||||||||
| Radome Material | — | Fiberglass | ||||||||

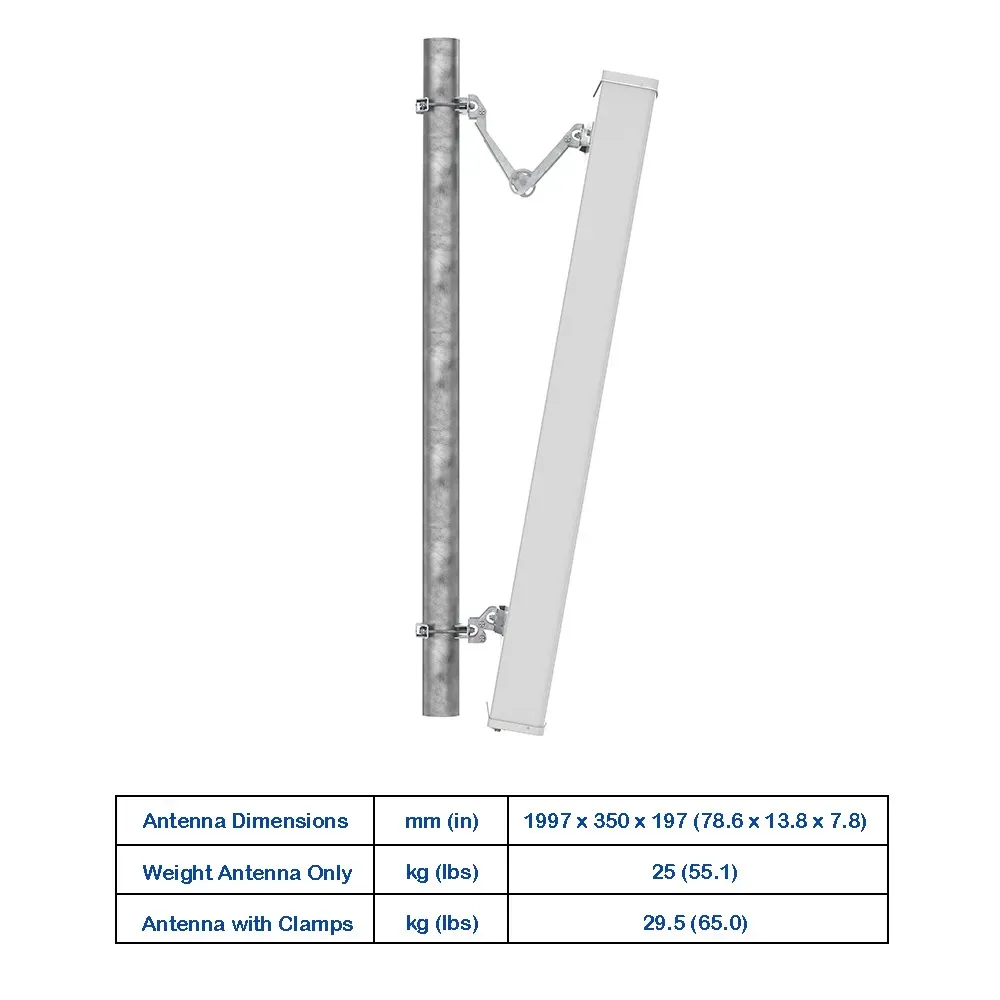

| Antenna Dimensions (H x W x D) | mm (in) | 1997 x 350 x 197 (78.6 x 13.8 x 7.8) | ||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 25 (55.1) | |||||||
| with Clamps | kg (lbs) | 29.5 (65.0) | ||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||
| Wind Load at 150 km/h | Frontal | N (lbf) | 695 (156.2) | |||||||
| Rear | N (lbf) | 780 (175.4) | ||||||||
| Lateral | N (lbf) | 360 (80.9) | ||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | ||||||||
