Product code: 6P-698-2690F-16G-70H11V

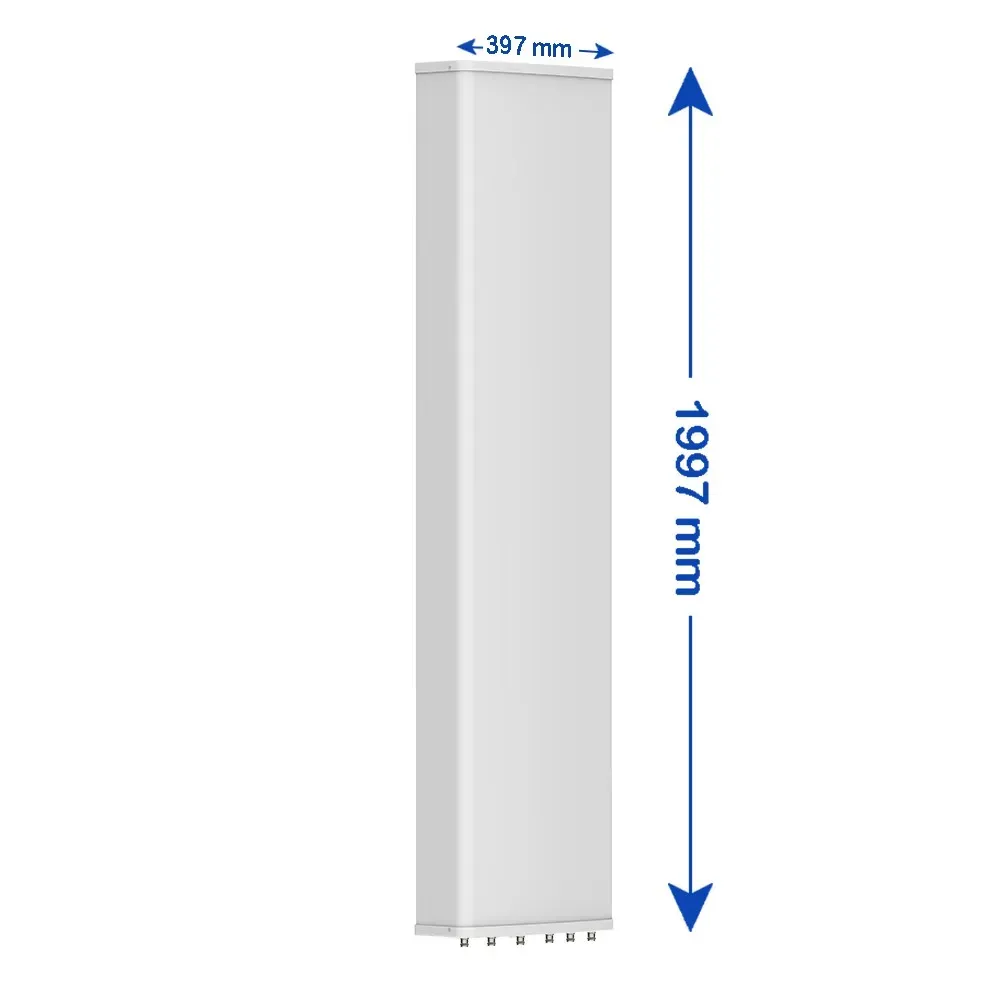

6-Port, Panel Sector Antenna, 65° HBW, 698-960/(2x) 1695-2690 MHz, 16/18/18 dBi, 2-12°T, 1.997 m

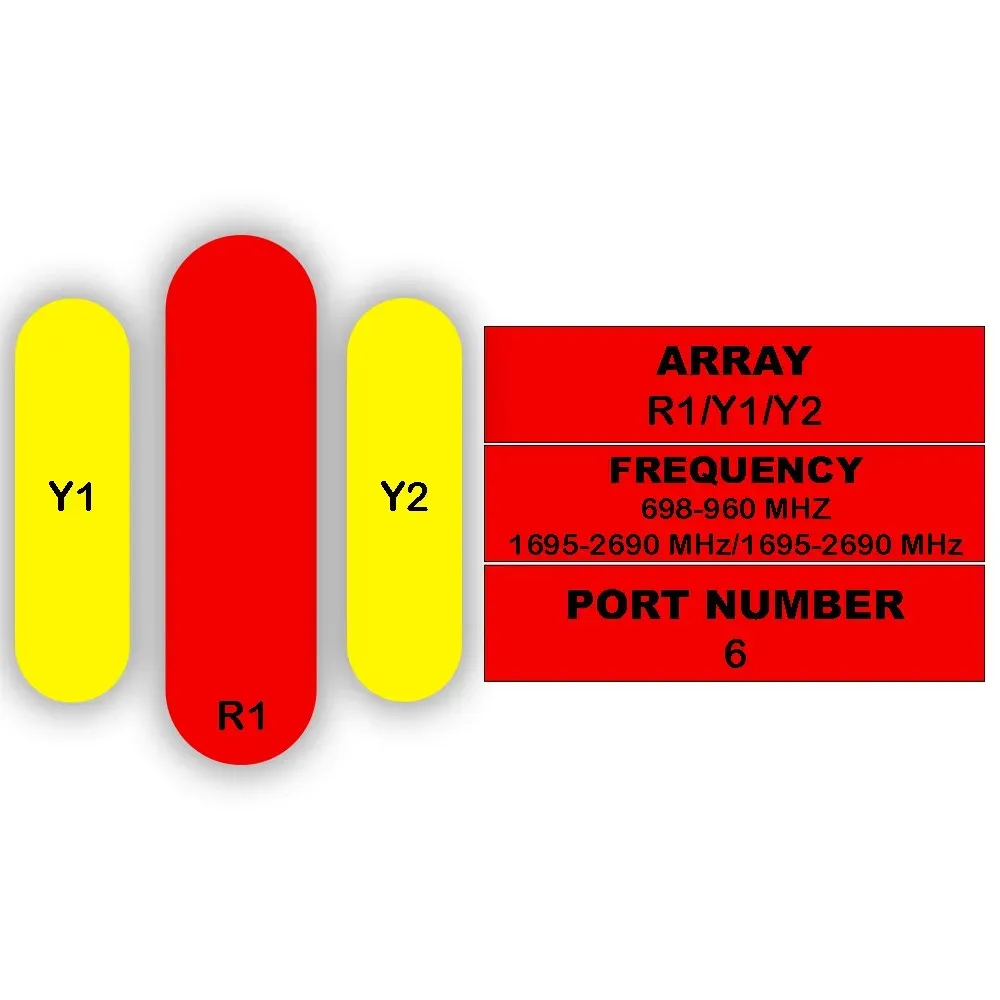

| 6-Port Antenna | R1 | Y1 | Y2 |
| Frequency Range | 698-960 MHz | 1695-2690
MHz |
1695-2690
MHz |
| HBW | 65° | 65° | 65° |
| Gain | 16 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° |

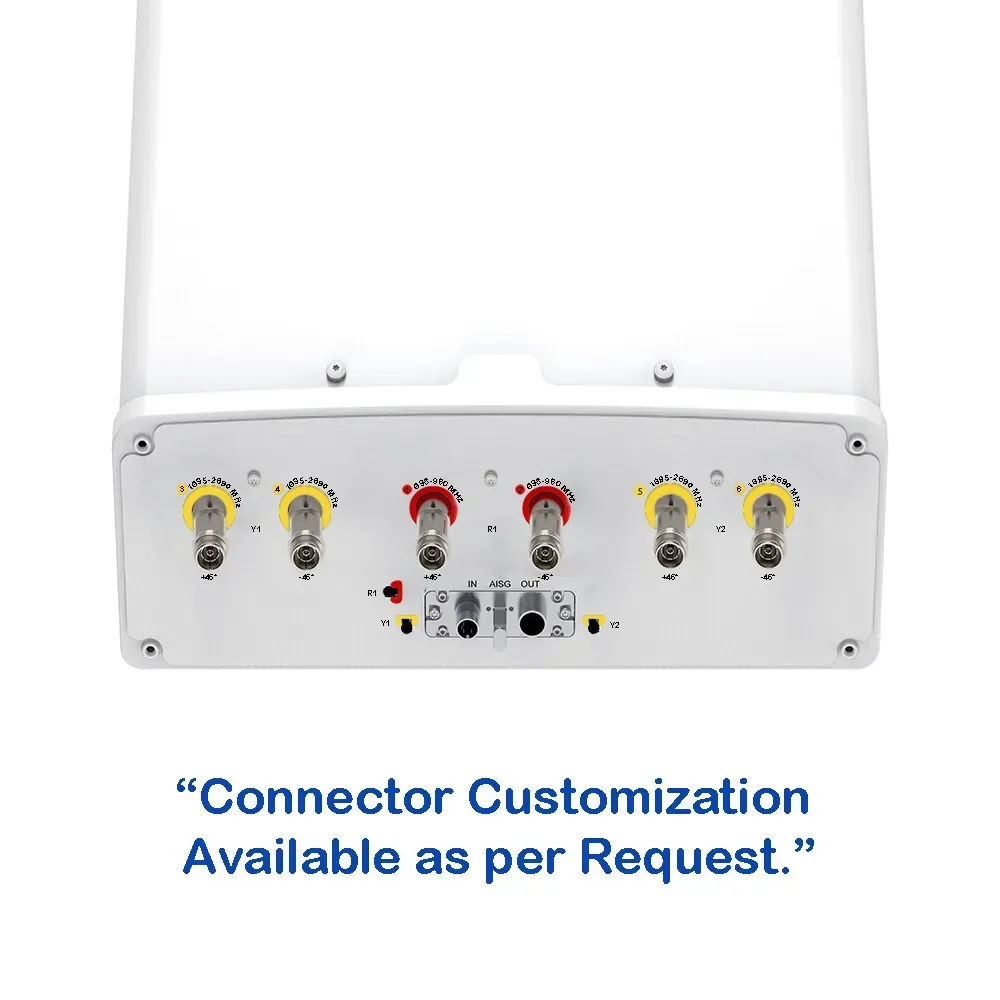

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
