6-Port, Panel Sector Antenna, 65° HBW, 698-960/(2x)1695-2690 MHz, 17/18/18 dBi, 2-12°T, 2.497 m

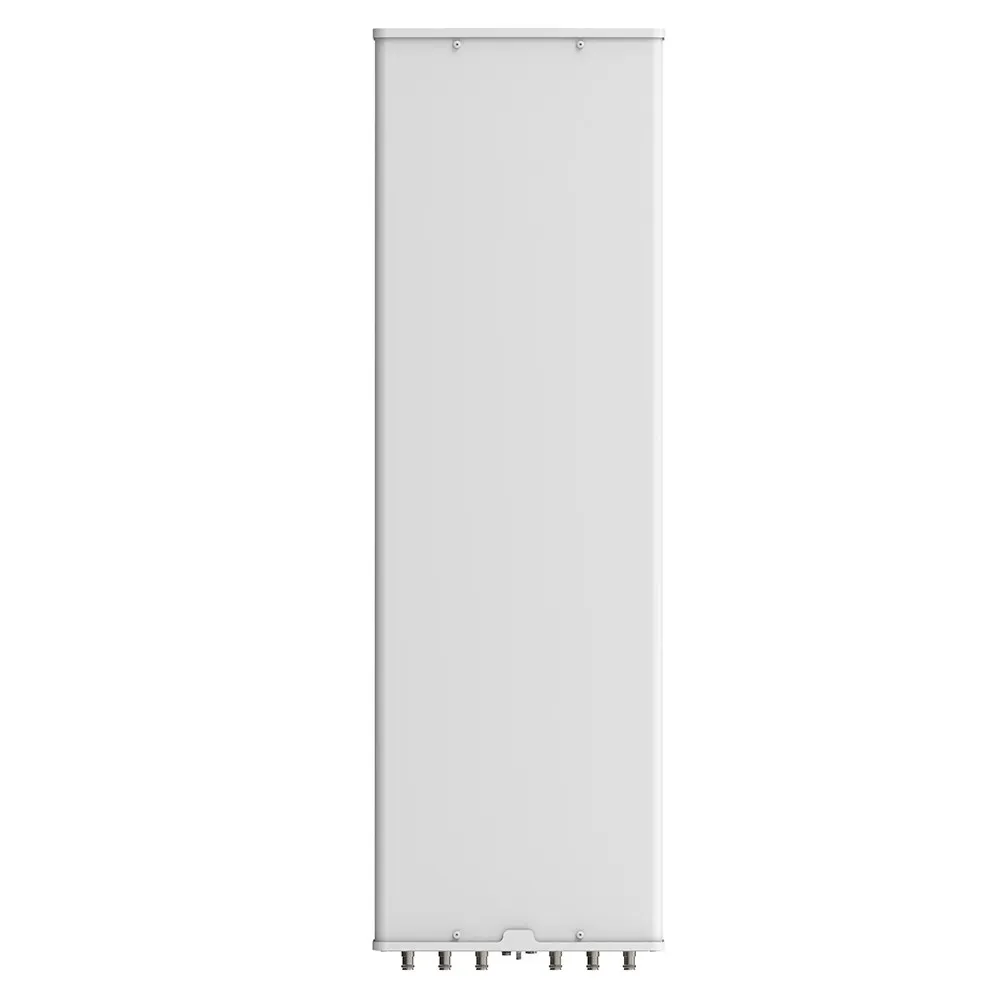

Product code: 6P-698-2690F-18G-65H6V

6-Port, Panel Sector Antenna, 65° HBW, 698-960/(2x)1695-2690 MHz, 17/18/18 dBi, 2-12°T, 2.497 m

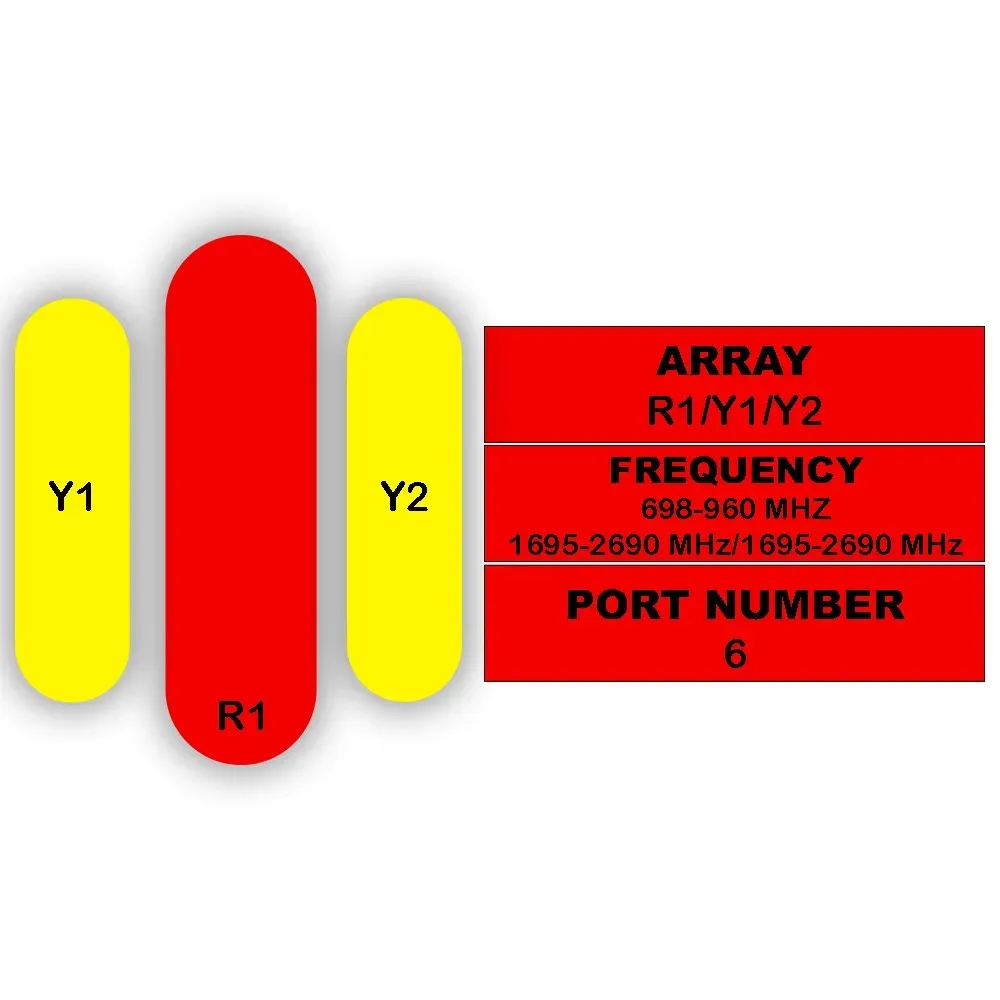

6-Port Antenna	R1	Y1	Y2
Frequency Range	698-960 MHz	1695-2690 MHz	1695-2690 MHz
HBW	65°	65°	65°
Gain	17 dBi	18 dBi	18 dBi
Tilt	2-12°	2-12°	2-12°

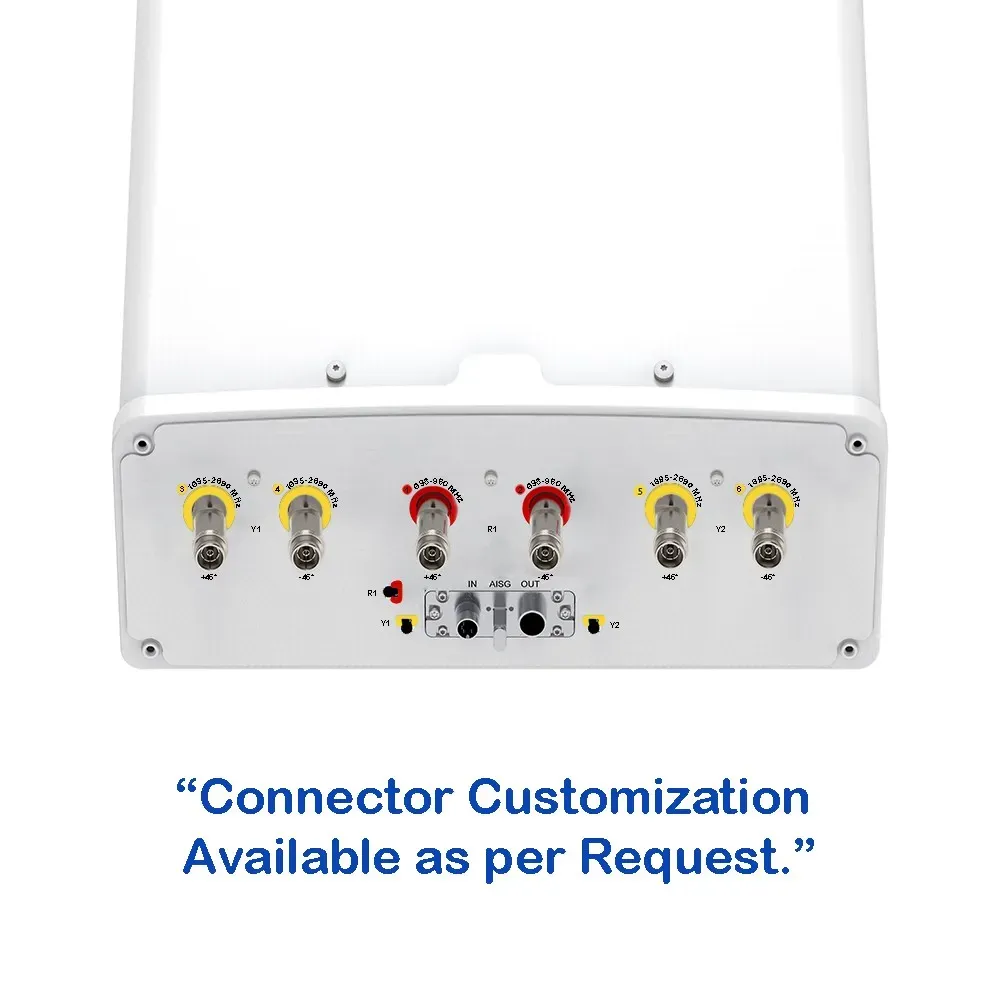

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

6P-698-2690F-18G-65H6V

Electrical & Mechanical Specification

Electrical Specifications
			R1			Y1 / Y2
Frequency Range		MHz	698-960			1695-2690
Frequency Range		MHz	698-806	790-894	880-960	1695-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	15.8	16.5	16.8	17.5	17.8	18	18.1	18.1
Gain	Over All Tilts	dBi	15.6 ± 0.6	16.3 ± 0.6	16.6 ± 0.6	17.3 ± 0.6	17.6 ± 0.6	17.8 ± 0.6	17.9 ± 0.5	17.9 ± 0.5
Horizontal Beamwidth		degree	69 ± 4.1	67 ± 4.1	65 ± 4.5	69 ± 6.0	67 ± 5.5	65 ± 6.0	62 ± 5.0	62 ± 5.5
Vertical Beamwidth		degree	8.8 ± 0.9	7.8 ± 0.7	7.2 ± 0.6	6.8 ± 0.7	6.3 ± 0.6	5.8 ± 0.6	5.2 ± 0.5	4.8 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
Tilt Accuracy		degree	< 1	< 1	< 1	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe	First Upper Lobe	dB	≥ 18	≥ 18	≥ 18	> 18	> 18	> 18	> 18	> 18
Suppression	Peak to 20°	dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio ±30°		dB	≥ 23	≥ 25	≥ 25	> 25	> 25	> 25	> 26	> 26
Cross Polar	at Boresight	dB	≥ 17	≥ 18	≥ 17	> 15	> 16	> 16	> 18	> 18
Discrimination	Over Sector	dB	≥ 8	≥ 7	≥ 6	> 6	> 7	> 6	> 5	> 4
Isolation	Cross-Polar	dB	> 28			> 28
Isolation	Intraband	dB	> 28			> 28
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -153			< -153
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications
Connector Type		—	(6x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

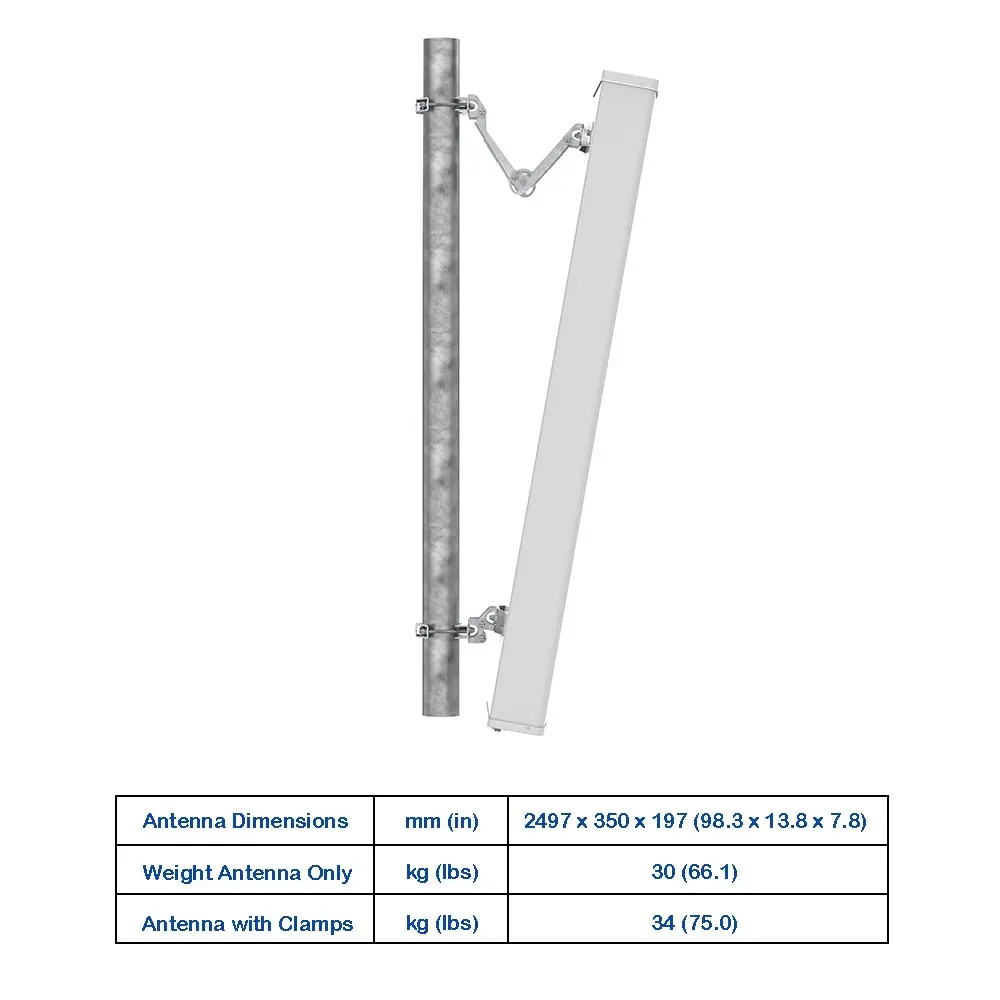

Antenna Dimensions (H x W x D)		mm (in)	2497 x 350 x 197 (98.3 x 13.8 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	30 (66.1)
Antenna Weight	with Clamps	kg (lbs)	34 (75.0)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	810 (182.1)
	Rear	N (lbf)	905 (203.5)
	Lateral	N (lbf)	560 (125.9)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
