Product code: MT-DTA722

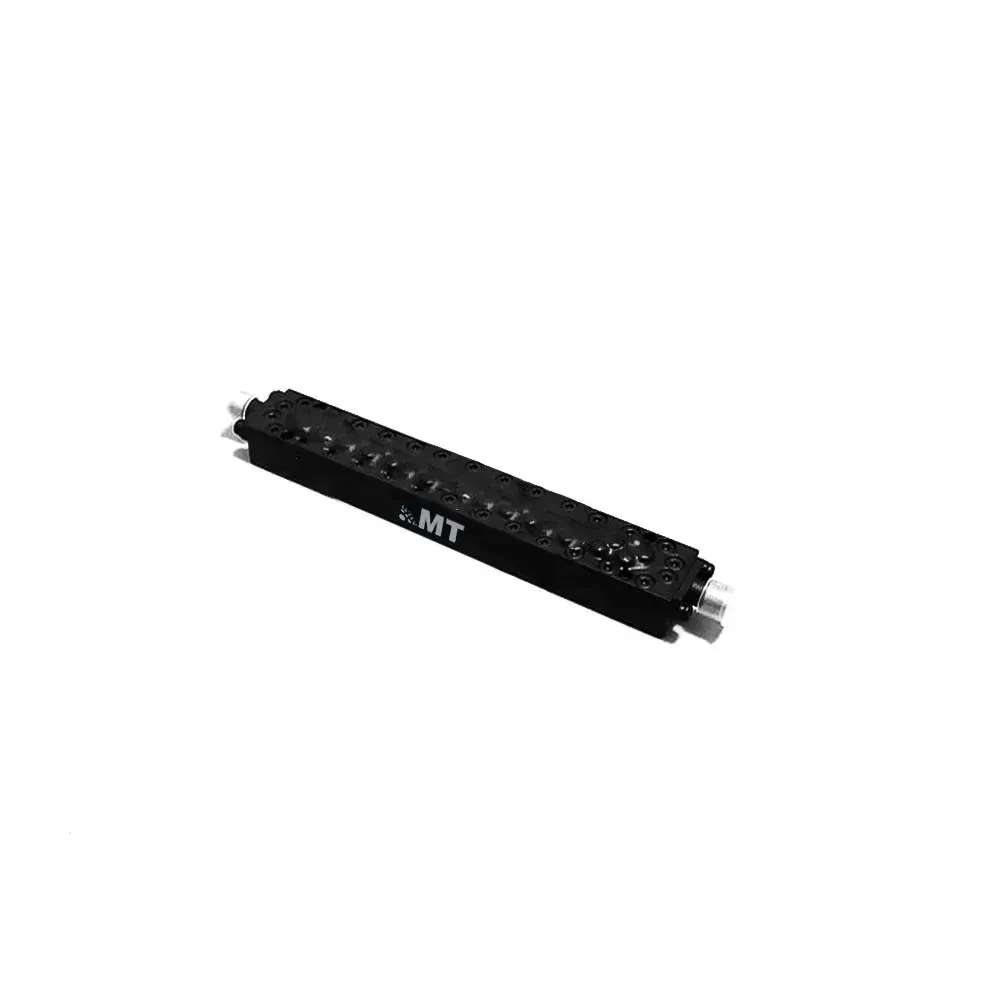

6000-7500MHz Comb Band Pass Filter

  • P/N：MT-DTA722
  • Pass Band Frequency：6000-7500MHz
  • Stop Band Rejection：≥80dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA722
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)6750MHz
2Pass Band Frequency6000 ~ 7500MHz
3Pass Band Insertion Loss≤1.5dB
4Pass Band Ripple≤0.9dB
5Pass Band Return Loss≥20dB
6Stop Band Rejection≥80dB @ DC ~ 5450MHz ≥50dB @ 5450 ~ 5700MHz ≥50dB @ 7800 ~ 7950MHz
≥80dB @ 7950 ~ 16000MHz
7Impedance50 Ohms
8Power Handling5.0W Max.
9ConnectorsSMA-Female
10Surface FinishPainted Black
