Product code: MT-DTA242

652.55-662.55MHz Cavity Band Pass Filter

  • P/N：MT-DTA242
  • Pass Band Frequency:652.55～662.55MHz
  • inhibition：≥50dB
  • Insertion loss：≤1.5dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA242
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)657.55MHz
2Pass Band Bandwidth10MHz (652.55～662.55MHz)
3Pass Band Insertion Loss≤1.5dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥50dB @ Fc±10MHz (DC～642.55MHz、672.55～1500MHz)
6Impedance50 ohms
7Power Handling≤50W
8ConnectorsN-Female
9Surface FinishBlack Paint
10Net WeightTBD

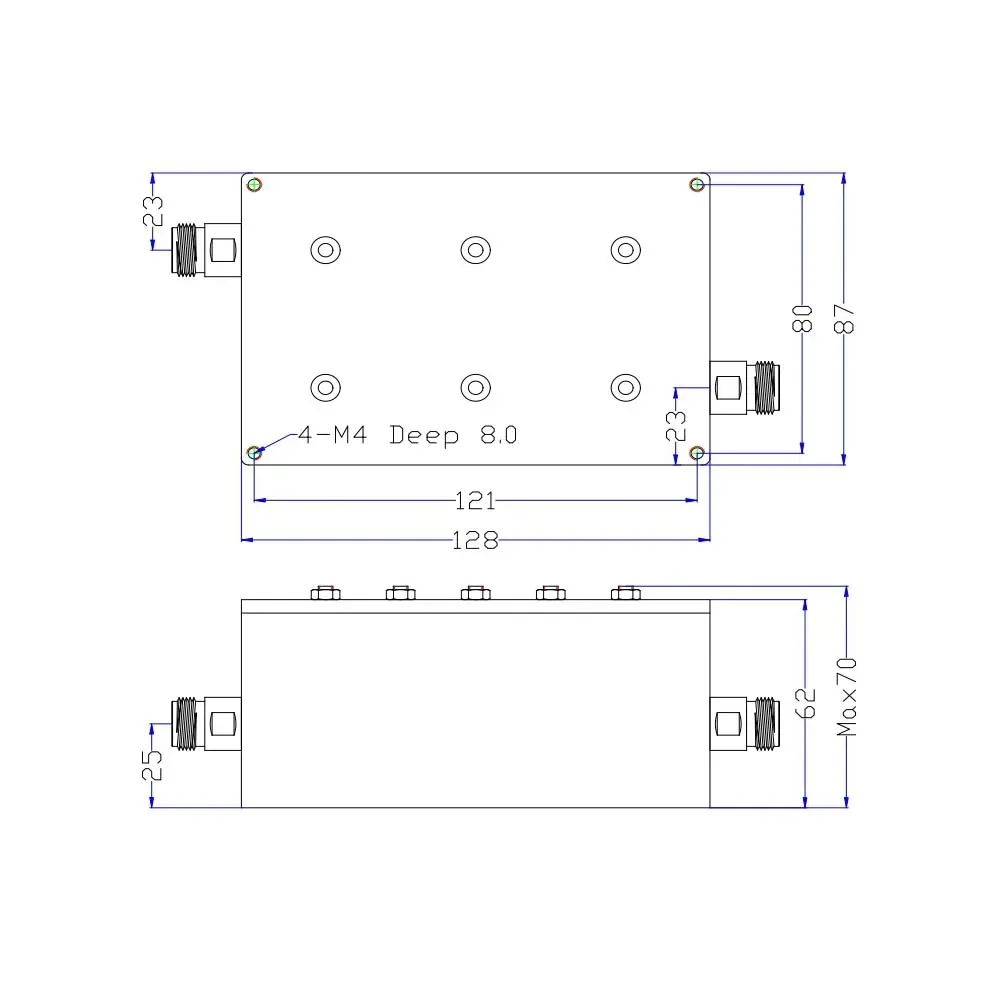

11ConfigurationAs Below (Size Unit: mm)
