Product code: MT-690730M03-NF

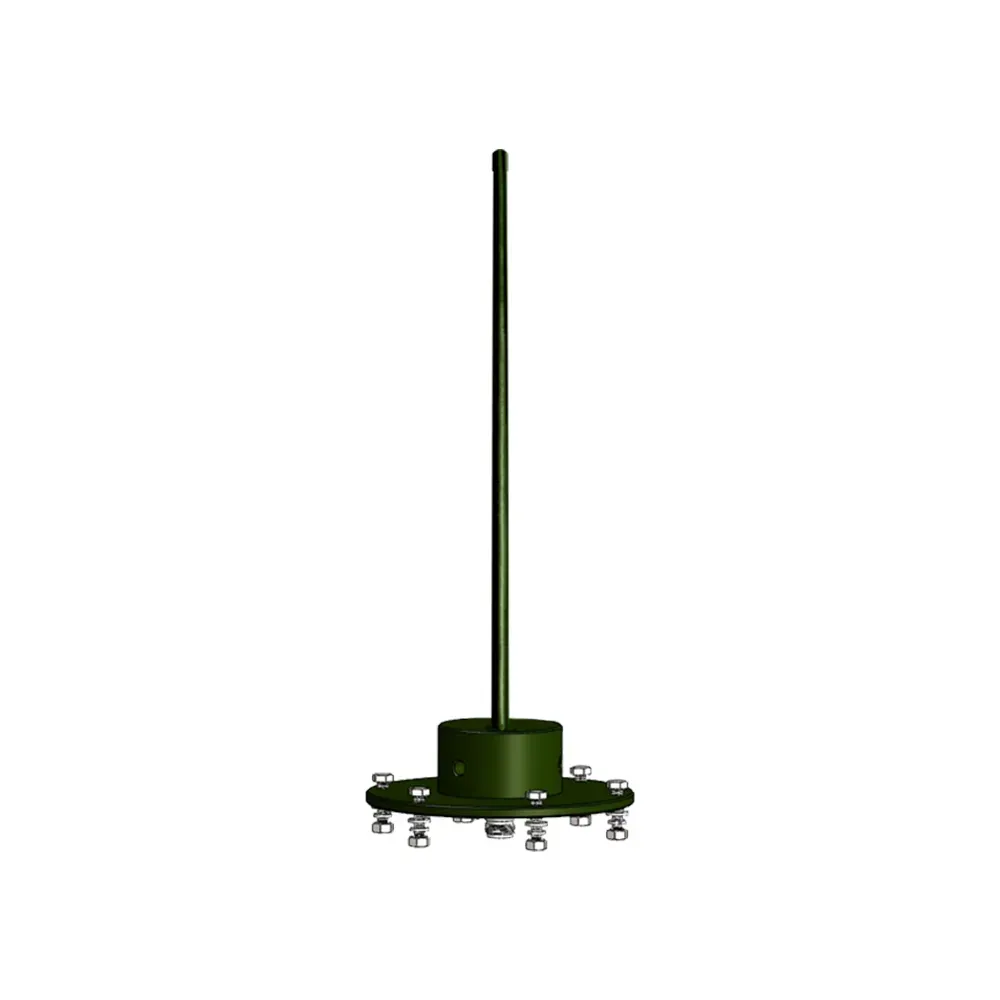

690MHz-730MHz 3dBi Dipole Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-690730M03-NF
Dimension 345x70x50mm
Weight 420g
Connector N-Female
Beam-width orz.360 deg Vert.65 deg



WhatsApp Chat
Skype
Product Part Number
MT-690730M03-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range690 to 730MHz
V.S.W.R (MAX) 1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power200 Watts
Vertical Beam-with65 Deg
Horizontal Beam-with360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)345mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)350 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Paets MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater then 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
