Product code: MT-DTA112

6980-7020MHz Cavity Band Pass Filter

  • P/N：MT-DTA112
  • Pass Band Frequency:6980～7020MHz
  • inhibition：≥60dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA112
Electrical & Mechanical Specification
S/NParameters
1Center Frequency (F0)7000MHz
2Pass Band Frequency6980～7020MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥60dB @ DC～5200MHz
≥60dB @ 8800～15000MHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Operating Temperature-30℃～+70℃
10Surface FinishBlack Paint
11Net WeightTBD

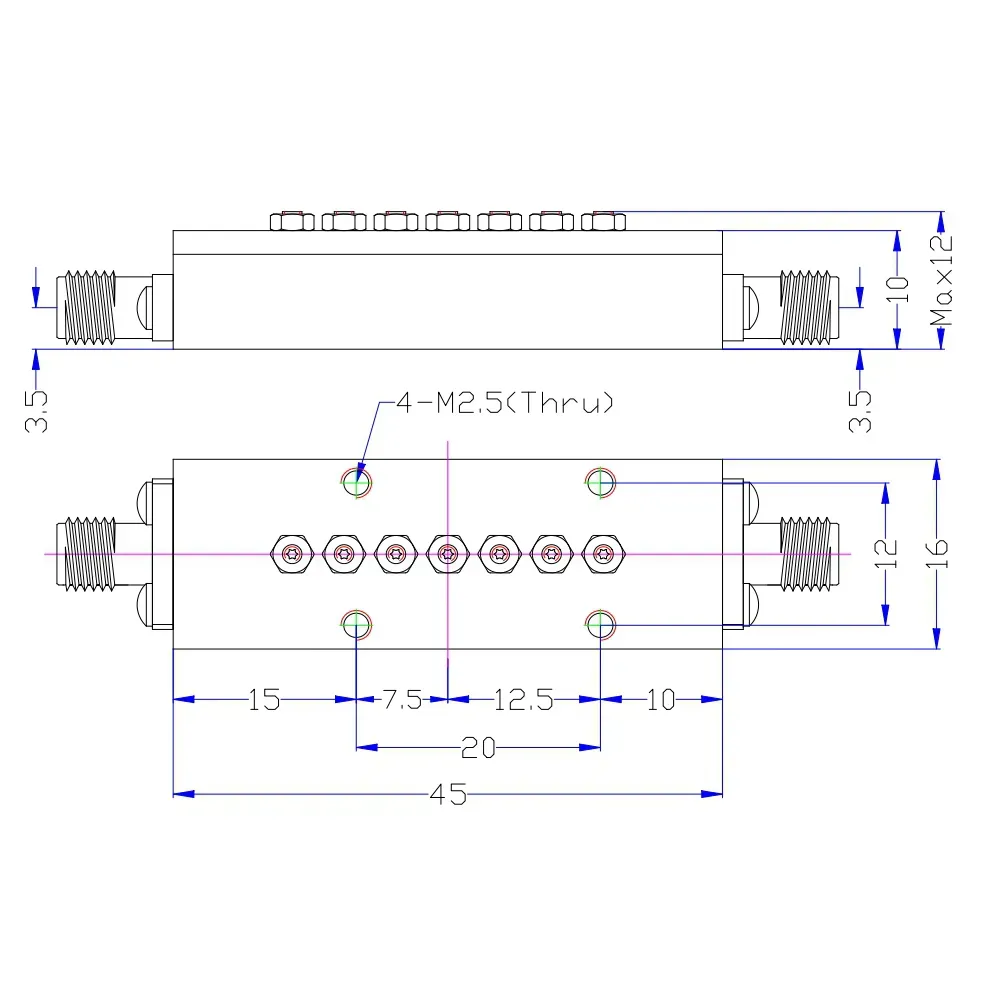

12ConfigurationAs Below (Size Unit: mm)
