Product code: MT-DTA639

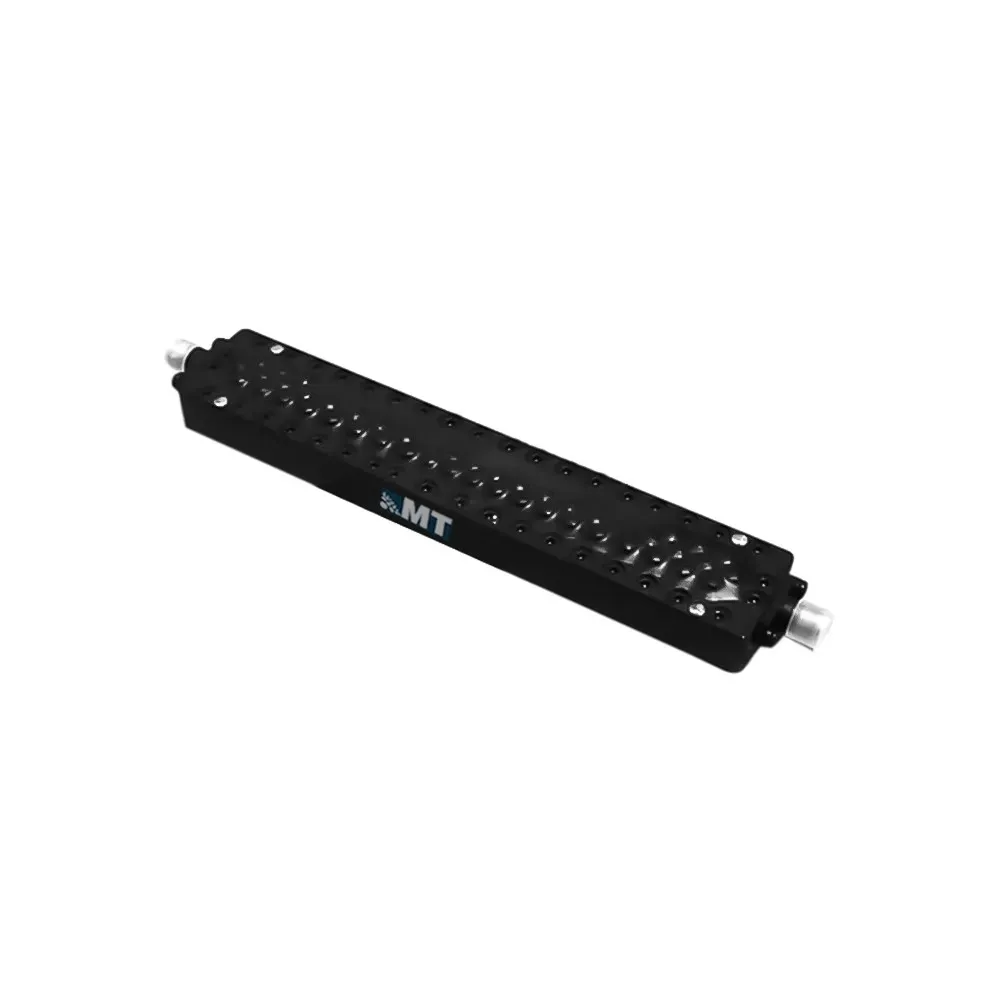

7-12.5GHz Comb Band Pass Filter
- P/N：MT-DTA639
- Pass Band Frequency：7-12.5GHz
- Stop Band Attenuation：≥80dB
- Connectors：SMA-Female
Product Part Number
MT-DTA639

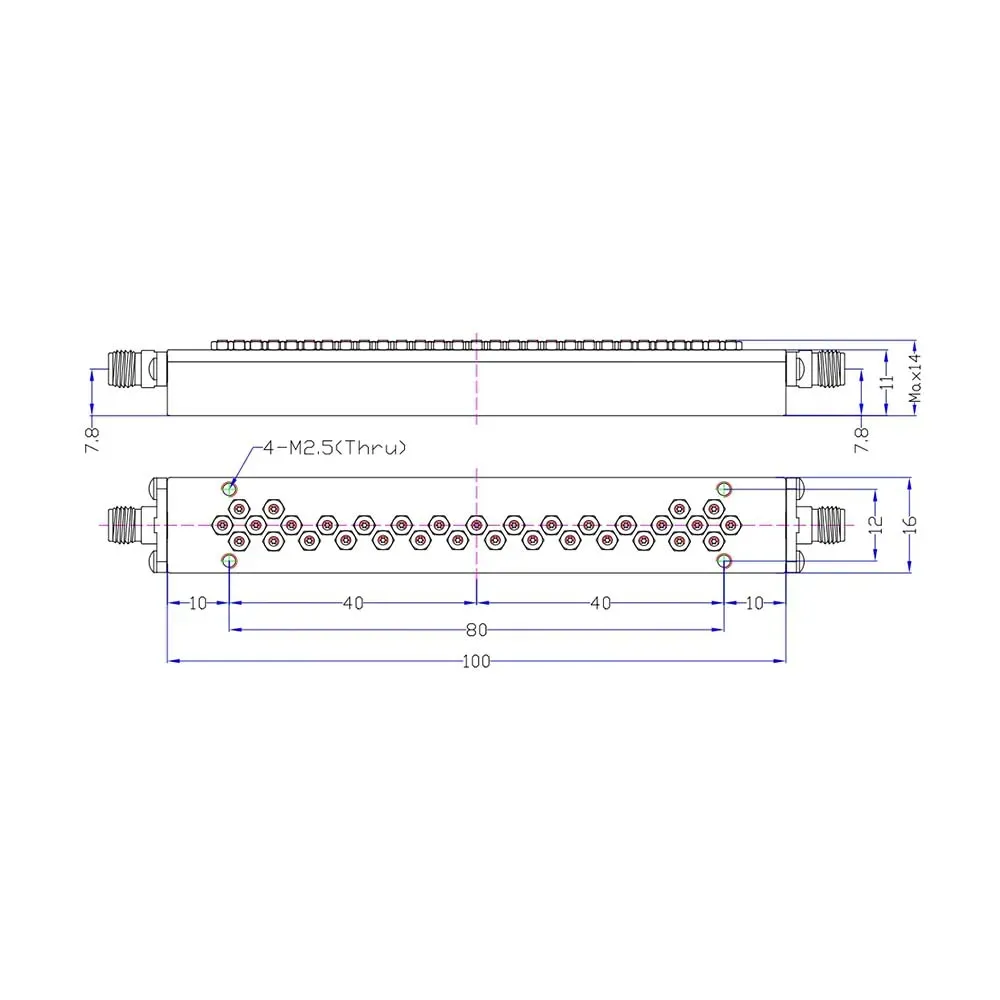

Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 9.75GHz |
| 2 | Pass Band Frequency | 7.0 ~ 12.5GHz |
| 3 | Pass Band Insertion Loss | ≤0.8dB |
| 4 | Pass Band Ripple | ≤0.45dB |
| 5 | Pass Band Return Loss | ≥15dB |
| 6 | Stop Band Rejection | ≥80dB @ DC ~ 5.9GHz ≥50dB @ 5.9 ~ 6.3GHz ≥50dB @ 13 ~ 13.2GHz ≥80dB @ 13.2 ~ 21GHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power Handling | 5.0W Max. |
| 9 | Connectors | SMA-Female |
