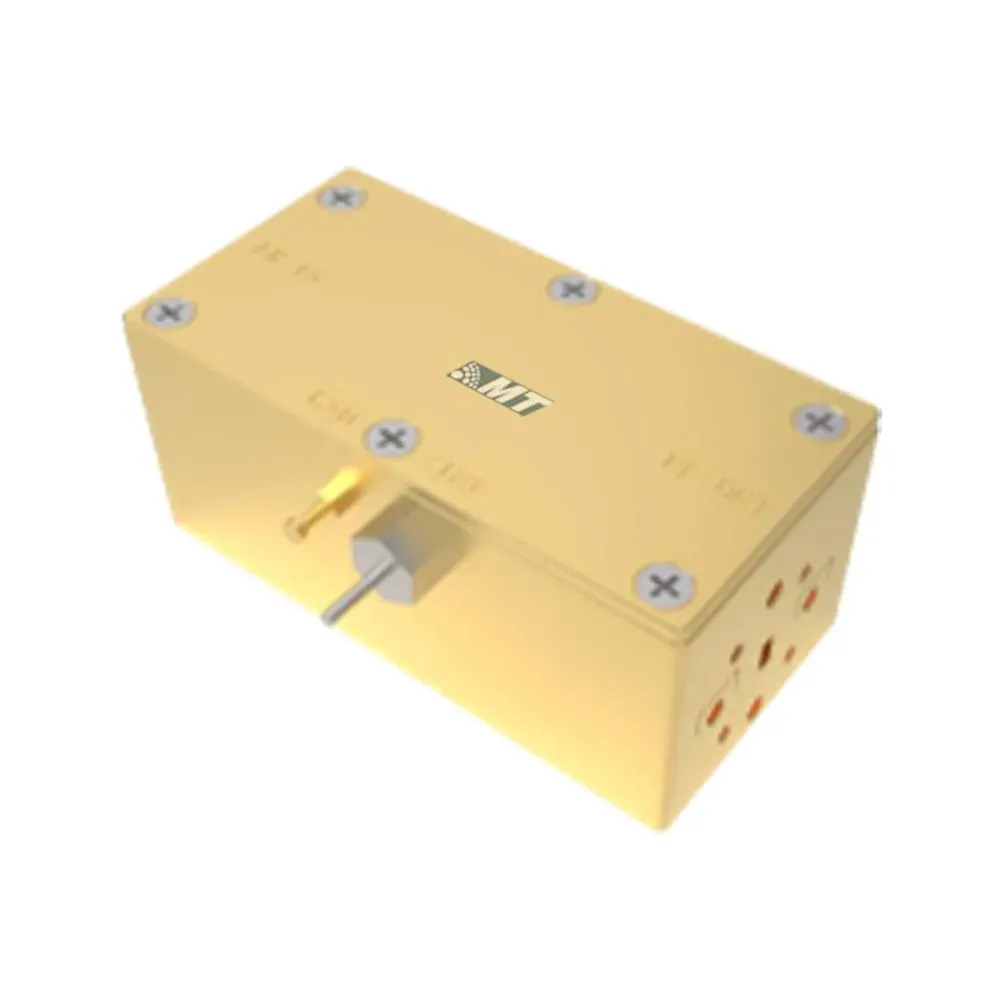

Product code: MT-71-76GHz
71~76GHz Power Amplifier
| Model:MT-71-76GHz |
| High Frequency |
| Broadband Continuous Wave Amplifier |
| Temperature Protection Function |
| High Reliability Circuit Design |
| Operating Temperature: -40℃ to +65℃ |
| Storage Temperature: -50℃ to +85℃ |
Product Part Number
MT-71-76GHz
Electrical & Mechanical Specification
| Performance Specifications | ||||
|---|---|---|---|---|
| Parameter Name | Minimum Value | Typical Value | Maximum Value | Unit |
| Frequency | 71 | 76 | GHz | |
| Small signal gain | 20 | dB | ||
| Input Power | 25 | dBm | ||
| Output Power | 33.5 | dBm | ||
| Input VSWR | 1.5 | |||
| Output VSWR | 2 | – | ||
| Supply Voltage | 18 | 20 | V | |
| Saturation Current | 800 | mA | ||
