Product code: MT-DTA709

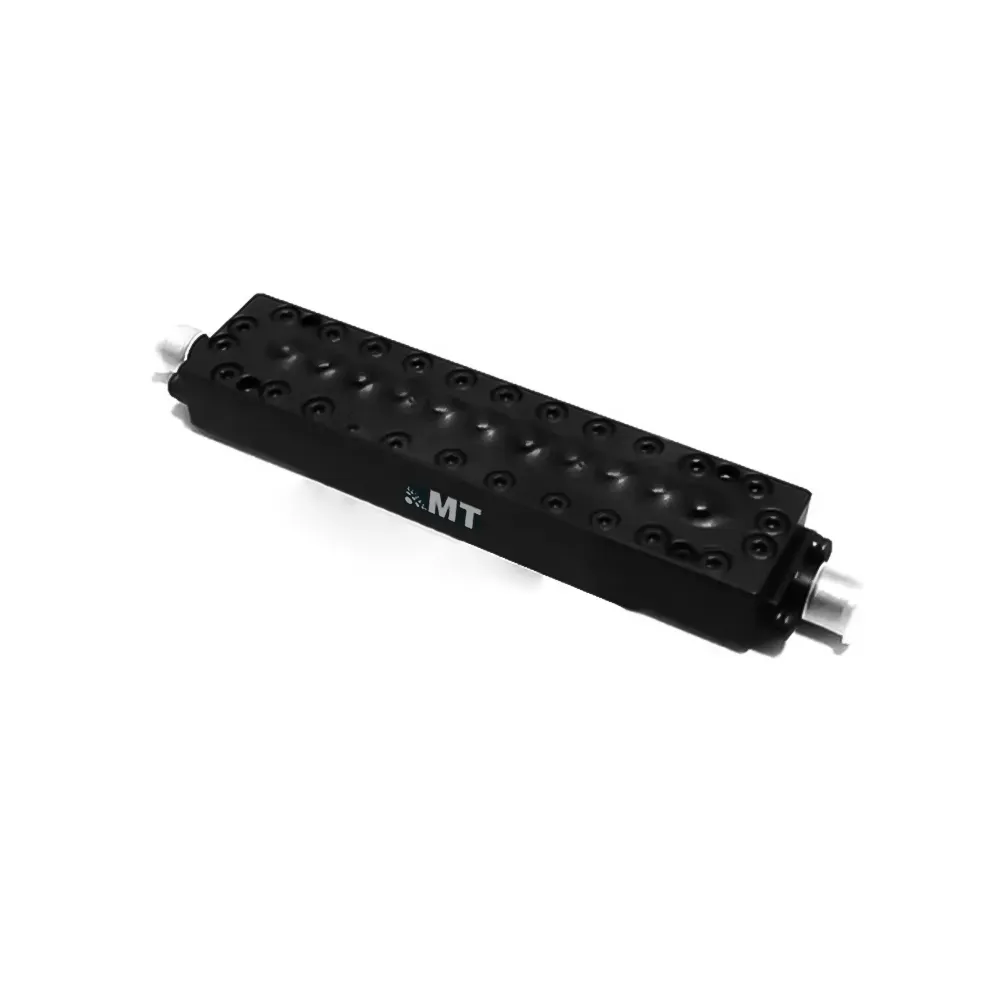

7189-7249MHz Cavity Band Pass Filter
- P/N：MT-DTA709
- Pass Band Frequency：7189-7249MHz
- Stop Band Attenuation：≥50dB
- Connectors：SMA-Female
Product Part Number
MT-DTA709
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 7219MHz |
| 2 | Pass Band Frequency | 7189 ~ 7249MHz |
| 3 | Pass Band Insertion Loss | ≤0.95dB |
| 4 | Pass Band Ripple | ≤0.08dB |
| 5 | Pass Band Return Loss | ≥23dB |
| 6 | Stop Band Rejection | ≥80dB @ DC ~ 6809MHz ≥50dB @ 6809 ~ 6989MHz ≥50dB @ 7449 ~ 7629MHz ≥80dB @ 7629 ~ 17000MHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power Handling | 5.0W Max. |
| 9 | Connectors | SMA-Female |
| 10 | Surface Finish | Painted Black |
| 11 | Temperature Range | -30℃ ~ +70℃ |
