Product code: MT-DTA67

7246-7249MHz Cavity Band Pass Filter

  • P/N：MT-DTA67
  • Pass Band Frequency:7246～7249MHz
  • inhibition：≥35dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA67
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)7247.5MHz
2Pass Band Frequency7246～7249MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥35dB @ 8025～8055MHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Operating Temperature-30℃～+70℃
10Surface FinishBlack Paint
11Net WeightTBD

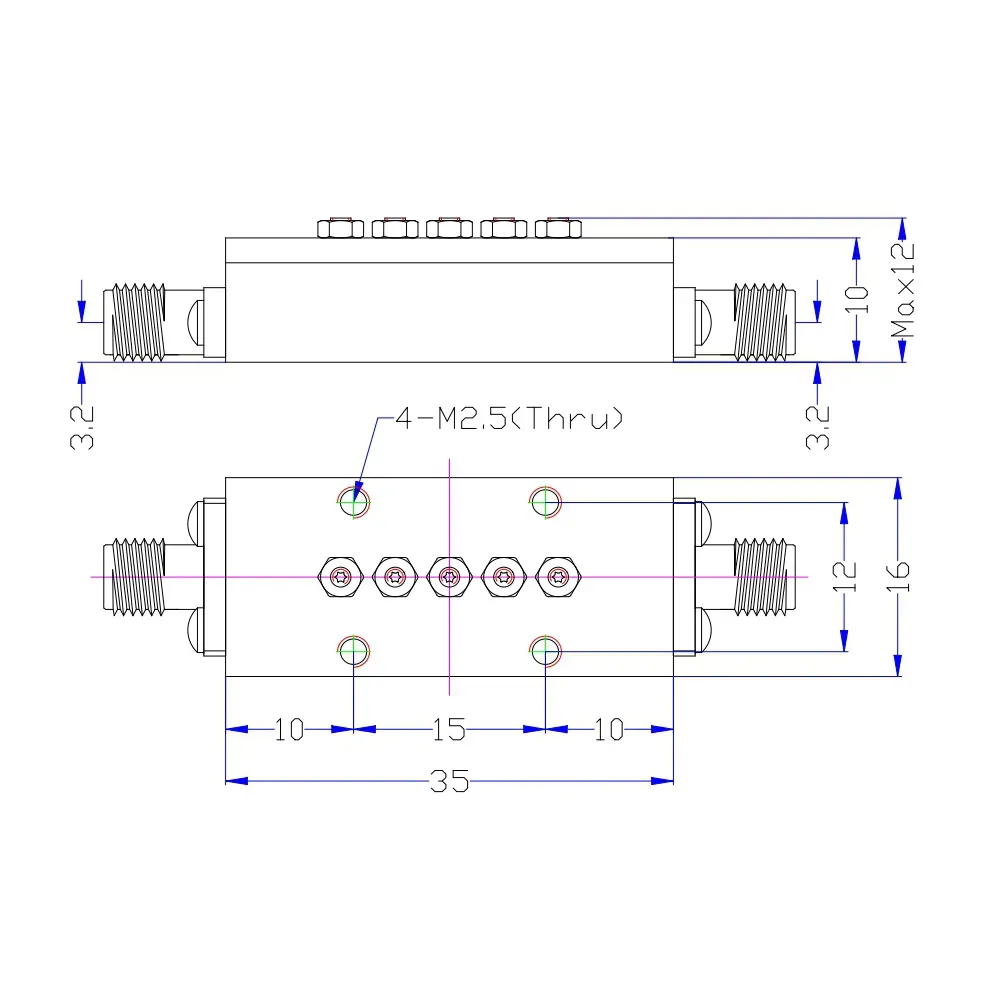

12ConfigurationAs Below (Size Unit: mm)
