Product code: MT-770830M04-NF

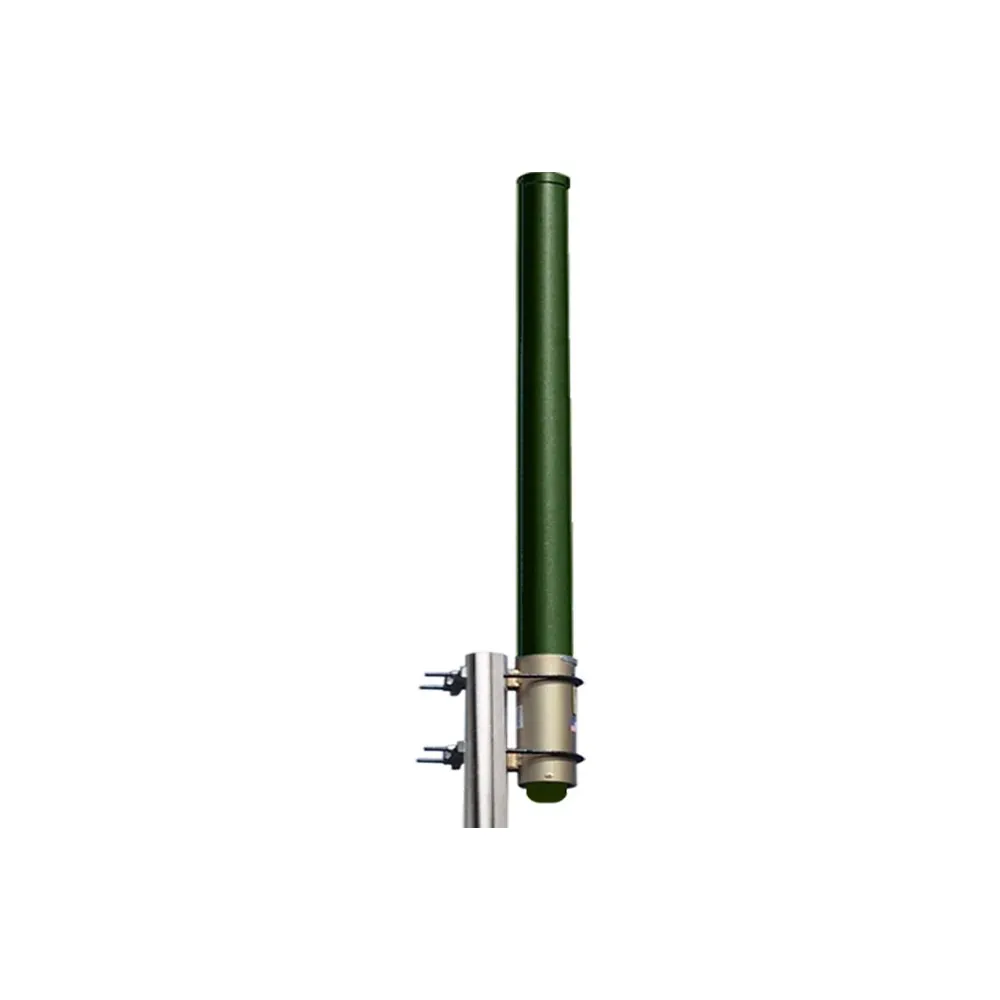

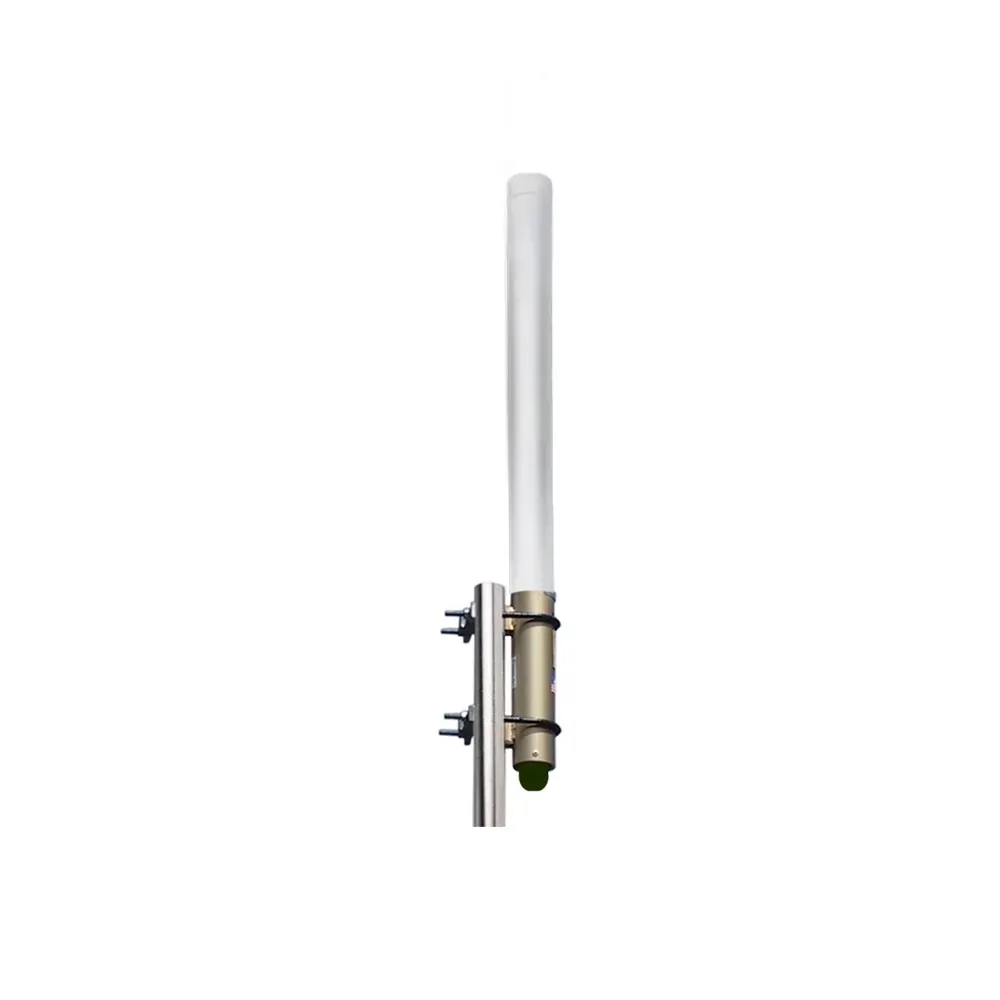

770MHz-830MHz 4dBi Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-770830M04-NF
Dimension 800x70x50mm
Weight 670g
Connector N-Female
Beam-width Horz.360 deg Vert.50 deg



WhatsApp Chat
Skype
Product Part Number
MT-770830M04-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range770 to 830MHz
V.S.W.R (MAX) 1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)4 dBi
PolarizationVertical
Maximum Power200 Watts
Vertical Beam-width50 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design Dipole Array
Internal MaterialCopper
ConnectorN-Female

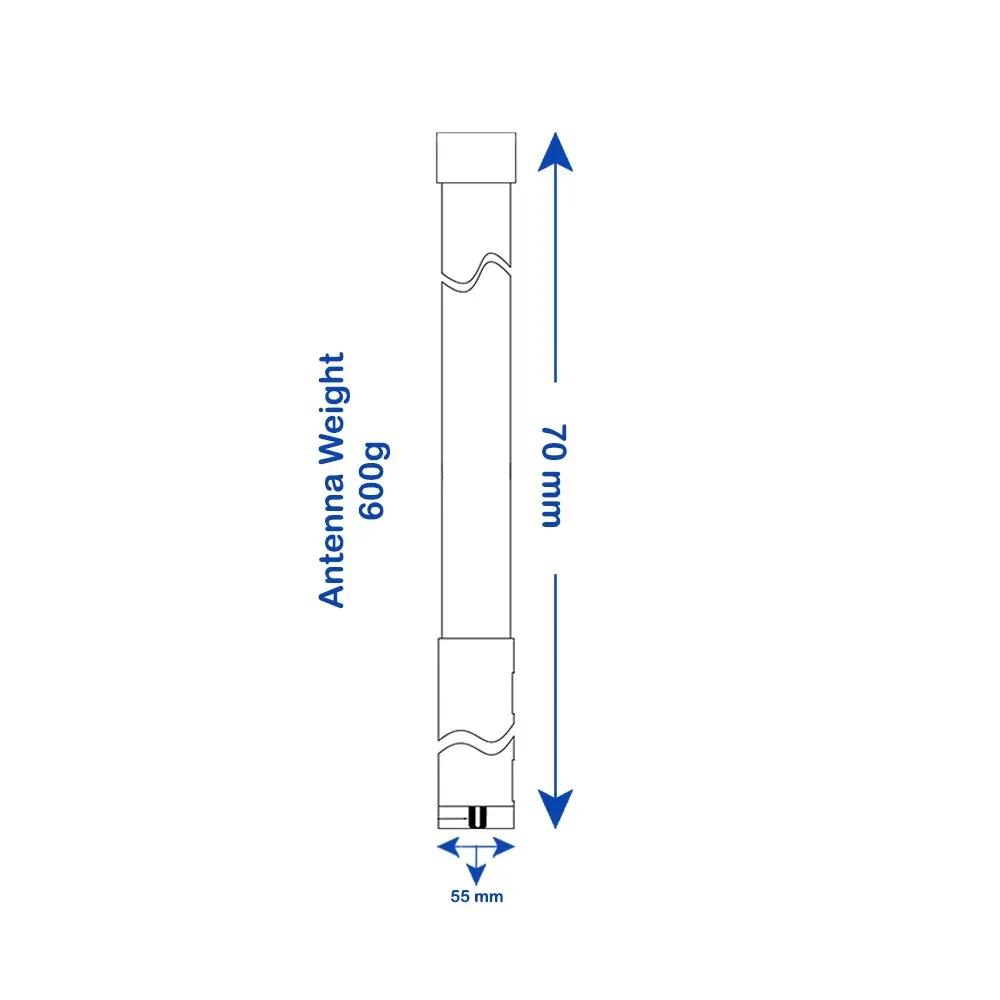

Mechanical
Length (MAX)800 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)600 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

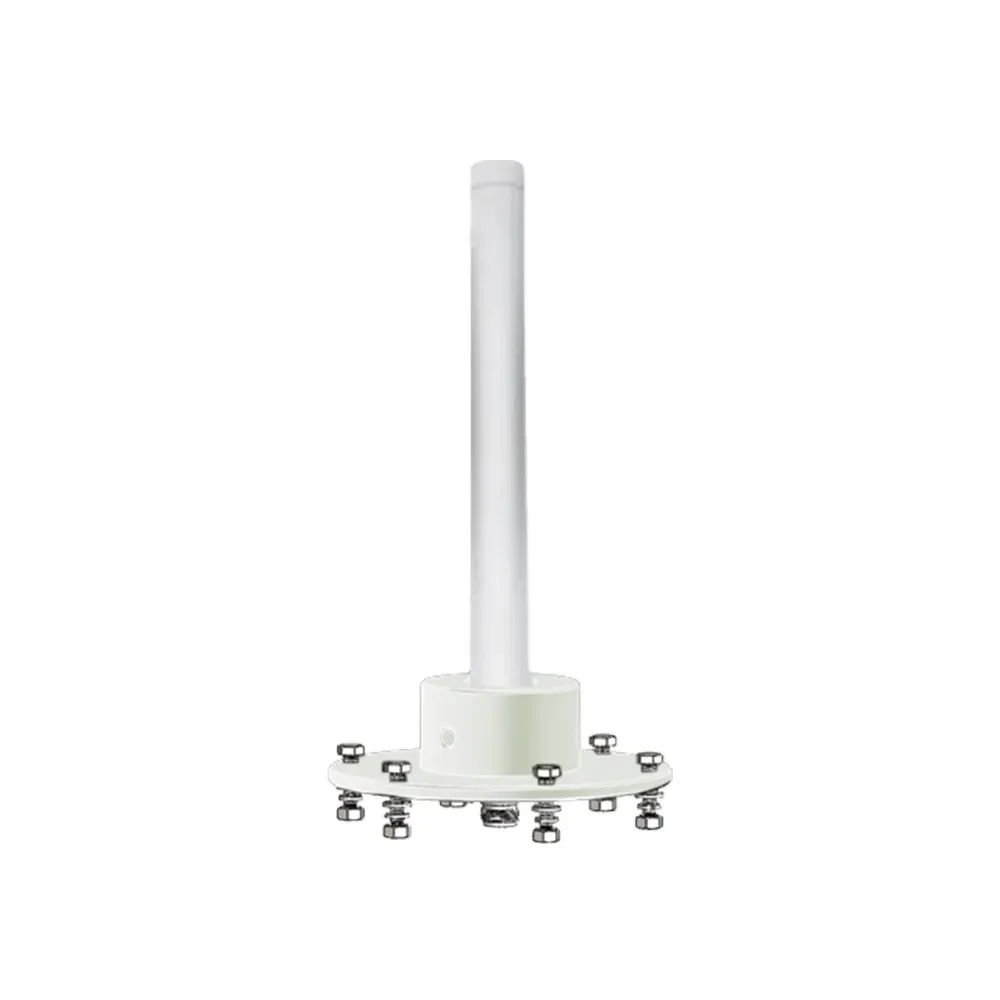

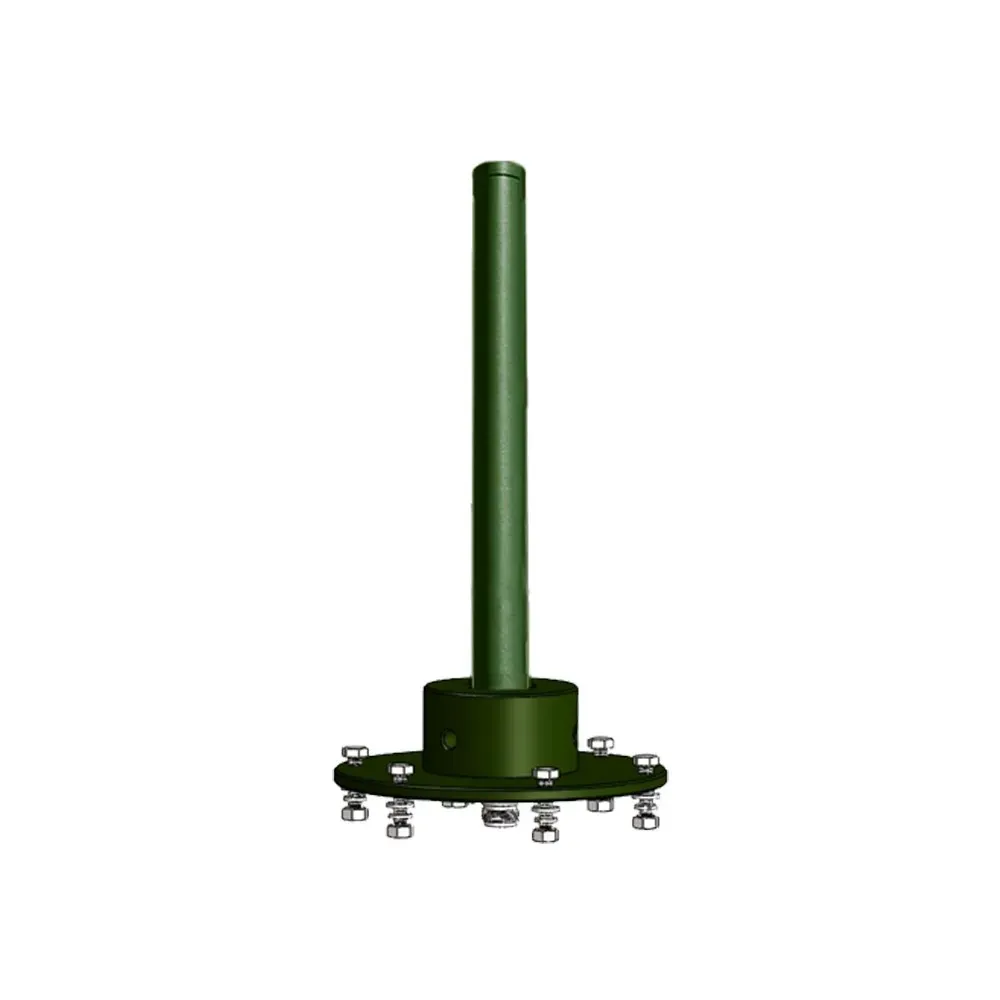

Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
