Product code: MT-DTA764

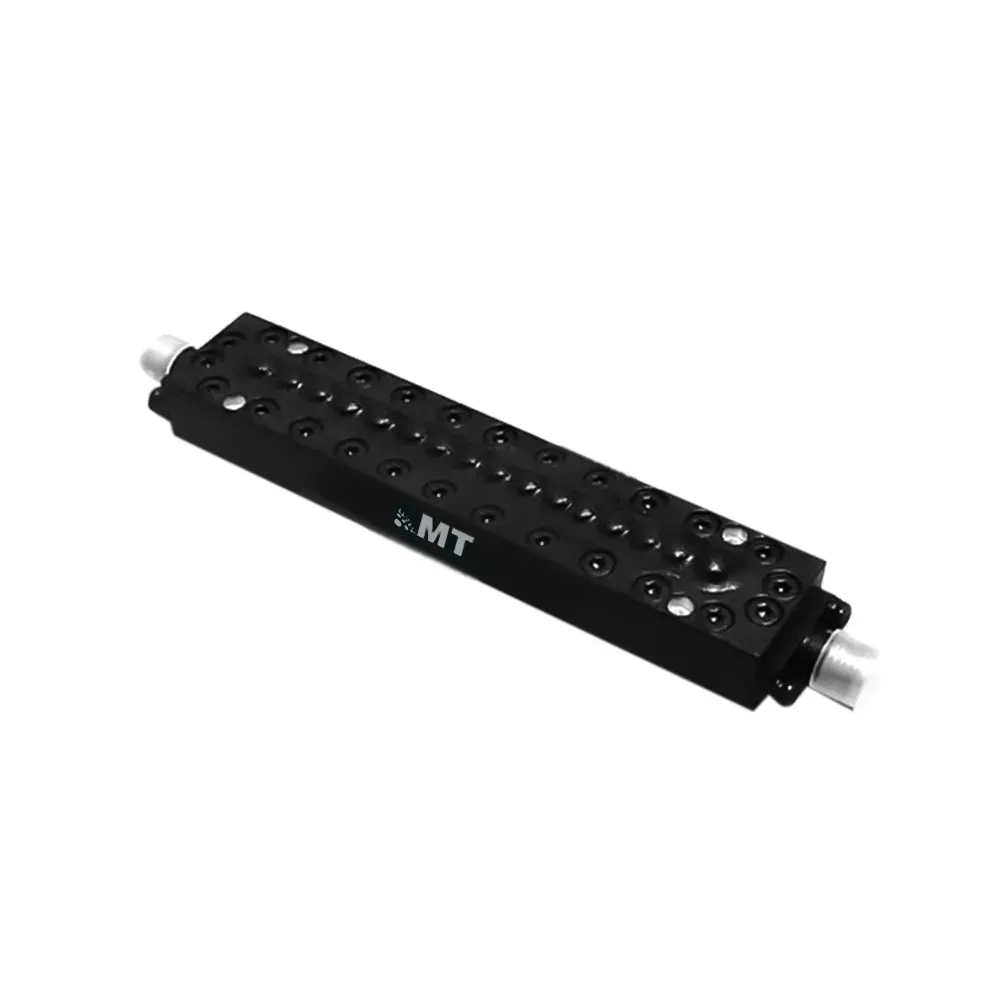

7900-8100MHz Cavity Band Pass Filter

  • P/N：MT-DTA764
  • Pass Band Frequency：7900-8100MHz
  • Stop Band Rejection：≥80dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA764
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)8000MHz
2Pass Band Bandwidth±100MHz (7900 ~ 8100MHz)
3Pass Band Insertion Loss≤1.2dB
4Pass Band Ripple≤0.6dB
5Pass Band Return Loss≥23dB
6Stop Band Rejection≥80dB @ DC ~ 7400MHz ≥40dB @ 7400 ~ 7700MHz ≥40dB @ 8300 ~ 8600MHz
≥80dB @ 8600 ~ 20000MH
7Impedance50 Ohms
8Power Handling10W Max.
9ConnectorsSMA-Female
