Product code: MT-DTA146
791-821MHz Cavity Band Pass Filter HXLBQ-DTA146
- P/N：MT-DTA146
- Pass Band Frequency：791-821MHz
- Stop Band Attenuation:≥50dB
- Connectors：SMA-Female
Product Part Number
MT-DTA146
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 806MHz |
| 2 | Pass Band Frequency | 791 ~ 821MHz |
| 3 | Pass Band Insertion Loss | ≤2.0dB |
| 4 | Pass Band VSWR | ≤1.3:1 |
| 5 | Stop Band Attenuation | ≥50dB @ DC ~ 781MHz @ 831 ~ 2700MHz |
| 6 | Impedance | 50 Ohms |
| 7 | Power | 20W Max. |
| 8 | Connectors | SMA-Female |
| 9 | Surface Finish | Painted Black |
| 10 | Temperature Range | -30℃ ~ +70℃ |
| 11 | Material | Housing: 6061 Aluminum alloy Cover: 6061 Aluminum alloy Tuning screw: H62 Copper alloy Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |

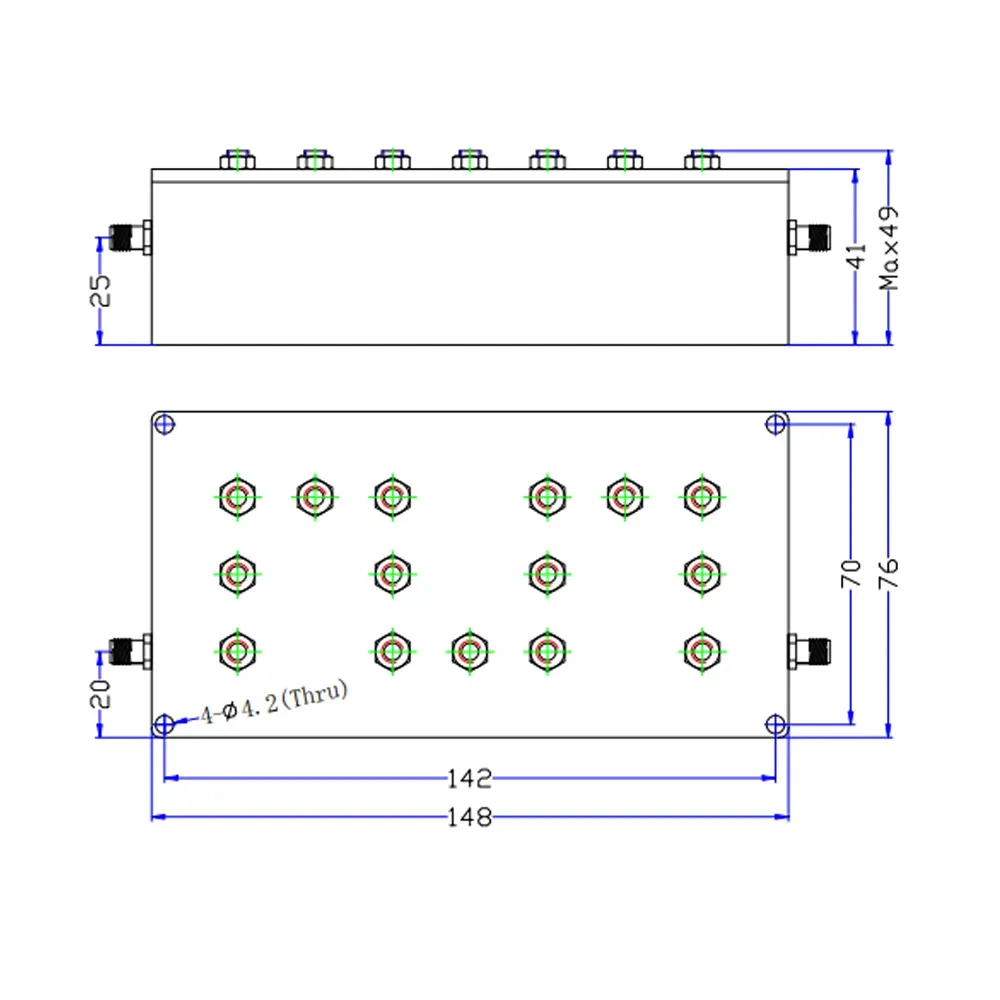

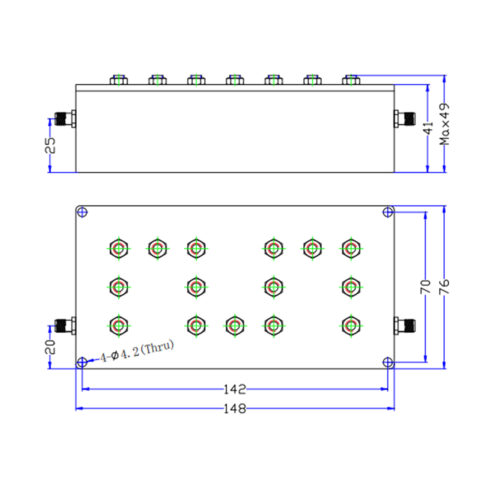

| 12 | Dimensions | 148*76*41mm |
| 13 | Net weight | 0.545KG |
