Product code: 8P-1695-3800F-18G-65H7V
8-Port, Panel Antenna, 65° HBW, (2x) 1695-2690/(2x) 3300-3800 MHz, 18/18/18/18 dBi, 2-12°T, 1.397 m

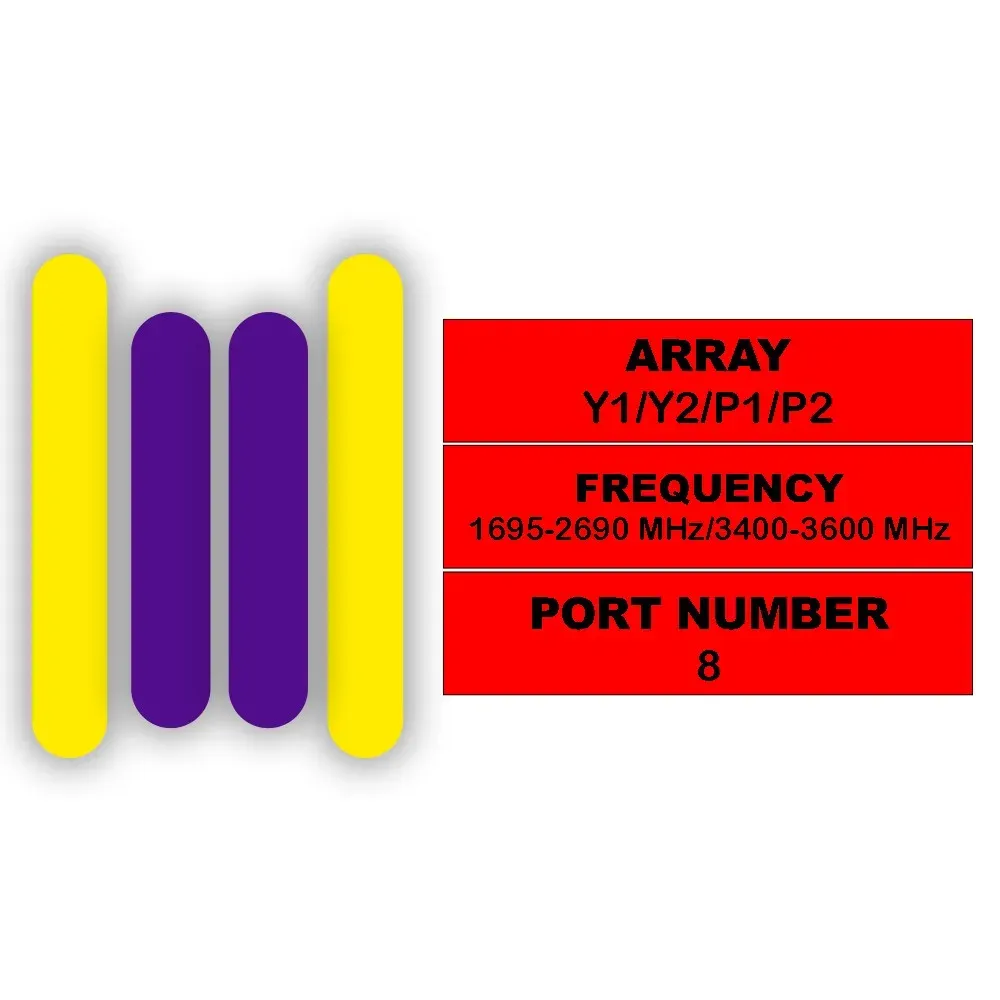

| 8-Port Antenna | Y1 | Y2 | P1 | P2 |
| Frequency Range (MHz) | 1695-2690 | 1695-2690 | 3300-3800 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 18 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |
| Connectors
(other connectors by request) |

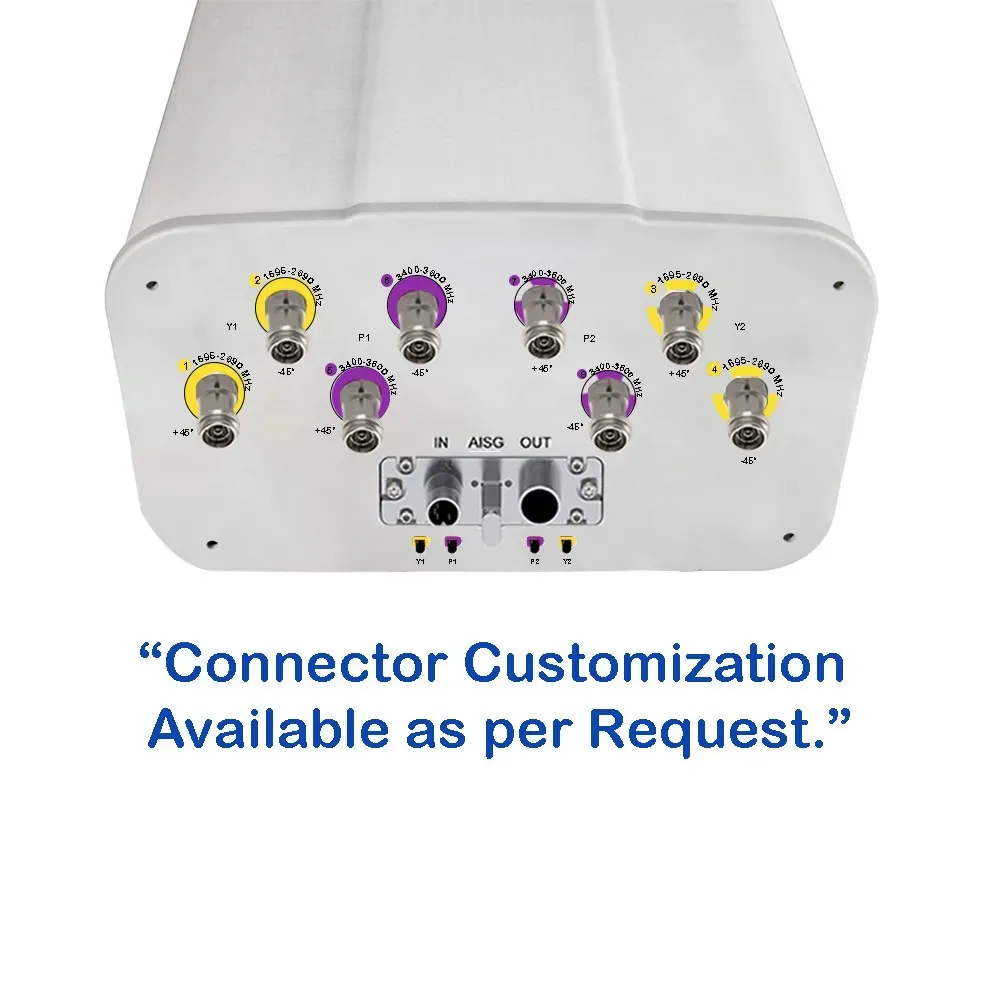

(2x) MQ4 | |||
Product Part Number
8P-1695-3800F-18G-65H7V
Electrical & Mechanical Specification
| Electrical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Y1 / Y2 | P1 / P2 | ||||||||
| MHz | 1695-2690 | 3300-3800 | |||||||
| Frequency Range | MHz | 1695-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | 3300-3600 | 3600-3800 | |
| Polarization | — | ±45° | ±45° | ||||||
| at Mid Tilt | dBi | 16.9 | 17.3 | 17.6 | 18 | 17.8 | 17.4 | 17.6 | |
| Gain | Over All Tilts | dBi | 16.8 ± 0.5 | 17.2 ± 0.5 | 17.5 ± 0.5 | 17.9 ± 0.5 | 17.7 ± 0.6 | 17.3 ± 0.6 | 17.5 ± 0.6 |
| Horizontal Beamwidth | degree | 67 ± 5 | 65 ± 5 | 63 ± 5 | 61 ± 5 | 58 ± 5 | 63 ± 5 | 60 ± 5 | |
| Vertical Beamwidth | degree | 7.0 ± 0.7 | 6.7 ± 0.6 | 6.3 ± 0.6 | 5.4 ± 0.5 | 5.0 ± 0.4 | 5.3 ± 0.6 | 5.0 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | ||||||
| First Upper Side Lobe Suppression | dB | > 16 | > 16 | > 16 | > 16 | > 16 | > 16 | > 16 | |
| Front-To-Back Ratio, ±30° | dB | > 25 | > 25 | > 25 | > 25 | > 25 | > 25 | > 25 | |
| Cross Polar | At Boresight | dB | > 20 | > 20 | > 20 | > 20 | > 20 | > 16 | > 16 |
| Discrimination | Over Sector | dB | > 10 | > 10 | > 10 | > 9 | > 8 | > 6 | > 6 |
| Cross-Polar | dB | > 28 | > 25 | ||||||
| Isolation | Port-to-Port | dB | > 28 | > 25 | |||||
| Impedance | Ohm | 50 | 50 | ||||||
| VSWR | — | < 1.5 | < 1.5 | ||||||
| Return Loss | dB | > 14 | > 14 | ||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | ||||||
| Lightning Protection | — | DC Ground | DC Ground | ||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 200 | 100 | ||||||
| Integrated RET Specifications | |||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||
| Power | Standby | < 2 W | |||||||
| Consumption | In Motion | < 10 W | |||||||
| Connectors | 2 x 8 Pin Circle Connector | ||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||
| Hardware Interfaces | RS485 and Power | ||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||
| Adjustment Cycles | > 20,000 | ||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | |||||||||
| Remote Control | Can manage from OMC, BTS/Node B | ||||||||
| Daisy Chaining Method | Ready for daisy-chaining | ||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||
| Housing Material / Color | Aluminum / Grey | ||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||
| Humidity | Up to 95% | ||||||||
| IP Rating | IP65 | ||||||||
| Weight | ≤ 500 g | ||||||||
| Mechanical Specifications | |||||||||
| Connector Type | — | (2x) MQ4 | |||||||
| Connector Position | — | Bottom | |||||||
| Radome Material | — | Fiberglass | |||||||
| Electrical Tilt Control | — | Integrated RET | |||||||
| Antenna Dimensions (H x W x D) | mm (in) | 1397 x 397 x 157 (55.0 x 15.6 x 6.2) | |||||||
| Antenna Weight | Antenna Only | kg (lbs) | 18 (39.7) | ||||||
| with Clamps | kg (lbs) | 22 (48.5) | |||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||
| Wind Load | Frontal | N (lbf) | 515 (115.8) | ||||||
| at 150 km/h | Rear | N (lbf) | 575 (129.3) | ||||||
| Lateral | N (lbf) | 250 (56.2) | |||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | |||||||
