8-Port, Panel Antenna, 65° HBW, (2x) 1710-2690/(2x) 3300-3800 MHz, 14/14/14.5/14.5 dBi, 2-12°T, 0.997 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 8P-1710-3800F-14G-65H20V

8-Port, Panel Antenna, 65° HBW, (2x) 1710-2690/(2x) 3300-3800 MHz, 14/14/14.5/14.5 dBi, 2-12°T, 0.997 m

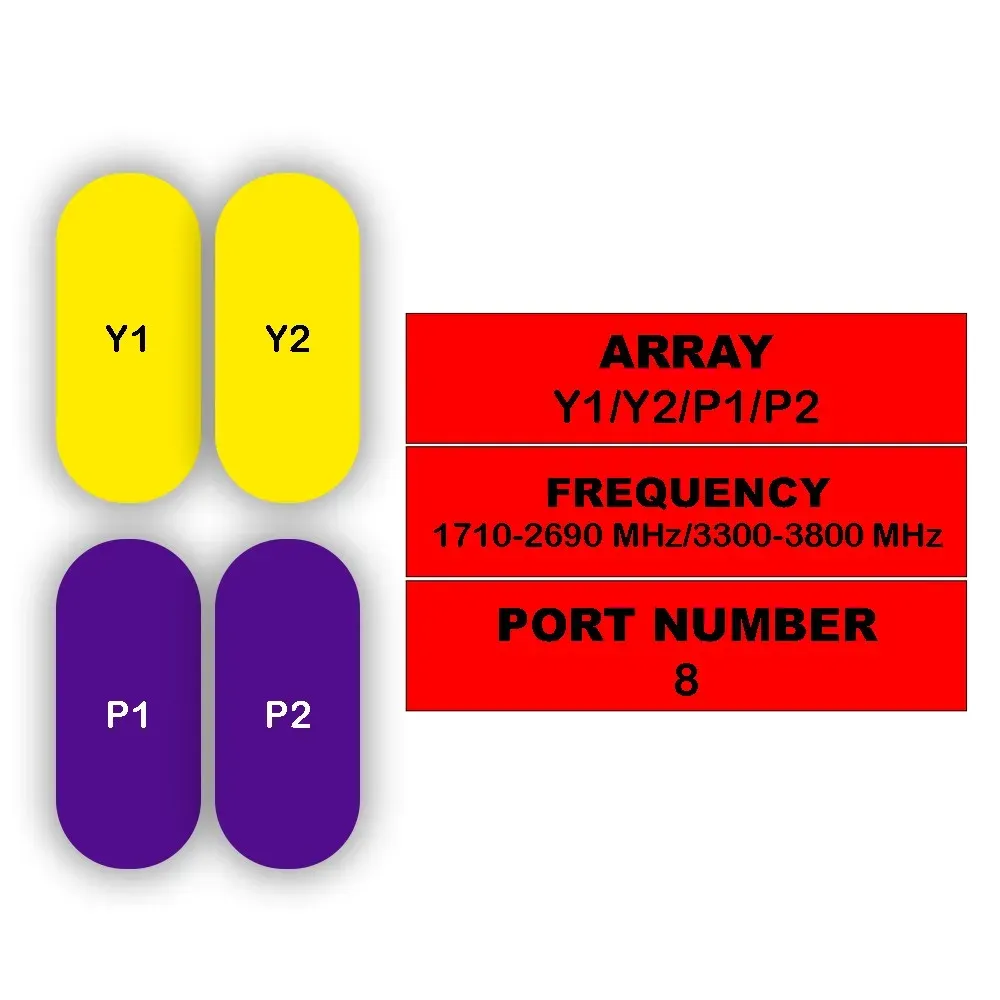

8-Port Antenna	Y1	Y2	P1	P2
Frequency Range (MHz)	1710-2690	1710-2690	3300-3800	3300-3800
HBW	65°	65°	65°	65°
Gain	14 dBi	14 dBi	14.5 dBi	14.5 dBi
Tilt	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-1710-3800F-14G-65H20V

Electrical & Mechanical Specification

Electrical Specifications
			Y1 / Y2					P1 / P2
		MHz	1710-2690					3300-3800
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690	3300-3600	3600-3800
Polarization		—	±45°					±45°
	at Mid Tilt	dBi	13.1	13.3	13.5	14	14.1	14	14.3
Gain	Over All Tilts	dBi	13.0 ± 0.5	13.2 ± 0.5	13.4 ± 0.5	13.9 ± 0.5	14.0 ± 0.6	14.0 ± 0.6	14.3 ± 0.6
Horizontal Beamwidth		degree	67 ± 5	65 ± 5	63 ± 5	61 ± 5	58 ± 5	64 ± 5	60 ± 5
Vertical Beamwidth		degree	19.9 ± 2.0	18.6 ± 2.0	17.6 ± 1.5	15.4 ± 1.5	14.0 ± 1.5	15.7 ± 1.5	14.7 ± 1.5
Electrical Downtilt, Continuously Adjustable		degree	2-Dec					2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio, ±30°		dB	> 25	> 25	> 25	> 25	> 25	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 20	> 20	> 20	> 20	> 20	> 18	> 18
	Cross-Polar	dB	> 25					> 25
Isolation	Port-to-Port	dB	> 25					> 25
Impedance		Ohm	50					50
VSWR		—	< 1.5					< 1.5
Return Loss		dB	> 14					> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150					< -150
Lightning Protection		—	DC Ground					DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200					50

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Connectors		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

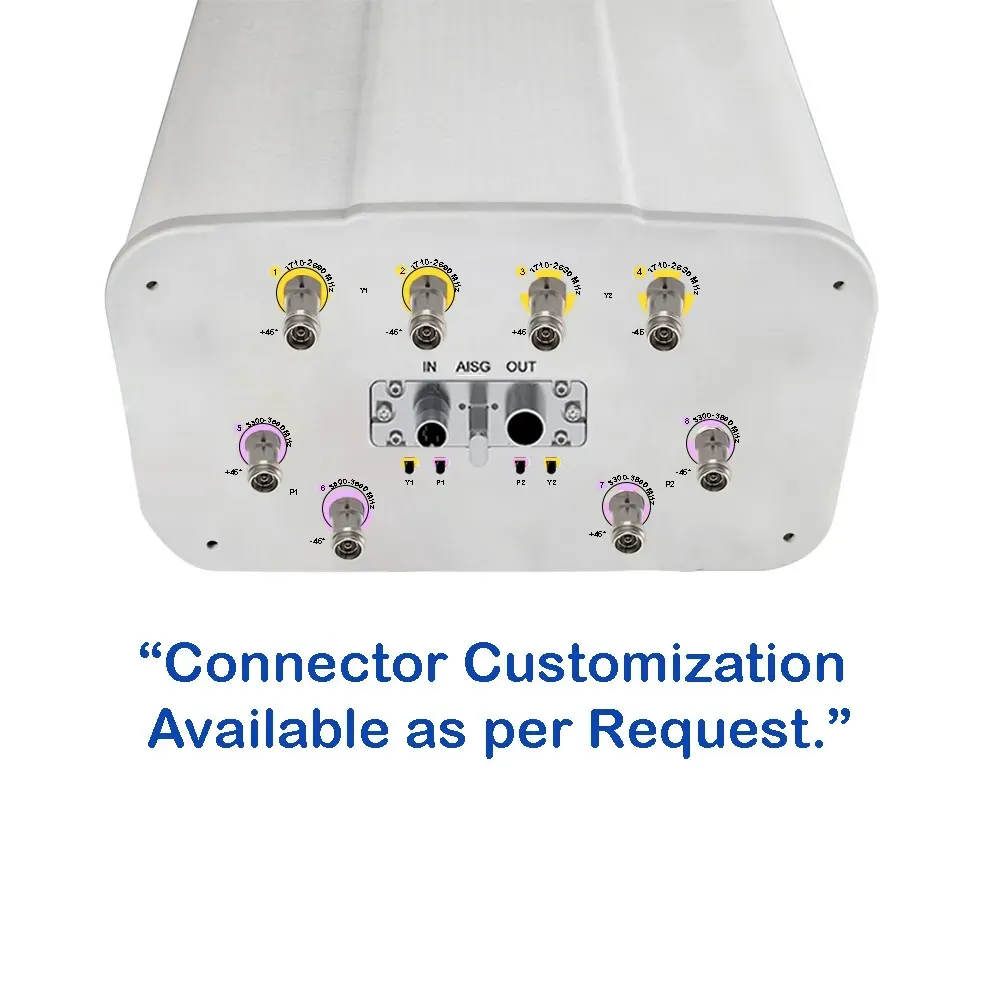

Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Radome Material		—	UPVC
Electrical Tilt Control		—	Integrated RET

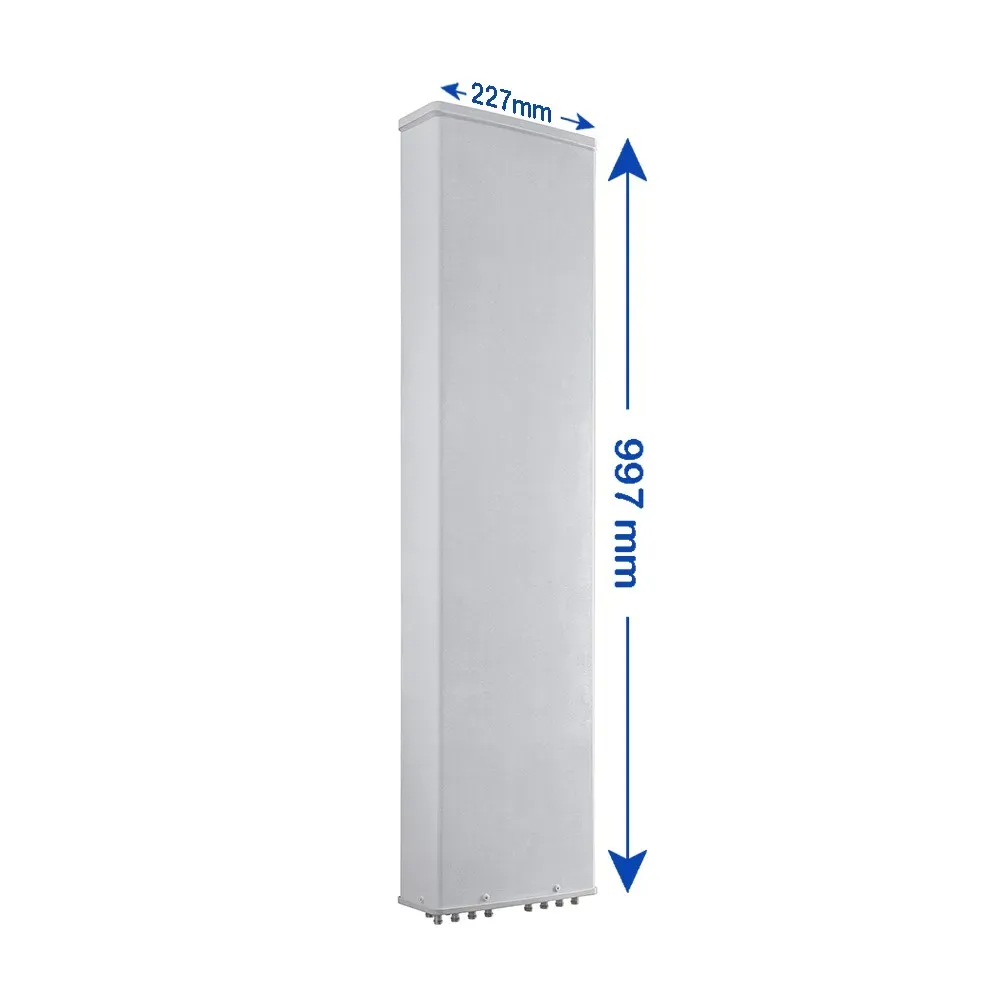

Antenna Dimensions (H x W x D)		mm (in)	997 x 277 x 167 (39.3 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	13 (28.7)
Antenna Weight	with Clamps	kg (lbs)	17 (37.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	255 (57.3)
at 150 km/h	Rear	N (lbf)	285 (64.1)
	Lateral	N (lbf)	190 (42.7)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
