8-Port, Panel Antenna, 65° HBW, (2x) 1710-2690/(2x) 3300-3800 MHz, 18/18/18/18 dBi, (2x) 0-10°/(2x) 2-12°T, 1.397 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 8P-1710-3800F-18G-65H17V

8-Port, Panel Antenna, 65° HBW, (2x) 1710-2690/(2x) 3300-3800 MHz, 18/18/18/18 dBi, (2x) 0-10°/(2x) 2-12°T, 1.397 m

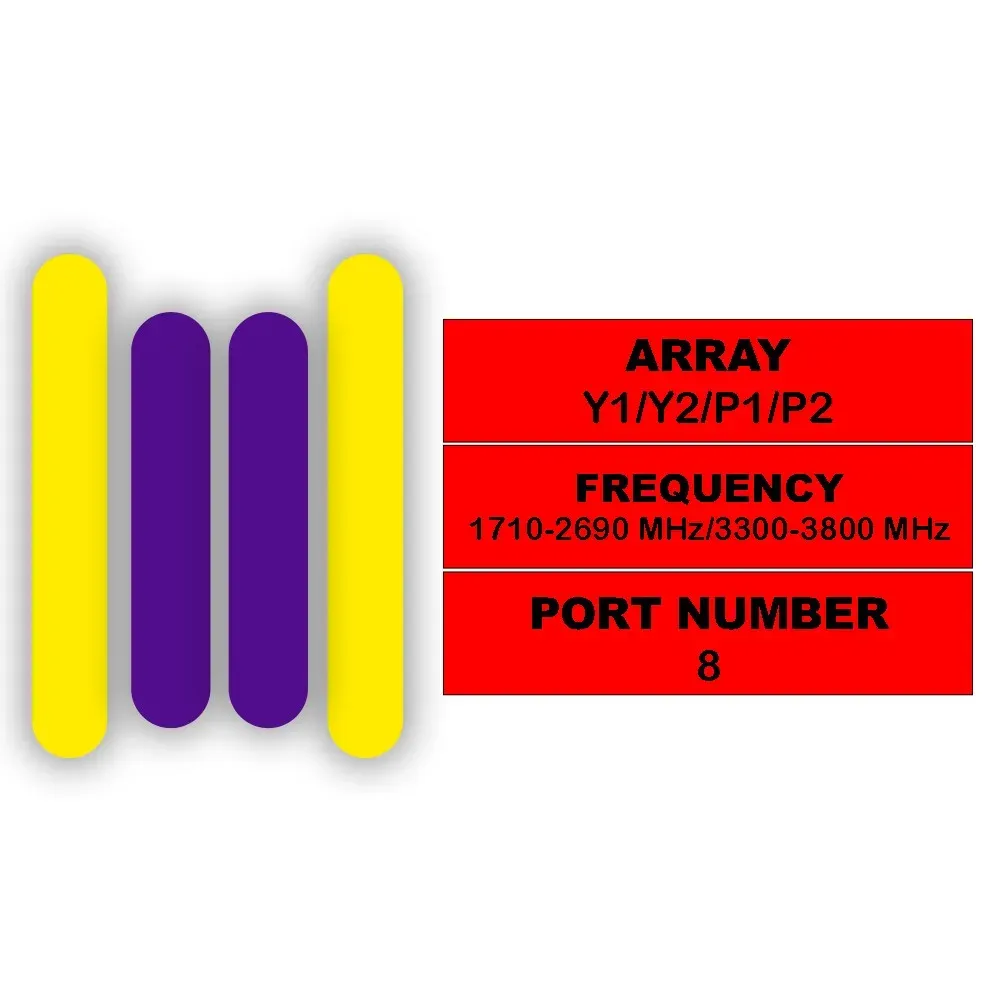

8-Port Antenna	Y1	Y2	P1	P2
Frequency Range (MHz)	1710-2690	1710-2690	3300-3800	3300-3800
HBW	65°	65°	65°	65°
Gain	18 dBi	18 dBi	18 dBi	18 dBi
Tilt	0-10°	0-10°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-1710-3800F-18G-65H17V

Electrical & Mechanical Specification

Electrical Specifications
			Y1 / Y2					P1 / P2
		MHz	1710-2690					3300-3800
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690	3300-3600	3600-3800
Polarization		—	±45°					±45°
	at Mid Tilt	dBi	17.1	17.3	17.6	18.1	18	17.4	17.6
Gain	Over All Tilts	dBi	17.0 ± 0.5	17.2 ± 0.5	17.5 ± 0.5	18.0 ± 0.5	17.9 ± 0.6	17.3 ± 0.6	17.5 ± 0.6
Horizontal Beamwidth		degree	67 ± 5	65 ± 5	63 ± 5	61 ± 5	58 ± 5	64 ± 5	60 ± 5
Vertical Beamwidth		degree	7.0 ± 0.7	6.7 ± 0.6	6.3 ± 0.6	5.4 ± 0.5	5.0 ± 0.4	5.5 ± 0.6	5.0 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	0-10					2-Dec
First Upper Side Lobe Suppression		dB	> 16	> 16	> 16	> 16	> 16	> 16	> 16
Front-To-Back Ratio, ±30°		dB	> 25	> 25	> 25	> 25	> 25	> 25	> 25
Cross Polar	At Boresight	dB	> 20	> 20	> 20	> 20	> 20	> 15	> 15
Discrimination	Over Sector	dB	> 10	> 10	> 10	> 9	> 8	> 7	> 7
	Cross-Polar	dB	> 28					> 25
Isolation	Port-to-Port	dB	> 28					> 25
Impedance		Ohm	50					50
VSWR		—	< 1.5					< 1.5
Return Loss		dB	> 14					> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150					—
Lightning Protection		—	DC Ground					DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200					50

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

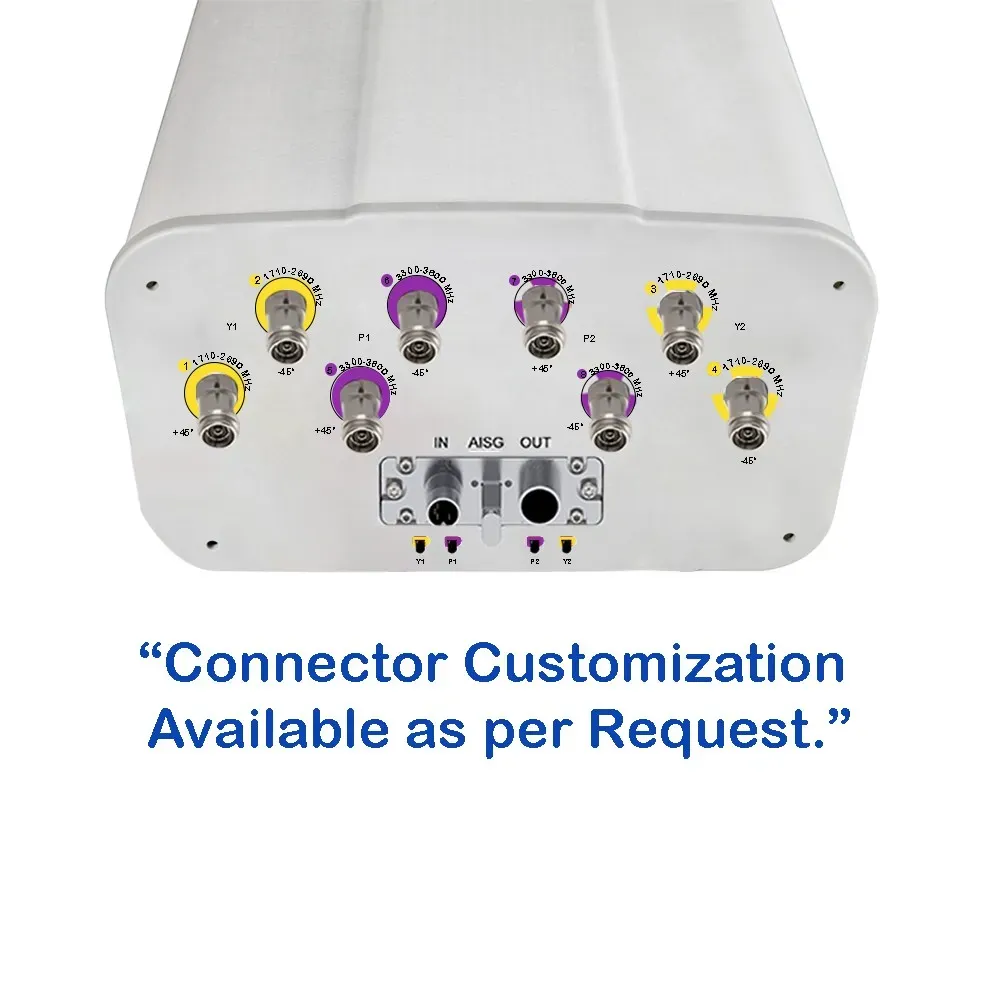

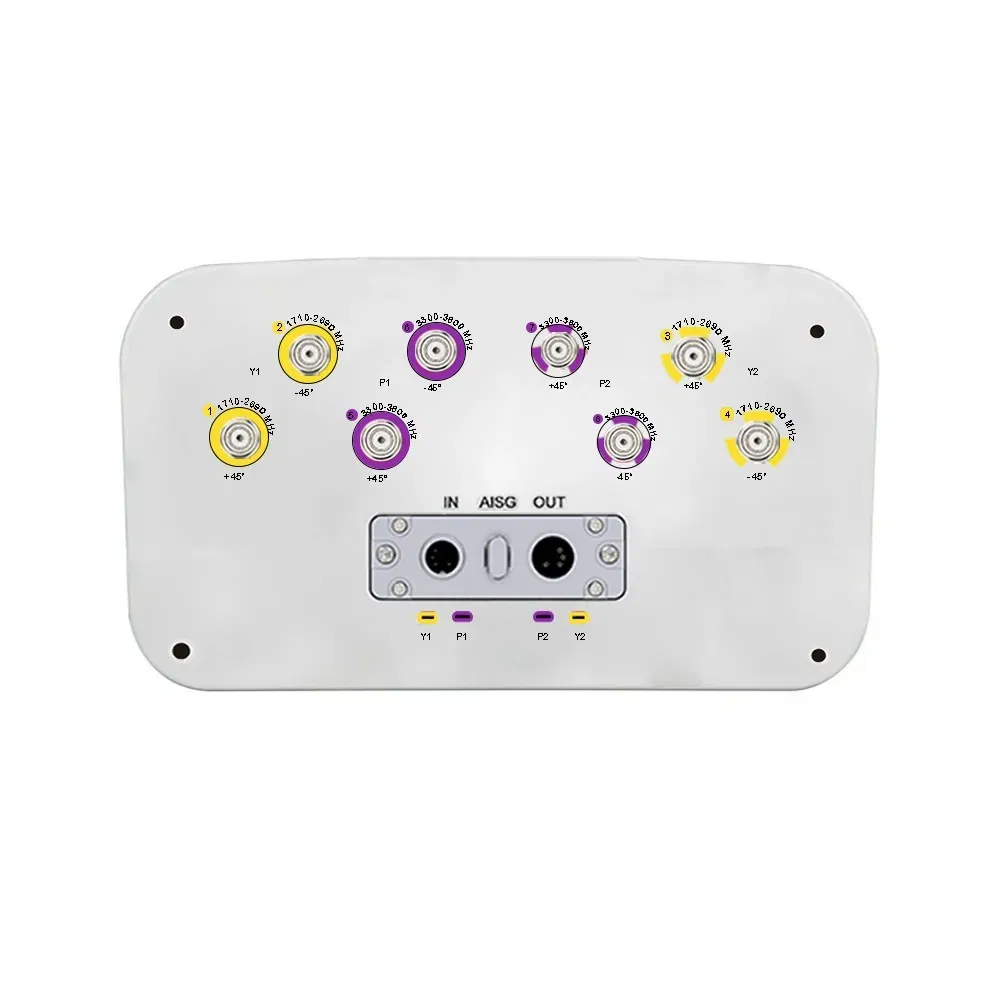

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Radome Material		—	UPVC
Electrical Tilt Control		—	Integrated RET

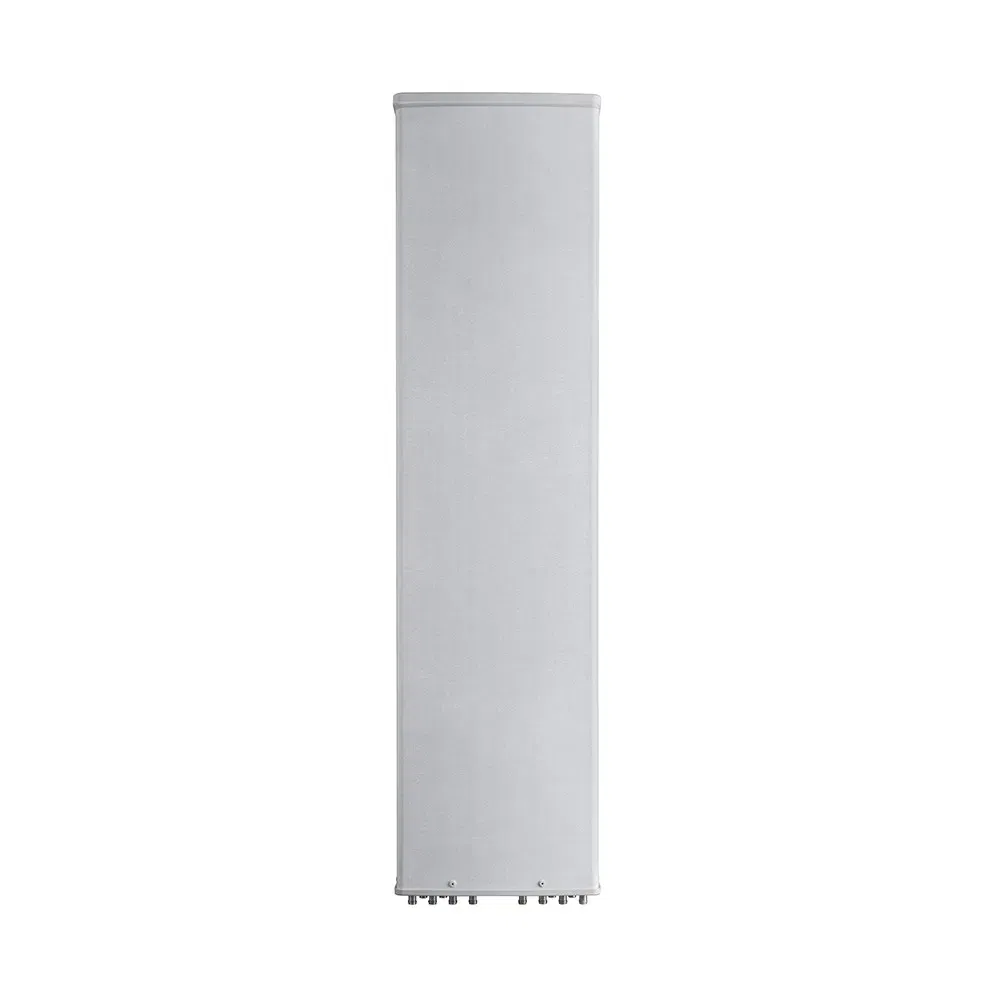

Antenna Dimensions (H x W x D)		mm (in)	1397 x 350 x 178 (55.0 x 13.8 x 7.0)
Antenna Weight	Antenna Only	kg (lbs)	18 (39.7)
Antenna Weight	with Clamps	kg (lbs)	22 (48.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	450 (101.2)
at 150 km/h	Rear	N (lbf)	500 (112.4)
	Lateral	N (lbf)	300 (67.4)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
