Product code: 8P-2300-3600F-17G-65H6V

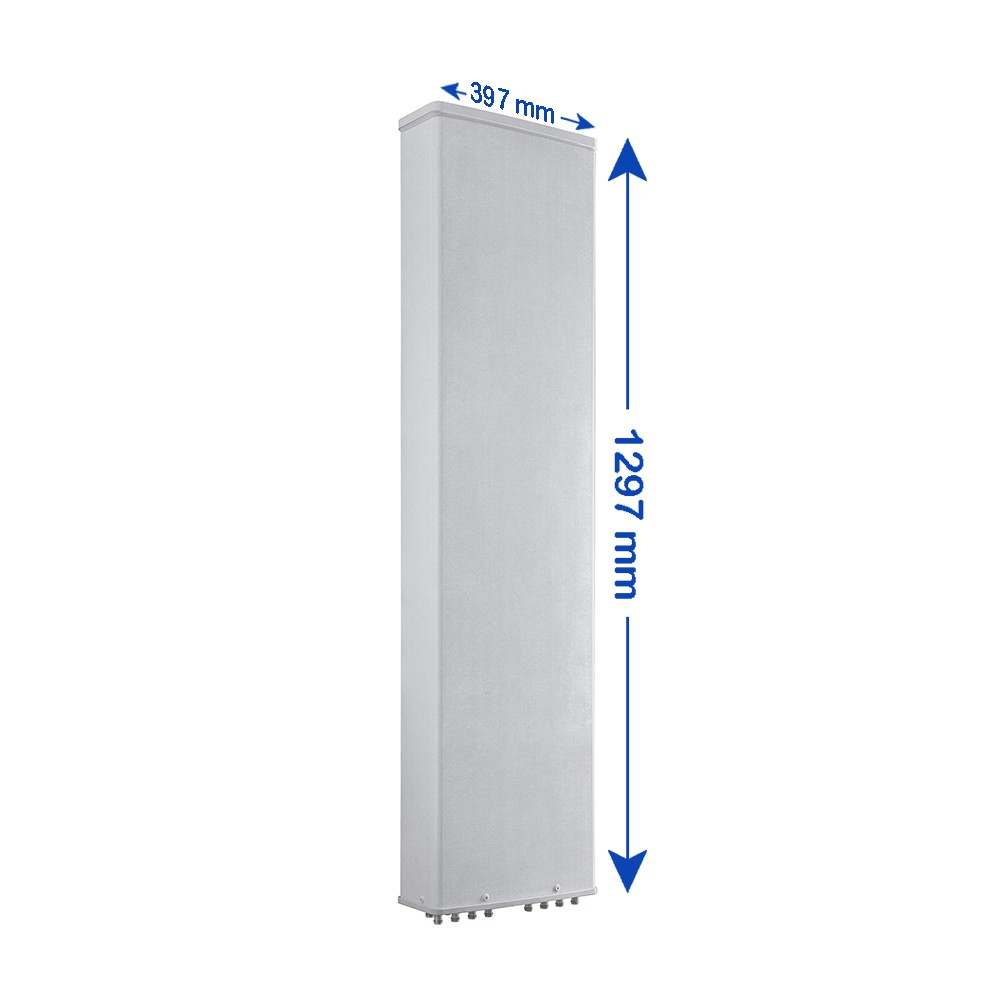

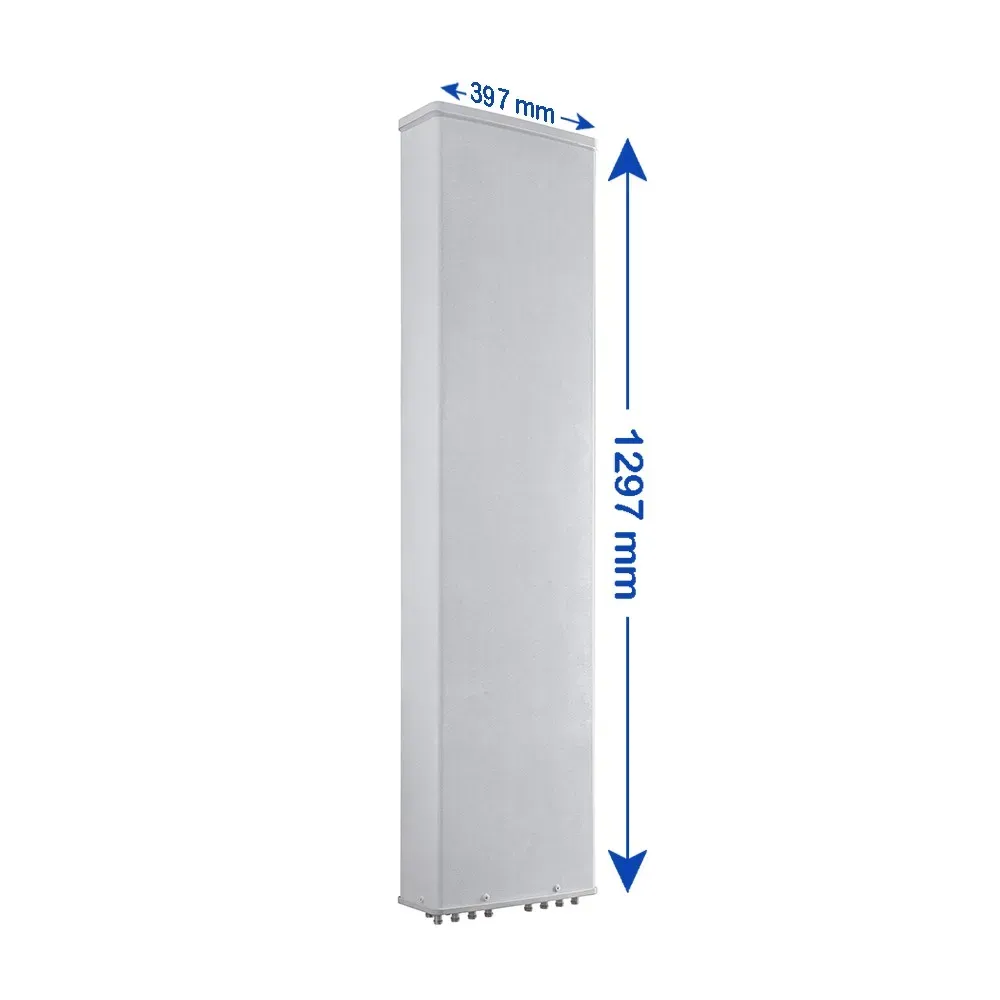

8-Port, Panel Antenna, 65° HBW, (2x) 2300-2400/(2x) 3400-3600 MHz, 17.5/17.5/17.5/17.5 dBi, (2x) 0-10°/(2x) 2-12°T, 1.297 m

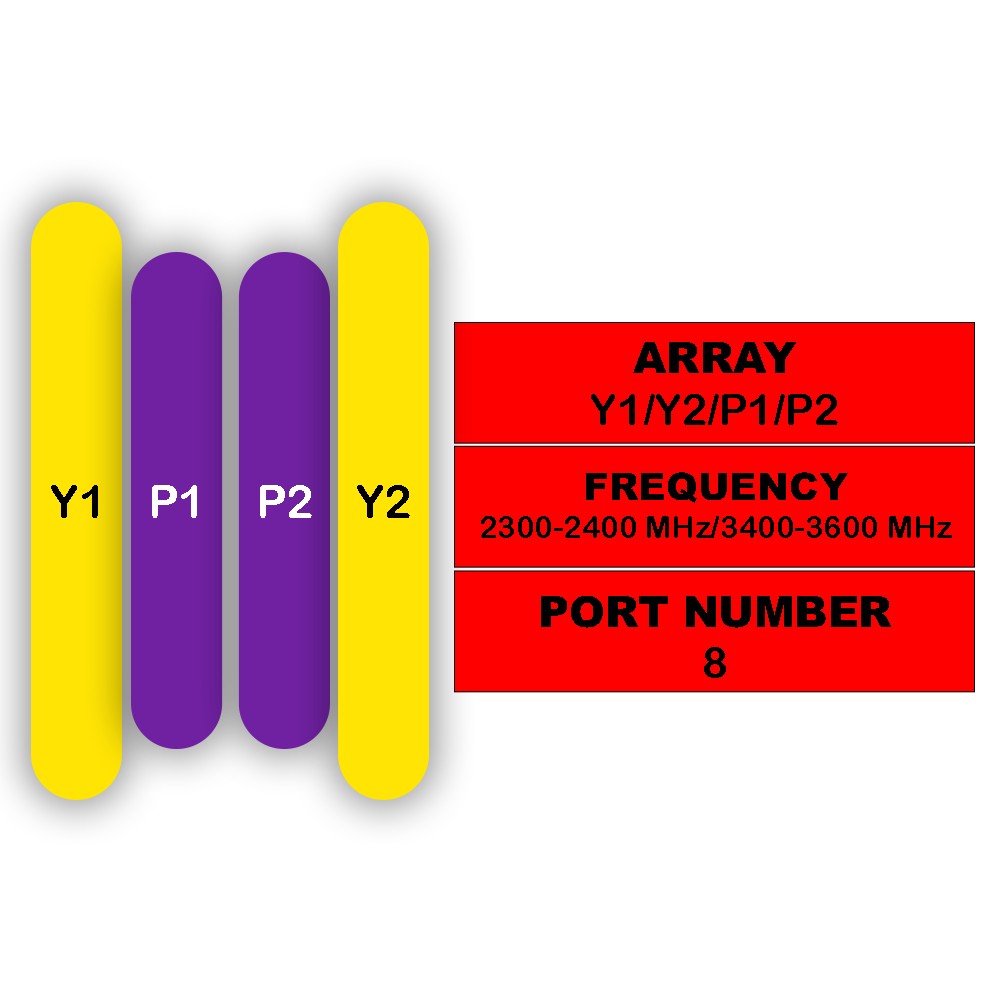

| 8-Port Antenna | Y1 | Y2 | P1 | P2 |
| Frequency Range (MHz) | 2300-2400 | 2300-2400 | 3400-3600 | 3400-3600 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 17.5 dBi | 17.5 dBi | 17.5 dBi | 17.5 dBi |
| Tilt | 0-10° | 0-10° | 2-12° | 2-12° |

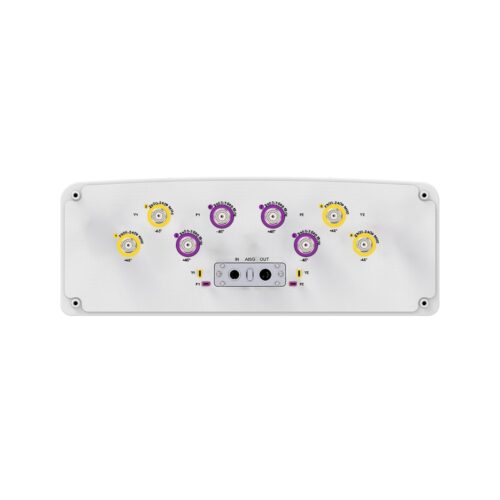

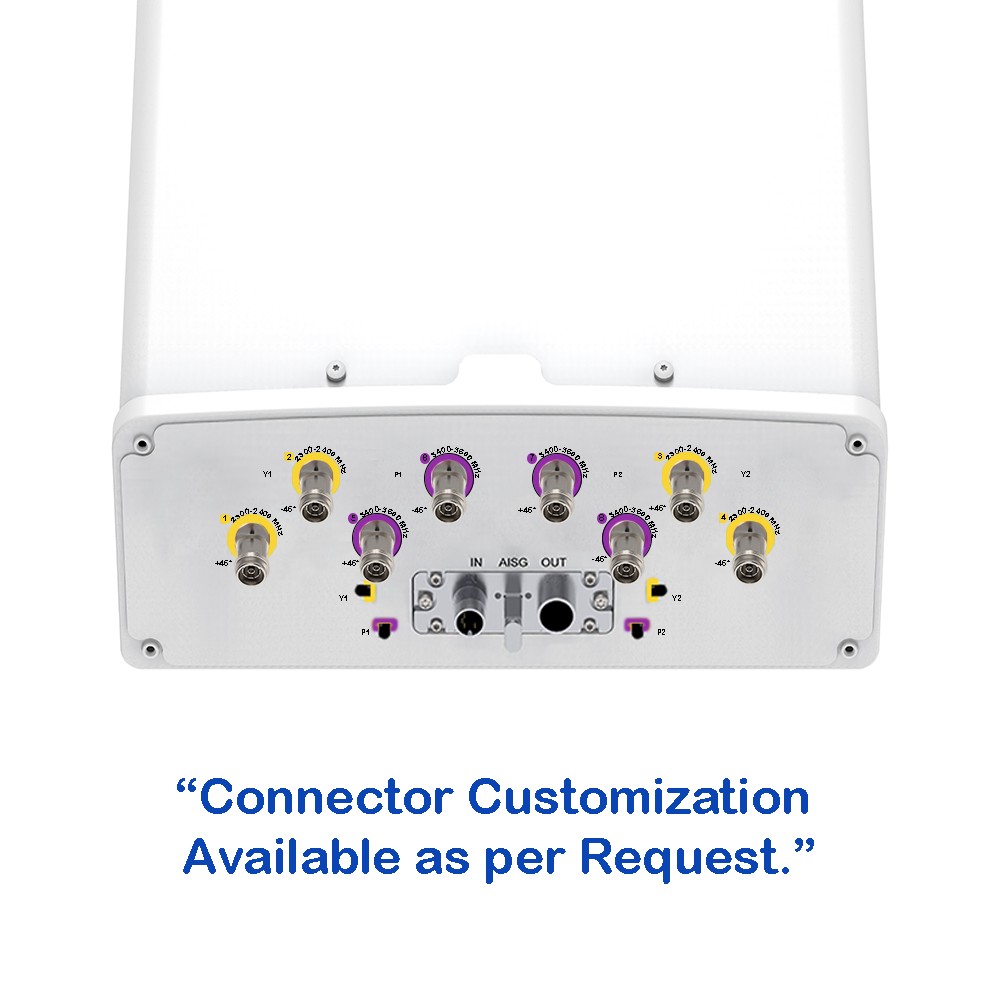

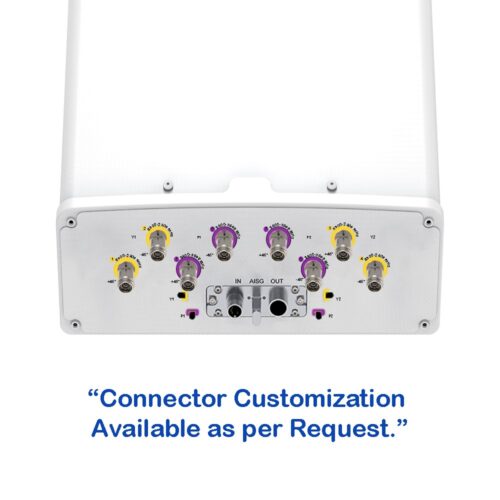

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
