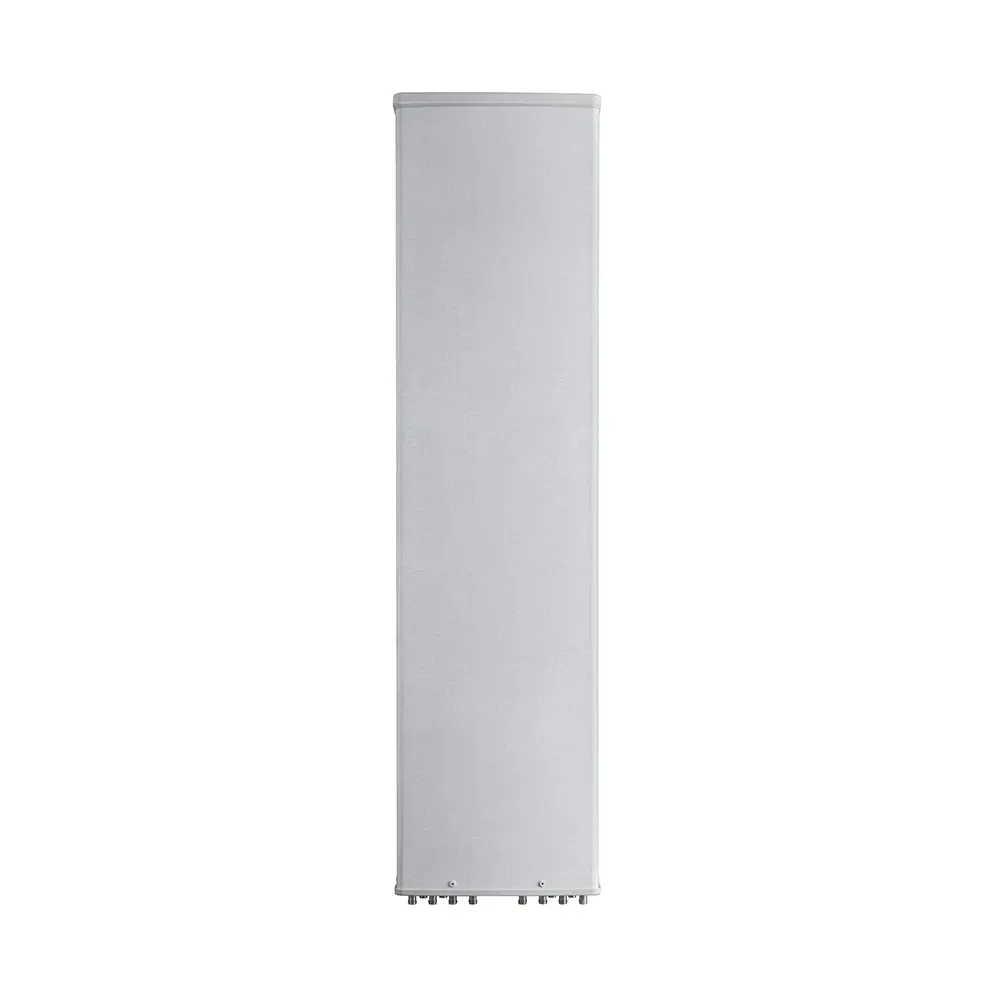

8-Port, Panel Antenna, 65° HBW, (2x) 690-960/(2x) 1695-2690 MHz, 17/17/18/18 dBi, 2-12° T, 2.497 m

Product code: 8P-690-2690F-17G-65H8V

8-Port, Panel Antenna, 65° HBW, (2x) 690-960/(2x) 1695-2690 MHz, 17/17/18/18 dBi, 2-12° T, 2.497 m

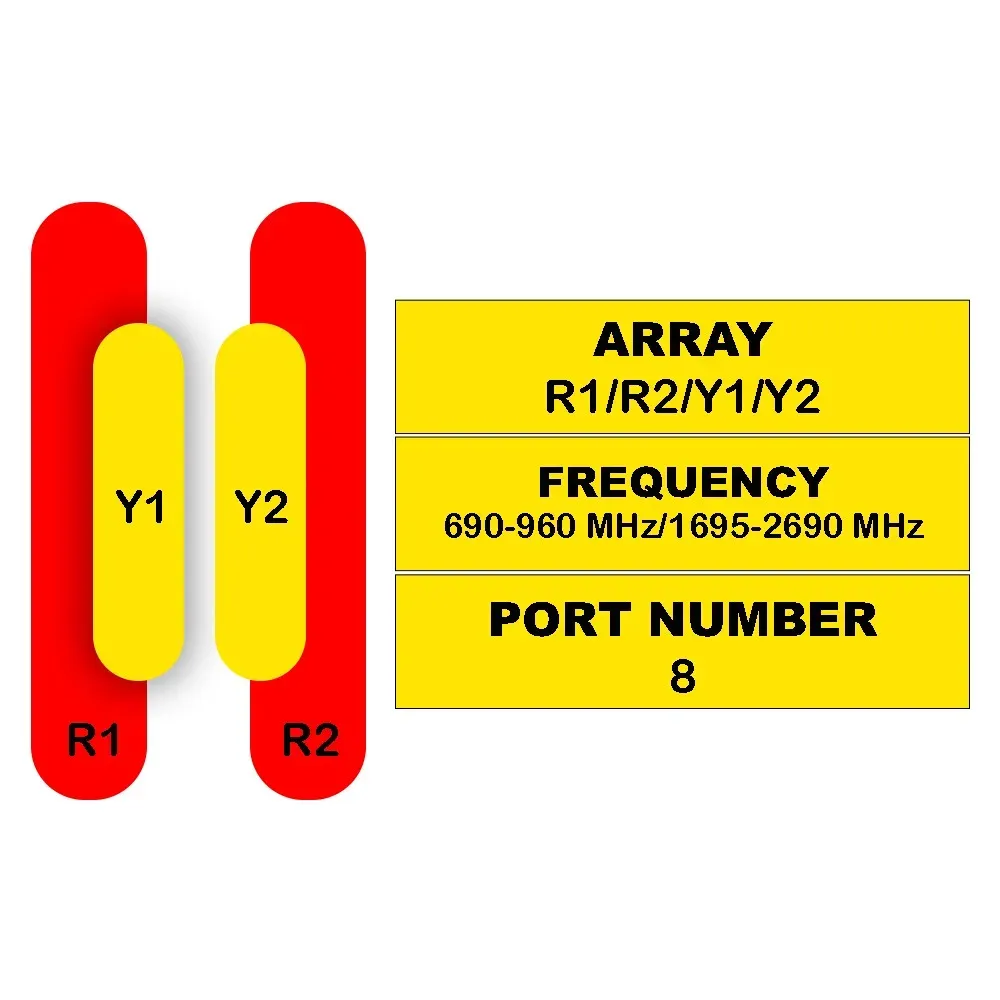

8-Port Antenna	R1	R2	Y1	Y2
Frequency Range (MHz)	690-960	690-960	1695-2690	1695-2690
HBW	65°	65°	65°	65°
Gain	17 dBi	17 dBi	18 dBi	17.5 dBi
Tilt	2-12°	2-12°	2-12°	2-12°

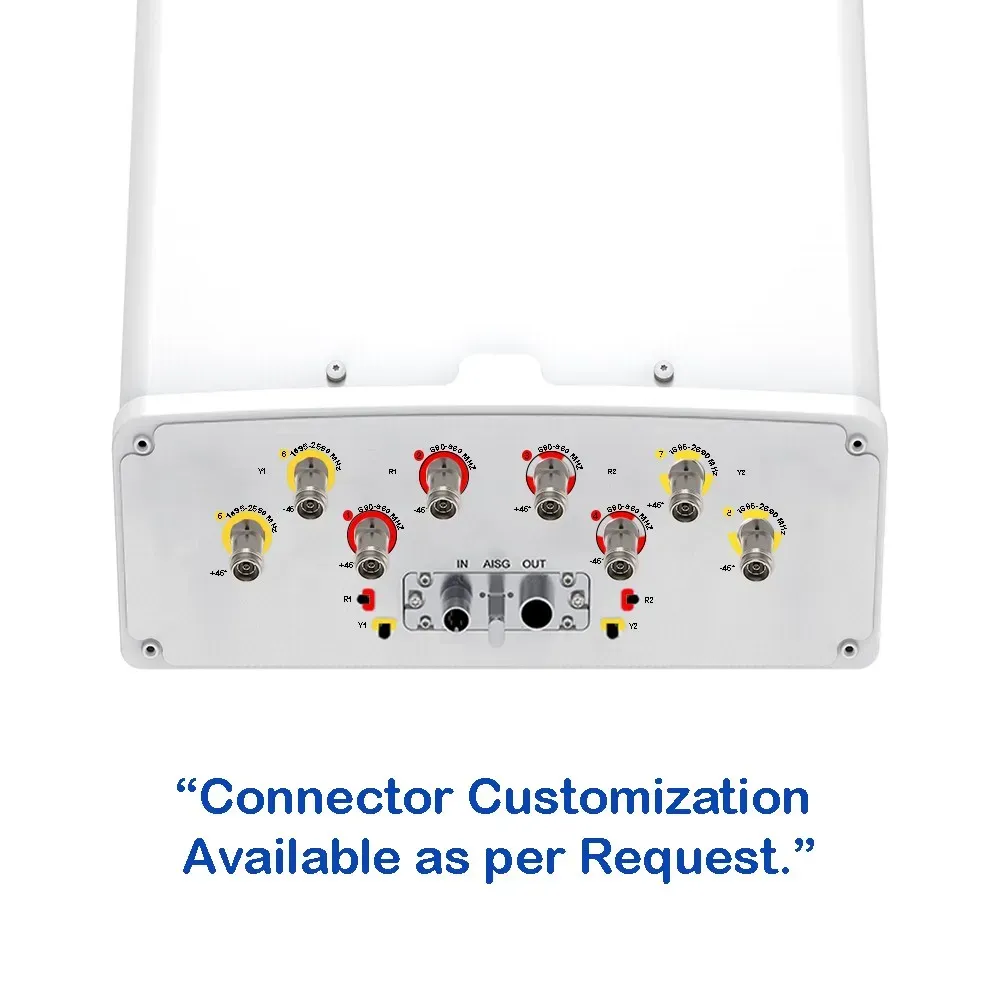

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-690-2690F-17G-65H8V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			Y1 / Y2
Frequency Range		MHz	690-960			1695-2690
Frequency Range		MHz	690-806	790-894	880-960	1695-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	16	16.4	16.8	17	17.3	17.6	17.9	17.9
Gain	Over All Tilts	dBi	15.8 ± 0.6	16.2 ± 0.5	16.6 ± 0.5	16.8 ± 0.5	17.1 ± 0.5	17.4 ± 0.5	17.7 ± 0.5	17.7 ± 0.5
Horizontal Beamwidth		degree	64 ± 6.5	61 ± 5.5	58 ± 5.5	66 ± 6.5	65 ± 6.5	62 ± 6.5	58 ± 5.0	58 ± 6.5
Vertical Beamwidth		degree	8.8 ± 0.7	7.8 ± 0.7	7.2 ± 0.8	5.6 ± 0.5	5.3 ± 0.4	4.9 ± 0.5	4.3 ± 0.5	4.0 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
Tilt Accuracy		degree	< 1	< 1	< 1	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe	First Upper Lobe	dB	> 16	> 16	> 16	> 16	> 16	> 16	> 15	> 15
Suppression	20° Sector Above Main Beam	dB	> 15	> 15	> 15	> 15	> 15	> 15	> 14	> 14
Front-To-Back Ratio ±30°		dB	> 23	> 24	> 25	≥ 25	≥ 25	> 25	≥ 26	≥ 26
Cross Polar	at Boresight	dB	> 17	> 18	> 17	> 16	> 16	> 17	> 18	> 18
Discrimination	Over Sector	dB	> 7.0	> 8.0	> 6.5	> 6.0	> 6.0	> 6.0	> 5.0	> 3.0
Isolation	Cross-Polar	dB	> 26			> 26
Isolation	Port-to-Port	dB	> 26 (R1//R2), > 28 (R1//Y1,Y2)			> 28
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

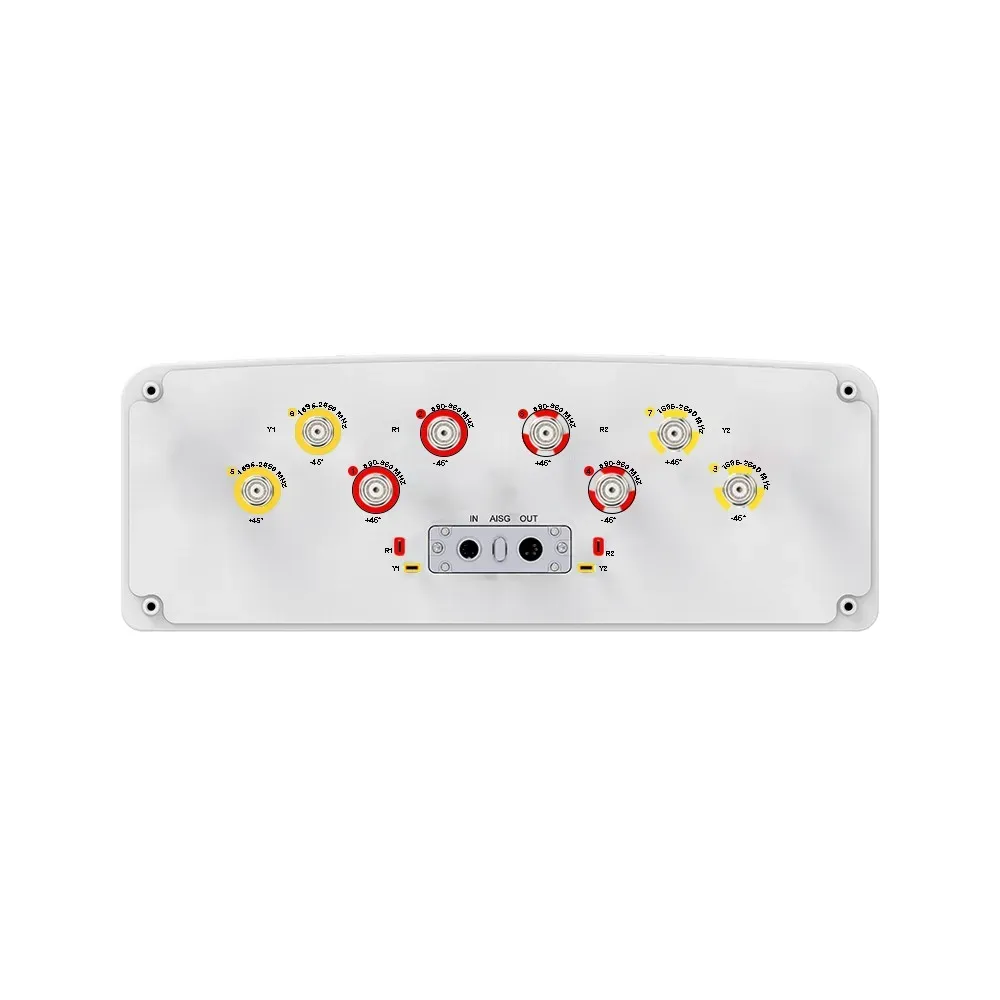

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Radome Material		—	Fiberglass

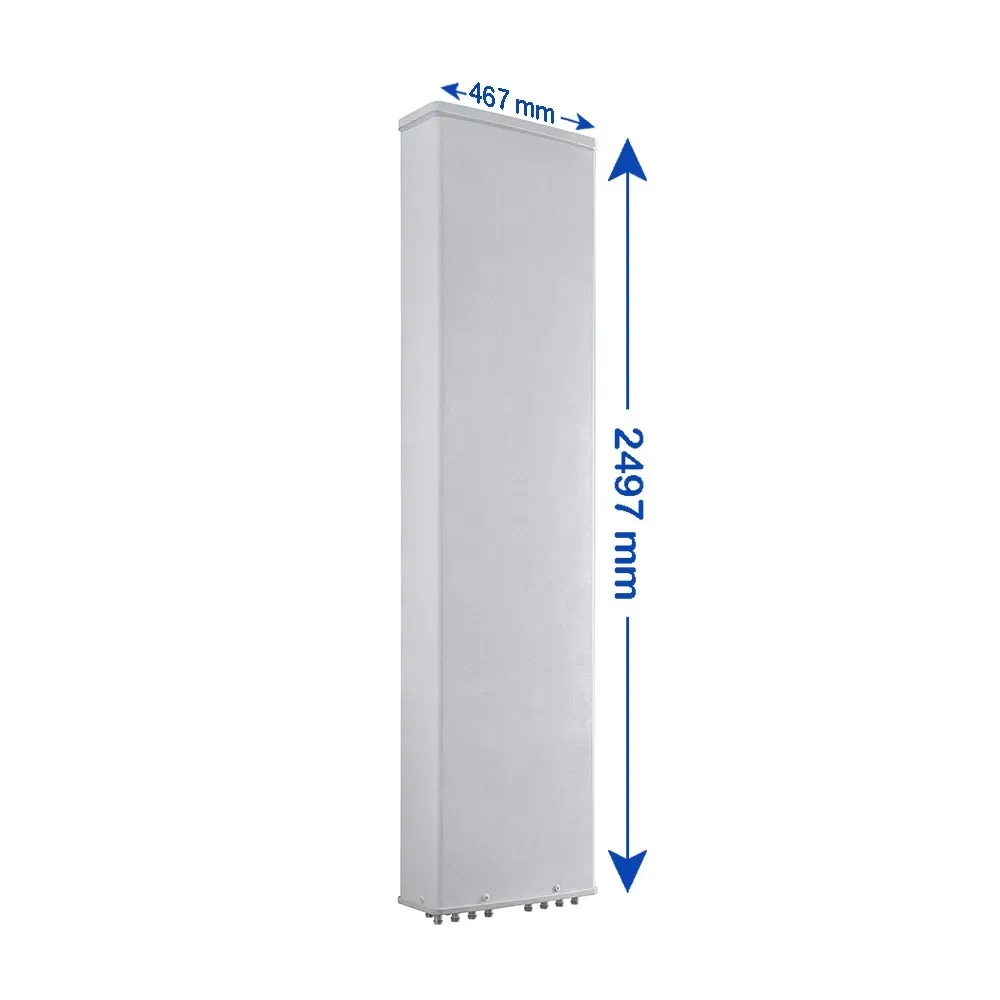

Antenna Dimensions (H x W x D)		mm (in)	2497 x 467 x 167 (98.3 x 18.4 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	34 (75.0)
Antenna Weight	with Clamps	kg (lbs)	41.5 (91.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1080 (242.8)
at 150 km/h	Rear	N (lbf)	1205 (270.9)
	Lateral	N (lbf)	475 (106.8)
Operating Temperature		°C (°F)	-40 to +60 (-40 to 140)
