Product code: 8P-3300-3800F-19G-33H7V
8-Port, Panel Sector Antenna, 33° HBW, (4x) 3300-3800 MHz, 19/19/19/19 dBi, 2-12°FET, 1.297 m
| 8-Port Antenna | P1 | P2 | P3 | P4 |
| Frequency Range (MHz) | 3300-3800 | 3300-3800 | 3300-3800 | 3300-3800 |
| HBW | 33° | 33° | 33° | 33° |
| Gain | 19 dBi | 19 dBi | 19 dBi | 19 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |
| Connectors
(other connectors by request) |
4.3/10 Female or MQ4 | |||
Product Part Number
8P-3300-3800F-19G-33H7V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||
|---|---|---|---|---|---|---|
| P1 / P2 / P3 / P4 | ||||||
| Frequency Range | MHz | 3300-3800 | ||||
| MHz | 3300-3600 | 3600-3800 | ||||
| Polarization | — | ±45° | ||||
| Gain | at Mid Tilt | dBi | 18.5 | 18.8 | ||
| Over All Tilts | dBi | 18.4 ± 0.6 | 18.7 ± 0.6 | |||
| Horizontal Beamwidth | degree | 33 ± 3 | 32 ± 3 | |||

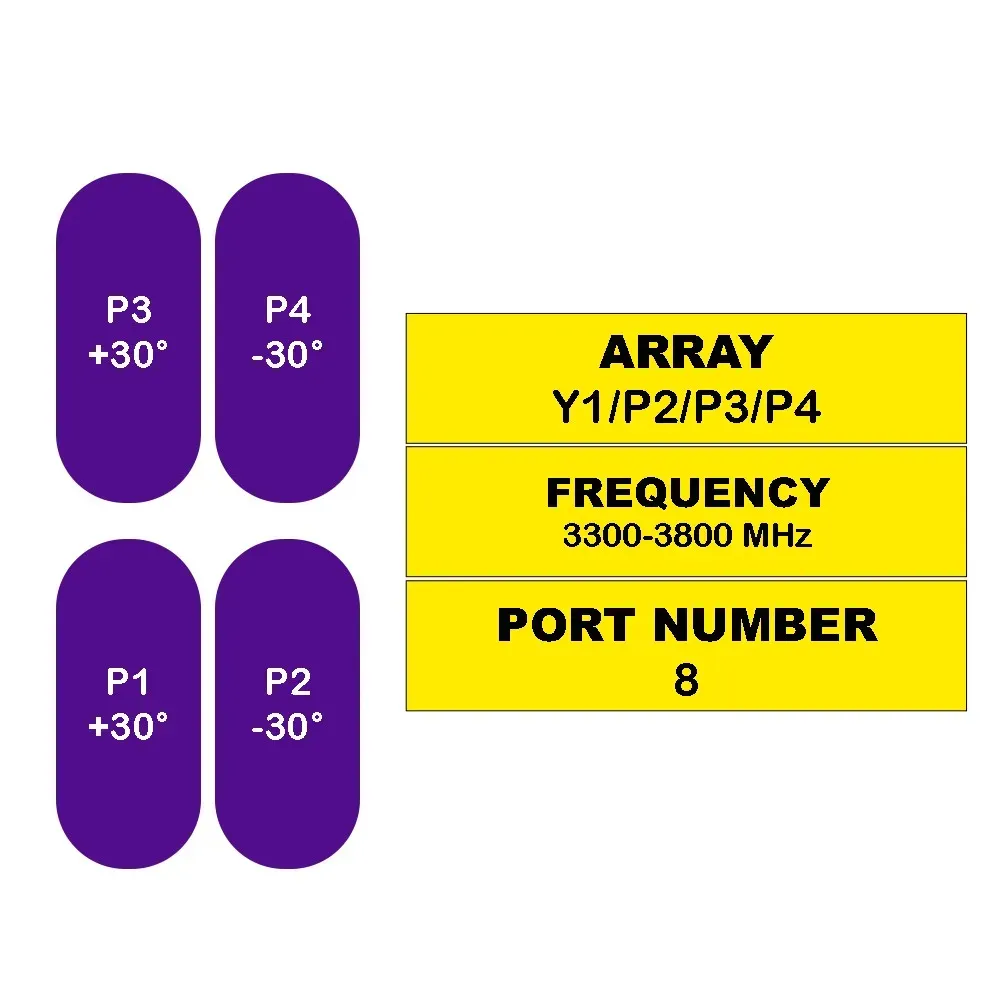

| Azimuth Beam Pointing | degree | P1 & P3: +30; P2 & P4: -30 | ||||
| Vertical Beamwidth | degree | 7.8 ± 0.8 | 7.2 ± 0.8 | |||
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | ||||
| First Upper Side Lobe Suppression | dB | > 16 | > 16 | |||
| Front-To-Back Ratio Co-Pol, ±30° | dB | > 25 | > 25 | |||
| Cross Polar | at Boresight | dB | > 15 | > 15 | ||
| Discrimination | ||||||
| Isolation | Cross-Polar (Same-Beam) | dB | > 25 | |||
| Beam-to-Beam | dB | > 25 | ||||
| Interband | dB | > 25 | ||||
| Impedance | Ohm | 50 | ||||
| VSWR | — | < 1.5 | ||||
| Return Loss | dB | > 14 | ||||
| PIM3 (2×43 dBm carrier) | dBc | < -150 | ||||
| Lightning Protection | — | DC Ground | ||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 100 | ||||
| Integrated RET Specifications | ||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||
| Power | Standby | < 2 W | ||||
| Consumption | In Motion | < 10 W | ||||
| Connectors | 2 x 8 Pin Circle Connector | |||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||
| Hardware Interfaces | RS485 and Power | |||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||
| Adjustment Cycles | > 20,000 | |||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | ||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||
| Housing Material / Color | Aluminum / Grey | |||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||
| Humidity | Up to 95% | |||||
| IP Rating | IP65 | |||||
| Weight | ≤ 500 g | |||||
| Mechanical Specifications | ||||||

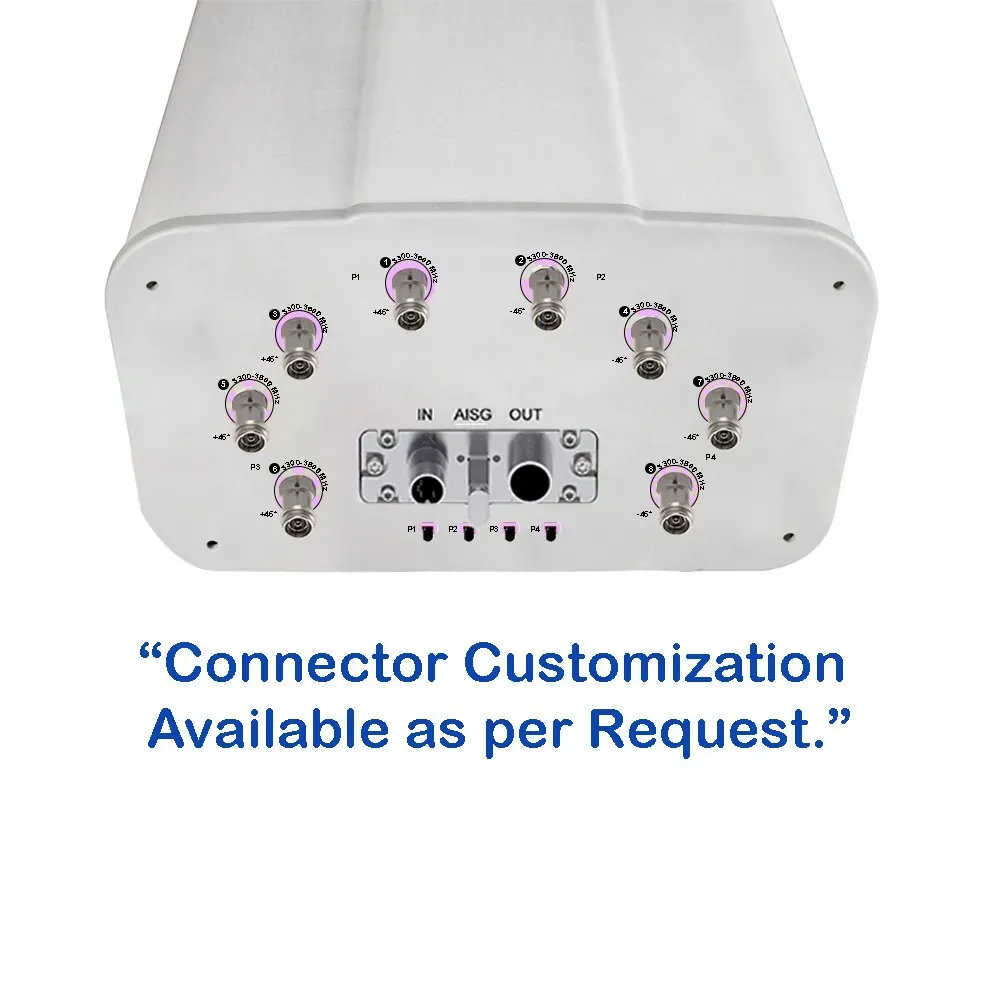

| Connector Type | — | 4.3/10 Female or MQ4 | ||||
| Connector Position | — | Bottom | ||||
| Electrical Tilt Control | — | Integrated RET | ||||
| Radome Material | — | UPVC | ||||
| Antenna Dimensions (H x W x D) | mm (in) | 1297 x 277 x167 (51.1 x 10.9 x 6.6) | ||||
| Antenna Weight | Antenna Only | kg (lbs) | 17 (37.5) | |||
| with Clamps | kg (lbs) | 21 (46.3) | ||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||
| Wind Load | Frontal | N (lbf) | 330 (74.2) | |||
| at 150 km/h | Rear | N (lbf) | 370 (83.2) | |||
| Lateral | N (lbf) | 250 (56.2) | ||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | ||||
