Product code: 8P-880-2200F-19G-35H7V

8-Port, Panel Sector Antenna, 35° HBW, 880-960/(3x) 1710-2200 MHz, 19/20.5/20.5/20.5 dBi, 2-10°T, 2.697

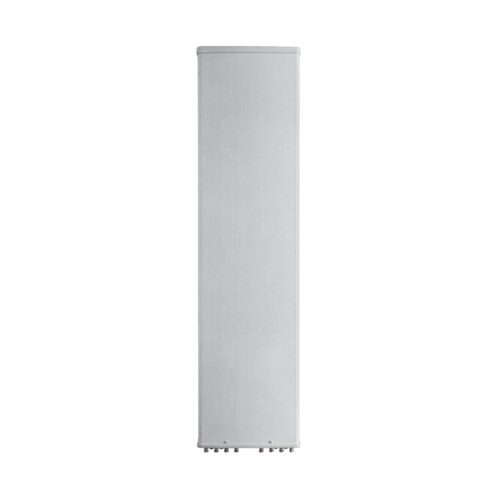

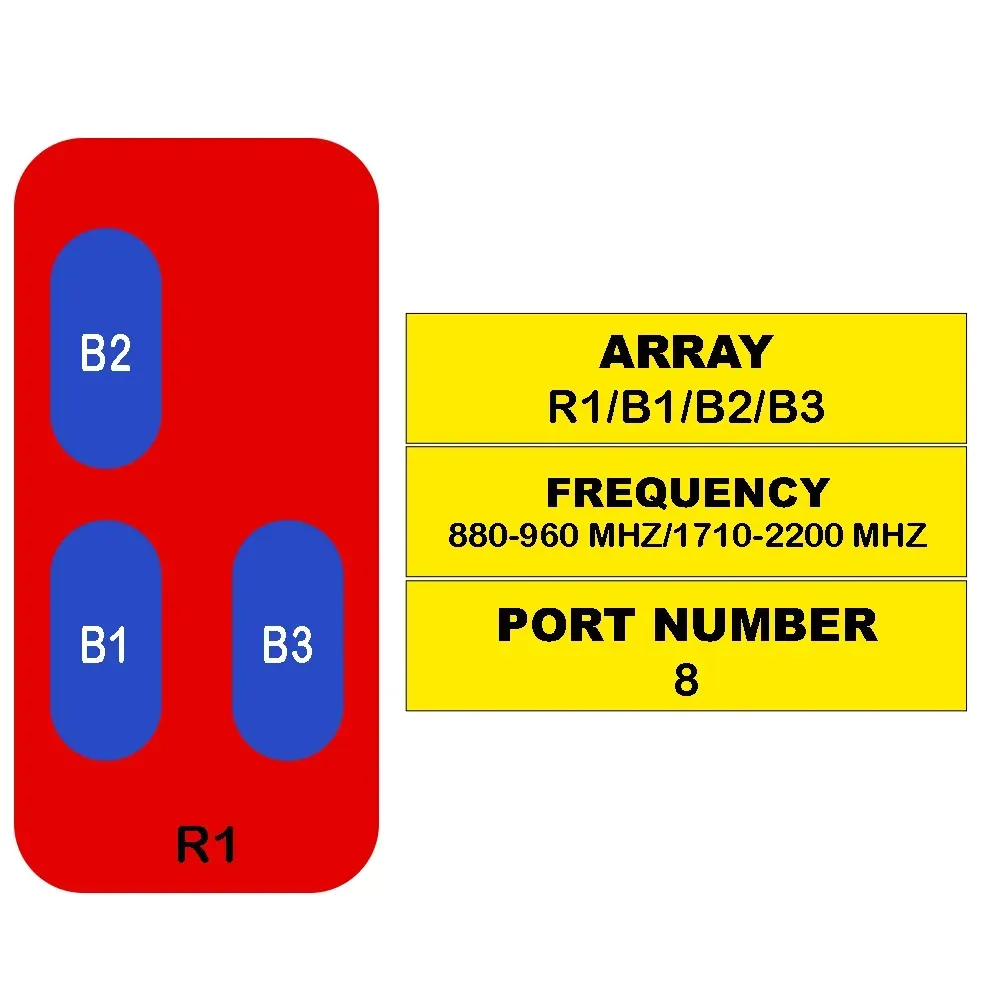

8-Port Antenna	R1	B1	B2	B3
Frequency Range (MHz)	880-960	1710-2200	1710-2200	1710-2200
HBW	35°	35°	35°	35°
Gain	19 dBi	20.5 dBi	20.5 dBi	20.5 dBi
Tilt	2-10°	2-10°	2-10°	2-10°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-880-2200F-19G-35H7V

Electrical & Mechanical Specification

Electrical Specifications
			R1	B1/B2/B3
Frequency Range		MHz		1710-2200
		MHz	880-960	1710-1880	1850-1990	1920-2200
Polarization		—	±45°	±45°
Gain	at Mid Tilt	dBi	19.1	19.1	19.8	20.4
	Over All Tilts	dBi	19.0 ± 0.5	19.0 ± 0.5	19.7 ± 0.5	20.3 ± 0.5
Horizontal Beamwidth		degree	35 ± 3	35 ± 3	33 ± 3	31 ± 3
Vertical Beamwidth		degree	6.7 ± 0.7	7.0 ± 0.7	6.7 ± 0.7	6.3 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-10	2-10
First Upper Side Lobe Suppression		dB	> 17	> 17	> 17	> 17
Front-To-Back RatioCo-Pol, ±30°		dB	> 25	> 25	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 18	> 18	> 18	> 18
Isolation	Intra-Cluster	dB	> 28	> 28
	Inter-Cluster	dB	>28	> 28
Impedance		Ohm	50	50
VSWR		—	< 1.5	< 1.5
Return Loss		dB	> 14	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -153	< -153
Lightning Protection		—	DC Ground	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250	250
Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power Consumption	Standby	< 2 W
Power Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

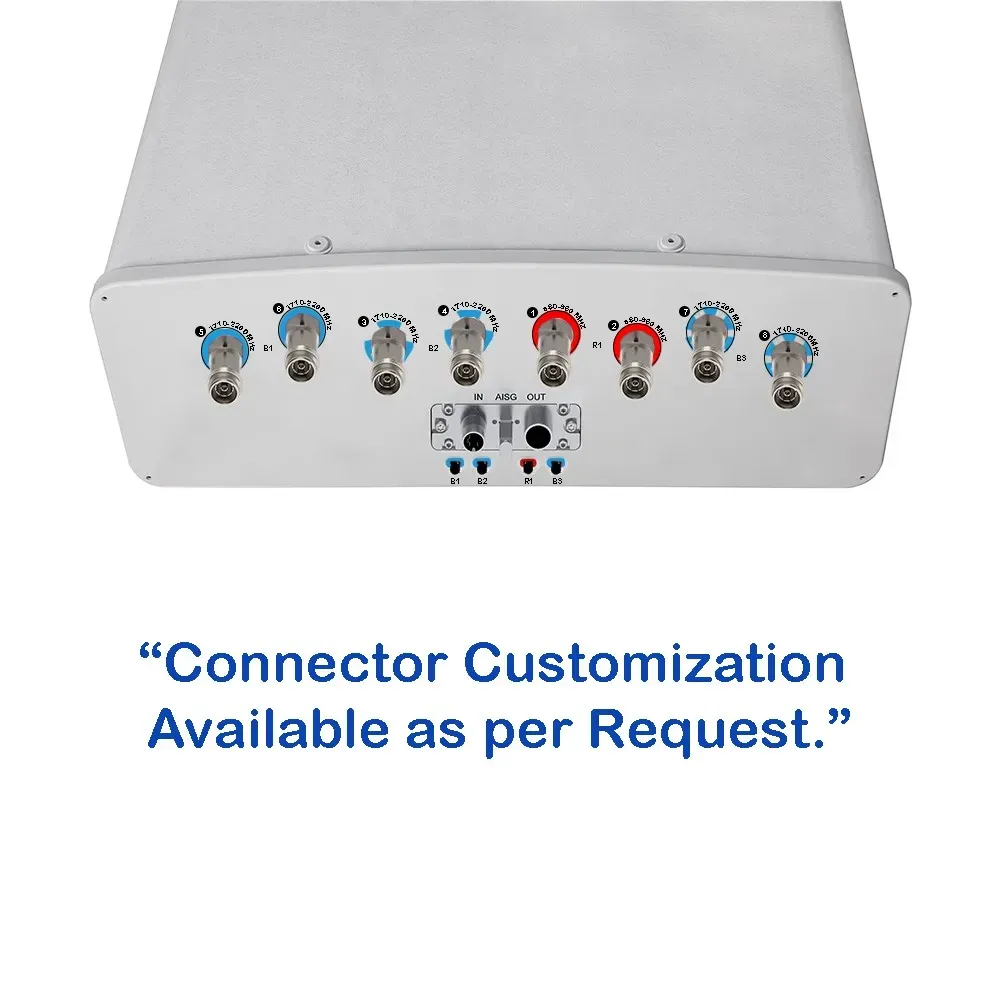

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

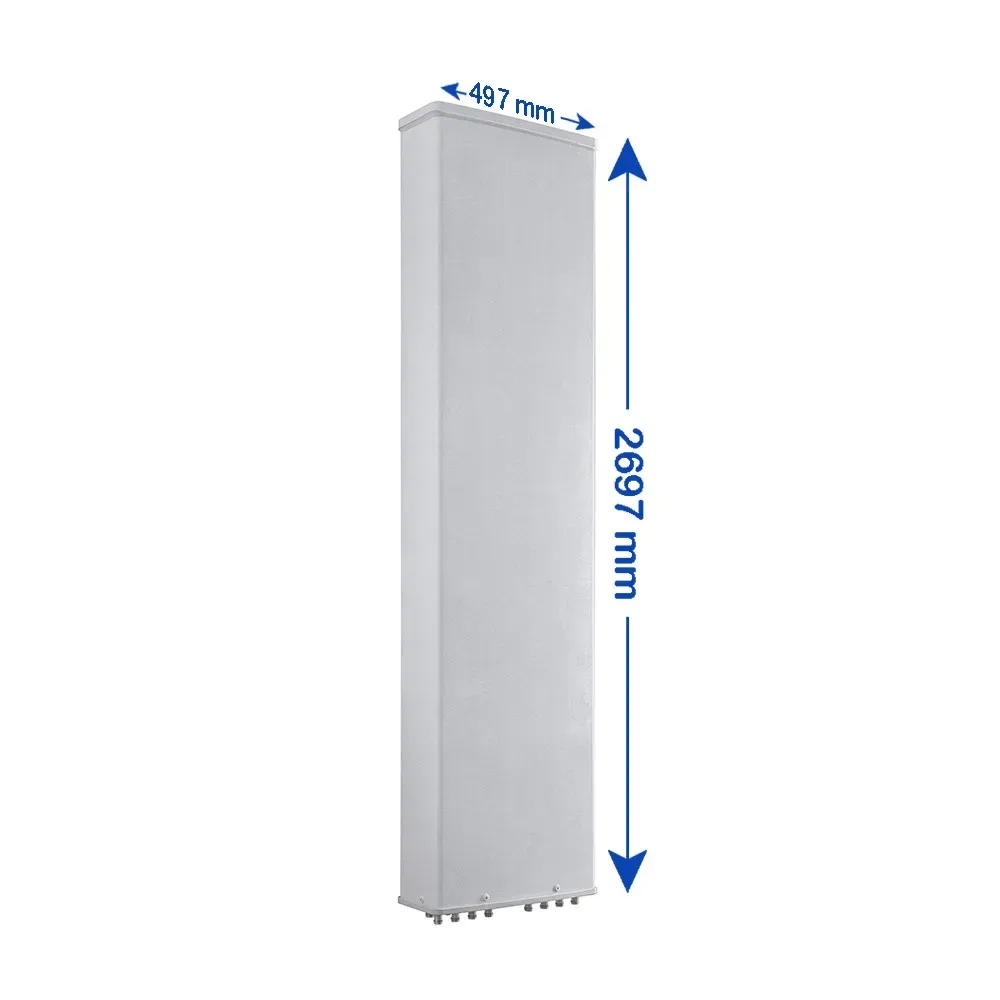

Antenna Dimensions (H x W x D)		mm (in)	2697 x 497 x 197 (106.2 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	39.5 (87.1)
	with Clamps	kg (lbs)	48.5 (106.9)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	1240 (278.8)
	Rear	N (lbf)	1385 (311.4)
	Lateral	N (lbf)	605 (136.0)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
