8-Port, Panel Sector Antenna, 45° HBW, 698-803/824-894/1695-2360/1695-2360 MHz, 15.5/16/19/19 dBi, (2x) 2-16°/(2x) 2-12°T, 1.397 m

Product code: 8P-698-2360F-16G-45H16V

8-Port, Panel Sector Antenna, 45° HBW, 698-803/824-894/1695-2360/1695-2360 MHz, 15.5/16/19/19 dBi, (2x) 2-16°/(2x) 2-12°T, 1.397 m

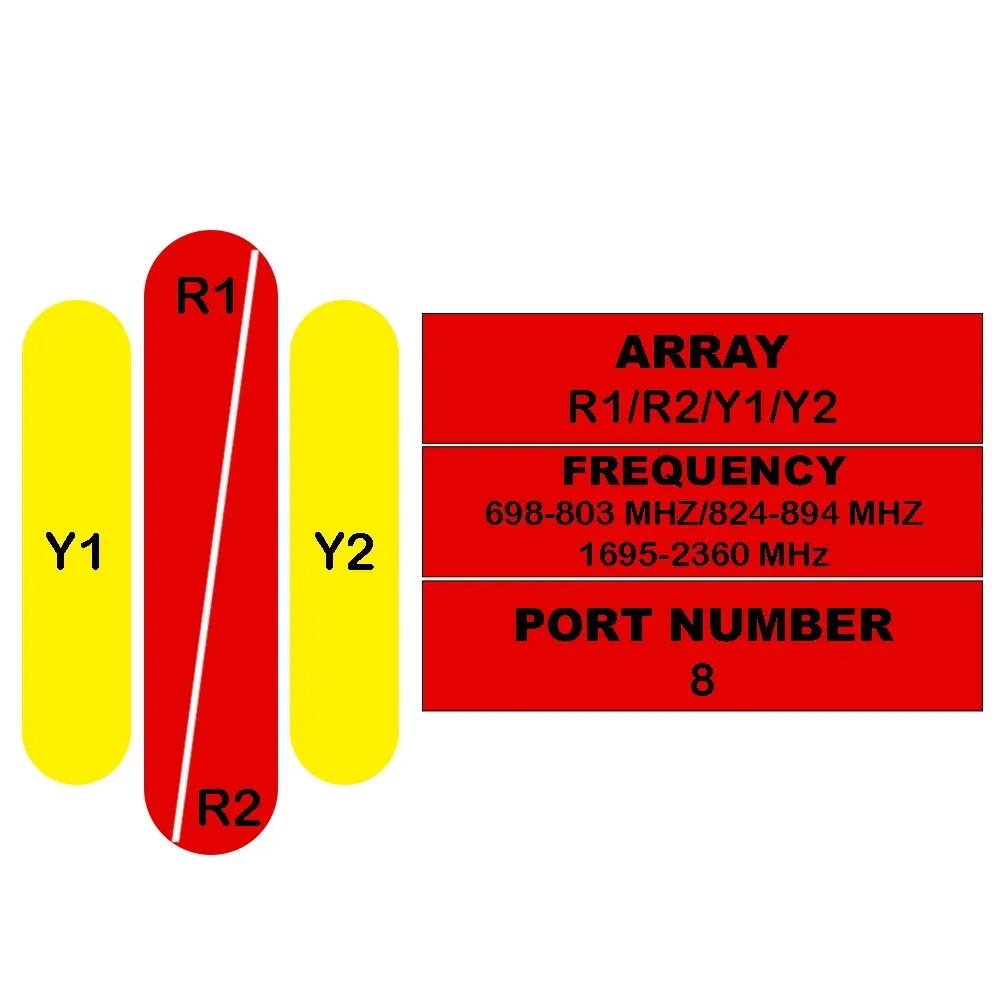

8-Port Antenna	R1	R2	Y1	Y2
Frequency Range (MHz)	698-803	824-894	1695-2360	1695-2360
HBW	45°	45°	45°	45°
Gain	15.5 dBi	16 dBi	19 dBi	19 dBi
Tilt	2-16°	2-16°	2-12°	2-12°

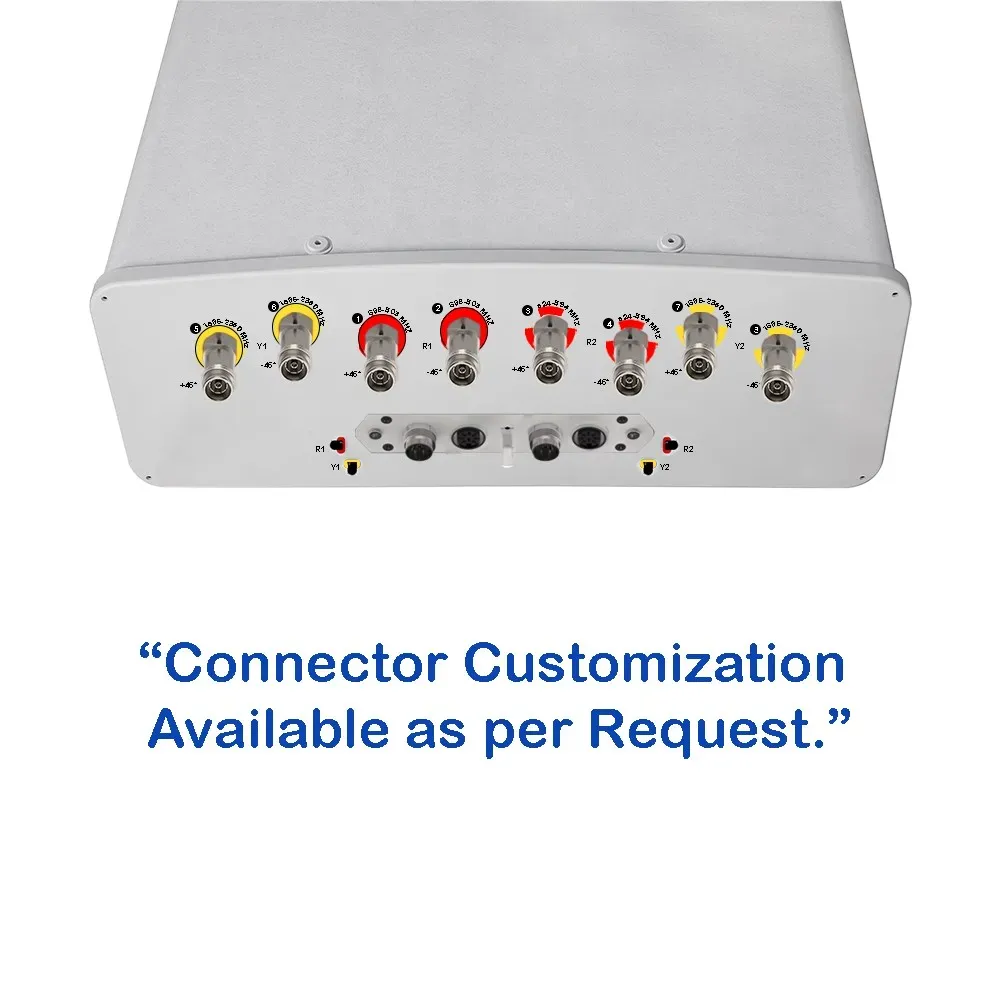

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-698-2360F-16G-45H16V

Electrical & Mechanical Specification

Electrical Specifications
			P1 / P2 / P3 / P4
Frequency Range		MHz	3300-3800
Frequency Range		MHz	3300-3600	3600-3800
Polarization		—	±45°
Gain	at Mid Tilt	dBi	18.5	18.8
Gain	Over All Tilts	dBi	18.4 ± 0.6	18.7 ± 0.6
Horizontal Beamwidth		degree	33 ± 3	32 ± 3
Azimuth Beam Pointing		degree	P1 & P3: +30; P2 & P4: -30
Vertical Beamwidth		degree	7.8 ± 0.8	7.2 ± 0.8
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 16	> 16
Front-To-Back Ratio Co-Pol, ±30°		dB	> 25	> 25
Cross Polar	at Boresight	dB	> 15	> 15
Discrimination	at Boresight	dB	> 15	> 15
Isolation	Cross-Polar (Same-Beam)	dB	> 25
	Beam-to-Beam	dB	> 25
	Interband	dB	> 25
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
PIM3 (2×43 dBm carrier)		dBc	< -150
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	100

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications
Connector Type		—	4.3/10 Female or MQ4
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC
Antenna Dimensions (H x W x D)		mm (in)	1297 x 277 x167 (51.1 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	17 (37.5)
Antenna Weight	with Clamps	kg (lbs)	21 (46.3)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	330 (74.2)
at 150 km/h	Rear	N (lbf)	370 (83.2)
	Lateral	N (lbf)	250 (56.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
