Product code: 8P-698-2360F-18G-45H10V

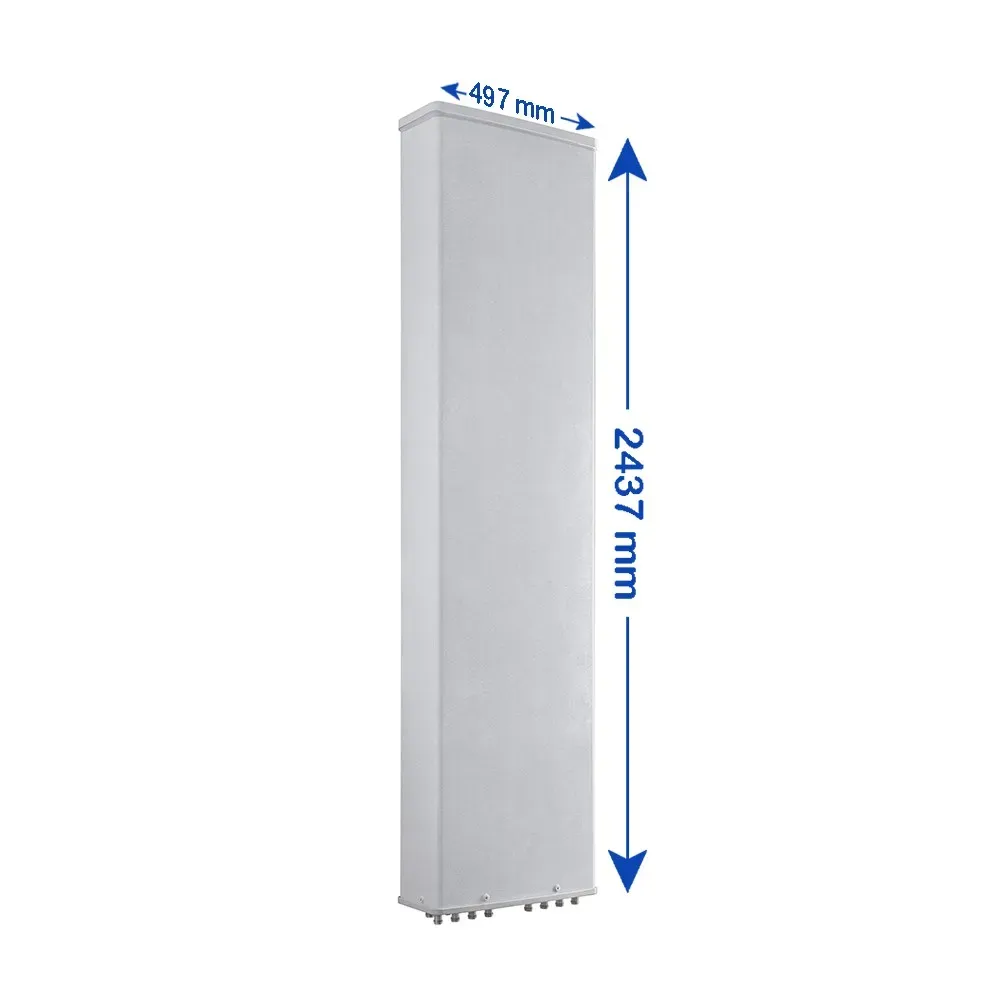

8-Port, Panel Sector Antenna, 45° HBW, 698-803/824-894/1695-2360/1695-2360 MHz, 17.5/18/20/20 dBi, 2-12°T, 2.437 m

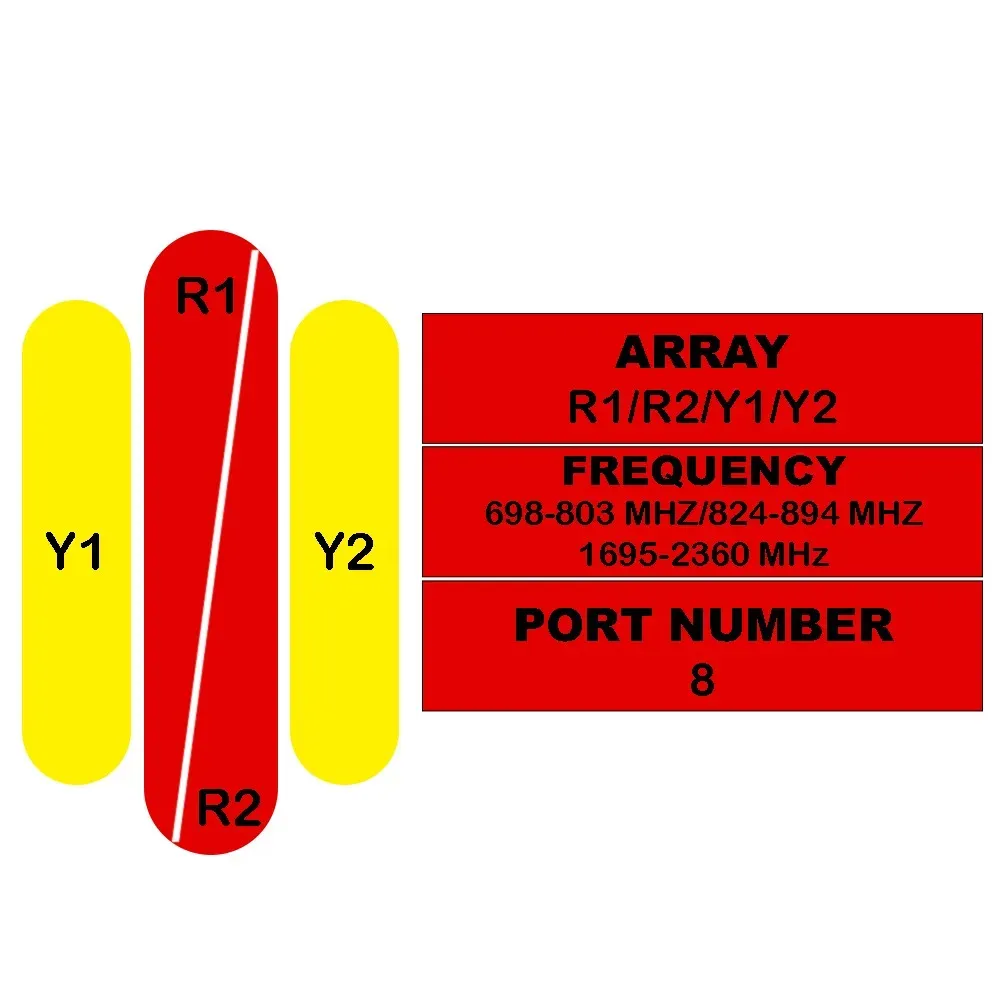

| 8-Port Antenna | R1 | R2 | Y1 | Y2 |
| Frequency Range (MHz) | 698-803 | 824-894 | 1695-2360 | 1695-2360 |
| HBW | 45° | 45° | 45° | 45° |
| Gain | 17.5 dBi | 18 dBi | 20 dBi | 20 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

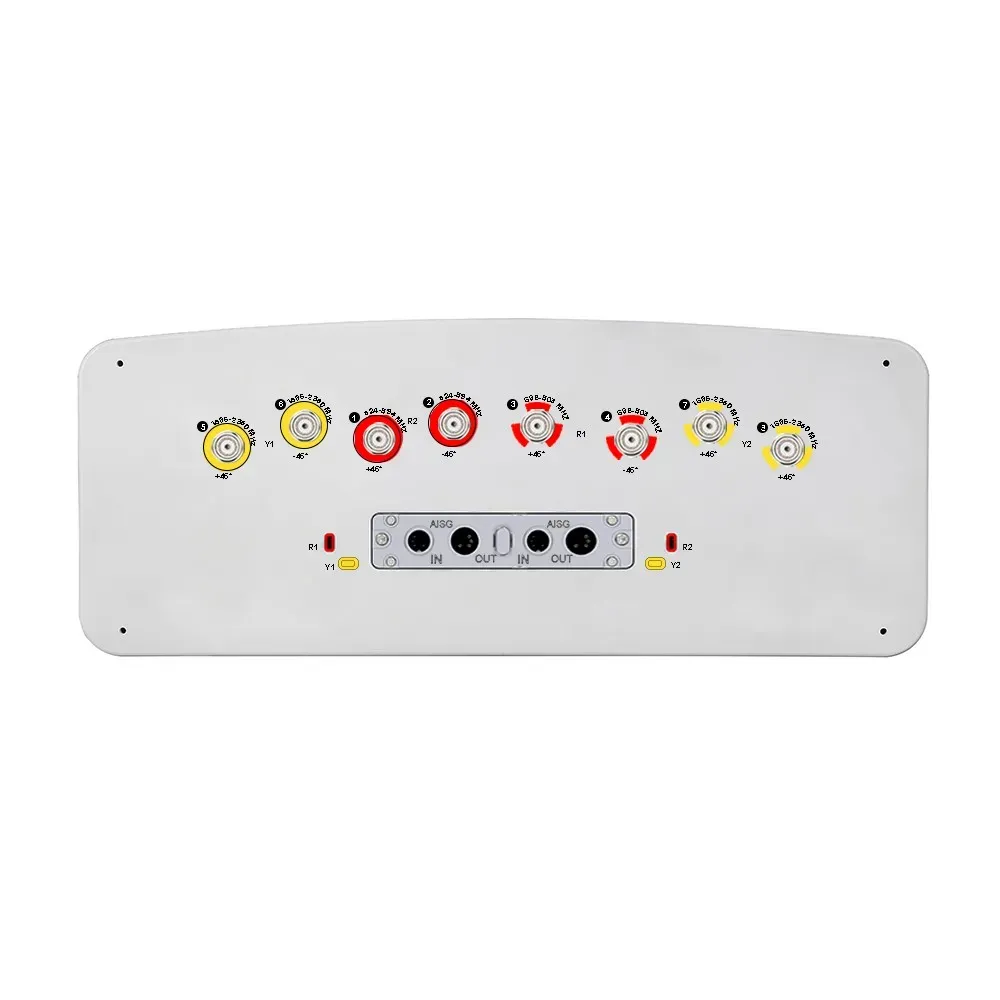

| Connectors

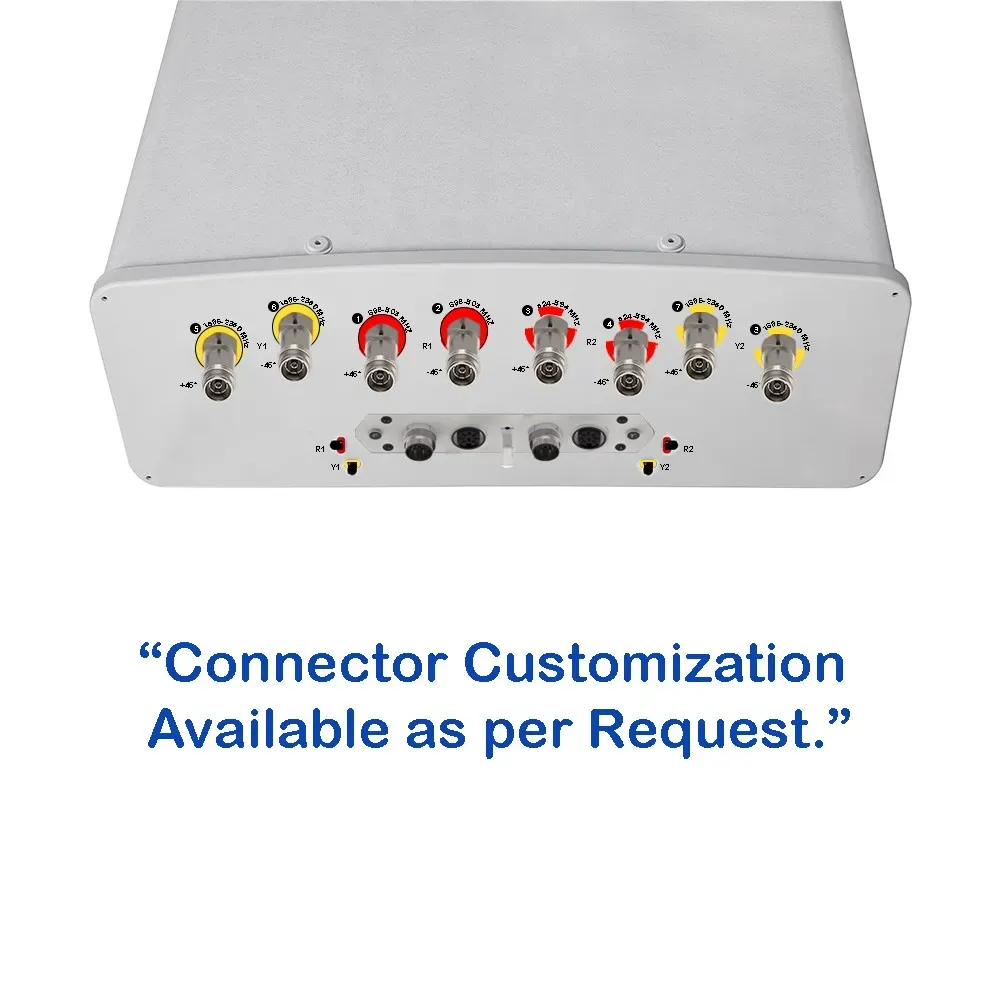

(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
