8-Port, Panel Sector Antenna, 65° HBW, (2x) 617-894/ (2x) 1695-2690 MHz, 15/15/18/18 dBi, 2-12°T, 1.827 m

Product code: 8P-617-2690F-15G-65H14V

8-Port, Panel Sector Antenna, 65° HBW, (2x) 617-894/ (2x) 1695-2690 MHz, 15/15/18/18 dBi, 2-12°T, 1.827 m

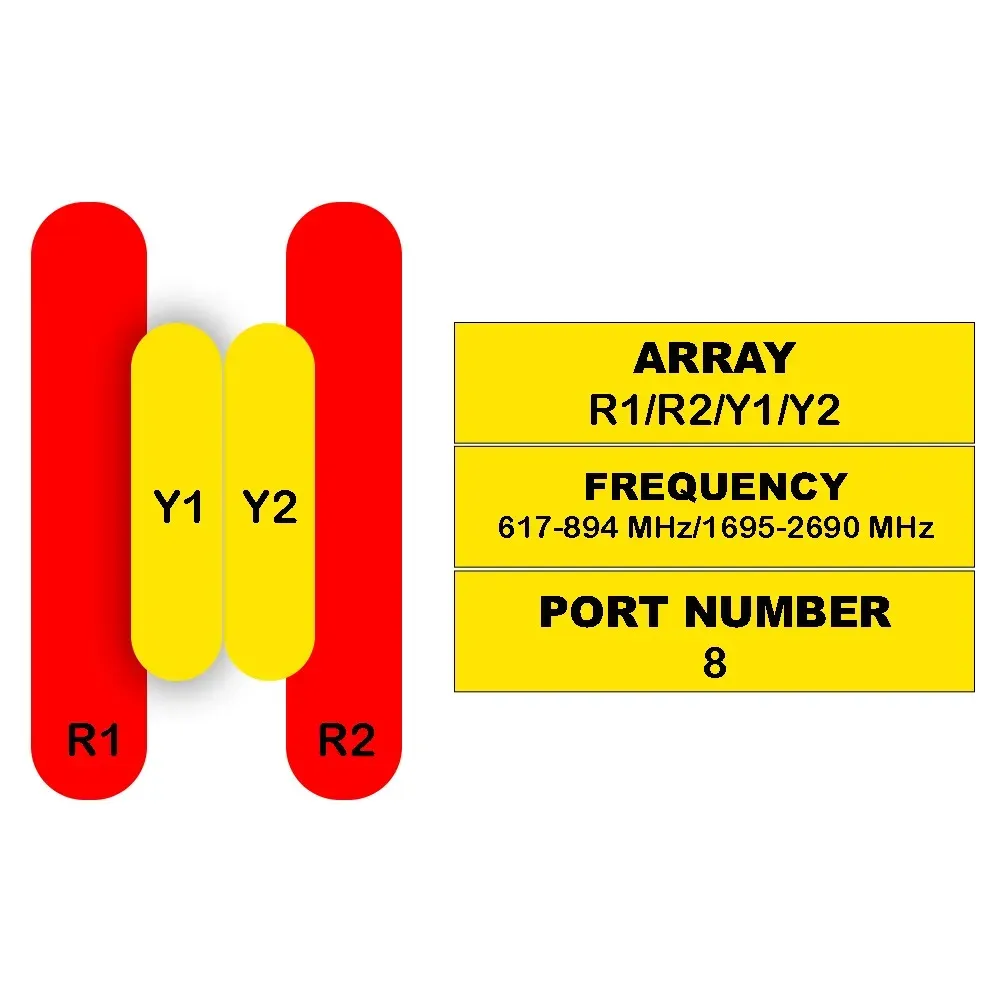

8-Port Antenna	R1	R2	Y1	Y2
Frequency Range (MHz)	617-894	617-894	1695-2690	1695-2690
HBW	65°	65°	65°	65°
Gain	15 dBi	15 dBi	18 dBi	18 dBi
Tilt	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-617-2690F-15G-65H14V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			Y1 / Y2
Frequency Range		MHz	617-894			1695-2690
Frequency Range		MHz	617-698	690-806	790-894	1695-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	13.8	14.2	14.6	16.7	17	17.3	17.6	17.6
Gain	Over All Tilts	dBi	13.6 ± 0.5	14.0 ± 0.5	14.4 ± 0.5	16.5 ± 0.6	16.8 ± 0.6	17.1 ± 0.6	17.4 ± 0.5	17.4 ± 0.5
Horizontal Beamwidth		degree	72 ± 6.0	68 ± 6.0	66 ± 5.0	69 ± 6.5	66 ± 6.5	64 ± 6.5	62 ± 6.0	62 ± 6.5
Vertical Beamwidth		degree	13.4 ± 1.1	11.9 ± 0.9	10.8 ± 0.8	6.6 ± 0.5	6.3 ± 0.5	5.9 ± 0.5	5.0 ± 0.5	4.6 ± 0.5
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
Tilt Accuracy		degree	< 1	< 1	< 1	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe	First Upper Lobe	dB	> 15	> 16	> 16	> 16	> 16	> 16	> 16	> 16
Suppression	Peak to 20°	dB	> 14	> 15	> 15	> 14	> 14	> 14	> 14	> 14
Front-To-Back Ratio ±30°		dB	> 20	> 22	> 23	≥ 23	≥ 23	> 24	≥ 24	≥ 24
Cross Polar	at Boresight	dB	> 16	> 17	> 18	> 16	> 16	> 17	> 18	> 18
Discrimination	Over Sector	dB	> 7.0	> 8.0	> 7.5	> 6.0	> 6.0	> 6.0	> 4.0	> 3.0
Isolation	Cross-Polar	dB	> 25			> 25
Isolation	Port-To-Port	dB	> 28			> 28
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

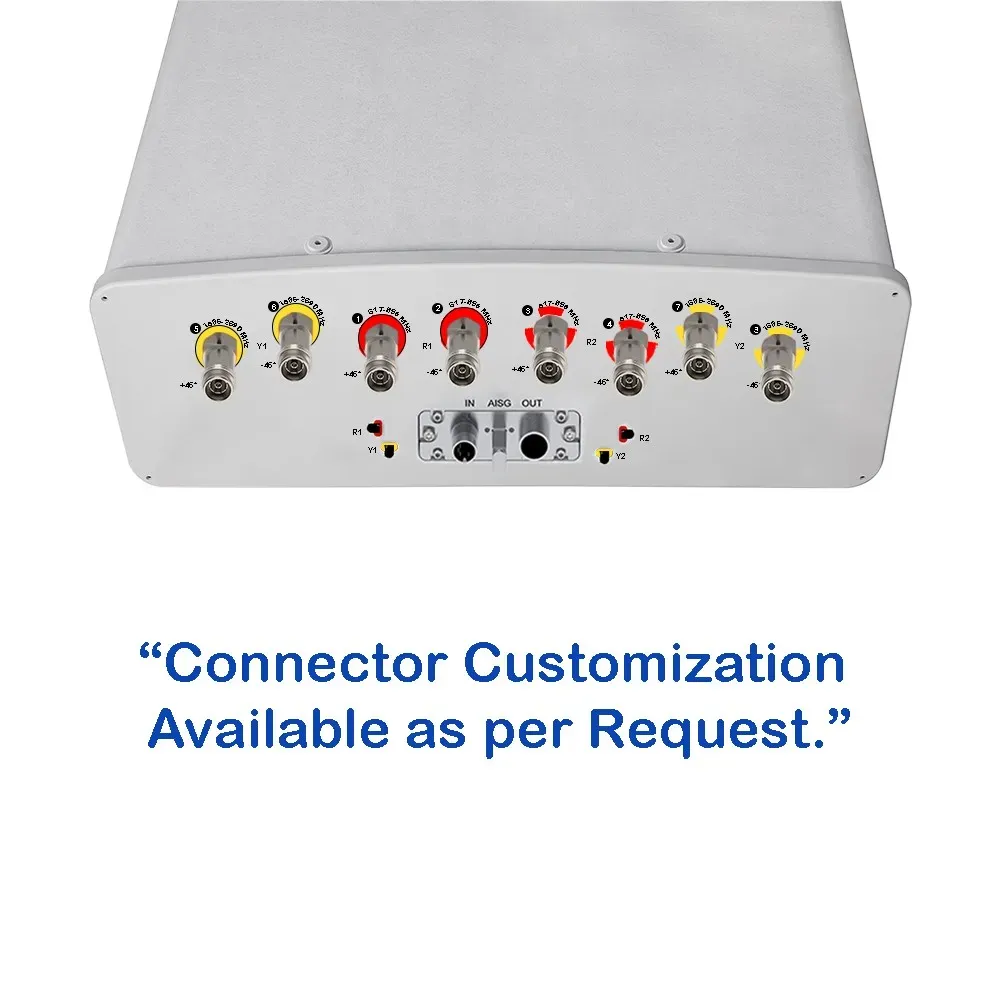

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass
Antenna Dimensions (H x W x D)		mm (in)	1827 x 497 x 197 (71.9 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	29 (63.9)
Antenna Weight	with Clamps	kg (lbs)	33 (72.8)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	840 (188.8)
at 150 km/h	Rear	N (lbf)	940 (211.3)
	Lateral	N (lbf)	410 (92.2)
Operating Temperature		°C (°F)	-40° to +60° (-40 to 140°)
