Product code: 8P-617-2200F-16G-65H15V

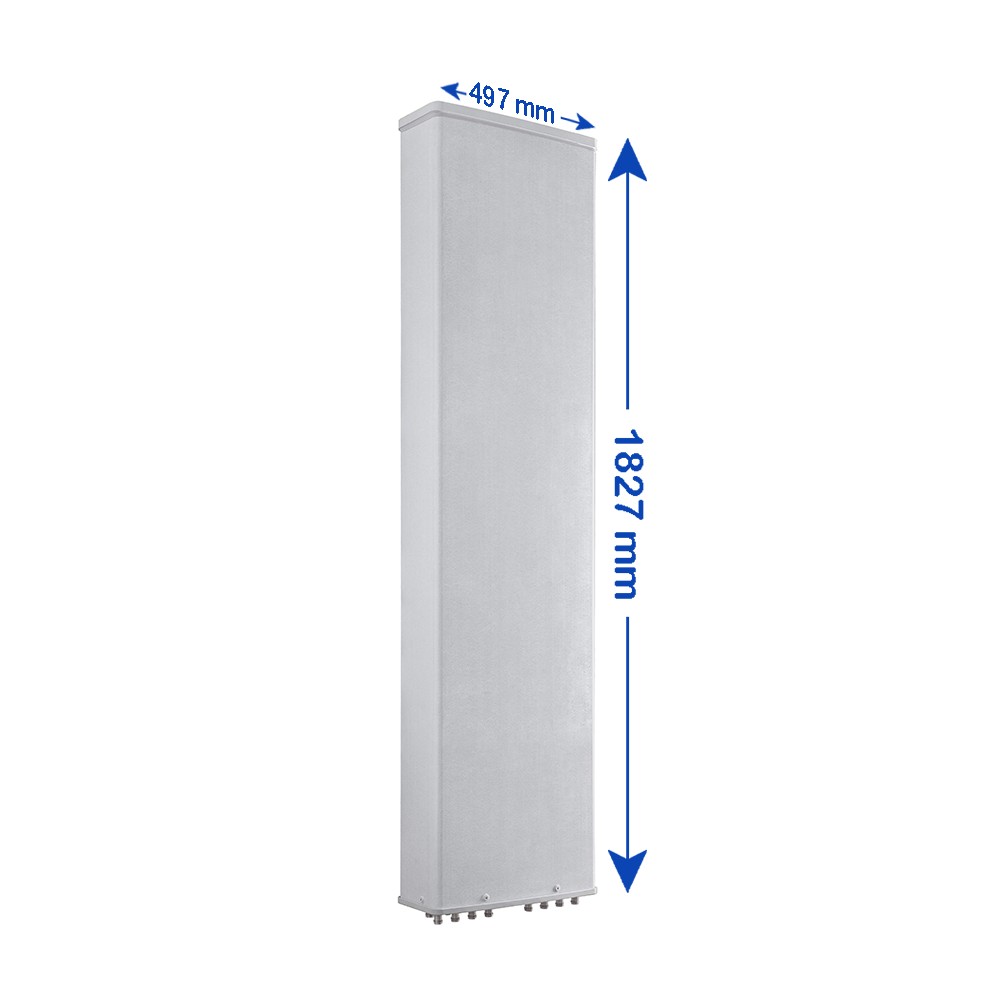

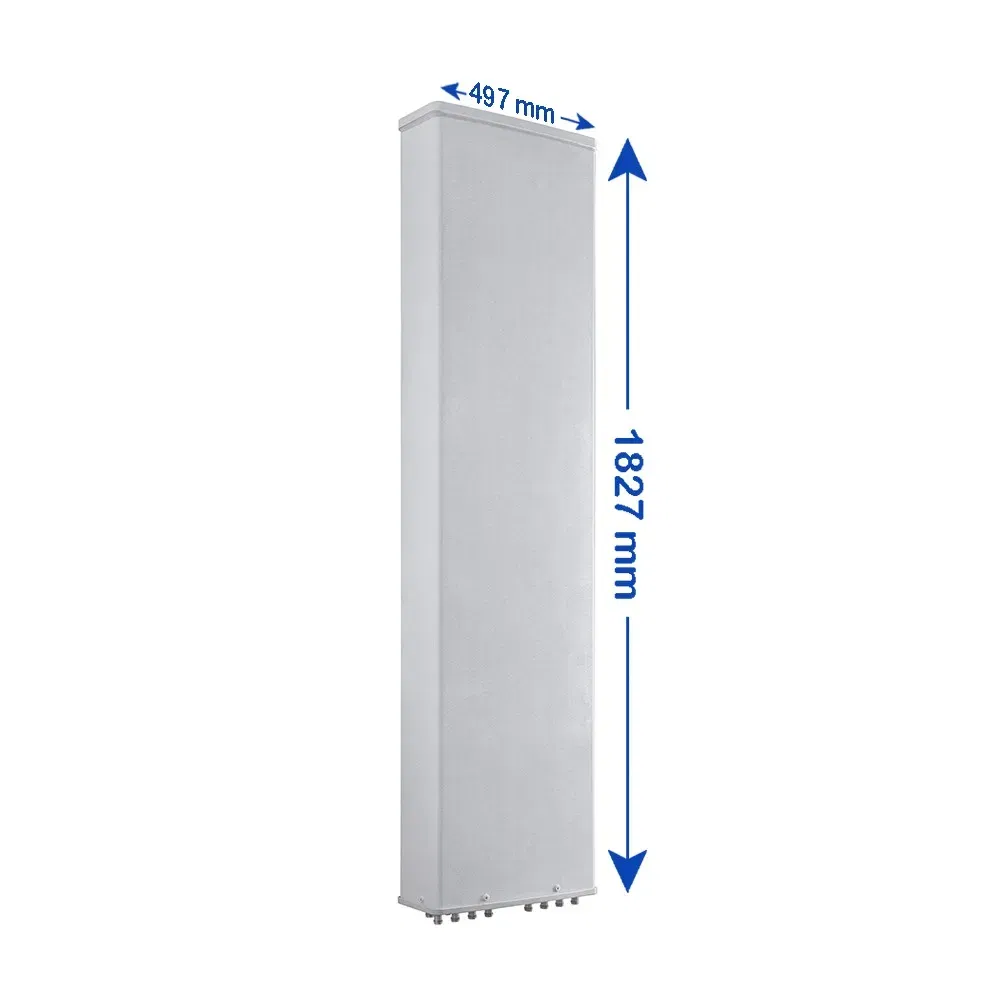

8-Port, Panel Sector Antenna, 65° HBW, (2x) 617-896/(2x) 1695-2200 MHz, 15.5/15.5/18/18 dBi, 2-14°/2-12°T, 1.827 m

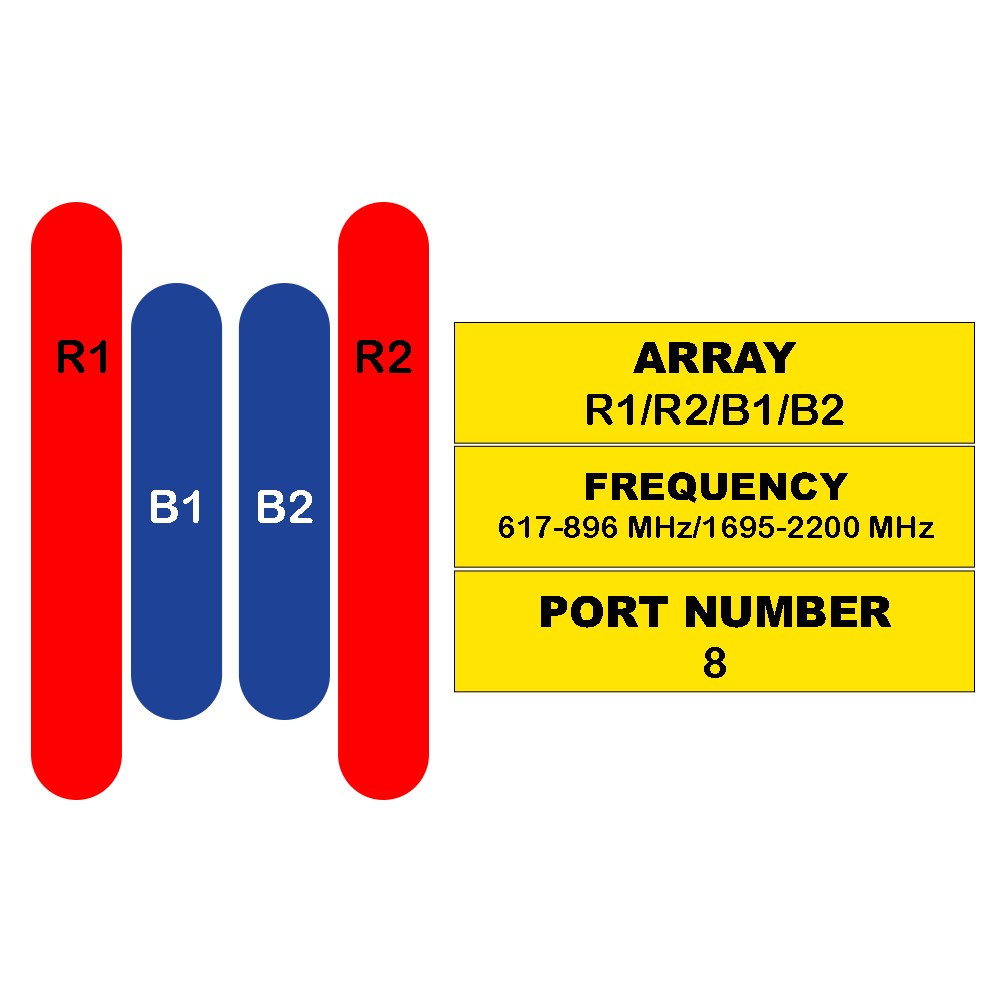

| 8-Port Antenna | R1 | R2 | B1 | B2 |
| Frequency Range (MHz) | 617-896 | 617-896 | 1695-2200 | 1695-2200 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 18 dBi | 18 dBi |
| Tilt | 2-14° | 2-14° | 2-12° | 2-12° |

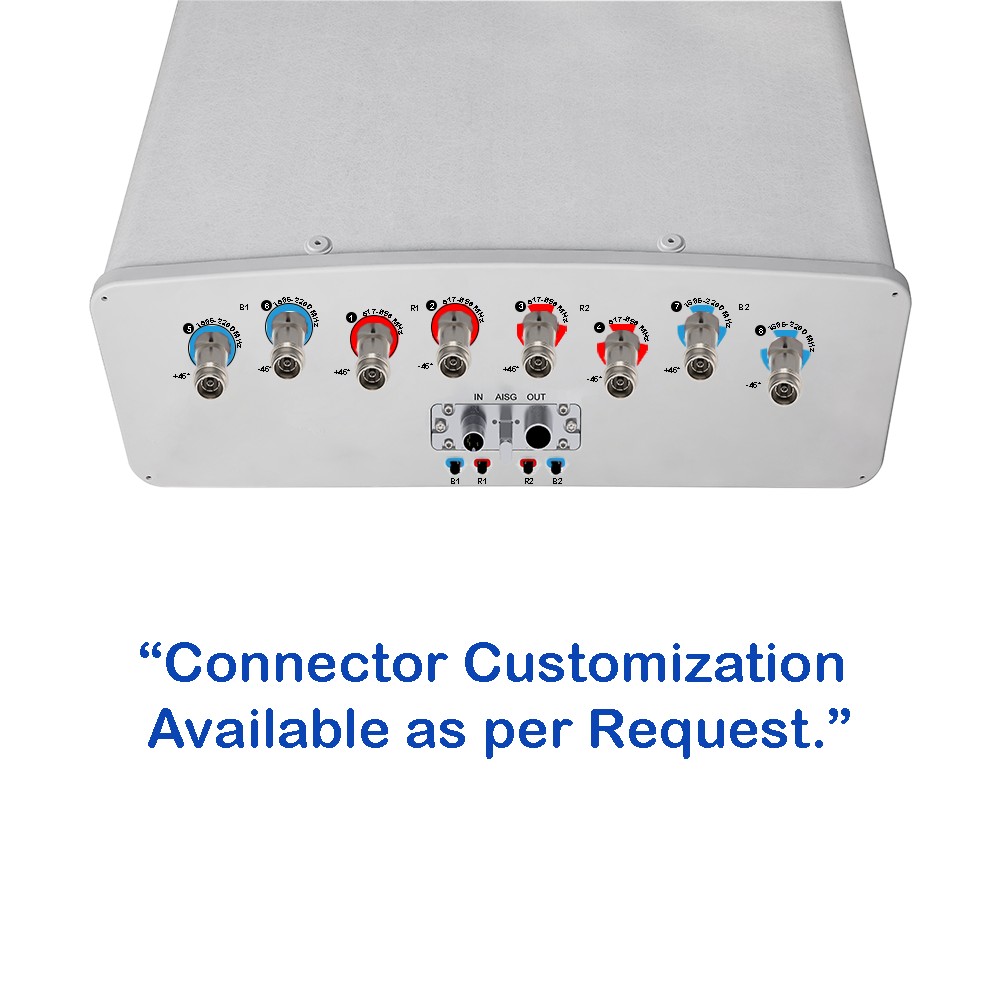

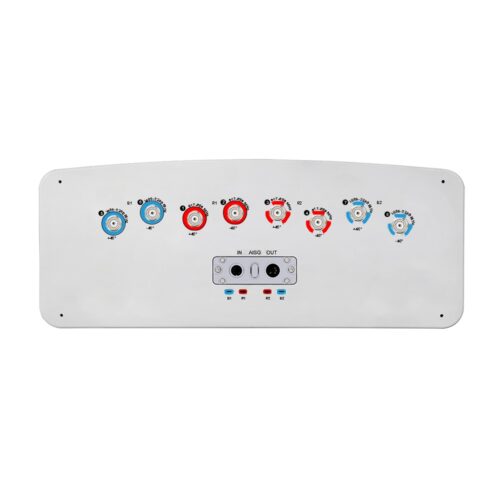

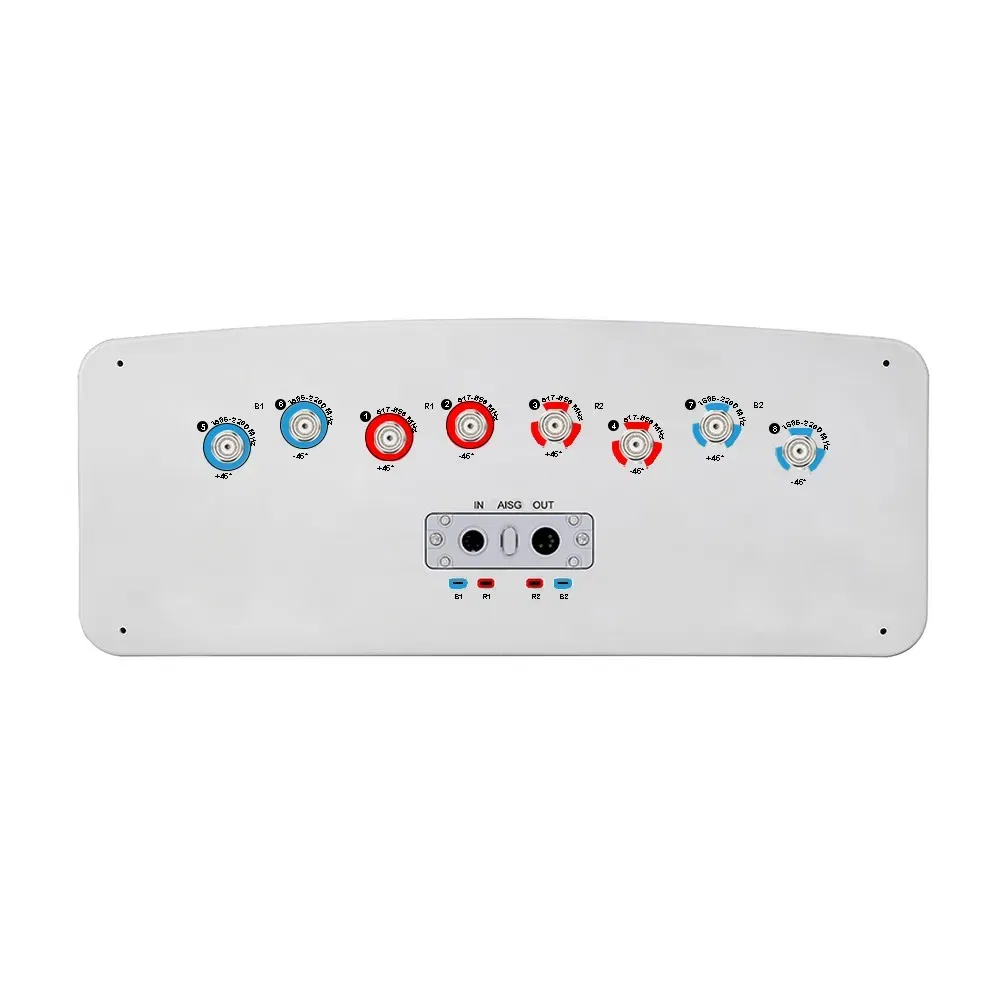

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
