Product code: 8P-617-2690F-14G-65H18V

8-Port, Panel Sector Antenna, 65° HBW, (2x) 617-896/ (2x) 1695-2690 MHz, 14/14/18/18 dBi, 2-12°T, 1.397 m

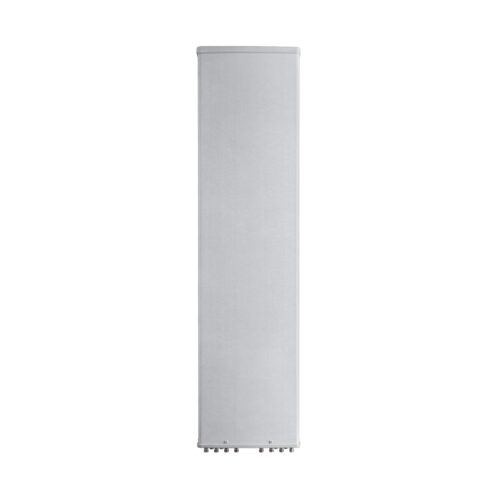

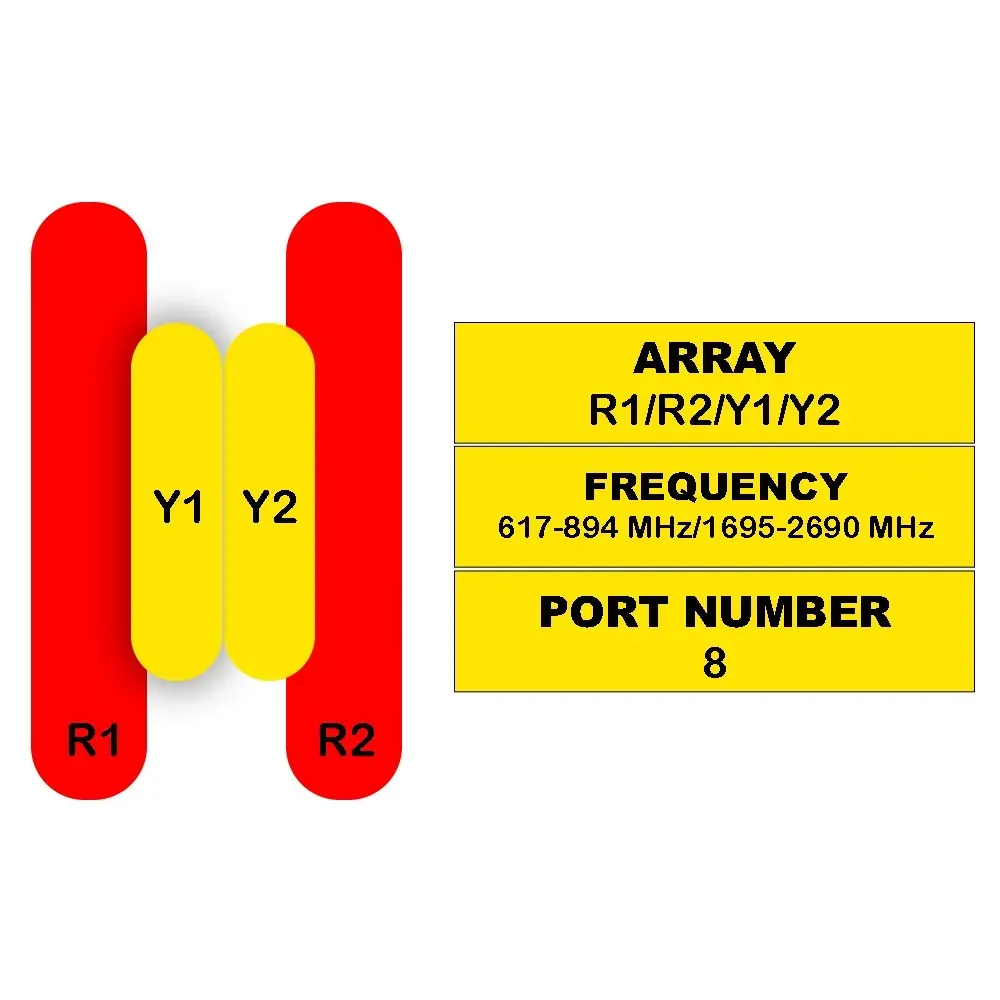

8-Port Antenna R1 R2 Y1 Y2
Frequency Range (MHz) 617-896 617-896 1695-2690 1695-2690
HBW 65° 65° 65° 65°
Gain 14 dBi 14 dBi 18 dBi 18 dBi
Tilt 2-12° 2-12° 2-12° 2-12°

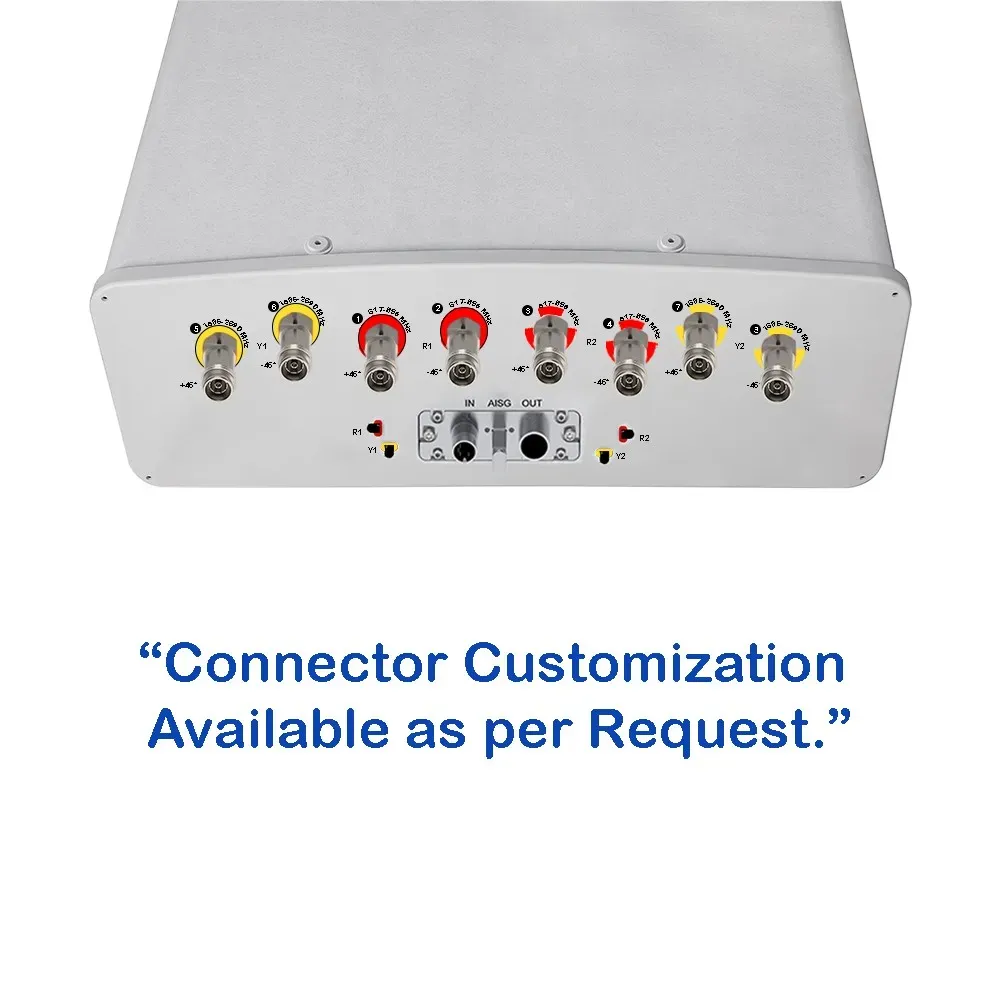

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
8P-617-2690F-14G-65H18V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y2
Frequency RangeMHz617-8961695-2690
MHz617-698690-806790-8961695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°
Gainat Mid TiltdBi13.113.513.916.616.917.217.617.6
Over All TiltsdBi12.9 ± 0.513.3 ± 0.513.7 ± 0.516.4 ± 0.616.7 ± 0.617.1 ± 0.617.4 ± 0.517.4 ± 0.5
Horizontal Beamwidthdegree73 ± 6.068 ± 6.066 ± 5.068 ± 6.564 ± 6.563 ± 6.563 ± 6.061 ± 6.5
Vertical Beamwidthdegree18.7 ± 1.116.6 ± 0.914.9 ± 0.86.8 ± 0.56.4 ± 0.56.0 ± 0.55.2 ± 0.54.8 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 15> 15> 15> 16> 16> 16> 16> 16
SuppressionPeak to 20°dB> 14> 14> 14> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 21> 22> 23≥ 24≥ 25> 25≥ 26≥ 26
Cross Polarat BoresightdB> 16> 17> 18> 16> 16> 17> 18> 18
DiscriminationOver SectordB> 7.0> 8.0> 7.5> 6.0> 7.0> 7.0> 4.0> 2.0
IsolationCross-PolardB> 25> 26
Port-To-PortdB> 25 (R1/R2), > 26 (R1/Y1, Y2)> 28
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(8x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1397 x 497x 197 (55.0 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)24.5 (54.0)
with Clampskg (lbs)28.5 (62.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)640 (143.9)
at 150 km/hRearN (lbf)715 (160.7)
LateralN (lbf)315 (70.8)
Operating Temperature°C (°F)-40° to +60° (-40 to 140°)
