Product code: 8P-1710-2690F-21G-65H5V

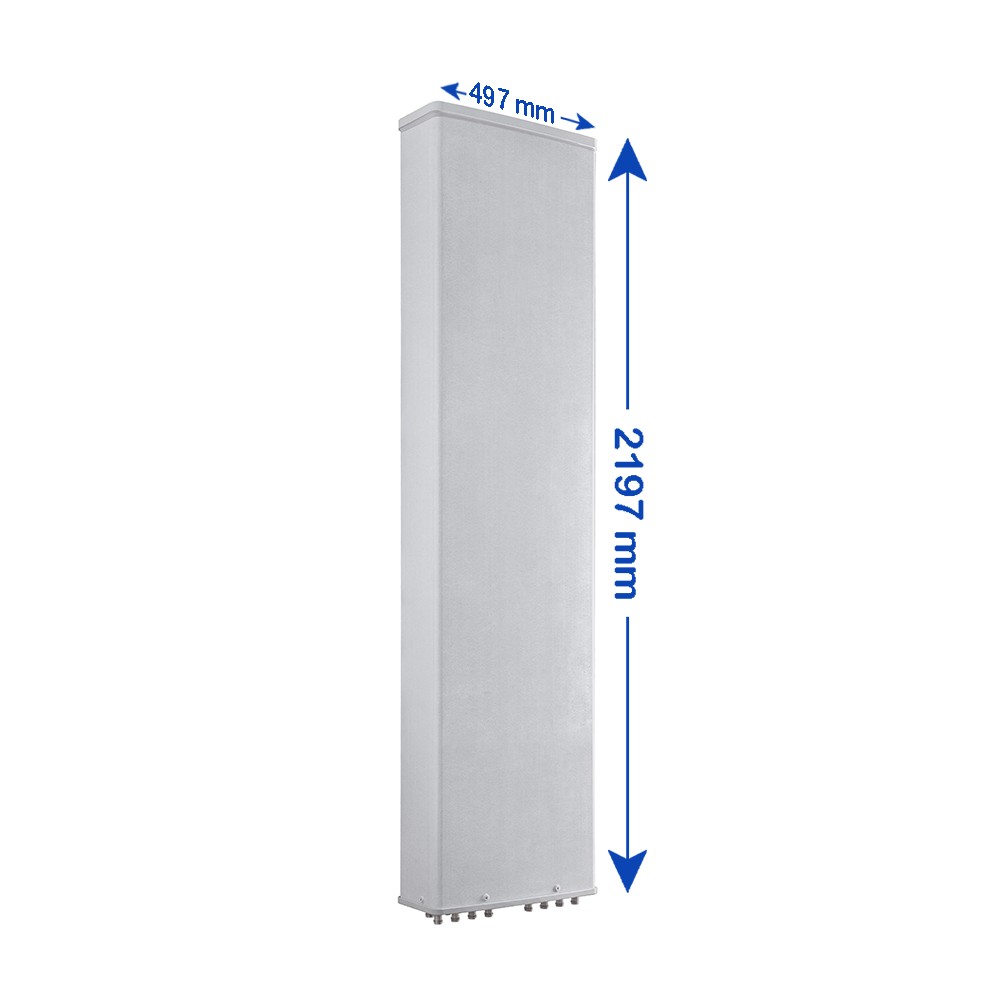

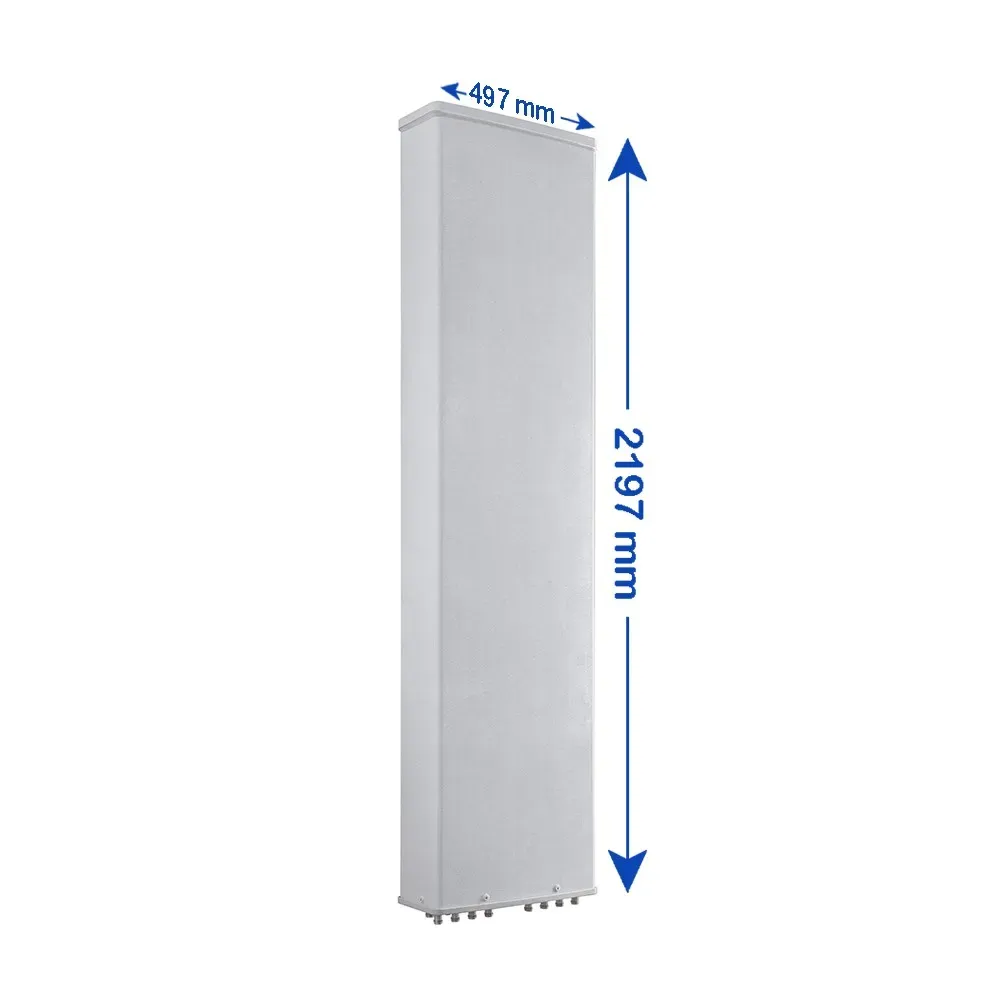

8-Port, Panel Sector Antenna, 65° HBW, (4x) 1710-2690 MHz, 21/21/21/21 dBi, 0-6°T, 2.197 m

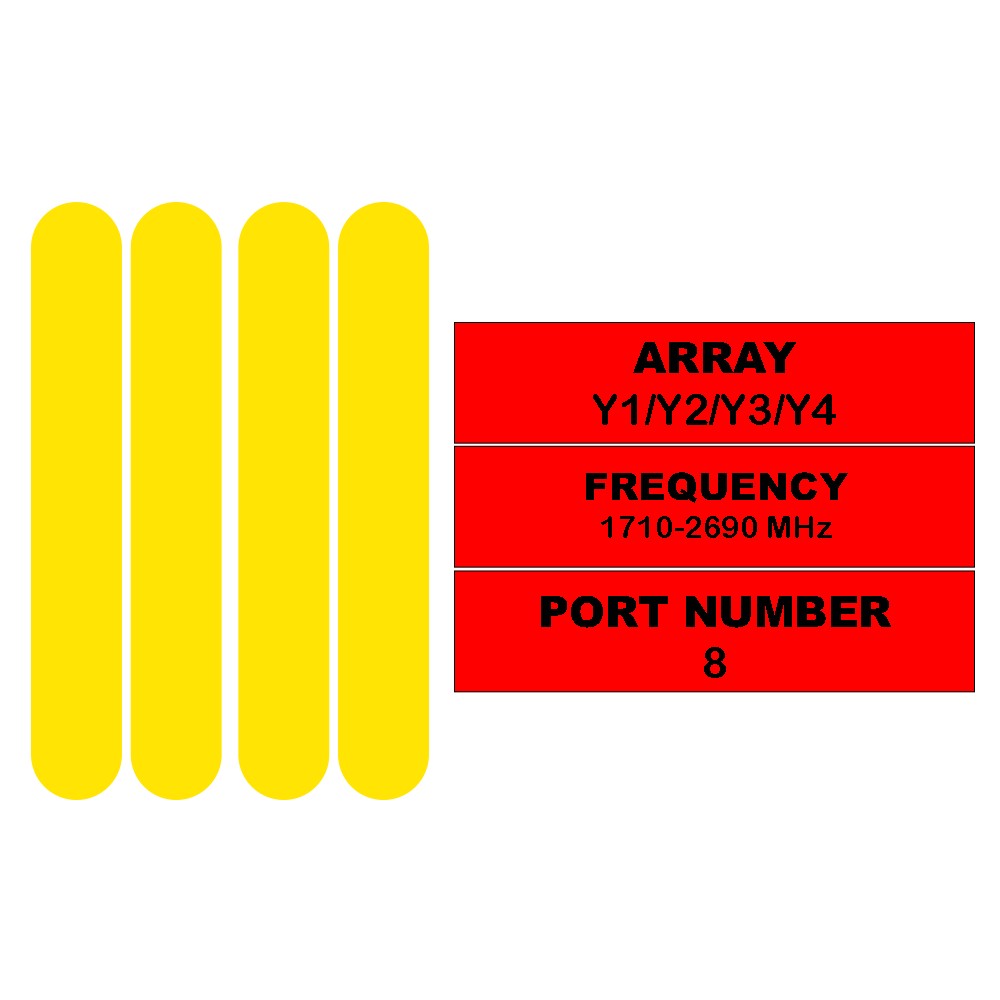

| 8-Port Antenna | Y1 | Y2 | Y3 | Y4 |
| Frequency Range | 1710-2690
MHz |
1710-2690
MHz |
1710-2690
MHz |
1710-2690
MHz |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 21 dBi | 21 dBi | 21 dBi | 21 dBi |
| Tilt | 0-6° | 0-6° | 0-6° | 0-6° |

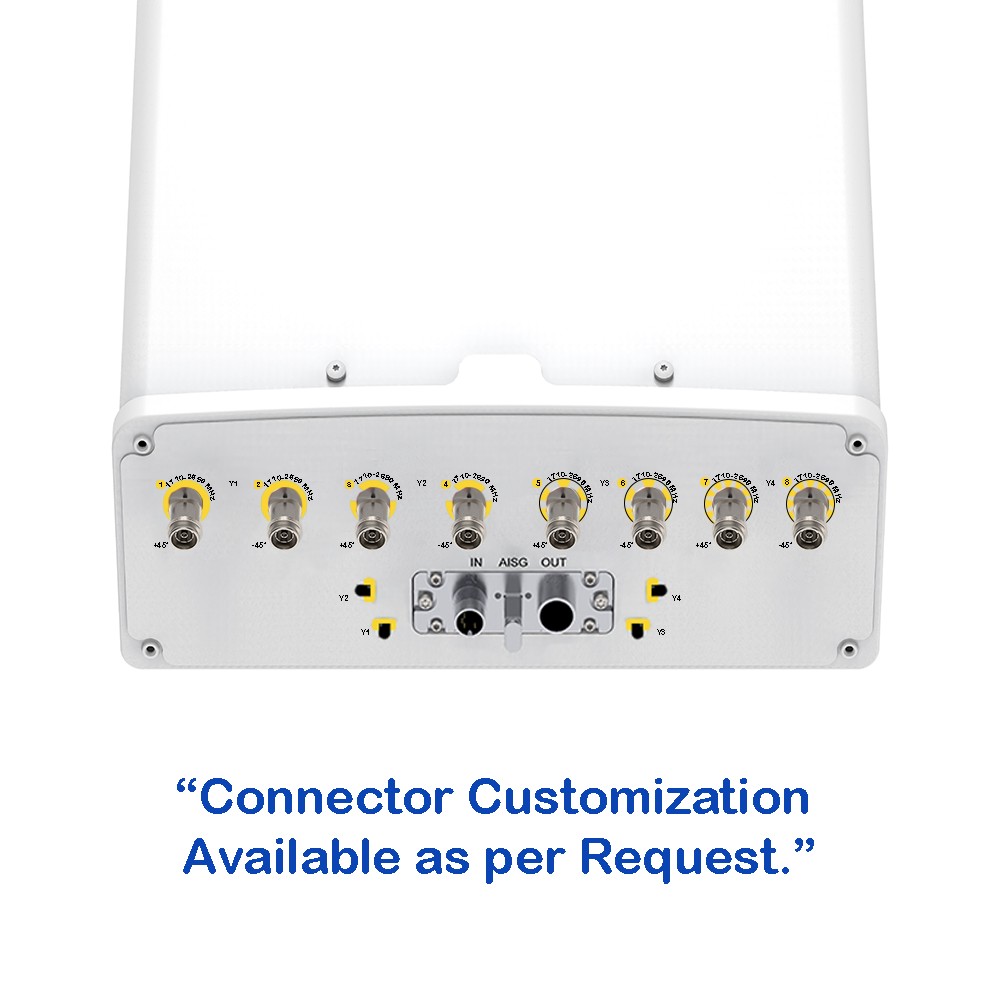

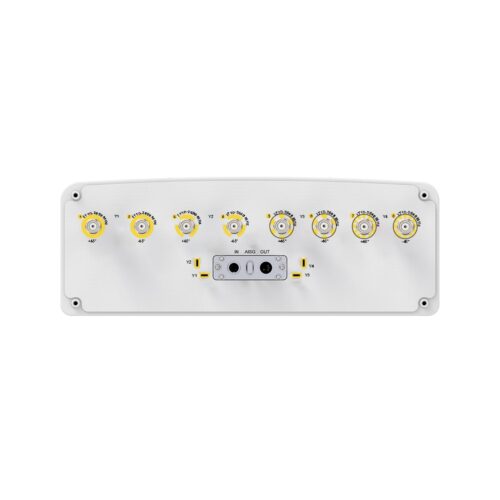

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
