8-Port, Panel Sector Antenna, 65° HBW, 617-894 / 617-894 / 1710-2180 / 1710-2180 MHz, 16/16/17/17 dBi, 2-12°T, 2.437 m

Product code: 8P-617-2180F-16G-65H11V

8-Port, Panel Sector Antenna, 65° HBW, 617-894 / 617-894 / 1710-2180 / 1710-2180 MHz, 16/16/17/17 dBi, 2-12°T, 2.437 m

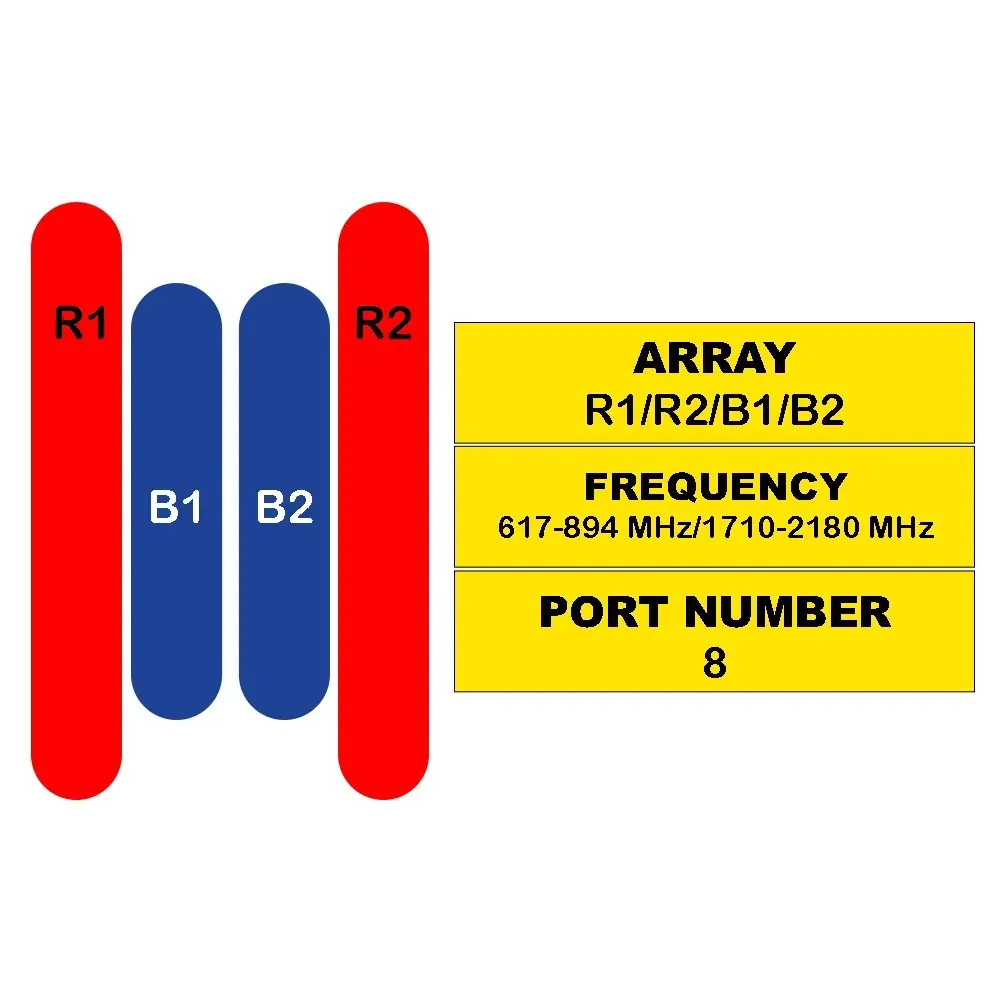

8-Port Antenna	R1	R2	B1	B2
Frequency Range (MHz)	617-894	617-894	1710-2180	1710-2180
HBW	65°	65°	65°	65°
Gain	16 dBi	16 dBi	17 dBi	17 dBi
Tilt	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-617-2180F-16G-65H11V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			B1 / B2
Frequency Range		MHz	617-894			1710-2180
Frequency Range		MHz	617-698	690-806	790-894	1710-1880	1850-1990	1920-2180
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	15	15.5	15.9	16.6	17	17.4
Gain	Over All Tilts	dBi	14.8 ± 0.5	15.2 ± 0.5	15.7 ± 0.5	16.4 ± 0.6	16.8 ± 0.5	17.2 ± 0.5
Horizontal Beamwidth		degree	75 ± 4.4	72 ± 4.4	69 ± 3.6	69 ± 6.5	68 ± 6.1	66 ± 6.1
Vertical Beamwidth		degree	10.8 ± 1.1	9.7 ± 0.9	8.4 ± 0.8	6.2 ± 0.6	5.8 ± 0.6	5.4 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
Tilt Accuracy		degree	< 1	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe	First Upper Lobe	dB	> 15	> 16	> 16	> 16	> 16	> 16
Suppression	Peak to 20°	dB	> 14	> 15	> 15	> 14	> 14	> 14
Front-To-Back Ratio ±30°		dB	> 21	> 22	> 23	> 23	> 23	> 24
Cross Polar	at Boresight	dB	> 16	> 18	> 18	> 16	> 16	> 16
Discrimination	Over Sector	dB	> 8.0	> 8.0	> 7.5	> 7	> 8	> 8
Isolation	Cross-Polar	dB	> 26			> 26
Isolation	Port-To-Port	dB	> 25			> 26
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

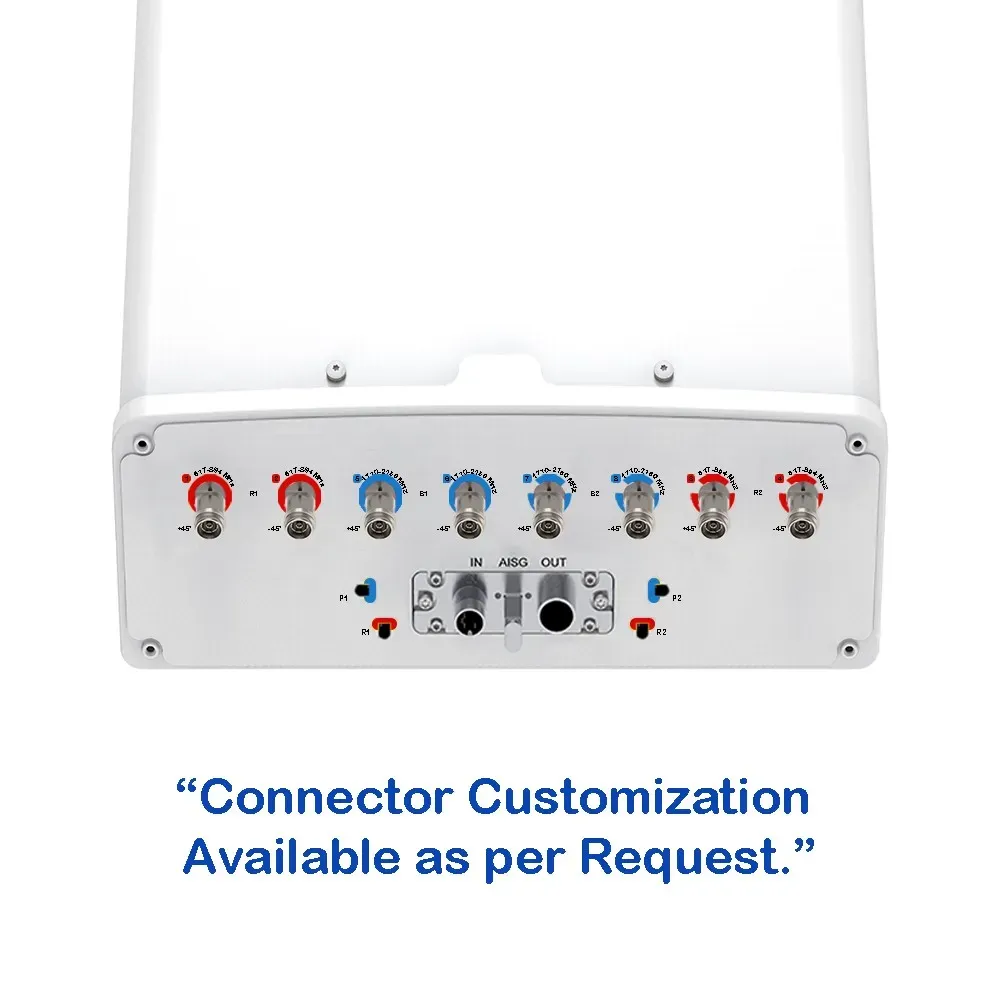

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

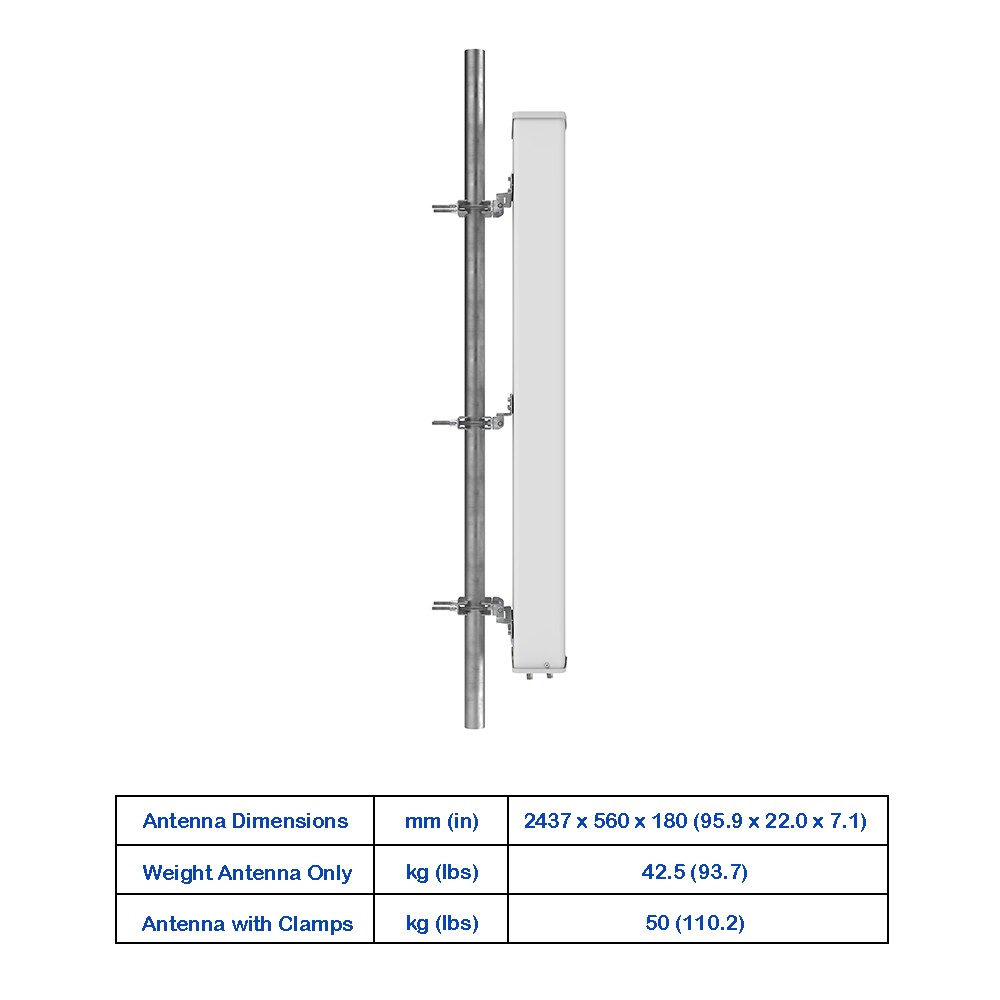

Antenna Dimensions (H x W x D)		mm (in)	2437 x 560 x 180 (95.9 x 22.0 x 7.1)
Antenna Weight	Antenna Only	kg (lbs)	42.5 (93.7)
Antenna Weight	with Clamps	kg (lbs)	50 (110.2)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1260 (283.3)
at 150 km/h	Rear	N (lbf)	1410 (317.0)
	Lateral	N (lbf)	500 (112.4)
